Product pictures

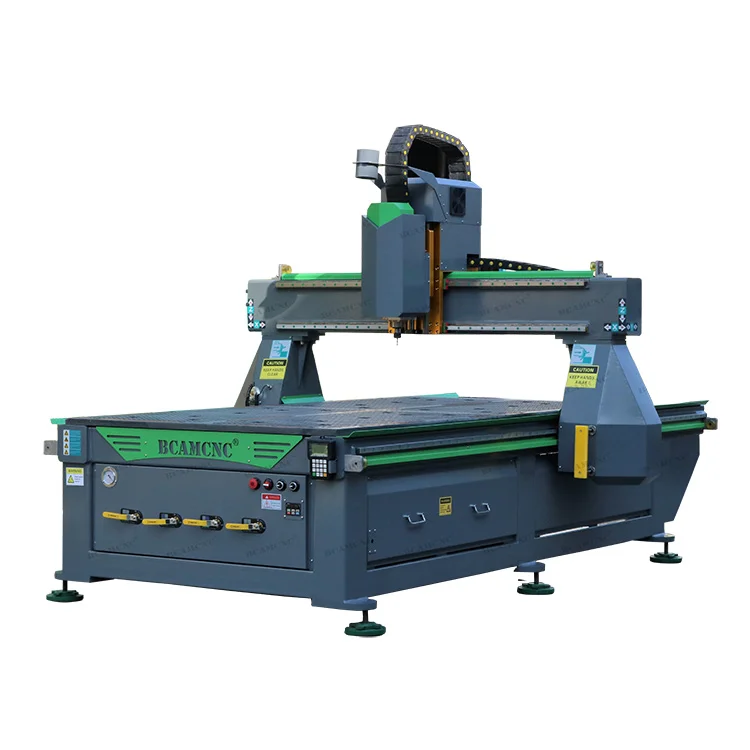

BCM1325S series
The BCM1325S CNC router is ideal for amateurs and professionals.Superior precision allows you to perform precise inlays, 3D engraving, engraving and printed circuit boards. Ruggedness allows you to handle the toughest wood processing projects, cabinets, non-ferrous metals, plastics,signage, etc. BCAM machines can handle abuse,so they are perfect for first-time users or education.Our machines are used by industry, universities, high schools,small businesses and amateurs around the world.
Product Paramenters
|
Machine name
|
wood engraving machine BCM-1325S
|
|
Working table
|
Vaccum table+T-slot
|
|
Workable size
|
1300x2500x200mm
|
|
Spindle motor
|
HQD 3.0/4.5/5.5/6.0/7.5/9.0 kw air cooling spindle
|
|
X Y Z traveling Positioning accuracy
|
±0.03/300mm
|
|
Max Working Speed
|
20000mm/min
|
|
Working Voltage
|
AC380V/220V/50Hz/60Hz
|
|
Command language
|
G Code,*uoo,*mmg,*plt
|
|
Operating system
|
High quality stepper motor
|
|
X,Y,Z Guide Rail
|
Taiwan HIWIN Square Rail
|
|
Computer Interface
|
USB
|
|
Flash memory
|
128M(U Disk)
|
|
Collet
|
ER32
|
|
Software
|
Type3/Wentai/Artcam
|
Details Images

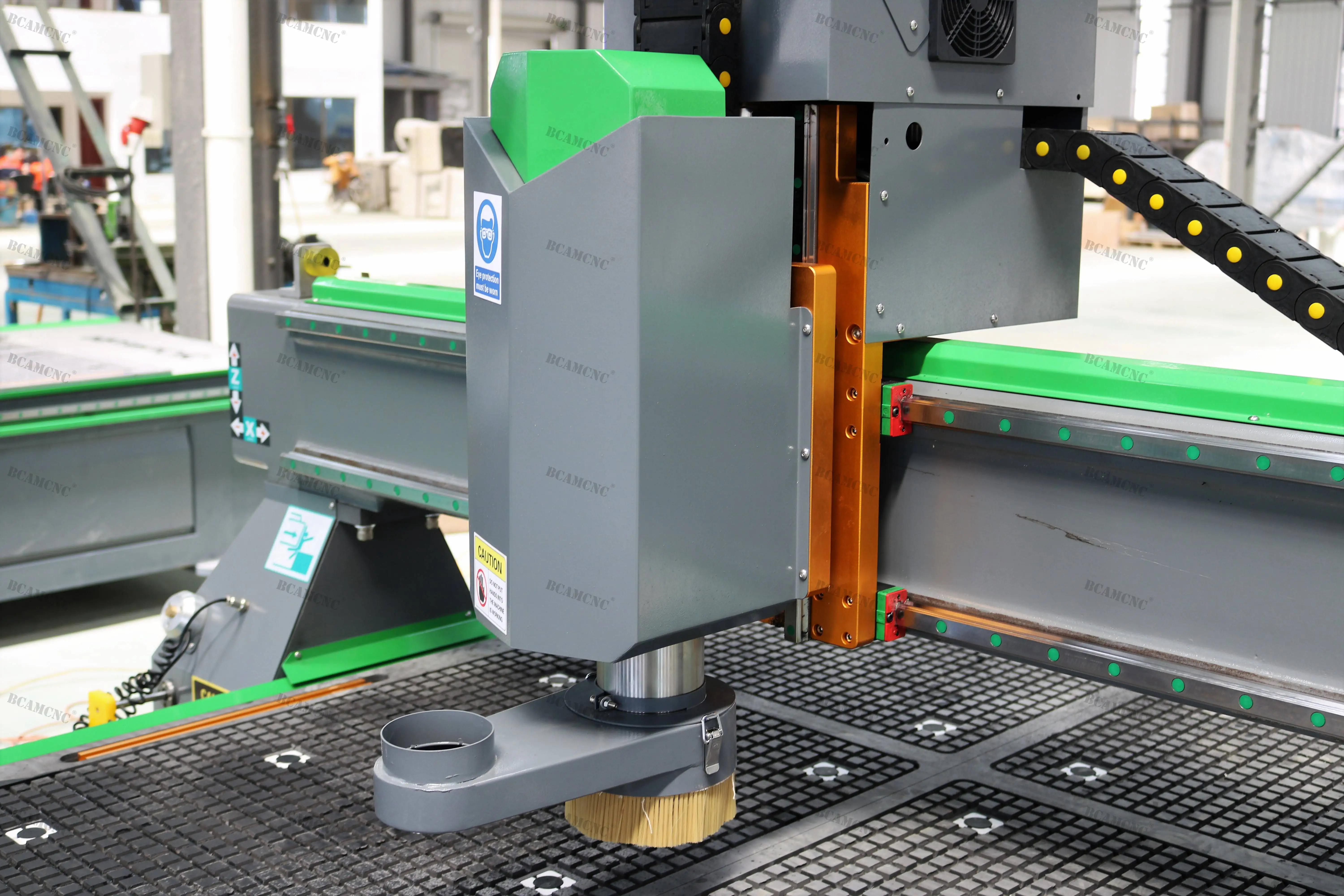

The country’s first dust-free vacuum system
The country’s first dust-free vacuum system is inspired by the “Typhoon”cyclone.Our French engineer, Mr Ness,studied this technology for three years and finally developed it uccessfully which has been perfectly applied into our products,which is now a BCAM patent ourtesy of our French engineer.The beautiful design and excellent performance have won praise from many customers
.BCAM engraving machines.
.BCAM engraving machines.
Active production system
The original active protection system, also known as the“anti- collision emergency stop switch”,has active protection for workers’
safety during the working process of the machine.At the same time, it has a system to automatically save the breakpoint, and after
the alarm is manually released,the engraving machine can continue to work.BCAM1325C cnc router machine
safety during the working process of the machine.At the same time, it has a system to automatically save the breakpoint, and after
the alarm is manually released,the engraving machine can continue to work.BCAM1325C cnc router machine
Comes with Spindle and Inverter with water-cooling system. 110V or 220V or 380V available.
8 Inches of Z-Travel capability: perfect for thicker materials and deeper wood carving designs and applications.
Vacuum table+T-solt
Vacuum table using high-density (1.3-
1.45g/cm) material with great suction
strength, comfortably accommodating all
sizes of work piece. Pop up pins make right
position for work piece.
Auto lubricating system
Auto lubricating system, one
touch can finish periodic
maintenance easily.1325 cnc router machine
touch can finish periodic
maintenance easily.1325 cnc router machine
Tank chain protection
Tensioned Roller chain on the gantry to reduce racking and improve accuracy.
DSP control system
Richauto A11 DSP controller, easy to use. Optional: March3 March4(Ethernet Controller), Weihong DSP controller, Taiwan Syntec, NC-Studio 53C, 95A, also with Wifi controller.

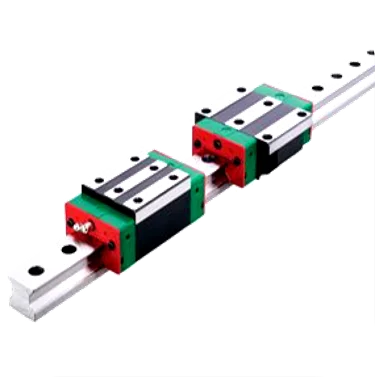

Taiwan Hiwin 25 rails
HIWIN Precision-Ground Bearings, Linear Guides and Helical Rack-and-Pinion for precision and longevity
SAMPLE
