The Lotos LTPDC2000D is a first to market multi purpose welder that allows the user to DC TIG/Stick weld and plasma cut all from one portable machine. LTPDC2000D combines 3 functions into one with a 200amp DC TIG Welder, a 200 Amp Stick Welder, and a 50amp Pilot Arc Plasma Cutter with the flip of a switch. It is able to cut various types of metal up to 1/2 inch with the 50A pilot arc plasma cutting function. It is designed especially for businesses and DIY (do-it-yourself) users, while fully accommodating the demands of professional operators. An optional foot pedal is available for purchase.
3 in 1 Combo
LOTOS LTPDC2000D is a multipurpose 3 in 1 combo welding machine (Dual Voltage 220V/110V): -50A Pilot Arc Plasma Cutter -200A TIG Welder -200A Stick Welder |
Non-touch Pilot ARC
Pilot arc torch efficiently cuts through rough, painted and rusty surfaces and produces minimal slag.
Pilot arc technology allows you to cut without touching the tip to the metal. Better cutting quality and longer consumable life. |
1/2 Inch Clean Cut
-Max Rated Clean Cut Thickness: 1/2’’ -Max Severance Thickness: 3/4’’ -DC TIG Output Current: 10-200A @ 220V & 10-150A @ 110V
-DC Stick/MMA Output Current: 10-200A @ 220V & 10-150A @ 110V |
Dual Voltage
Automatic Dual Voltage / Dual Frequency (110V/220V 50/60Hz).
Dual voltage capability allows the machine to run directly on 220V 50/60 Hz power, or on 110V 50/60 Hz with the use of a pigtail (sold separately). |
- [Non-Touch Plasma Cutter] 50AMP Plasma Cutter Current Output; Max Ideal Cut Thickness: 1/2″ ; Max Severance Thickness: 3/4″; Pilot Arc Torch Efficiently Cuts Though Rough, Painted, and Rusty Surfaces and Produces Minimal Slag; Compact Plasma Cutter Has a Handle for Portability and Uses Non-Hazardous Compressed Air to Cut Stainless Steel, Alloy Steel, Mild steel, Copper, and Aluminum
- [TIG Welder] 15-200AMP DC TIG Electric Current Output; Quality TIG welding on Stainless or Steel and Precise Welding of Thinner-gauge Materials;HF; Both HF start hand torch control and Support Precise Foot Pedal Welding Heat Control(Foot Pedal NOT Include).
- [Stick/MMA Welder] 15-200AMP DC Stick/MMA Electric Current Output; Easy ARC Start, Stable Welding Arc,Deep Weld Pool and Beautiful Welding Shape; Adjustable Hot Striking Arc Current which Can Greatly Improve the Arc-Starting Function; Suitable for Welding with Different Kinds of Acid or Basic Electrode
- [Dual Voltage] Automatic Dual Voltage / Dual Frequency (110/220V 50/60Hz); Dual Voltage Capability Allows the Machine to Run Directly on 220V 50/60 Hz Power, or on 110V 50/60 Hz with the Use of a Pigtail (sold separately)

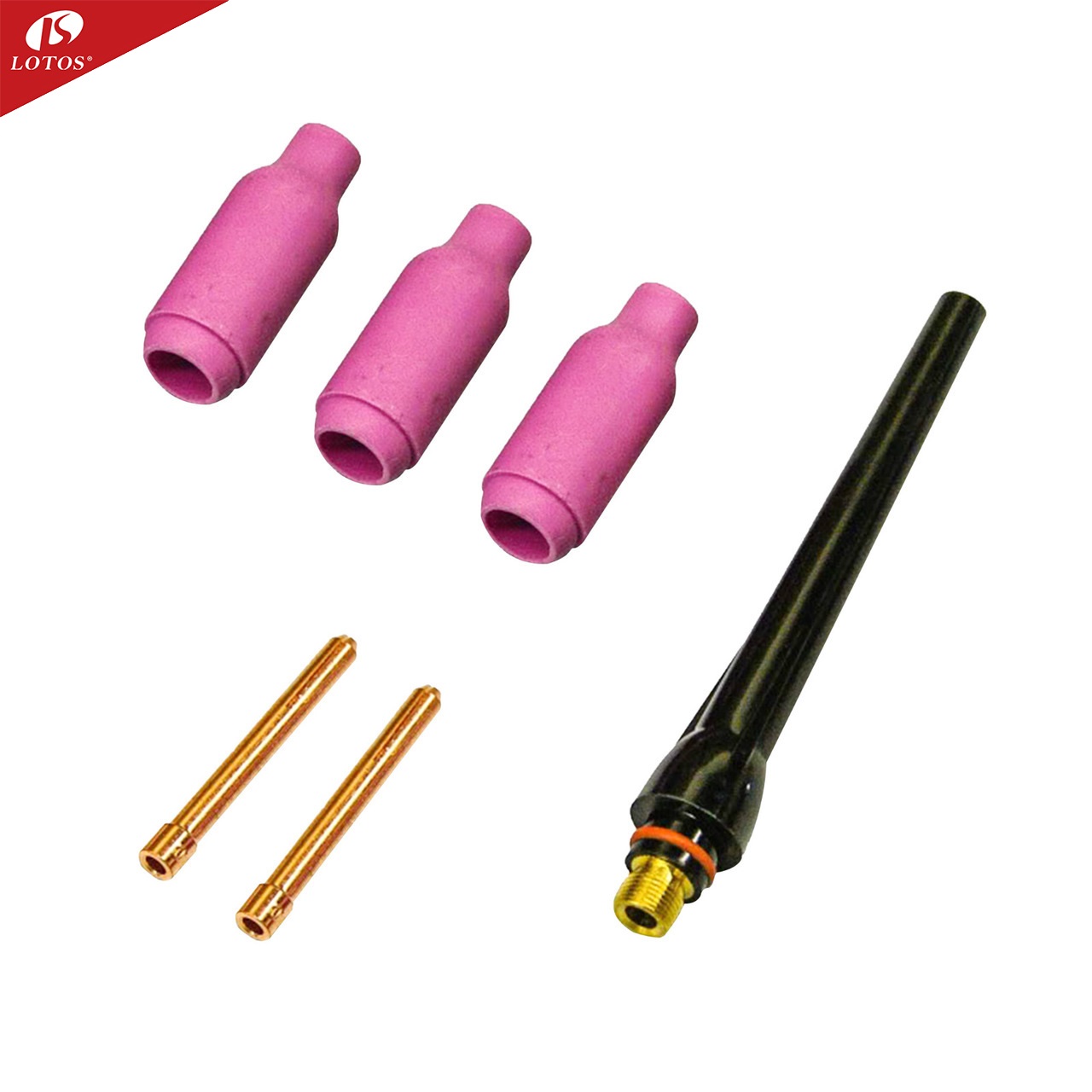

- [Include]: 1 Year Limited Warranty; Power Supply; Cutting Torch; Tig Torch; Sitck/MMA Welder Torch; Consumables; Ground Clamp; Air Filter and Regulator; Argon Regulator; Connections
LOTOS LTPDC2000D |
||
General Specification |
Type |
Inverter-MOSFET |
Functions |
50A Pilot Arc Plasma Cutter 200A TIG Welder 200A Aluminum STICK Welder |
|
Input Voltage |
110-220V, 1-PH, 50/60 Hz |
|
Efficiency |
85% |
|
Dimension |
394*203*305mm |
|
Weight |
19.5kg |
|
Plasma Cutting |
Rated Input Power Requirement |
120-220V, 1-PH, 27A +/- 15%, 50/60 Hz |
Output Current |
10-50A @ 110/220V |
|
Duty Cycle @ 40℃ (104℉) |
60% @ 50A 100% @ 35A |
|
Cutting Material |
Mild steel, stainless steel, aluminum, etc. |
|
Max Cutting Thickness |
12.7mm |
|
Gas Supply |
Clean, dry, oil-free air |
|
DC TIG Welding |
Rated Input Power Requirement |
120-220V, 1-PH, 17A +/- 15%, 50/60 Hz |
Output Current |
15-200A @ 110/220V |
|
Duty Cycle @ 40℃ (104℉) |
60% @ 200A 100% @ 150A |
|
No-load Voltage |
62V |
|
Working Voltage |
16.9V |
|
Welding Material |
Steel, Stainless, Moly, Ferrous |
|
Gas Supply |
Clean, dry, oil-free argon gas |
|
DC STICK Welding |
Rated Input Power Requirement |
120-220V, 1-PH, 23A +/- 15%, 50/60 Hz |
Output Current |
15-200A @ 110/220V |
|
Duty Cycle @ 40℃ (104℉) |
60% @ 200A 100% @ 95A |
|
No-load Voltage |
62V |
|
Working Voltage |
25V |
|
Welding Material |
Steel, Stainless, Moly, Ferrous |
