Offline DSP control system Linear Guide Rail CNC router Milling Machine LY CNC 6040L engraving machine
Introduction
The CNC 6040 router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Linear Guide Rail, More Precise on moving.
The engraving process is visible as controlled by computer
Simple operation and installation
Warranty
1 year full warranty directly from factory
Shipping
• By DHL & UPS & FEDEX with tracking number, need 5~10 days;
• By SEA , need 40~50 days;
• Please email us your phone number after you pay for the item only for delivery purpose.
Technical Parameters
|
MODEL |
Offline DSP control system6040L |
|
Machine Dimensions: |
830 *620 * 600mm |
|
Rack material: |
45# steel (14mm and 12mm) |
|
Table size |
460 * 720mm (20mm aluminum alloy T table) |
|
Engraving area: |
360 *570mm |
|
Z-Axis Stroke: |
120mm, Engraving depth depends on the length of the tool edge |
|
Acceptable material thickness: |
140mm |
|
Rail type: |
Linear guide rail TRH20(more precise moving) |
|
Type of screw: |
Taiwan TBI Ball screw 1605 |
|
Spindle motor: |
1.5KW/ 2.2KW VFD water cooling spindle ,0-24000r/min |
|
Collet type: |
1.5KW ER11, 2.2KW ER20,1/8″(3.175mm) and 6mm Collet |
|
Stepper motor and drive: |
two-phase 57/3A |
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|
Repeat positioning Accuracy: |
0.03mm |
|
Communication interface: |
Not need computer, U disk read G code |
|
Toolauto-checking |
yes |
|
Software Compatability: |
Mach3 (Type3,Wentai, ArtCAM,coppercam) |
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|
Machine weight: |
140kg |
|

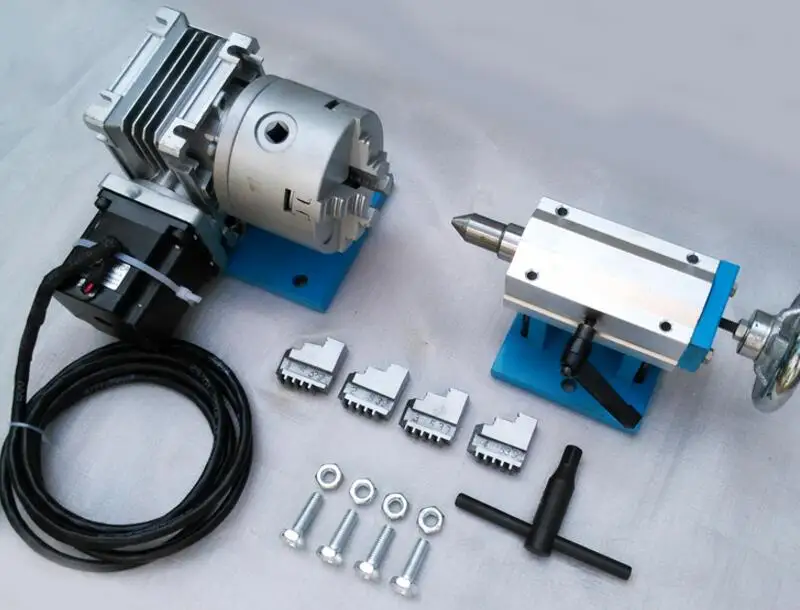

Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 71mm Clamping diameter: 80mm or less Deceleration mode: Gear box Deceleration ratio: 20:1 Stepper motor: 57 step motor current 3A Positioning accuracy: 0.075 ° |
Note:
This machine have other spindle, For example 800W;
But the price may be different;
If you need other spindle ,please message us or contact us, thank you very much;
|
Attribute |
3axis |
4axis |
||
|
1.5KW |
2.2KW |
1.5KW |
2.2KW |
|
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Weigh |
140 |
140 |
145 |
145 |
|

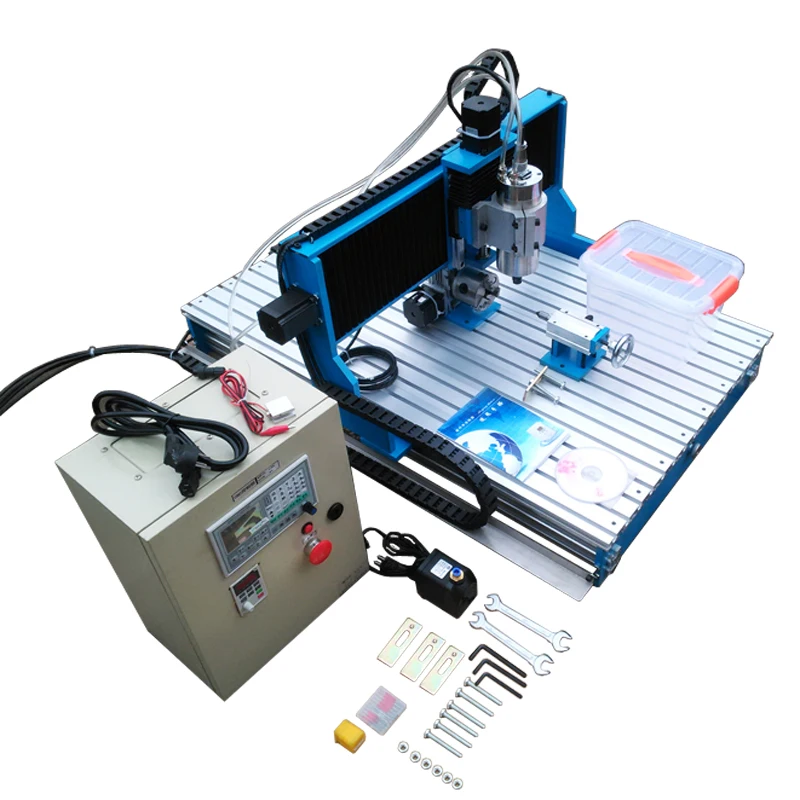

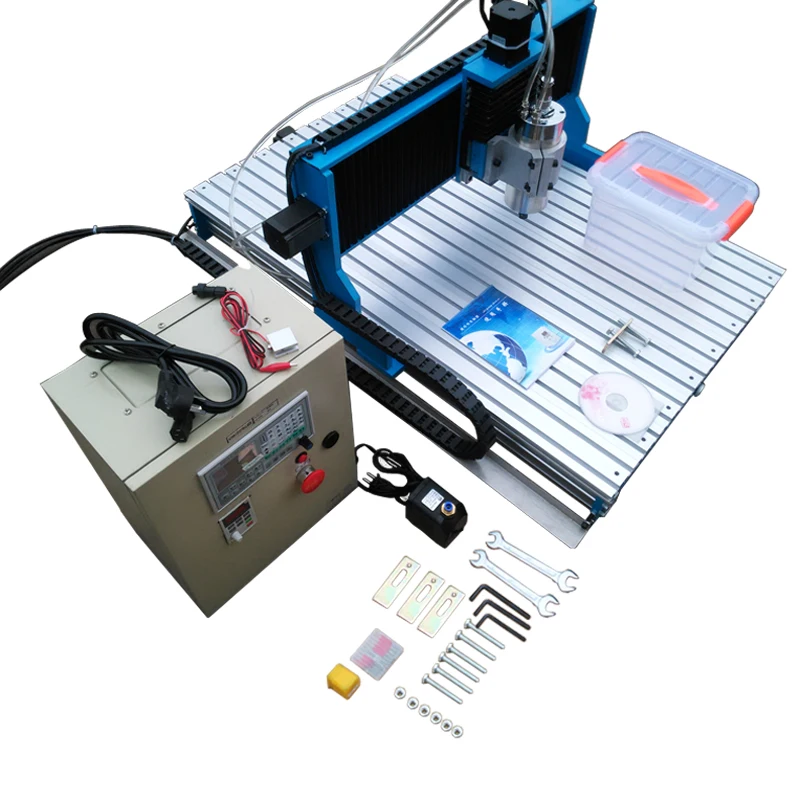

Packing list |
|
|
|
|
|
1× Engraving machine |
√ |
√ |
√ |
√ |
|

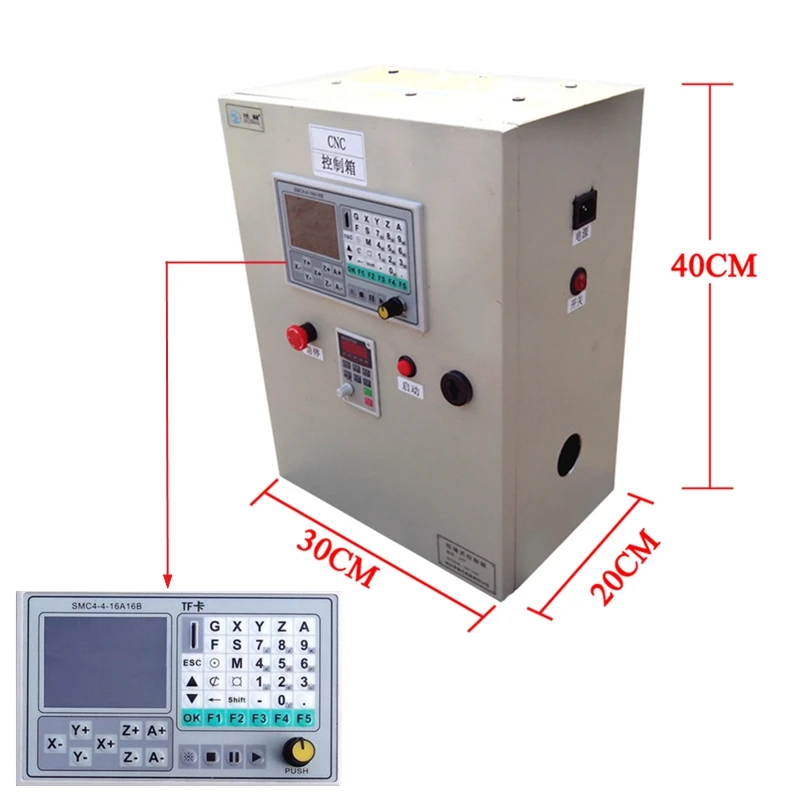

1×Offline DSP Control box |
√ |
√ |
√ |
√ |
|
1× Power cable |
√ |
√ |
√ |
√ |
|
1× Parallel port cable |
x |
x |
x |
x |
|
1× USB port cable |
x |
x |
x |
x |
|
1× Tool package |
√ |
√ |
√ |
√ |
|
1× Rotation axis |
x |
x |
√ |
√ |
|
1×tool auto-checking instrument |
√ |
√ |
√ |
√ |
|
1x water pump |
√ |
√ |
√ |
√ |
|
1× CD (if not get, may be lost in customs, please contact us) |
√ |
√ |
√ |
√ |
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
ShenzhenLiyang Welding Equipment Co,. Ltd. business group is located in Shenzhen, China.
CNC machines like cnc 3020/4030/6040/9060 …series products are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
