Principle
Applications
|
Design
|
MZ-DS54
|
MZ-DS101
|
MZ-DS105
|
||
|
Maximum weighing value
|
50g
|
100g
|
100g
|
||
|
Display division value
|
0.0001g
|
0.001g
|
0.005g
|
||
|
Readability (Sample> 10g)
|
0.001%
|
0.01%
|
0.05%
|
||
|
Repeatability accuracy
|
±0.01%
|
±0.05%
|
±0.1%
|
||
|
Heating source
|
Ring halogen lamp
|
||||
|
Display
|
Eye protection LCD screen
|
||||
|
Temperature setting
|
Room temperature-160℃
|
||||
|
Weight calibration
|
Automatic external calibration
|
||||
|
Results show
|
Moisture content, solid content, moisture regain, weight after drying, real-time temperature, moisture content curve
|
||||
|
Measurement mode
|
Automatic, timing, manual
|
||||
|
Communication interface
|
Thermal printing (directly print out the moisture value/solid content)
Standard RS232 communication interface, which can be connected to printer, PC and other peripheral equipment |
||||
|
Weighing pan size
|
φ110 (mm)
|
||||
|
Dimensions
|
（D*W*H）330*205*165(mm)
|
||||
|
Packing size
|
（D*W*H）410*315*335 (mm)
|
||||
|
Net weight
|
3.2kg
|
||||
|
Gross weight
|
4.6kg
|
||||
Features:
2. Built-in 10 groups of measurement programs: chemical raw materials, food, pharmaceutical industries, etc. 10 measurement modes can be switched with one button, and each mode can be customized to set the test time and temperature. The measurement process does not require cumbersome settings, and the test can be done after starting up. Simple, efficient and convenient. (If there are special needs, the factory can be set according to customer needs before shipping, and the user can directly test after receiving the goods)
3. The 110mm large diameter measuring disc is convenient for sample placement and heating more evenly.

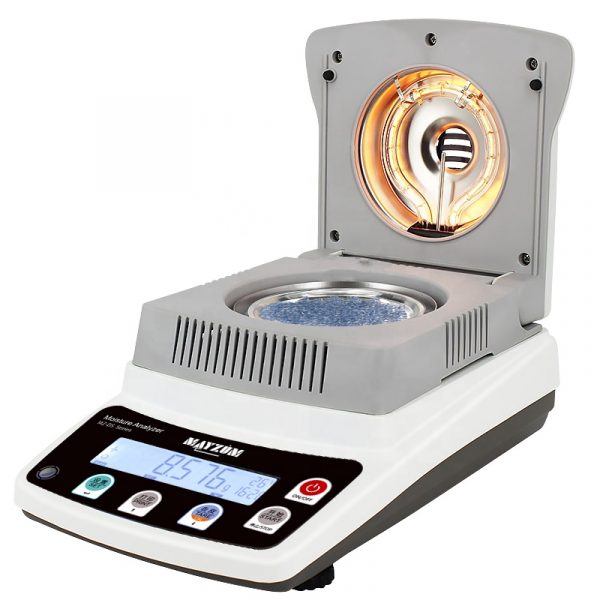

4. Using a special ring heating light source, the sample is heated more uniformly, dried faster, has stronger penetrating ability and more accurate measurement;
5. Customized imported integrated weighing sensor to solve weighing problems such as temperature drift and time drift, and improve measurement accuracy;
6. The temperature control system uses high-precision temperature control components (temperature drift less than 1%) to ensure the uniformity and controllability of the temperature during the test;
7. There are no consumables in the use process, and the thick aluminum sample plate is used, which can be reused, energy saving and environmental protection;
8. For samples that are inconvenient to clean, disposable tin foil trays can be used, which is economical and practical;
9. Instead of the oven method, it has a wide range of uses and is suitable for moisture determination in various industries;
10. Fully automatic measurement, no need to take care of the measurement process, and alarm when the measurement is completed;
11. The data display is diversified, time, real-time temperature, weight, moisture, solid content, etc., all at a glance; optional printers can quickly print data reports;
12. No need to install and debug, no training, no cumbersome process, it can be used after unpacking;
13. Complete after-sales service system to solve the problems reported by customers in a timely and rapid manner.
Test steps:

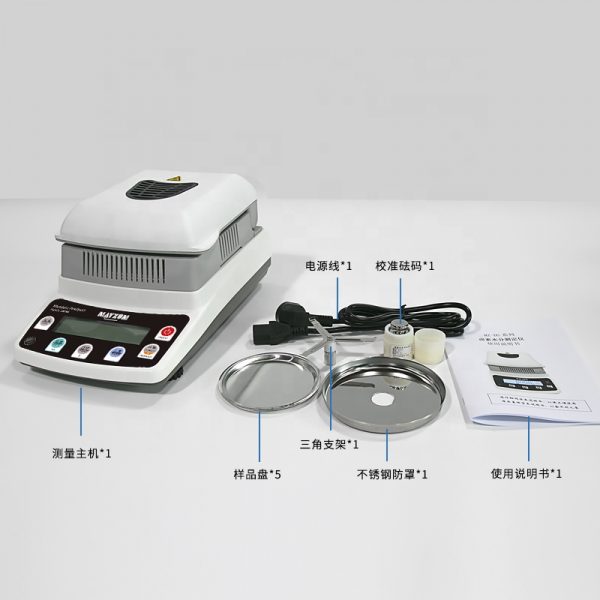

Standard Accessories
Shenzhen Qun Long Instrument Equipment Co., Ltd. are professional manufacturer who specialized in R&D, producing and selling various density meter and X-ray fluorescence for nearly 11 years.
We are looking for agents all over the world. No agency fees, wholesale and retail are available. All products are one to three years warranty and life-longs maintain.We can offer neutral products without trademark and model.You can also print your company's logo and model number on the instrument for you.
Welcome to reply to discuss cooperation matters.
When you receive a product from Qun Long, it must be debuged by our production staffs,technical staff and warehouse management. And our technical staffs have more than 10 years experience. We can guarantee the warranty for three years from the date of receipt. If our machine fails to perform properly because of defects in materials or workmanship during three years warranty, We will be responsible for fixing or replacing new machine .
2.How about after-sales Service
(1)If errors occur, please refer to the troubleshooting tips of the instruction manual
(2)Please contact with our after-sales service department or distribution in time if can't clear fault
(3)When you contact us with a service problem, we will act within 12 hours and provide solution within 24 hours.
(4)After-sales line : 0755-82596242
(5)If the product have some big troubles and it must be sent back to our factory to repair during its warranty period, you just need to shipping the product to us and we will sent you a new one.The service is excluding if the machine is breakdown caused by following reasons:
a:Wrong operation
b:Fixed or refitted personally
c:The machine itself is not the reason caused breakdown
d:Applying the machine under the serious condition. Such as high temperature, moist, corrosive gas, or vibration.
e:Move or transportation as soon as installed
f:Consumables and easy-loss components
g:Natural disaster
3.How many days can you receive the products?
Product in stock will be sent within 48 hours. Delivery time is about 5-7 days.
4.How to shipping the product?
Product will be sent by International Express by air. Such as DHL, UPS, FEDEX, TNT, SF.
5.What is our return policy?
You are allowed to return goods within 7 days from the date of receipt. To return products,please contact our customer service with your invoice number, the item to be returned and the reason for the return. Goods must be returned freight prepaid. Returns will be subject to a restocking charge. Products can not be returned back when the products have been used or modified.
6.Are we manufacturer made copy product or original product?
We are the original manufacturer for densimerter, Mayzum is our own brand. The model starts with MZ is belongs to us generally.
7.Why choose us?
Qun Long (MAYZUM is our brand) have been specialized in density field since 2009. Qun Long as a professional density meter supplier , has maintained a constant belief:First – class quality , professional technology team and services team,ample supply and prompt delivery.
