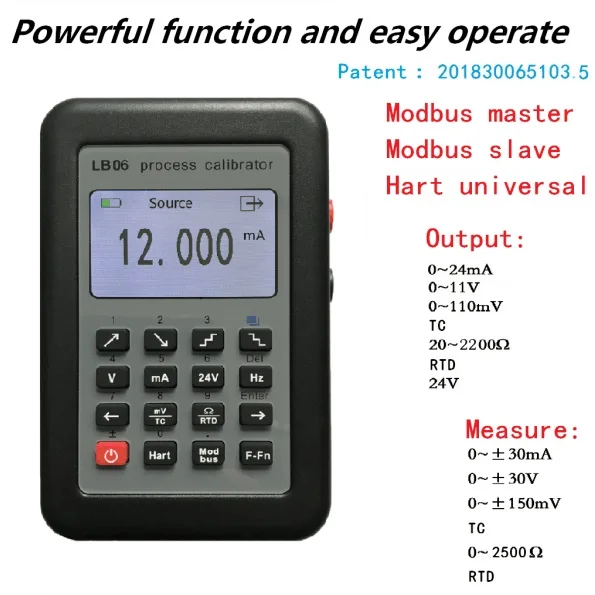

Name: LB06 Resistance Current Voltmeter Signal Generator Source Process Calibrator 4-20mA/0-10V/mV LCD Display
SKU: 479529019181
Availability: InStock

LB06 Resistance Current Voltmeter Signal Generator Source Process Calibrator 4-20mA/0-10V/mV LCD Display

ر.س1,460.28

LB06 Resistance Current Voltmeter Signal Generator Source Process Calibrator 4-20mA/0-10V/mV LCD Display

Main Features

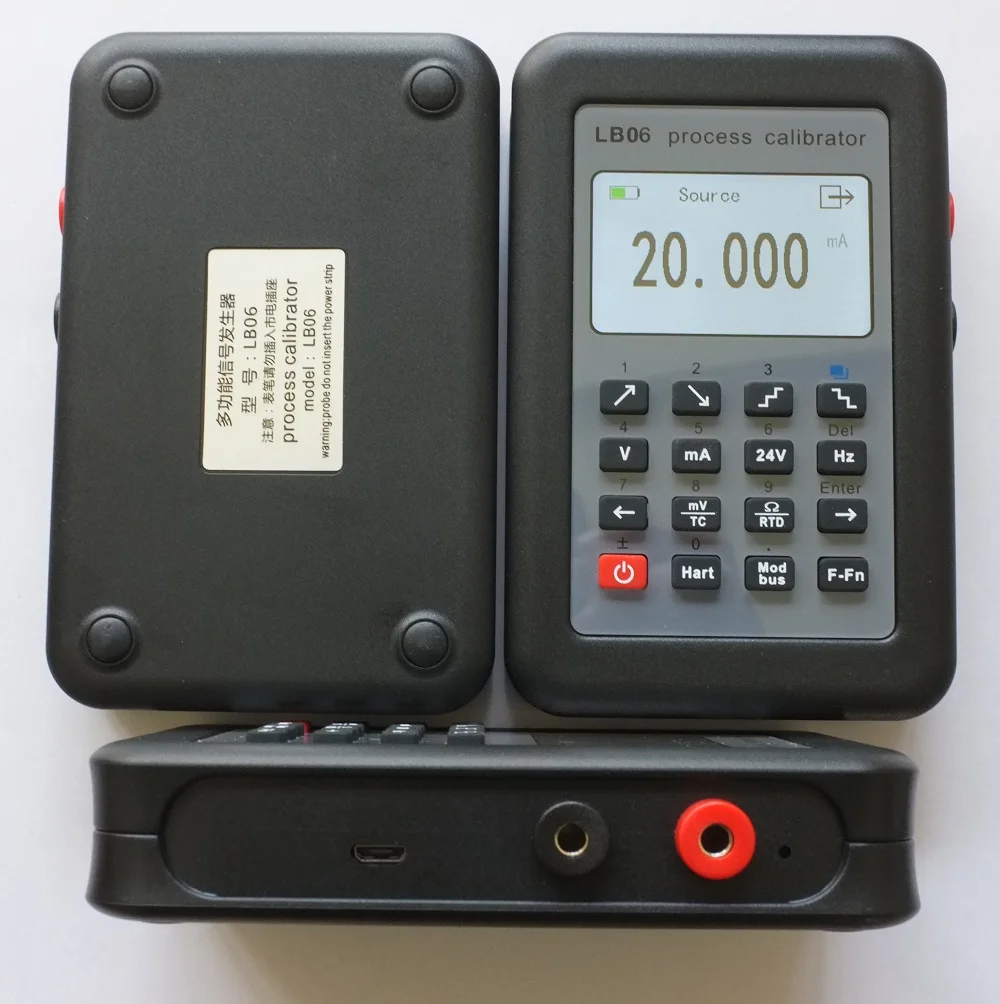

Pocket portable size: 120x76x30mm, put it into your pocket, save energy, save cost, easy to carry.

High accuracy 0.025%+1/2 digits, high reliability and stability.

Signal output & simulation: 0/4-20mA source or passive, 0-11V, 0-110mV, 20-400Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V outputs, frequency, etc.

Measurement: 0-30V, 0-150mV, 0-999.9Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, Ohm, frequency etc.

Support standard MODBUS Master, MODBUS Slave, Hart communicator/operator.

High resolution LCD display, have back light for different lighting conditions, large screen clear display.

Fast response, no delay in signal source simulation and signal testing or measurement.

Have charging and status indicator to check the battery status easily.

Can be used as signal generator, multifunction process calibrator and digital multimeter.

Have description in V, mV, mA, RTD, TC, Step, Ω, Hz, MODBUS, Hart keys, it enables user to operate it easily.

DC voltage, mV small signal, resistance signal, dc current, thermocouple, RTD thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.

AD, DA, reference voltage, OP circuits are used to ensure all high accuracy, high performance and high stability

Using 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage.

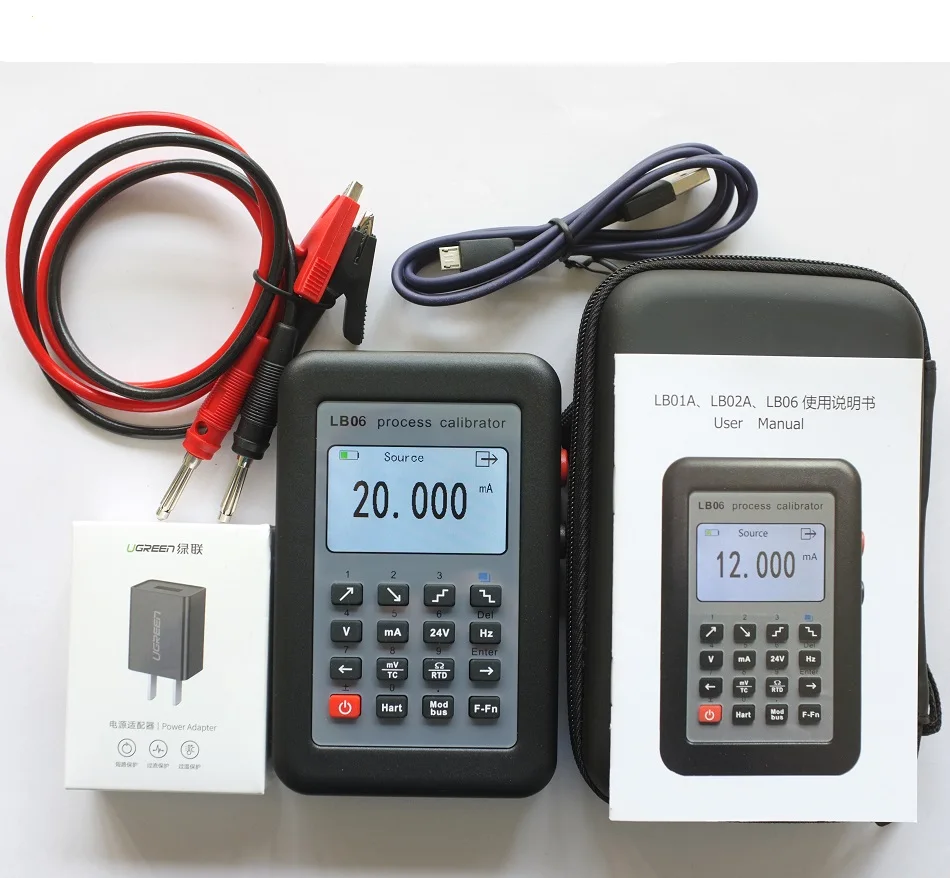

Packing contents:

1 Unit x Original LB06 Portable Precision Process Calibrator (Have Calibration Certificate)

1 Set x High safety standards testing Pen Probe, other essential accessories.

1 Unit x High quality 2A USB Cable for Battery Re-charge

1 Unit x High quality meter bag

1 Set x Professional Easy-to-understand User Manual

Output Function

FUNC	OUT UNIT	SET RANGE	SET STEP	ACCURACY
DC.V	V	0~11.00V	0.01/0.1/1	0.025%+1
DC. mV	mV	0~110.00mV	0.1/1/10	0.025%+2
Ω	Ω	20~400Ω	1/10/100	0.025%+0.3Ω (0.2-3mA excitation current, lead resistance is not included)
DC. mA	mA	0~24.00mA	0.01/0.1/1/4	0.025%+1 (active, passive, other programmable current signal output.)
TC	R	0~1700℃	1/10/100	0.1%+3
	S	0~1600℃		0.1%+3
	B	500~1800℃		0.1%+3
	K	-200~1370℃		0.1%+1
	E	-200~1000℃		0.1%+1
	J	-200~1200℃		0.1%+1
	T	-200~400℃		0.1%+1
	N	-200~1300℃		0.1%+1
RTD	Pt100	-200~850℃	1/10/100	0.025%+1 (0.2-3mA excitation current, lead resistance is not included)
RTD	Cu50	-50~150℃	1/10/100
24V	24V mA	24V: Cannot be set. Current measurement: 0~24.000 mA	NONE	24V: 0-20%, Current measurement: 0.025%+4

Other functions: Frequency output, wave signal output.

Measurement Function

FUNC	MEASURE UNITS	MEASURE RANGE	RESOLUTION	ACCURACY
DC.V	V	0~30.000V	0.001V	0.025%+4
DC. mV	mV	0~150.00mV	0.01mV	0.025%+2
Ω	Ω	0~999.9Ω	0.1Ω	0.025%+2
DC. mA	mA	0~30.000mA	0.001mA	0.025%+4
TC	R	0~1700℃	1℃	0.1%+3
	S	0~1600℃		0.1%+3
	B	500~1800℃		0.1%+3
	K	-200~1370℃		0.1%+1
	E	-200~1000℃		0.1%+1
	J	-200~1200℃		0.1%+1
	T	-200~400℃		0.1%+1
	N	-200~1300℃		0.1%+1
RTD	Pt100	-200~850℃	1℃	0.025%+1
RTD	Cu50	-50~150℃	1℃	0.025%+1
Range switch	mA	0~99900 Unit (Used for current measuring and current measurement of 24V output)	Max. 4, Min. 1 (related to engineering quantity)	0.025%+(1-10) (related to engineering quantity, max.: 99900)
