Product specifications
technical parameter:
●Digital laser control signal;
●TTL level output, 50mA drive capability;
●PWM frequency 2K~50K adjustable;
●PWM duty cycle is adjustable from 1% to 99%;
●PWM duty cycle is adjustable from 1% to 99%;
● Motor control signal 0C output, 300mA drive capacity;
●The maximum motor control
pulse frequency is 500KHZ;
pulse frequency is 500KHZ;
●USB maximum transmission rate is 12M, the longest distance is 5 meters;
●Linear/arc/B-spline
interpolation accuracy +/-0.5 pulse;
interpolation accuracy +/-0.5 pulse;
●4 channels of universal photoelectric isolation OC gate output, maximum 500mA drive capability (with continuous current protection);
●4 channels of universal photoelectric isolation input, compatible with 5V/12V124V logic level;
Standard performance
Resume carving after power failure
Automatic feeding
Working hours preview on software
Adjustable button movement speed
Soft limit, hard limit
Modify speed and power on the panel
Set the use date, expire encryption
Processing state, light output state output 24 signals

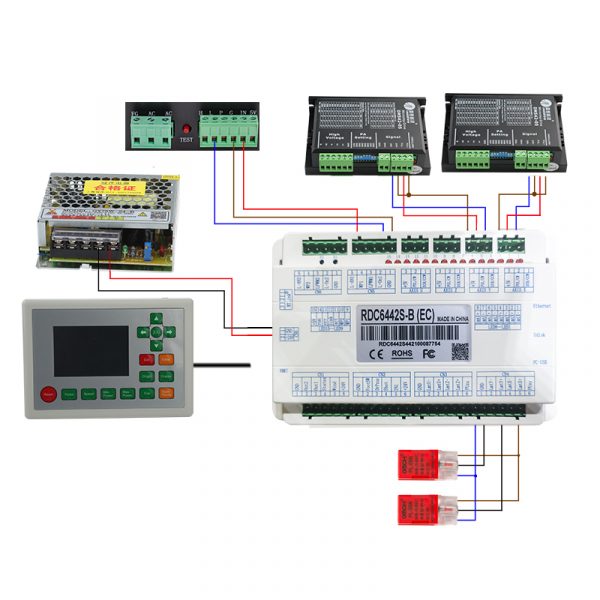

Wiring diagram
Company information and contact information
Jinan Hongyang CNC Machinery Co., Ltd. was established in 2008. There are more than 100 employees, and the inventory area is 10,000 square meters. It is mainly engaged in engraving machine parts, including spindle motor, frequency converter, stepper motor, drive, hybrid servo motor, servo motor, Richauto dsp series controller, weihong or nc studio controller, spindle cooling water pump, lubricating oil pump, tool sensor, Limit sensors, water-cooled vacuum pumps, air-cooled vacuum pumps, power supplies, transformers, gear boxes, racks, rails, sliders or blocks, ISO30 tool clips, cable chains, spindle dust covers, vacuum cleaners and other engraving machine accessories, welcome your For inquiries. Contact information WeChat whatsapp mobile 8615650000988 lily
@ hycncrouter. com
@ hycncrouter. com
