Product Description

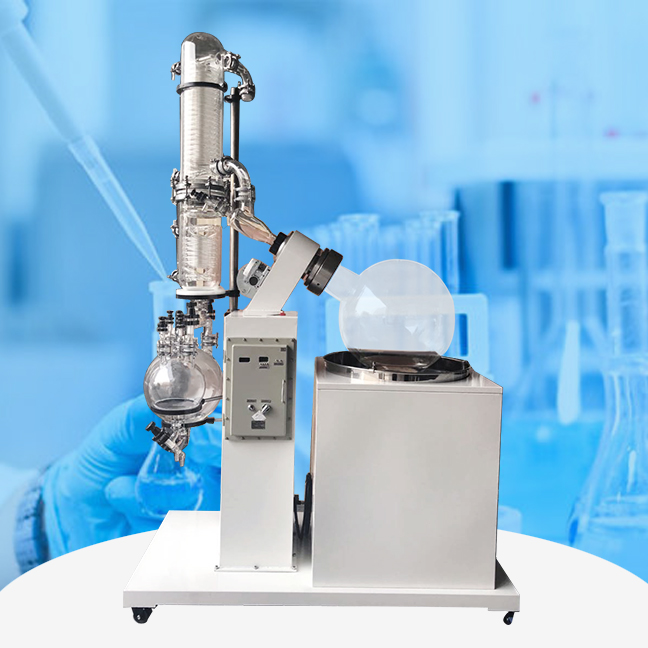

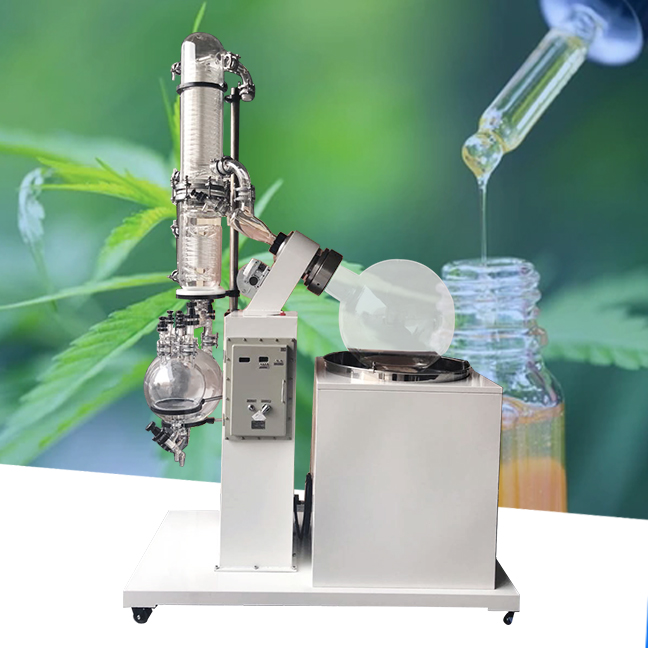

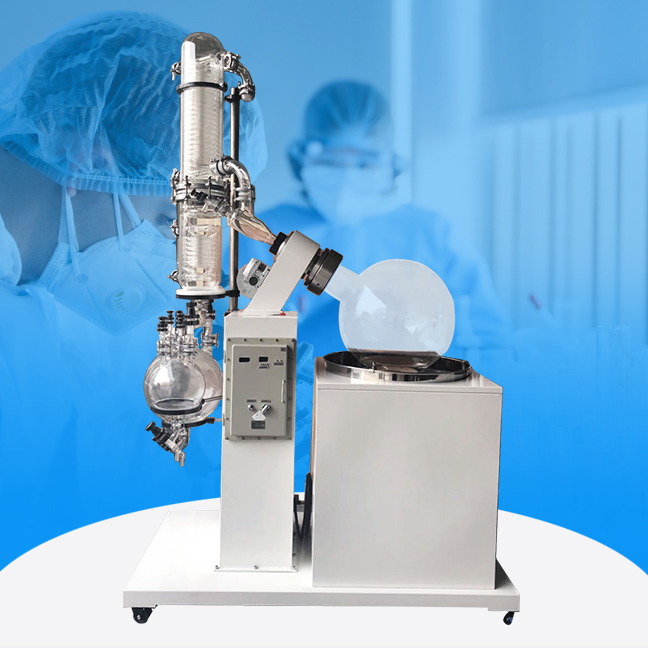

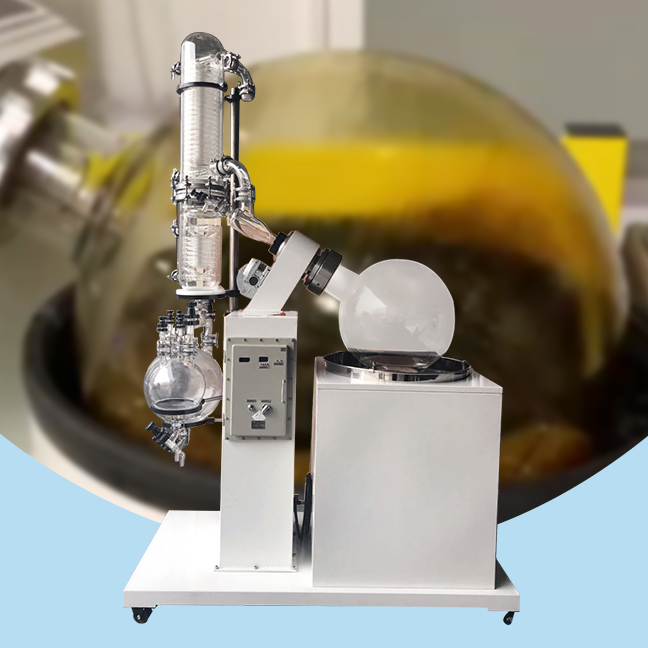

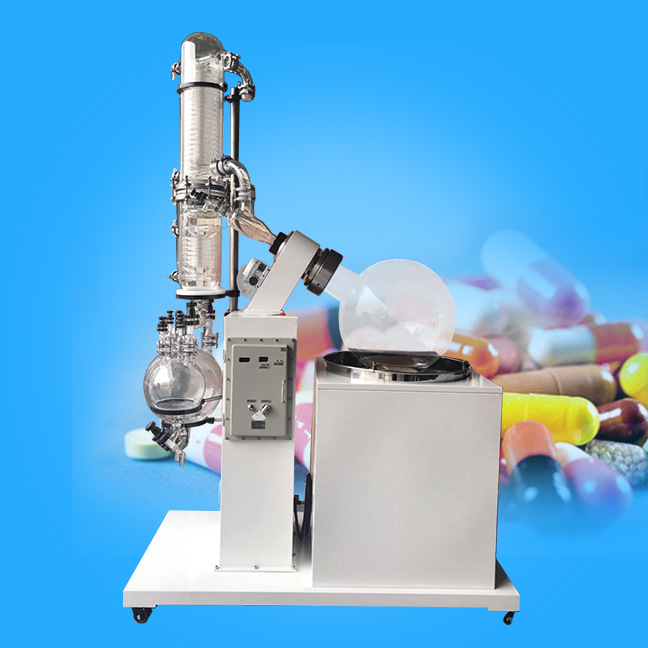

Rotary evaporator is mainly used in pharmaceutical, chemistry and bio-pharmaceuticals industries, for concentration, crystallization, drying, separation and solvent recovery. Especially suitable for the biological products concentration and purification which is easy to decompose deformation under high temperature.
|
Model
|
RE-5220
|
RE-5230
|
RE-5250
|
RE-52100
|
|
Capacity
|
20L
|
30L
|
50L
|
100L
|
|
Rotating flask
|
20L / F125
|
30L / F125
|
50L / F125
|
100L
|
|
Receiving flask
|
10L+3L, bottom discharge
|
10L+10L, bottom discharge
|
20L+10L, bottom discharge
|
10L + 50L, bottom discharge
|
|
Lifting type
|
Automatic lifting
|
Automatic lifting
|
Automatic lifting
|
Hydraulic lifting and bath automatic lifting
|
|
Condenser
|
1 m2 condensing surface
|
1.3 m2 condensing surface
|
1.5 m2 condensing surface
|
Dual condensers
|
|
Rotation speed
|
3-100 rpm
|
3-100 rpm
|
3-100 rpm
|
0-110 rpm
|
|
Evaporation sped (H20)
|
5 L/H
|
5 L/H
|
9 L/H
|
|
|
Bath power
|
1100W
|
1500W
|
2200W
|
3000W
|
|
Static temp. control range & wave
|
RT-99±2 ℃
|
RT-99±2 ℃
|
RT-99 (150 ) ±0.2 ℃
|
RT-99 (150 ) ±0.2 ℃
|
Function
1. Host parts: the introduction of foreign advanced transmission system, reasonable structure, durable and practical.
2. Control, temperature parts: the introduction of foreign advanced frequency control system, temperature control system to ensure accurate performance of the instrument.
3. Water bath: one made of imported stainless steel plate stamping, automatic vertical lift.
4. Sealing parts: the PTFE material selected foreign countries, through special processing technology to enhance sealing,
corrosion resistance and wear resistance.
5. The main structure: high quality aluminum alloy and stainless steel, more complete and improve the equipment of a reasonable performance.
2. Control, temperature parts: the introduction of foreign advanced frequency control system, temperature control system to ensure accurate performance of the instrument.
3. Water bath: one made of imported stainless steel plate stamping, automatic vertical lift.
4. Sealing parts: the PTFE material selected foreign countries, through special processing technology to enhance sealing,
corrosion resistance and wear resistance.
5. The main structure: high quality aluminum alloy and stainless steel, more complete and improve the equipment of a reasonable performance.
