Principle and application

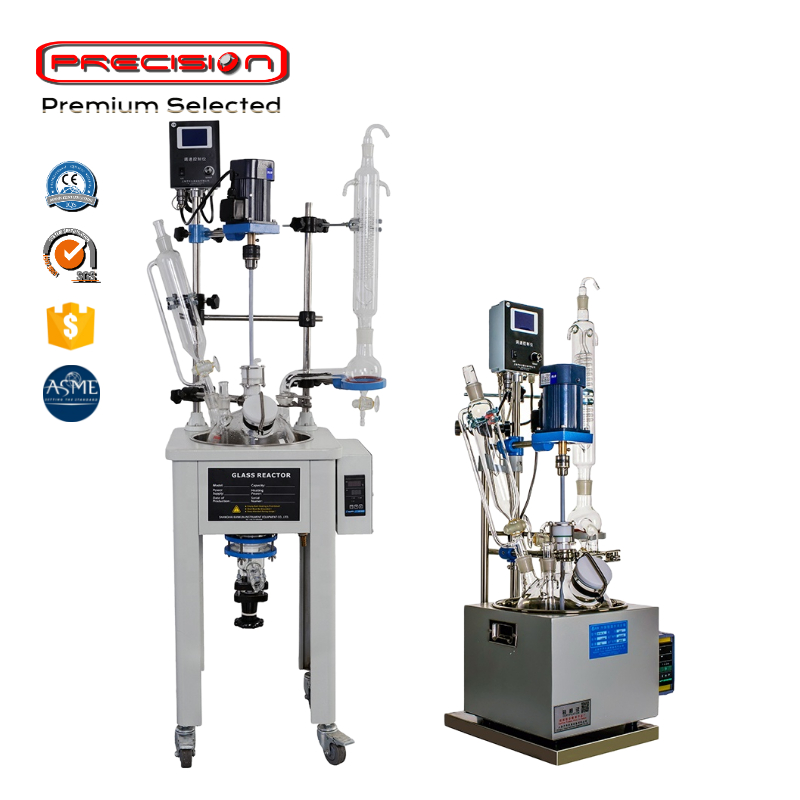

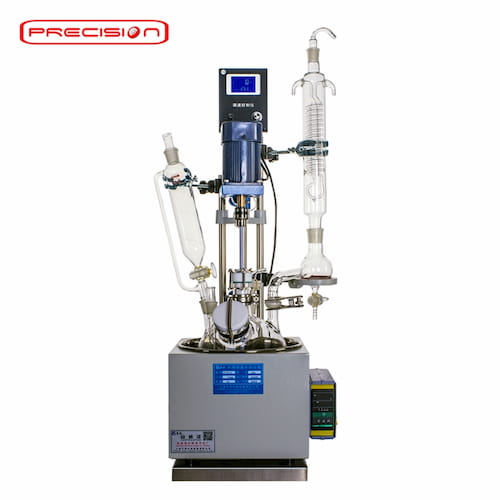

1. Jacket Glass Reactor with heating and cooling source circulating in jacket.
2. It's applied for heating and cooling synthesis reaction in vacuum condition.
3. Reflux, distillation under vacuum, separation, rectification, crystallization are also available with related configuration.
4. It is an ideal equipment for chemistry, fine-chemical,bio-pharmaceuticals, and the synthesis, test, and production of new materials.
5. 1L to 250L working volume is optional.

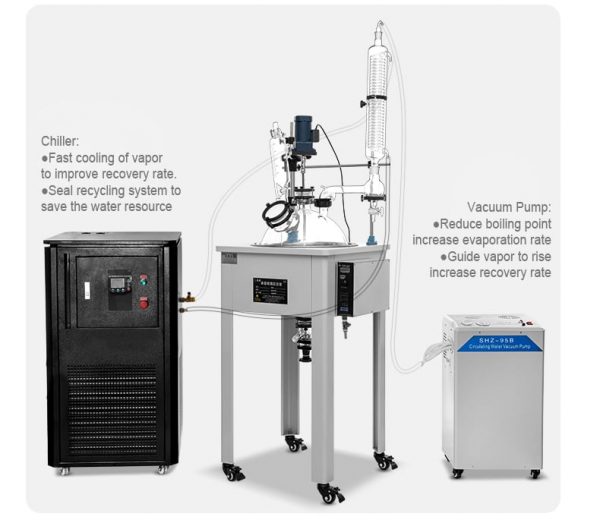

6. The reactor can connect circulating water vacuum pump, diaphragm vacuum pump, chiller / low temperature circulator, heating and heating and cooling circulating device.
2. It's applied for heating and cooling synthesis reaction in vacuum condition.
3. Reflux, distillation under vacuum, separation, rectification, crystallization are also available with related configuration.
4. It is an ideal equipment for chemistry, fine-chemical,bio-pharmaceuticals, and the synthesis, test, and production of new materials.
5. 1L to 250L working volume is optional.
6. The reactor can connect circulating water vacuum pump, diaphragm vacuum pump, chiller / low temperature circulator, heating and heating and cooling circulating device.
|
Model
|
JGR-10L
|
JGR-20L
|
JGR-30L
|
JGR-50L
|
JGR-80L
|
JGR-100L
|
|||||
|
Reaction Flask
|
10L
|
20L
|
30L
|
50L
|
80L
|
100L
|
|||||
|
Jacketed Inner Volume
|
3L
|
6L
|
10L
|
16L
|
24L
|
30L
|
|||||
|
Neck No. of On Cap
|
5+1
|
5+1
|
5+1
|
5+1
|
5+1
|
5+1
|
|||||
|
Motor Power
|
90W
|
90W
|
120W
|
120W
|
180W
|
180W
|
|||||
|
Rotation Speed
|
Frequency conversion speed control, 0-1200 rpm (2000 rpm optional)
|
||||||||||
|
Controller
|
Frequency Conversion Speed, LED, Temperature,Speed digital display
|
||||||||||
|
Six Port No. On the Lid
|
Middle:50# Flange Stirrer port, Back:40# Air/liquid charging valve, Lift: 40 # Constant pressure drop funnel Right:50#
Ball-milling mouth connector reflux/condenser, Front-left: DN25 Flange (thermowell), Front: 80 # Flange(Solid adding port)
|
||||||||||
|
PTFE Seal Assembly
|
Equipped with extra Oring and FKM for Triple Sealing Safety Methods
|
||||||||||
|
Glass material
|
High borosilicate glass, Temperature range: -120℃~300℃
|
||||||||||
|
Thermometer Tube
|
400mm
|
530mm
|
600mm
|
650mm
|
850mm
|
850mm
|
|||||
|
Distillation/Reflux System
|
Equipped (Can reflow and Separable fluid, voulme from 1L to 4L Standard are 1L/2L )
|
||||||||||
|
Condenser
|
Vertical Serpentiform Condenser (Horziontal is available)
|
||||||||||
|
Constant Pressure Drop Funnel
|
1000ml
|
1000ml
|
2000ml
|
2000ml
(up to 10L optional)
|
2000ml
(up to 20L optional)
|
2000ml
(up to 20L optional)
|
|||||
|
Frame Material
|
SUS304 / SUS316L Stainless Steel, sus304 with PTFE coating
|
||||||||||
|
Power Supply
|
220V 50/60Hz, 1-phase,110V, 380V, 460V,480V, is optional
|
||||||||||
|
Stirring Rod:
|
sus304 coating PTFE blades， sus316L stainless steel blades, Pure Titanium blade
|
||||||||||
