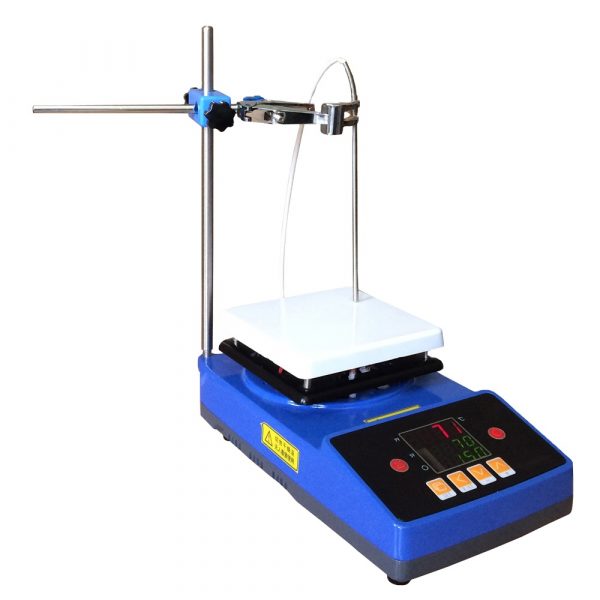

hot plate with magnetic stirrer
Model : ZNCLBS1180
HS : 854370 9990
Main Feature
1. Heat Plate material : black Ceramic material
2. Top Dimension : 140 x 140mm, 180 x 180mm , 230 x 230 mm,280 x 280mm
3. Temperature Range : Ambient to 400 °C. Stir speed range : 0~ 2000rpm .
4. Temperature Display : DIGITAL for Temperature add , reduce and set

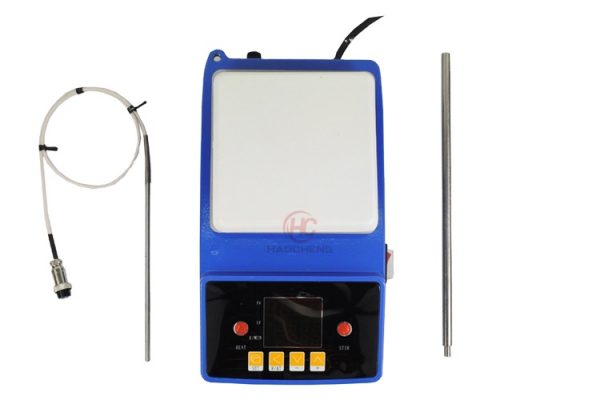

6. Temperature Control : PID , Inner and outer Thermocouple
Specification
|
Model |
ZNCLBS180 |
|
Top Plate Dimension (mm) |
180 × 180 |
|
Heating Temperature Range ( ) |
Ambient to 400 degree |
|
Max Temp for top plate |
325 degree |
|
Temperature Control |
PID . Inner and Outer Temperature sensor ,LED Display |
|
Temperature Range |
Ambient to 400 |
|
Top Material |
white Ceramic |
|
Temperature Display |
+/- 1 degree |
|
Permissible Ambient Temperature |
Ambient Temperature to 40 degree |
|
Voltage |
110v – 240v |
|
Power(w) |
550 W |
|
Motor Power |
16W, DC20V |
|
Speed Accuracy |
+/- 1 rpm |
|
Stir Speed |
100~ 2000 rpm |
|
Temperature Accuracy |
±1 degree |
|
Stirring Flask Capacity (ml) |
50-5000 |
|
Overall Dimensions (mm) ( L × W × H ) |
430 × 270 × 150 |
|
Packing Dimension (mm) |
480 × 320 × 200 |
|
Shipping Weight (kg) |
5.5kg |
|
Shell material |
Superfine metal |
Making process of product
FAQ:
1 Are you a factory or trading company ?
A : We are a factory
2 .Where is your company location ? How can i visit there ?
A :Our factory is in zhengzhou city ,henan province , China , near XINZHENG INTERNATIONAL AIRPORT , you can fly to ZHENGZHOU AIRPORT to us , welcome to visit us !
3.What the material of your products ?
A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests
4. How can i get some sample ?
A. We are honored to offer sample for your evaluation
