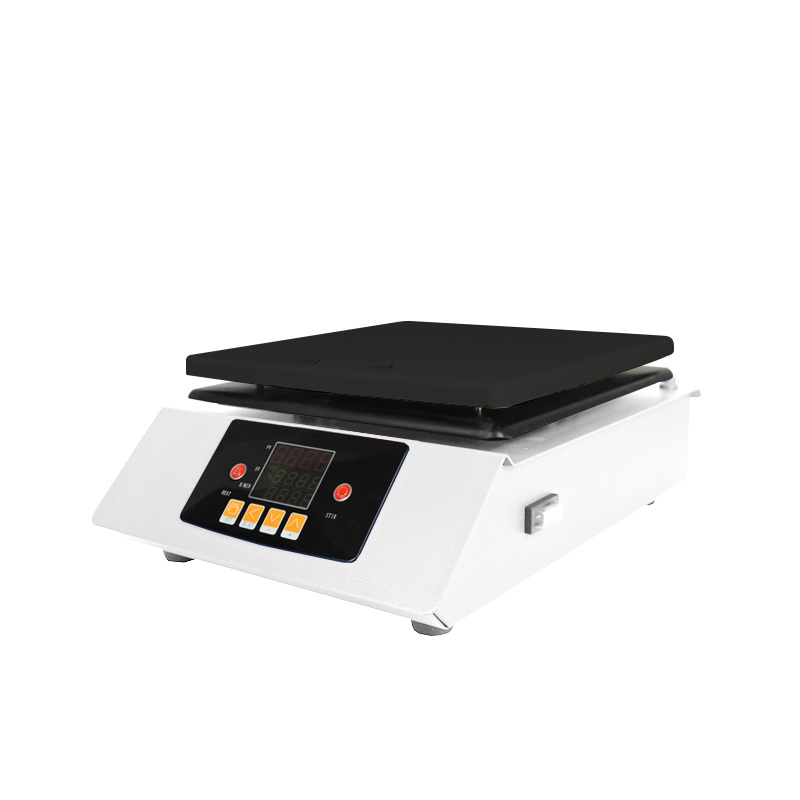

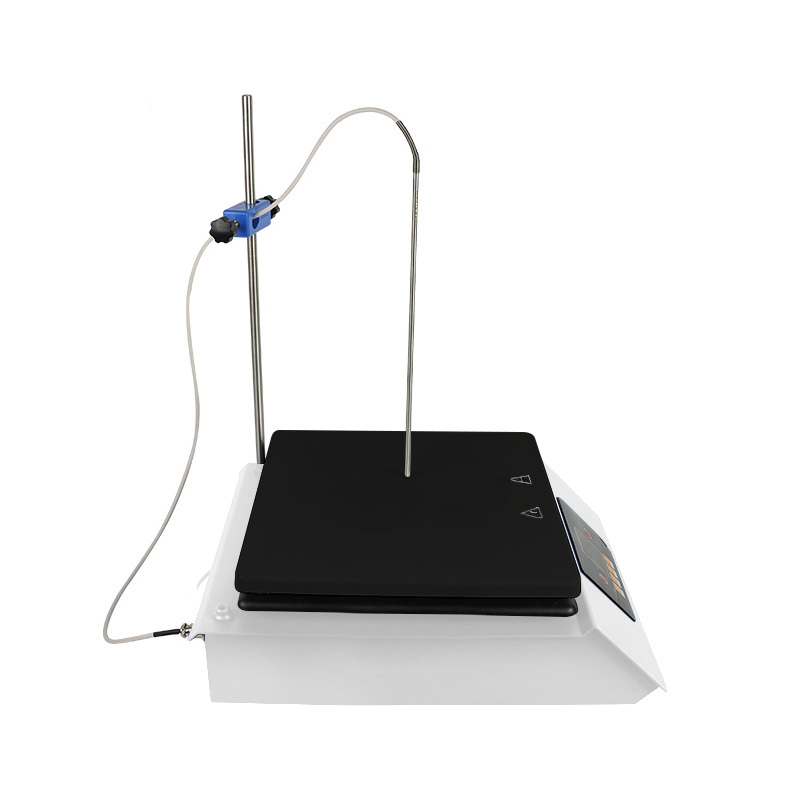

LAB Magnetic Stirrer Laboratory Magnetic Mixer with Stir Bar
Introduction
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized
stirrers because they are quieter, more efficient, and have no moving external parts to break or wear out
(other than the simple bar magnet itself). Because of its small size, a stirring bar is more easily cleaned
and sterilized than other stirring devices. They do not require lubricants which could contaminate the
reaction vessel and the product. They can be used inside hermetically closed vessels or systems, without
the need for complicated rotary seals. Magnetic stirrers may also include a hot plate or some other means
for heating the liquid.
Features
Very compact and simple to operate
Digital Display temperature and speed, Heating temperature: Rt-380 Degree and mixing speed :100-1800 RPM
Heat and corrosion resistant aluminium alloy housing for durability
Ceramic coated aluminum heating plate for great heat distribution and corrosion resistance
Specially designed housing prevents spill from damaging the electronic components inside
Secondary heat insulation plate prevents heat loss and eliminates heat damage to electronic components
Adjustable temperature and rotation speed
Specification
Model |
ZNCLBS1140 |
ZNCLBS1180 |
ZNCLBS1230 |
ZNCLBS1280 |
Volume |
2L |
5L |
10L |
15L |
Heating Plate (MM) |
140*140 |
180*180 |
230*230 |
280*280 |
Heating Power(W) |
450 |
550 |
750 |
1000 |
Heating Plate Material |
Ceramic Coated Aluminum (White or Black) |
|||
Temperature Range |
Rt-380°C |
|||
Mixing Speed |
100-1800RPM |
|||
Temperature Control |
PID Auto Control |
|||
Temperature Display (°C ) |
Digital LCD Display |
|||
Temperature Accuracy |
+/- 1°C |
|||
Thermocouple Probe(Sensor) |
PT100, with Inner and Outer Thermocouple |
|||
Permissible Working Temperature |
Rt to 40°C |
|||
Voltage |
220V/ 110V Optional |
|||
Dimensions (MM) |
350 X250 X 150 |
440X 290X 180 |
500X 400X 350 |
550X 420 X 380 |
Weight (KG) |
3.5 |
5.5 |
7.5 |
9 |
