Product Description

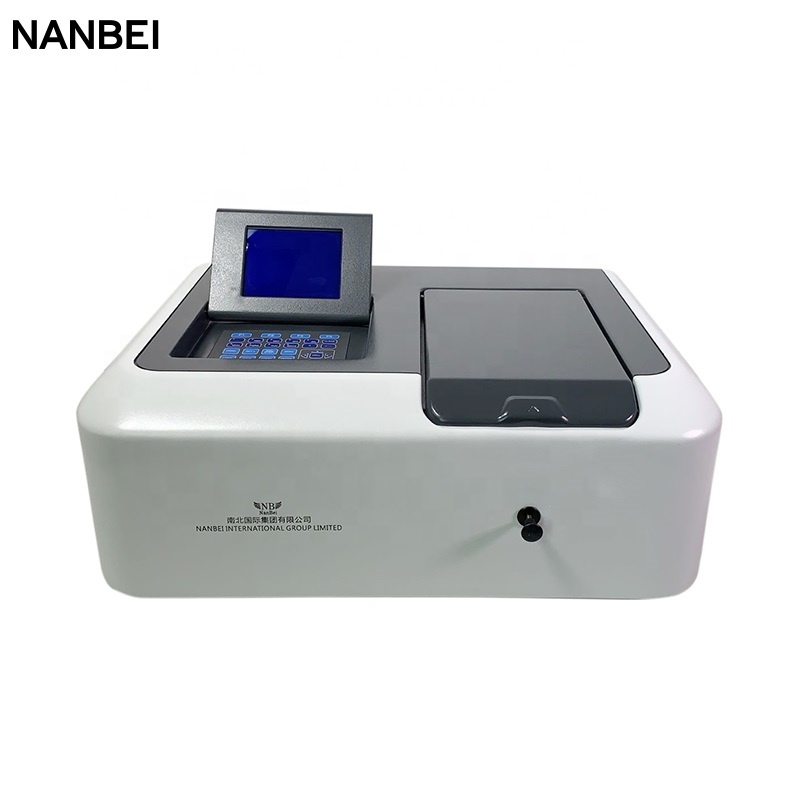

Lab high-precision 190-1100nm uv/vis spectrophotometer for food medicine health agriculture
RODUCT DETAILS FOR UV/VIS SPECTROPHOTOMETER NU-T6;
Lab high-precision 190-1100nm uv/vis spectrophotometer for food medicine health agriculture
1.Good stability: The integrated structure design (8mm heat-treated aluminum alloy base) ensures long-term reliability and stability of the instrument.
2.High Accuracy: Using grating micrometer level precision screw drive to ensure the accuracy of wavelength ＜±0.5nm；Transmittance of accuracy reaches ±0.3%.
3. Convenience for use: 5.7 inch graphic LCD display. Spectrum curve be clear at a glance and easy to operate. There is quantitative analysis、qualitative analysis、 kinetics test、 DNA/RNA、 multi- wavelength analysis in special purpose testing program.
4.Service life durable: Imported Halogen lamp ensures the light source for up two years of life, receiver life for 20 years.
5.Wide application fields: Autosampler, micro cell holder，Optional Equipped with Peltier/sipper unit, with Micro cell holder, with (5°incident angle) Reflectance measurement attachment etc. expands the application areas of more.
1.hotometric measurement: Convenience to measure samples in the specified wavelength absorbance and transmittance. Multi-wavelength detector is maximum simultaneous determination of 10 wavelengths.
2.Quantitative measurement: Establish automatically standard curve, first- order first after we order the third order curve fitting. Optional method: Single wavelength calibration、Double wavelength calibration、Three point method,
4.Kinetics measurement: Calculate kinetics of enzyme reaction rate. There are scaling, smoothing, filtering, detecting peak-valley and finding the derivative in a variety of graph processing methods for your choice.
5.DNA/RNA，Test function of protein calculates automatically the sample ratio and concentration.
Characteristics:
1.Good stability: The integrated structure design (8mm heat-treated aluminum alloy base) ensures long-term reliability and stability of the instrument.
2.High Accuracy: Using grating micrometer level precision screw drive to ensure the accuracy of wavelength ＜±0.5nm；Transmittance of accuracy reaches ±0.3%.
3. Convenience for use: 5.7 inch graphic LCD display. Spectrum curve be clear at a glance and easy to operate. There is quantitative analysis、qualitative analysis、 kinetics test、 DNA/RNA、 multi- wavelength analysis in special purpose testing program.
4.Service life durable: Imported Halogen lamp ensures the light source for up two years of life, receiver life for 20 years.
5.Wide application fields: Autosampler, micro cell holder，Optional Equipped with Peltier/sipper unit, with Micro cell holder, with (5°incident angle) Reflectance measurement attachment etc. expands the application areas of more.
Function of products Lab high-precision 190-1100nm uv/vis spectrophotometer for food medicine health agriculture
1.hotometric measurement: Convenience to measure samples in the specified wavelength absorbance and transmittance. Multi-wavelength detector is maximum simultaneous determination of 10 wavelengths.
2.Quantitative measurement: Establish automatically standard curve, first- order first after we order the third order curve fitting. Optional method: Single wavelength calibration、Double wavelength calibration、Three point method,
3Qualitative measurement: Including scaling, smoothing, filtering, detecting peak-valley etc.
4.Kinetics measurement: Calculate kinetics of enzyme reaction rate. There are scaling, smoothing, filtering, detecting peak-valley and finding the derivative in a variety of graph processing methods for your choice.
5.DNA/RNA，Test function of protein calculates automatically the sample ratio and concentration.
More Details Photos
Specification
|
Model
|
NU-T6
|
NU-T6A
|
|
|
Optical System
|
Single, Littrow,Grating 1200 line/mm
|
||
|
Wavelength Range
|
190～1100nm
|
||
|
Spectral Bandwidth
|
4nm
|
2nm
|
|
|
Wavelength Accuracy
|
±0.5nm
|
||
|
Wavelength Repeatability
|
±0.2nm
|
±0.2nm
|
|
|
Photometric Accuracy
|
±0.3%T；±0.002Abs（0~0.5Abs）；±0.004（0.5-1.0Abs）；
|
||
|
Photometric Repeatability
|
±0.1%T；±0.001Abs（0~0.5Abs）；±0.002（0.5-1.0Abs）；
|
||
|
Stray Light
|
≤0.05%T, @220nm/360nm
|
||
|
Noise Level
|
±0.002Abs
|
||
|
Stability
|
±0.002A/h@500nm
|
||
|
Baseline Flatness
|
±0.002Abs
|
||
|
Baseline Dark Noise
|
0.1%T
|
||
|
Photometric Range
|
0～200℅T，-4～4A,0～9999C(0-9999F)
|
||
|
Light Source
|
Tungsten＆Deuterium Lamp(Pre-aligned)
|
||
|
Scan Speed
|
Hi,MED.,LOW.,MAX.3600nm/min
|
||
|
Display
|
320×240 Dots Array Graphic LCD
|
||
|
System Language
|
English
|
||
|
Output
|
USB1.1 Connecting to computer＆Parallel port for printer
|
||
|
Power Requirement
|
AC90～250V/ 50～60Hz
|
||
|
Dimensions(L×W×H)(mm)
|
550×400×210
|
||
|
Weight
|
23kg
|
||
Packinglist List
|
Description
|
Quantity
|
|
Spectrophotometer
|
1
|
|
Mains Lead
|
1
|
|
Cuvettes
|
4 Sets glass 2 Sets quartz
|
|
Dust Cover
|
1
|
|
Manual
|
1
|
