Lab Digital Viscosity Testing Machine Viscosity Tester For Paint And Oil Ink
Instructions:
Digital rotating viscometer is an upgraded version of the company rotational viscometer. This instrument adopts the advanced mechanical design technology, manufacturing technology and microcomputer control technology, data acquisition right; Display use blue backlight, high brightness LCD display, data show clear.
Digital rotating viscometer has high sensitivity and reliable test results, use convenient, beautiful generous, the characteristics of Newtonian fluid is used to measure the absolute viscosity and apparent viscosity, non-newtonian fluid can be widely used in petroleum, paints, plastics, medicine, jewelry, coatings, detergent and other objects viscosity measurement.
Features:
1.The core part of the whole machine is designed with modern microelectronic technology, which can automatically measure the viscosity of various liquids.
2.Compared with the traditional pointer viscometer, the accuracy of the rotary viscosity is about 20 times higher than the former, and the visual digital display of the viscosity measurement value will not cause the human error on the reading. This instrument has the characteristics of high measuring sensitivity, reliable test results, convenient operation and beautiful appearance.
3.Instrument for measuring the absolute viscosity of Newtonian fluids and the apparent viscosity of non-newtonian fluids.Applicable to: water-based ink, mirror silver ink, silk printing ink, glue, adhesive, resin, pulp, lubricants and so on.
4.This instrument is a digital display viscosimeter, imported from Japan synchronous motor by varying speed to drive the rotor for constant speed rotation.When the rotor is rotating in the liquid, the liquid will generate the viscosity torque acting on the rotor.
5.The larger the viscosity torque is, and conversely, the smaller the liquid viscosity is, the smaller the viscosity torque is.The viscous torque acting on the rotor is measured by the sensor, and the measured viscosity of the liquid is obtained by computer processing.
6.This instrument adopts microcomputer technology, which can conveniently set the range (rotor number and rotation speed), carry out digital processing on the data detected by the sensor, and clearly display the value of rotor number, rotation speed and viscosity of the tested liquid when measuring.And its full range percentage value and so on.
Application:
MZ-NDJ-5S/8S has been widely used to determine and measure the liquid viscosity in many applications such as grease, painting, pharmacy and adhesives…
It is suitable for: printing ink, cleaning agent, adhesive, UV film adhesive, black glue, cosmetic, electroplating, medicine, paint, coating, sewage treatment and other industries precision electronic instruments.
Detailed technical parameters :
|
Instrument model |
MZ-NDJ-5S |
MZ-NDJ-8S |
|
display mode |
liquid-crystal display |
|
|
speed (r/min) |
6 / 12 / 30 / 60 |
0.1/0.3/0.6/ 1.5/3/6/12/30/60 |
|
rotor |
1#,2#,3#,4# The 0# rotor is optional, for measuring ultra low viscosity below 15 |
|
|
measuring range |
1~100,000 |
10~2,000,000 |
|
Sample size required for each measurement |
250 – 400ml |
|
|
Viscosity display accuracy |
0.01mPa.S |
|
|
measurement error |
±3% (Newtonian liquid) |
|
|
repetitive error |
±1.5% (Newtonian liquid) |
|
|
sample amount |
18ml (Each measurement required) |
|
|
Timing measurement function |
standard configuration |
|
|
temperature measurement |
standard configuration |
|
|
Measurement range display |
Can automatically display the maximum viscosity of composite rotor and speed of the selected measurement value |
|
|
Constant temperature component |
Option (special viscometer constant temperature bath, constant temperature cup, temperature probe, etc.) |
|
|
data output interface |
standard configuration |
|
|
Data processing software |
option |
|
|
working power supply |
110V / 60Hz,220V / 50Hz |
|
|
outline dimension |
300 × 300 × 450(mm) |
|

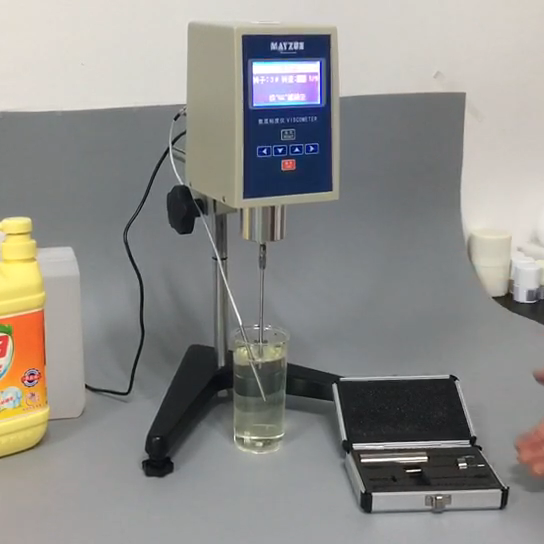

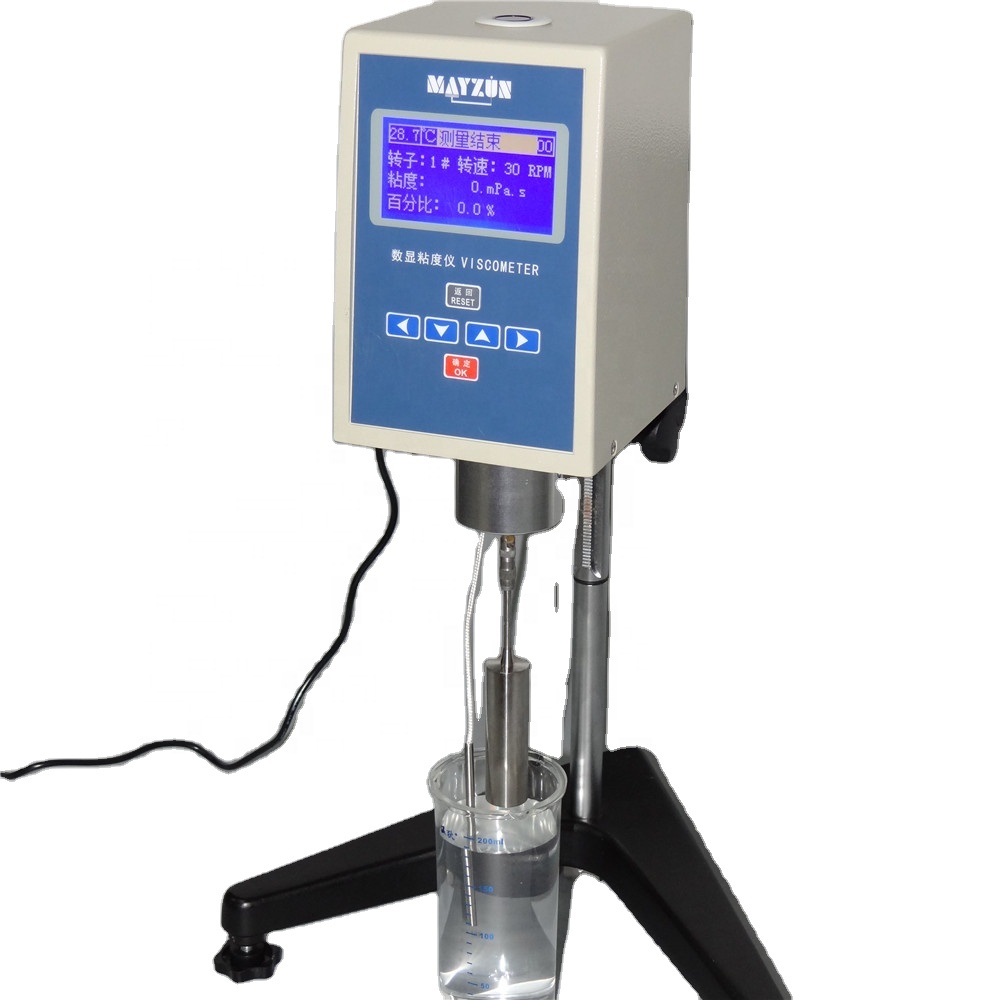

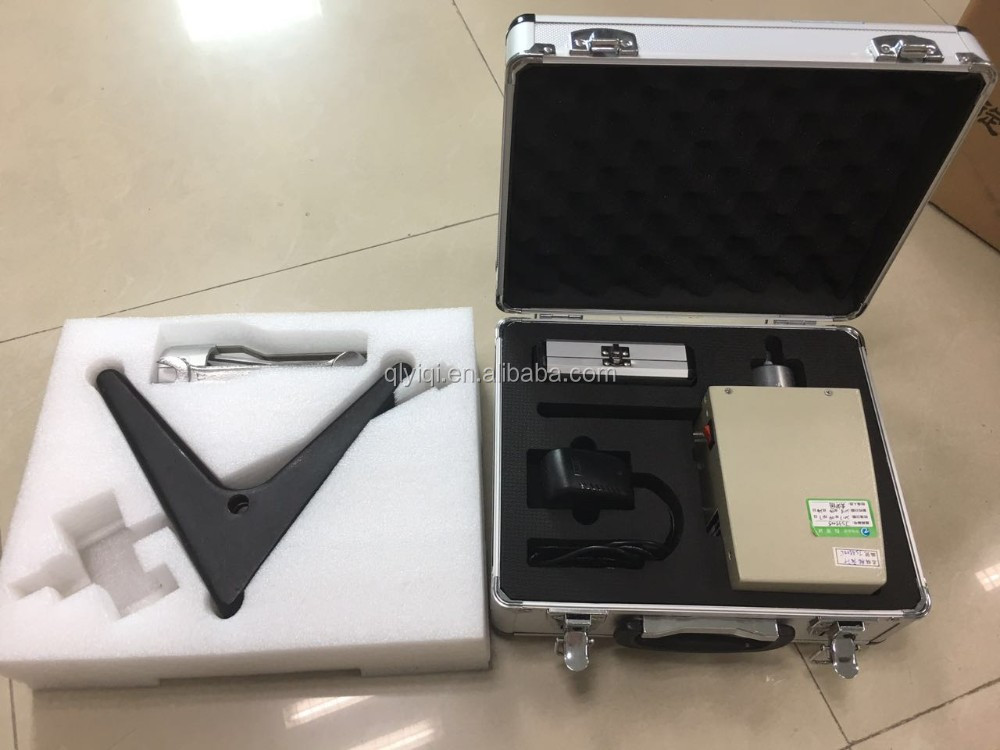

Below photo of MZ-NDJ–5S/8SDigital Rotary Viscometer :
