JKW-20 mini crawler excavator is a collection of beautiful design, high configuration, good performance, low fuel consumption with wide operating ranges. It is suitable for loosing soil of vegetable greenhouse, municipal departments’ landscape engineering, digging holes for tree planting in orchard, crushing concrete surface and sand-gravel mixing material, small space working sites etc. Adopting quick hitch that make you change working attachment easy and fast, and also can reduce maintenance and operating cost.
|

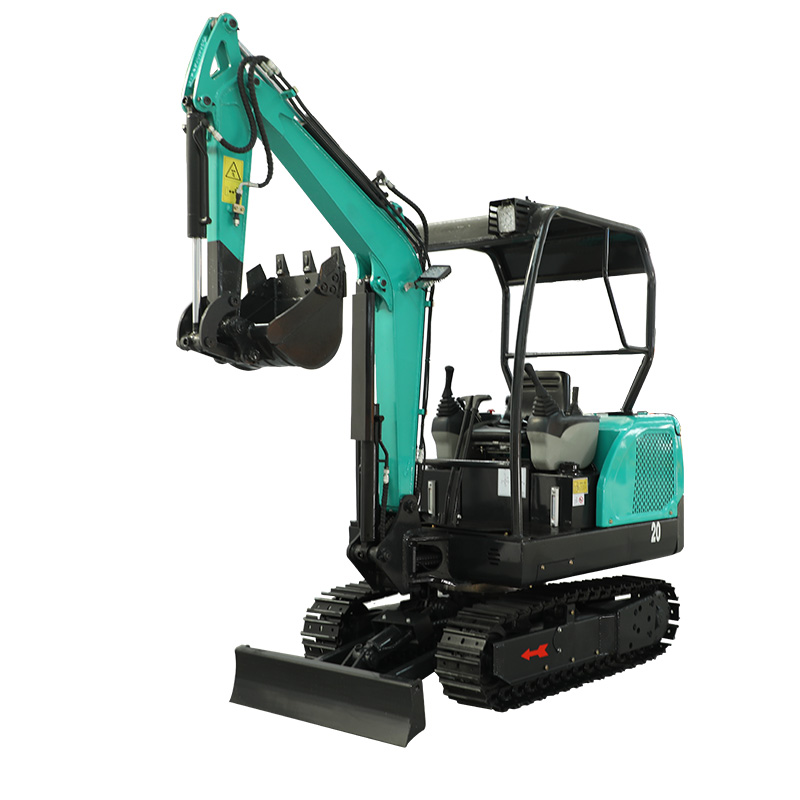

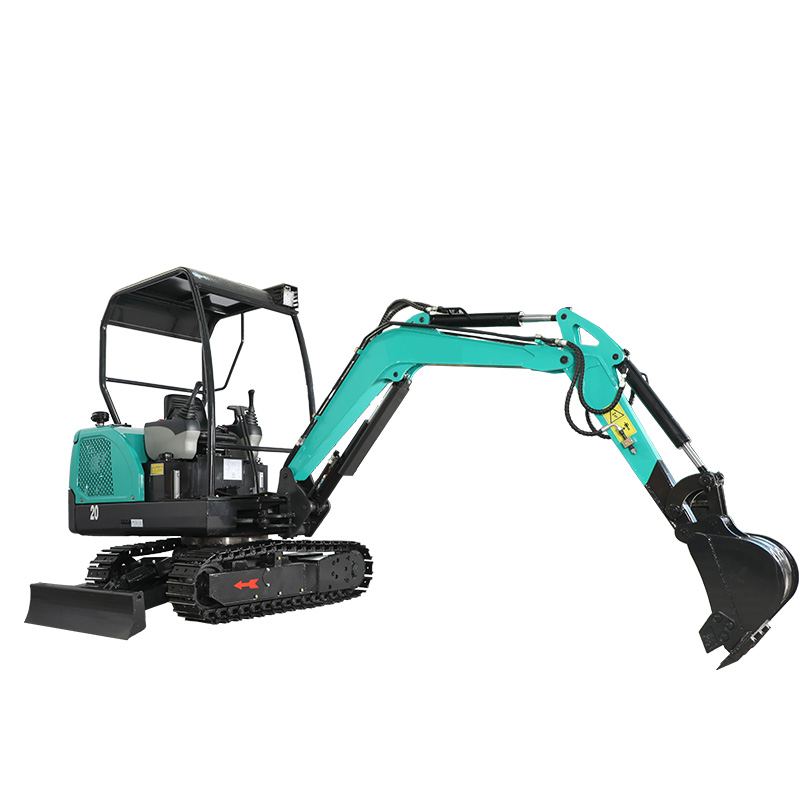

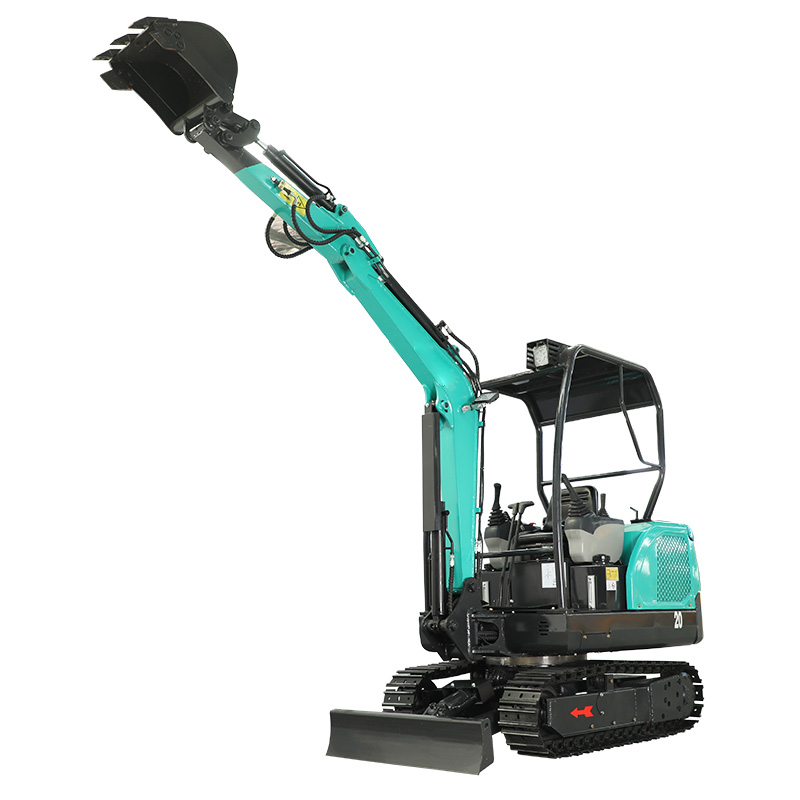

JKW-20 Excavator
|
||||||||||||||
|
Bucket Capacity
|
0.06m³
|
Engine
|
LAIDONG / YANMAR
|
|||||||||||
|
Excavator Width
|
1050mm
|
Engine Power
|
18.1kw/2200rpm 19.6KW/2300
|
|||||||||||
|
Track Length
|
1600mm
|
Turning Radius
|
1650mm
|
|||||||||||
|
Chassis Ground Clearance
|
480mm
|
Max.Digging Height
|
3300mm
|
|||||||||||
|
Track Width
|
230mm
|
Max. Dumping Height
|
2370mm
|
|||||||||||
|
Track Height
|
410mm
|
Max. Digging Depth
|
2050mm
|
|||||||||||
|
MAX. Digging Force
|
10kN
|
Max. Digging Radius
|
3700mm
|
|||||||||||
|
Gradeability
|
≤35°
|
Vertical Digging Depth
|
1830mm
|
|||||||||||
|
Excavator Height
|
2210mm
|
Max. Lift Height of Dozer Blade
|
230mm
|
|||||||||||
|
Overall Dimension
( LxWxH) |
3750*1050*2210mm
|
Wight
|
1850kg
|
|||||||||||
