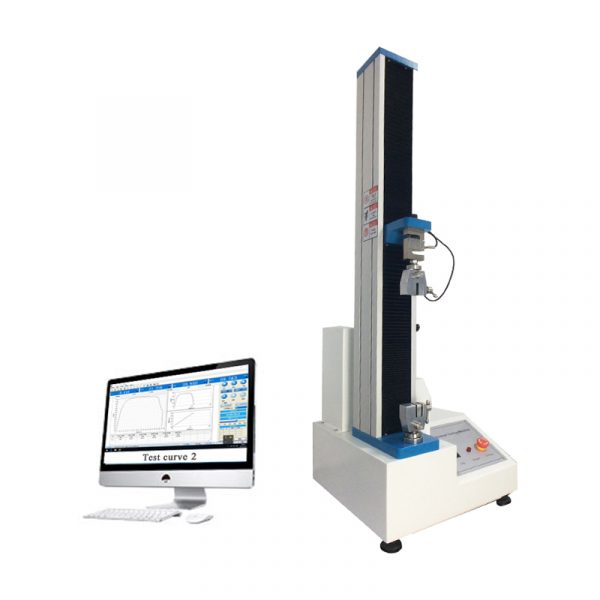

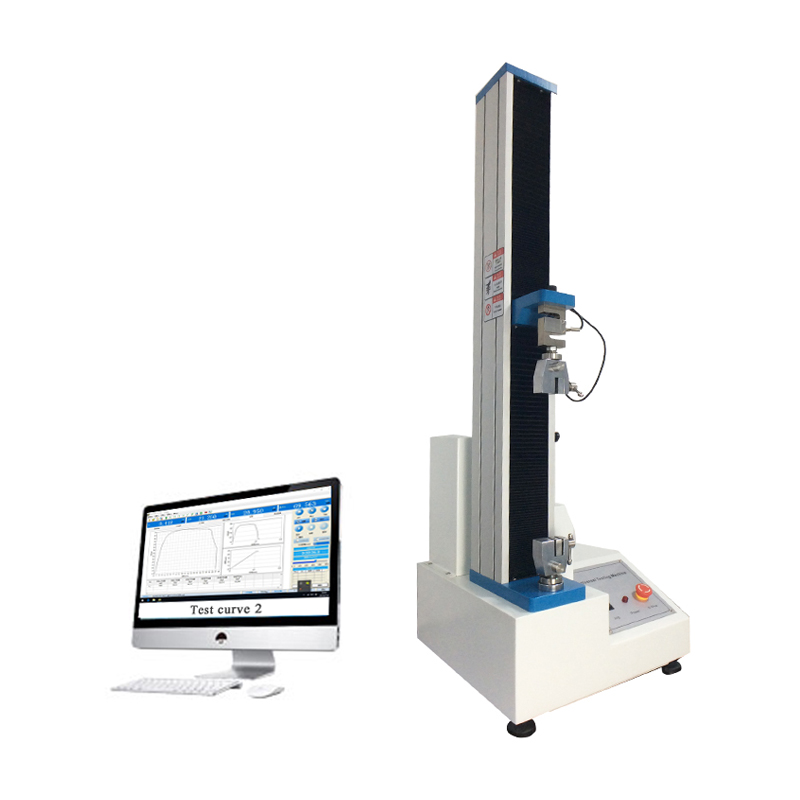

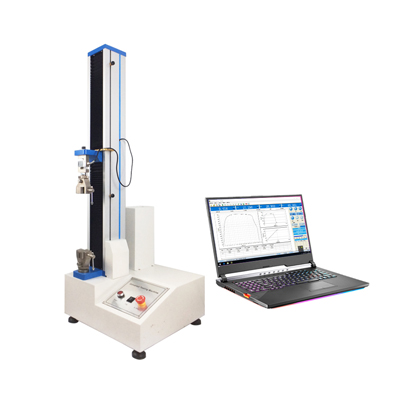

Single Column Floor-standing Type Computer Control Electronic Plastic Tensile Strength Testing
Machine use high strength light bars to fix the upper beam and the worktable to form a high-rigidity frame
Lap joints tensile testing machine structure.
It is driven by servo motor,which drives beam to move up and down through transmission mechanism to
realize the test loading process. It is mainly used for testing mechanical properties of various metals,
nonmetals and composite materials. The precise automatic control and data acquisition system realizes
full digital adjustment of the data acquisition and control process.
Maximum load
|
500KG
|
Host size(L*W*H)
|
1200*530*1800mm
|
Effective force range
|
0.4% to 100% (0.5 level)
|
Effective test width
|
400mm
|
Effective stretching space
|
800mm
|
power system
|
Servo motor high precision ball screw
|
power
|
0.75KW
|
Force measurement accuracy
|
Within ±0.5% of the indicated value
|
Accuracy level
|
Level 0.5
|
fiber cable, safety belt, belt, leather composite belt, plastic section, waterproof roll, steel pipe copper,sectional material,
spring steel, bearing steel, stainless steel , castings, steel plate and steel.
The company adheres to the quality-oriented, honesty-oriented, and innovative management, and has been welcomed by customers at home and abroad.
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment.
Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat
if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
3. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
5. Do you have a branch company or service office in my country?
We have offices in the belowing:
Hangzhou Branch:
Address: Building 1, Haixiang Industrial Park, No. 1413 Moqianshan Road, Xiangfu Town, Gongshu District, Hangzhou, Zhejiang, China
6. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power
cable and start to use. And if possible, we can also install your machine at site.
7. What about the services and product quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party
calibration institutions before shipping and delivery goods.
