Product Discription
|
Product Name
|
153Yx 253Yx Series Easy Mounting Bracket Peristaltic Pump
|
||||||
|
Product Model
|

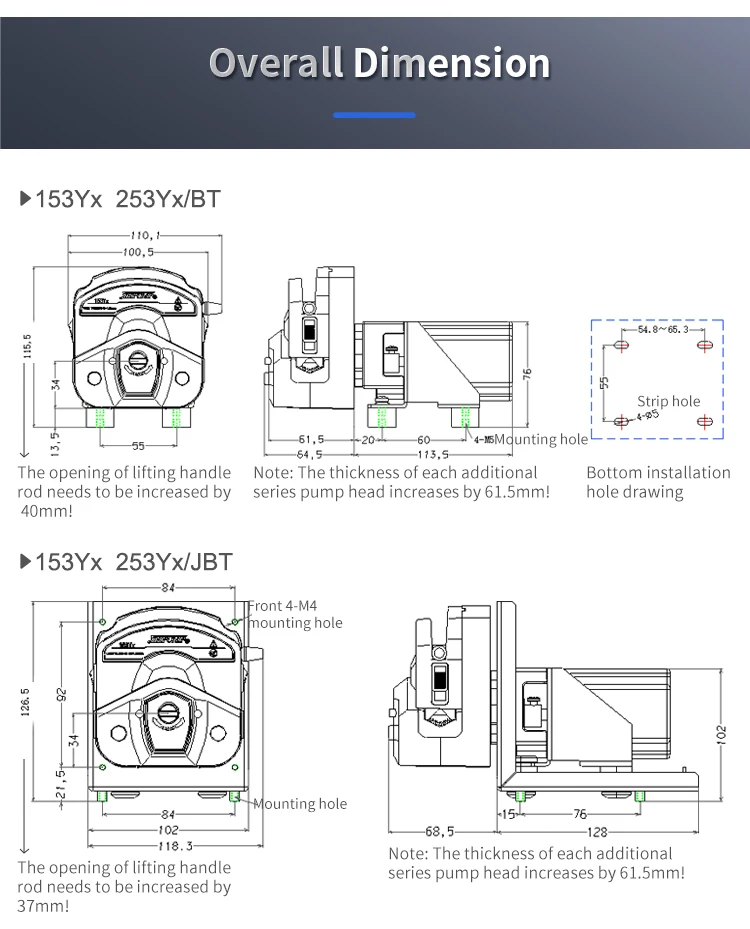

BT Type
|
JBT Type
|

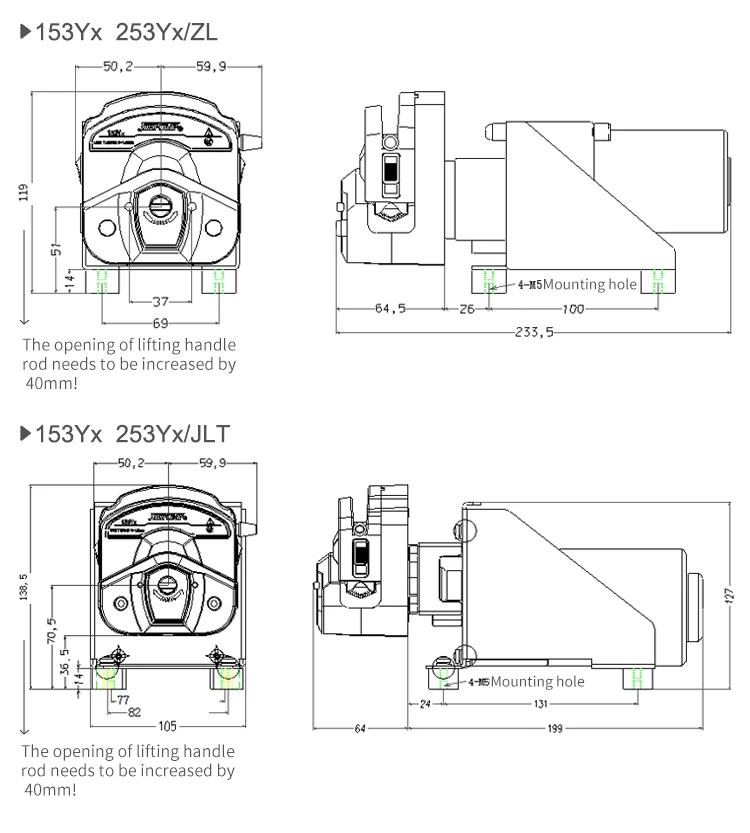

ZL Type
|
JLT Type
|
|||
|
Motor Type
|
Stepper motor
|
|
DC geared motor |
AC variable speed motor |
|||
|
Voltage and Current
|
DC 36V, 3A |
|
DC 24V, 2A |
AC 220V |
|||
|
Power
|
≤54W |
|
≤30W |
≤25W |
|||
|
Weight
|
1.5KG |
1.6KG |
2.5KG |
2.5KG |
|||
|
Work Environment
|
Temperature: 0~60℃, Humidity: ＜85%RH |
|
|
|
|||
|
Outlet Pressure
|
≤0.17MPa |
|
|
|
|||
|
Noise
|
≤70dB |
|
|
|
|||
|
Function
|
Start and stop, forward and reverse (change the wiring order), speed up and down (with control board)
|
Start and stop, forward and reverse (change the wiring order)
|
Start and stop, forward and reverse (change the wiring order), speed up and down (with governor)
|
||||
|

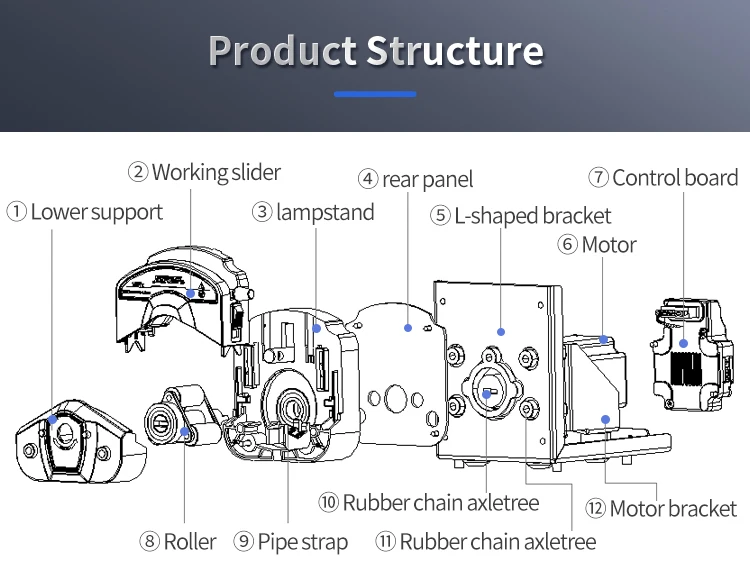

Main Material
|
Pump head: PPS (black)/poly (ether sulfone) (white), wheel: 304 stainless steel,
L bracket: 304 stainless steel |
|
|
|
|||
Common Applications: Analytical instruments: such as analytical testing instruments, medium sampling, laboratory, industrial process, fine chemical, food process: such as canned beverage, etc.
Applications Industry: medical diagnosis,Environmental protection instrument,Analytical Instruments,inkjet ink,washing cleaning,food and drink,Experimental research,Pharmaceutical machinery,Smart Appliances,industrial machinery etc.
JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.

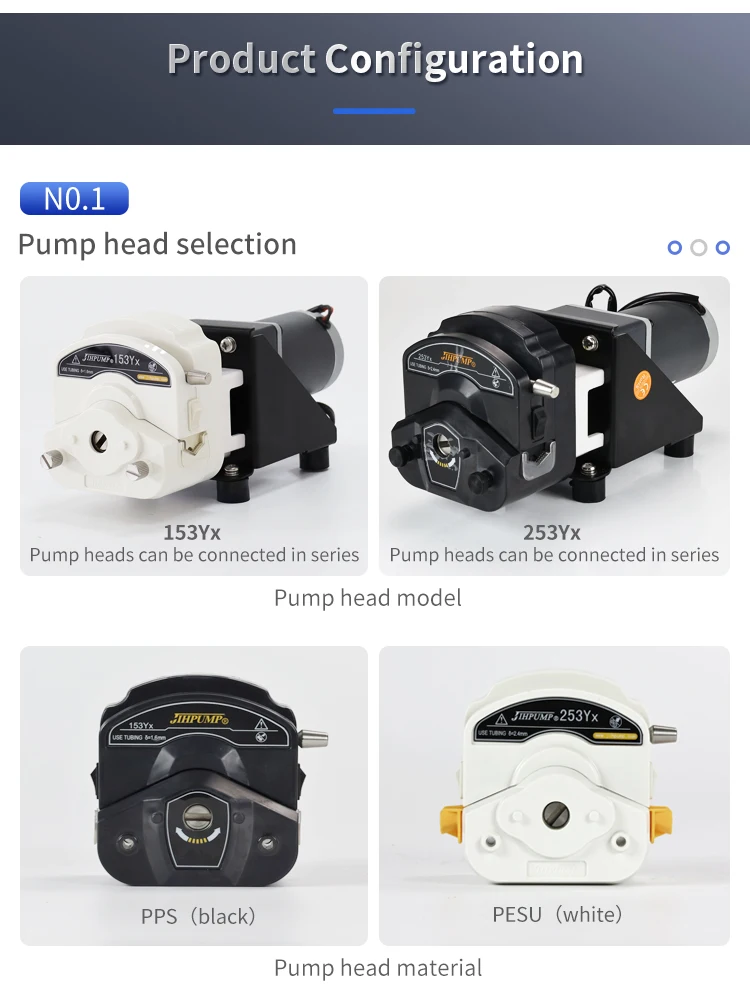

Pump head selection:
Select pump head type and material according to application needs.
Select pump head type and material according to application needs.
|
Pump head model
|
153Yx
|
253Yx
|
|

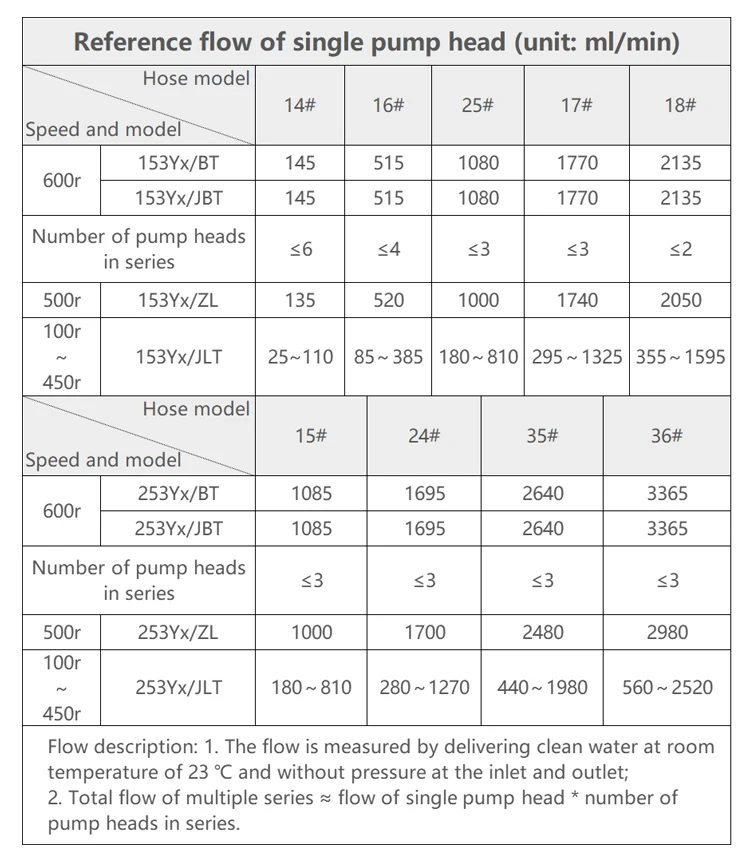

Suitable pump pipe to meet more flow range.
|
Higher suction range, higher output pressure, can transfer high viscosity liquid. |
|
|
Pump head material
|
PPS (black)
|
PESU (white)
|
|
Big brand special engineering plastics, strong acid and alkali resistance, corrosion resistance. |
Imported special engineering plastics. |

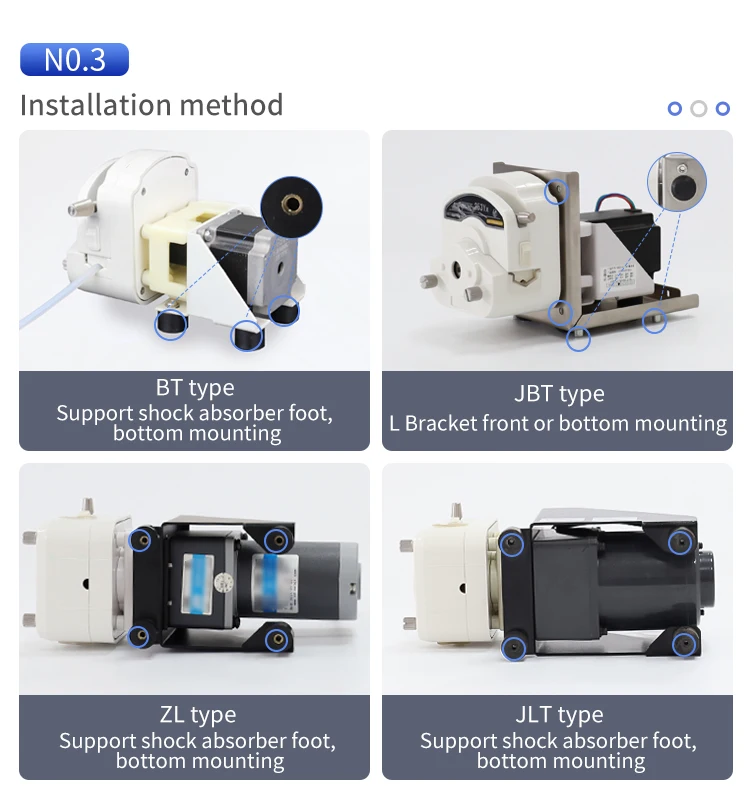

Motor and bracket configuration
:
Select the type of motor and bracket according to the application needs.
:
Select the type of motor and bracket according to the application needs.
|
Product model
|
BT Type
|
JBT Type |
ZL Type |
JLT Type |
|
|
Motor and bracket
|
Stepper motor,
bracket |
Stepper motor,
L-shaped bracket |
DC geared motor, bracket
|
AC variable speed motor, bracket |
|
|
Selection suggestion
|
1. Precise speed regulation.
2. Run continuously for a long time. |
|
1. Constant speed operation.
2. Short run. |
1. Adjustable knob coarse speed regulation.
2. It can run continuously for a long time. |
|
|
Voltage and current
|
DC24V~36V, 3A |
DC24V~36V, 3A |
DC24V, 2A |
AC 220V |
|
|
Motor life
|
5000~20000h |
5000~20000h |
1000~2000h
|
5000h |
|
We are the largest OEM peristaltic pump manufacturer in China and can meet all your peristaltic pump needs. Please contact us now : for product information, parameters, prices and application advice.
