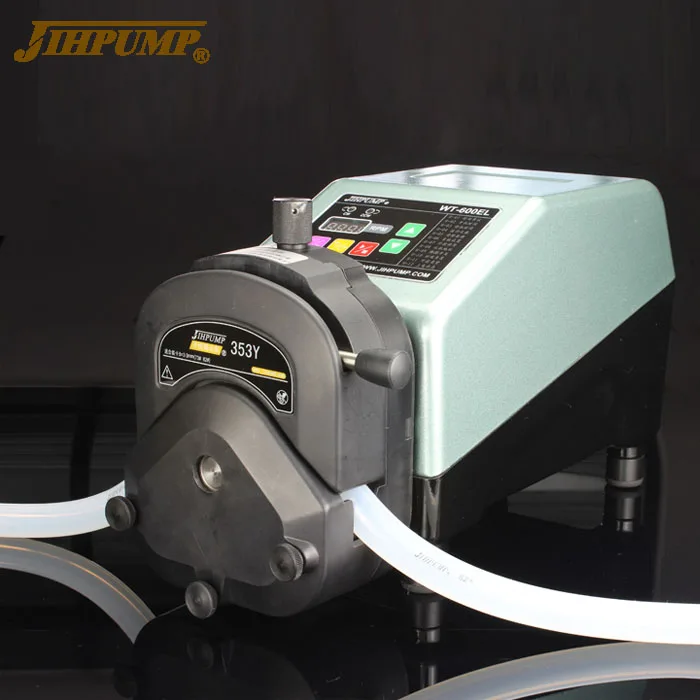

Industrial Large Flow 12L High IP Rating 54 Brushless DC Motor Smart Type Desktop Peristaltic Tubing Pump WT-600EL
Optional Accessories
Foot switch Anti-float head Filling needle
Function
1. Housing: Aluminum alloy fully enclosed housing, IP rating IP54
2. Wiring port: all ports are waterproof air socket.
3. Working environment: high dust, high humidity and other harsh conditions
4. Basic functions: start and stop, forward and reverse, lifting speed, full speed emptying, suckback setting
5. External control function: foot switch, 0-5V/10V, 4-20mA, ModBus communication protocol
6. Memory function: automatically remember pump setting parameters and running status
7. Standard configuration: drive, pump head, tube (2 meters)
8. Optional configuration: foot switch, spare tube, filling needle, tube connector, anti-floating countersunk head, etc.
9. Application areas: mechanical grinding and polishing liquid, electronic plating solution adding, chemical liquid, glue, anti-static liquid, etc.
Feature
|
Item |
Feature |
|||||||||
|
Application |
Lab, sampling, filling, industrial process, biomedicine, chemical environmental protection, juice beverage, printing, atomic energy etc. |
|||||||||
|
Pump housing |
Outer housing is engineering plastics, inner housing is powder painting carbon steel |
|||||||||
|
Drive |
Stepper motor |
|||||||||
|
Display |
4-digit led display |
|||||||||
|
Pump head |
153Yx, 253Yx, DGx |
|||||||||
|
Panel control |
Membrane keypad |
|||||||||
|
External control |
Foot switch, 0.5-5V/10V, 4-20mA, ModBus communication |
|||||||||
|
Function |
Start/stop, cw/ccw rotation, up/down speed |
|||||||||
|
Power supply |
220VAC/50Hz |
|||||||||
|
IP rating |
IP31 |
|||||||||
|
Dimension |
L345*W160*H190 |
|||||||||
|
Reference flow range(ml/min,speed 0-300rpm,medium:water) |
||||||||||
|
Pump model No. |
WT-600EL/153Yx |
|||||||||
|
Tube |
14# |
16# |
25# |
17# |
18# |
|||||
|
ID×wall (mm) |
1.6×1.6 |
3.1×1.3 |
4.8×1.6 |
6.4×1.6 |
7.9×1.6 |
|||||
|
Flow rate (ml/min) |
0.03-120 |
0.08-470 |
0.17-1120 |
0.3-1780 |
0.4-2200 |
|||||
|
Pump model No. |
WT-600EL/253Yx |
|||||||||
|
Tube |
15# |
24# |
35# |
36# |
||||||
|
ID×wall (mm) |
4.8×2.4 |
6.4×2.4 |
7.9×2.4 |
9.6×2.4 |
||||||
|
Flow rate (ml/min) |
0.2-900 |
0.3-1620 |
0.4-2340 |
0.5-3000 |
||||||
|
Pump model No. |
WT-600EL/DGx |
|||||||||
|
Tube |
14# |
16# |
25# |
|||||||
|
ID×wall (mm) |
1.6×1.6 |
3.1×1.3 |
4.8×1.6 |
|||||||
|
Flow rate (ml/min) |
0-150 |
0-450 |
0-590 |
|||||||
|
Pump model No. |
WT-600EL/253D | |||||||||
|
Tube |
35# |
36# | ||||||||
|
ID×wall (mm) |
7.9×2.4 |
9.6×2.4 | ||||||||
| Flow rate (ml/min) | 260~5176 | 300~6000 | ||||||||
| Pump model No. | WT-600EL/353Y | |||||||||
| Tube | 73# | 82# | ||||||||
| ID×wall (mm) | 9.7×3.3 | 12.7×3.3 | ||||||||
| Flow rate (ml/min) | 430~8600 | 600~12000 | ||||||||
Dimension
Certification
CE
