JIHPUMP High Accuracy Stepper Motor Liquid Dispensing Peristaltic Pumps with Tubing

ر.س1,396.37

Clear
Qty:
Compare

Request quotation for: JIHPUMP High Accuracy Stepper Motor Liquid Dispensing Peristaltic Pumps with Tubing

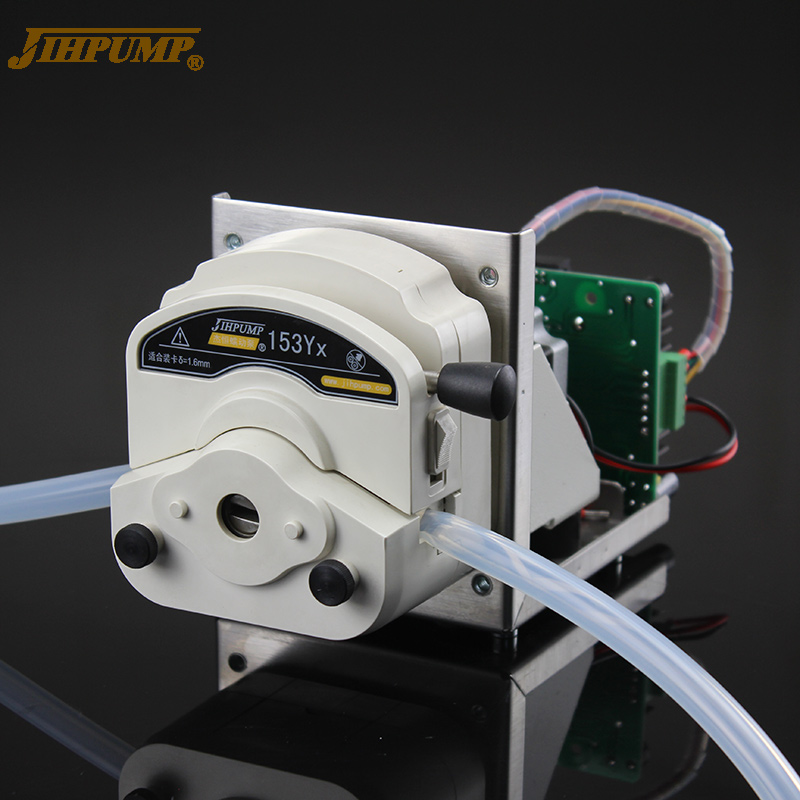

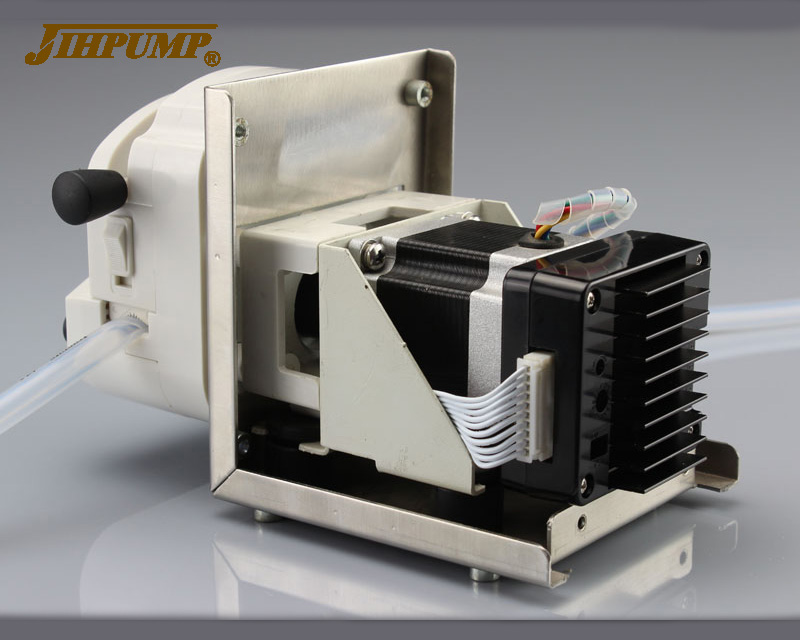

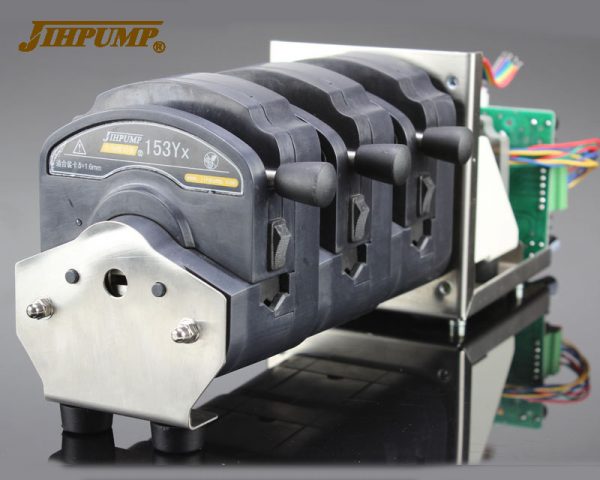

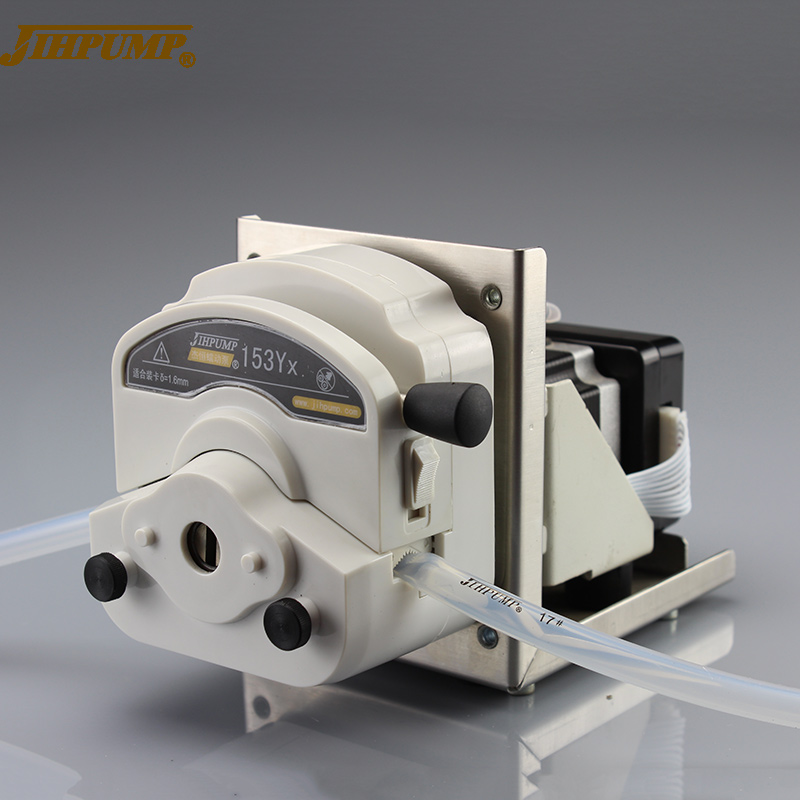

  JIHPUMP High Accuracy Stepper Motor Liquid Dispensing Peristaltic Pump with Tubing


Paramaters





Model No.

153Yx/JBT

Rotary speed

0.1~600rpm

Method of installation

stainless steel shaped plate

Tube

14#, 16#, 25#, 17#, 18#

Tube type

Silicone tube, Pharmed, Norprene tube and Tygon tube

Flow rate

0-2200ml/min

Roller number

3 rollers

Motor type

40W

Motor

57stepper motor

Pump head

PPS(black) or PSU(white)

Weight

1.8Kg







Flow rate (ml/min,medium:clean water)







Pump

153Yx/JBT

Tubing

14#

16#

25#

17#

18#

ID×Wall(mm)

1.6×1.6

3.2×1.6

4.8×1.6

6.4×1.6

7.9×1.6

0.1~50rpm

0.03~10

0.08~39

0.17~85

0.3~149

0.4~195

0.1~100rpm

0.03~21

0.08~75

0.17~157

0.3~275

0.4~375

0.1~300rpm

0.03~63

0.08~230

0.17~500

0.3~890

0.4~1280

0.1~600rpm

0.03~125

0.08~470

0.17~1120

0.3~1780

0.4~2280







Motor Specifications






Phase

Resistance

Inductance

Current

Acc/Dec time

Holding torque

Insulation class

2

1.0±10%Ω

3.9±20%mH

2.4A

1rpm/ms

100N.cm

B



Dimension




Tubing Installation






Accessories


























Type

Self-Priming Sewage & Trash Pumps, Positive displacement pumps

Maximum Head

8m

Maximum Flow Rate

2200ml/min
