Corporate Strength
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1. China leading manufacturer of peristaltic pumps. 2. Focus on peristaltic pump solutions. 3. 18+years of experience in peristaltic pumps. 4. 20000+ customers, 1 million+ Annual sales quantity.
Hot Sale Products ：
|
Product Parameters
|
||
|
Product name:
|

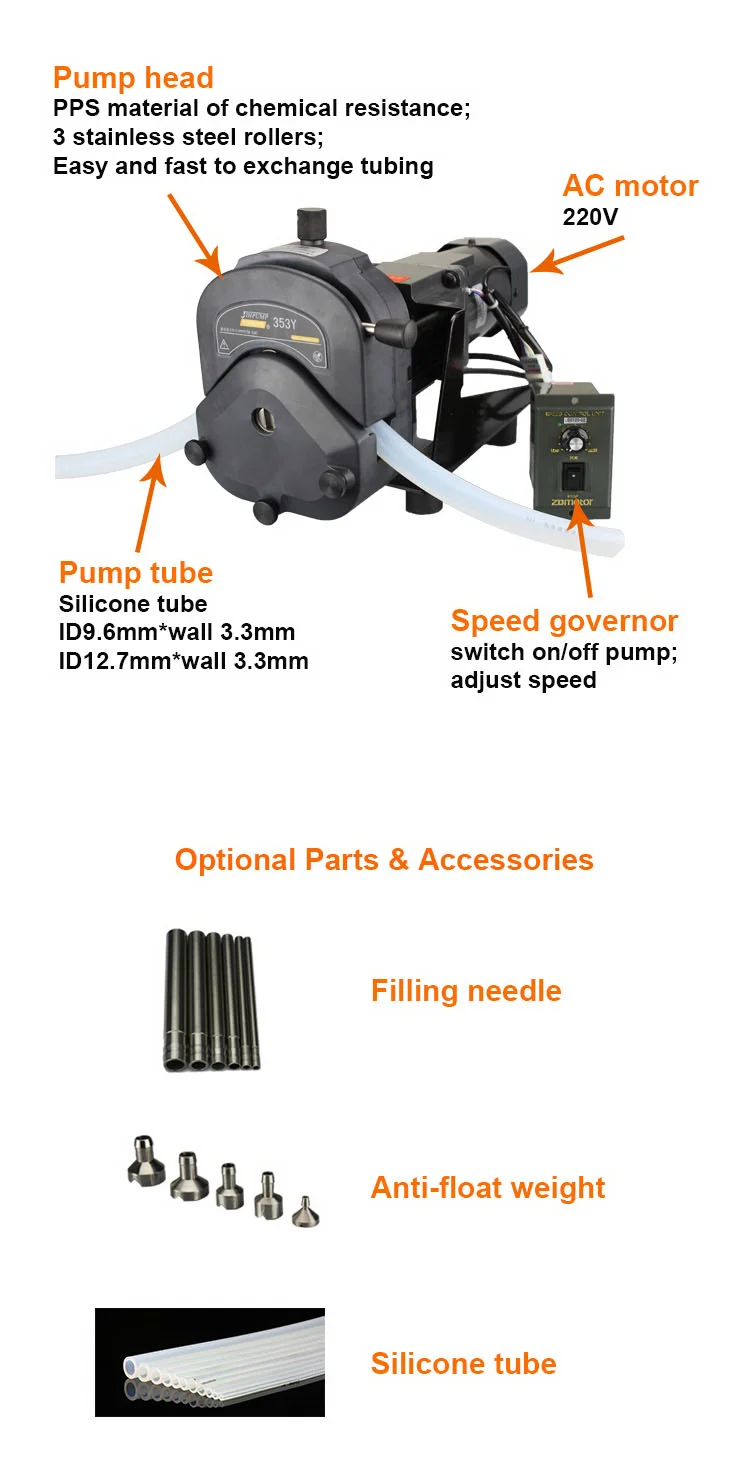

JIHPUMP 353Yx/JLT Yz35 110v 220v 230v 8L Large Flow Speed Control Liquid Dosing Industrial Peristaltic Pump
|
|
|
Product model： |
353Yx/JLT
|
|
|
Flow rate :
|
1800~8300ml/min |
|
|
Motor type：
|
AC motor |
|
|
Motor characteristics：
|
High work efficiency and strong power |
|
|
Using Electric/voltage：
|
AC 220V 50Hz/380V 50Hz
|
|
|
Power(W)：
|
≤120W |
|
|
Motor life：
|
≥180000 cycles (temperature 15～35℃, humidity 55%RH～75%RH, rated voltage, rated load, fixed one rotation direction, running for 40s and stopping for 20s is 1 cycle; Note: The motor is clockwise and counterclockwise The service life will be shortened when using frequent reversing shocks) |
|
|
Weight：
|
8.85KG
|
|
|

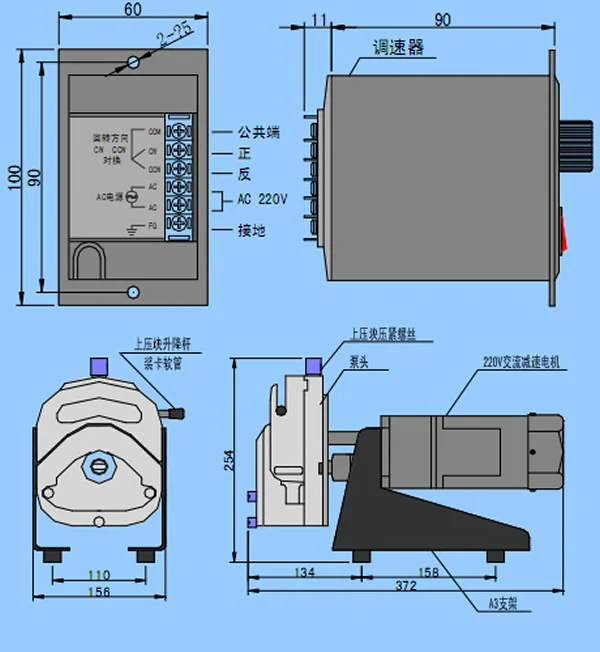

External dimensions：
|
Length:445mm Width:156mm Height :247mm
|
|
|
Working Environment:
|
Ambient temperature 0~60°C, relative humidity |
|
|
Outlet Pressure:
|
≤0.27MPa |
|
|
Noise :
|
≤55dB (the horizontal distance between the test product and the noise meter is 0.3 meters) ≤45dB (the horizontal distance between
the test product and the noise meter is 1 meter) |
|
|
Reference flow (unit: ml/min)
|
||||
|
Hose Material :
|
Silicone Tube
|
|||
|
Hose Type:
|
73# |
82#
|
||
|
Motor Speed:∨
|
/
|
/
|
||
|
150~450rpm
|
1800～5000ml/min
|
3000～8300ml/min
|
||
|
Flow Description
|
The flow rate is measured with clean water at room temperature of 23°C and no pressure at the inlet and outlet.
|
|||

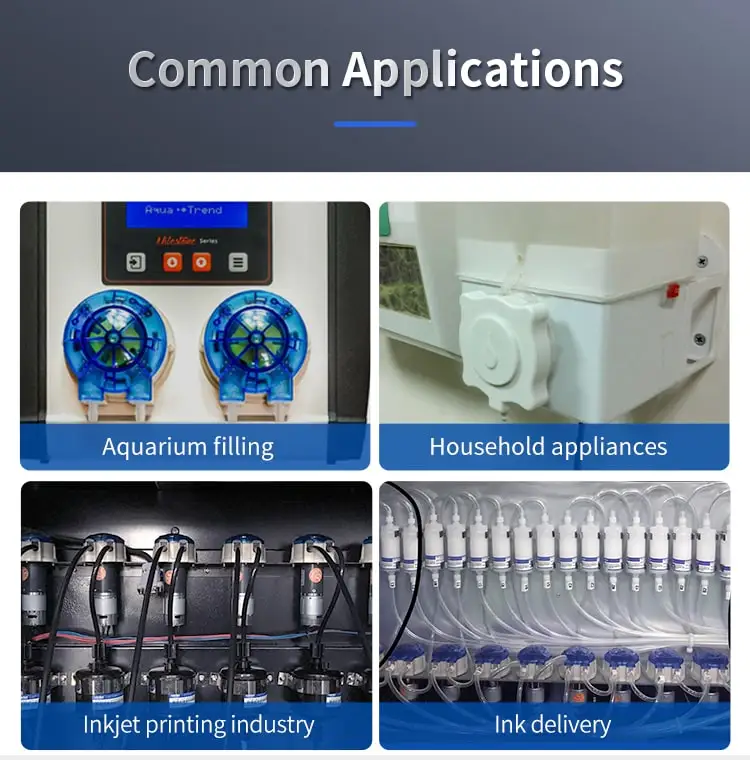

Common Applications: Delivery Ink,black powder,confecting solution etc Lnkjet Printing Industry, Ink Delivery，Drip irrigation system，food and beverage etc. Delivery surface paddle,berry,additives,etc
Applications Industry: Printing Industry, Food Industry , medical diagnosis, Environmental protection instrument, Analytical Instruments, Inkjet Ink, Washing Cleaning, Food and Drink, Experimental Research, Pharmaceutical Machinery, Smart Appliances, Industrial Machinery.
