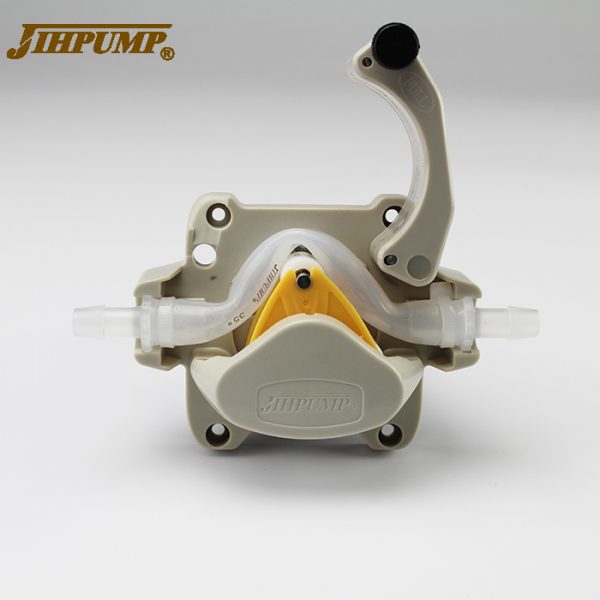

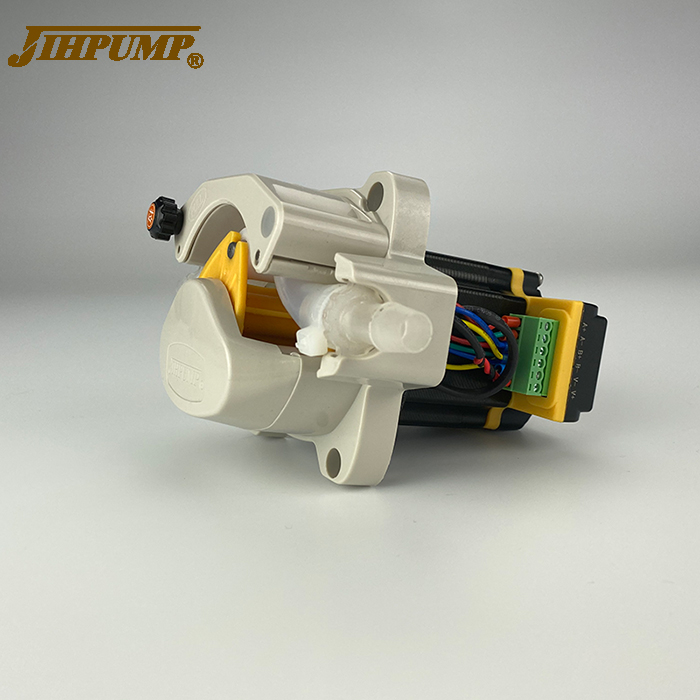

JIHPUMP 603Z 1000ml Stepper Motor Small Liquid Dosing Hose Peristaltic Pump 12V 24V for Dispensing
Without pull-type pump cover and suppression block, so easy to change tubing;
3-roller, low-pulse and large-flow rate
Exquisite appearance, small size, combination of industrial and artistic;
Tight bearing structure to avoid bearing loosing under high-speed operation;
Improved fitting and tubing slot structure, and connect fitting and pump tightly;
Coming with mounting panel
Certificated by CE,UL,RoHS and other technology certifications
Applications
Parameters
|
Items |
603Z/ZLX |
603Z/ZL |
603Z/BT |
|
Motor type |
DC Planetary Motor |
DC Gear Motor |
Stepper Motor |
|
Speed range |
150r~300rpm |
166r~507rpm |
0~300rpm |
|
Tube Size |
24#,35#,36# |
||
|
Flow Rate |
400~1950ml/min |
530~3405ml/min |
≤1940ml/min |
|
Power |
≤32W |
≤32W |
≤32W |
|
Driver |
DC speed control board(adopt pulse width speed control method) |
Stepper motor controllers |
|
|
Voltage |
DC 24V,12V |
12V~24V |
|
|
Weight |
640g |
688g |
922g |
Flow rate (ml/min,medium:clean water)
| Pump type | 603Z/ZL | 603Z/ZLX | 603Z/BT | |||
|
Tube Size/ Motor Speed |
DC Gear Motor | DC Planetary Motor | Stepper Motor | |||
| 166rpm | 326rpm | 507rpm | 150rpm | 300rpm | 300rpm | |
| 24# | 600 | 1110 | 1920 | 480 | 1075 | 1030 |
| 35# | 920 | 1755 | 3025 | 745 | 1600 | 1565 |
| 36# | 1135 | 2215 | 3405 | 935 | 1950 | 1940 |
Dimensions
603Z/BT
603Z/ZL
603Z/ZLX
Accessories
