The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

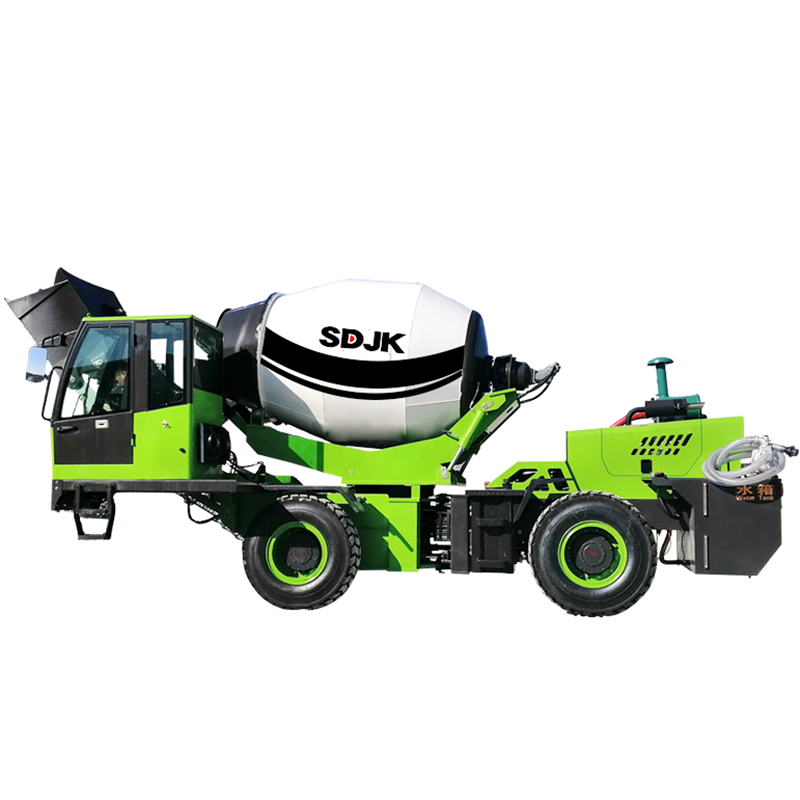

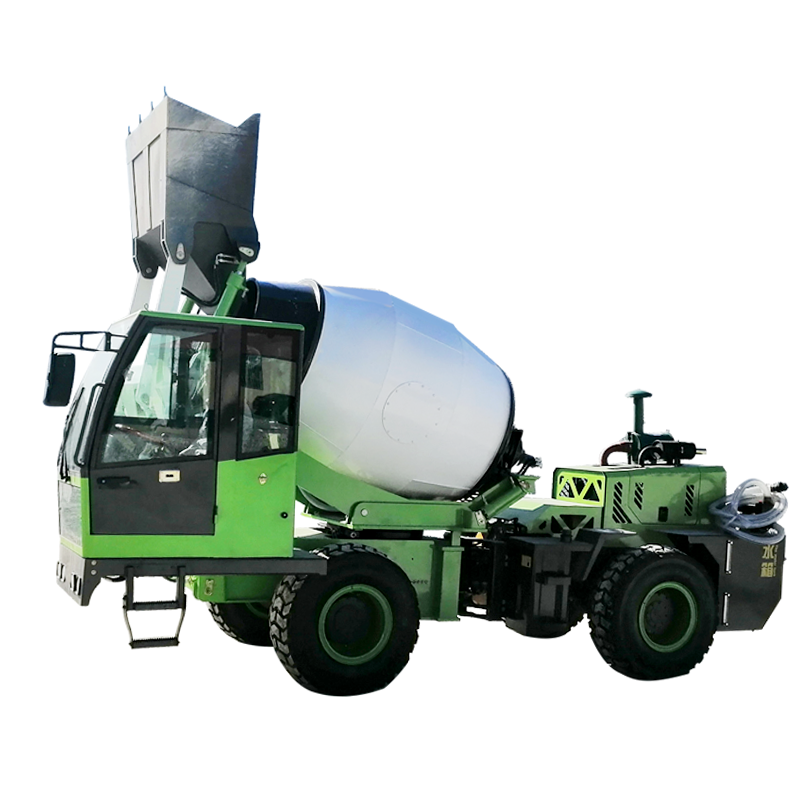

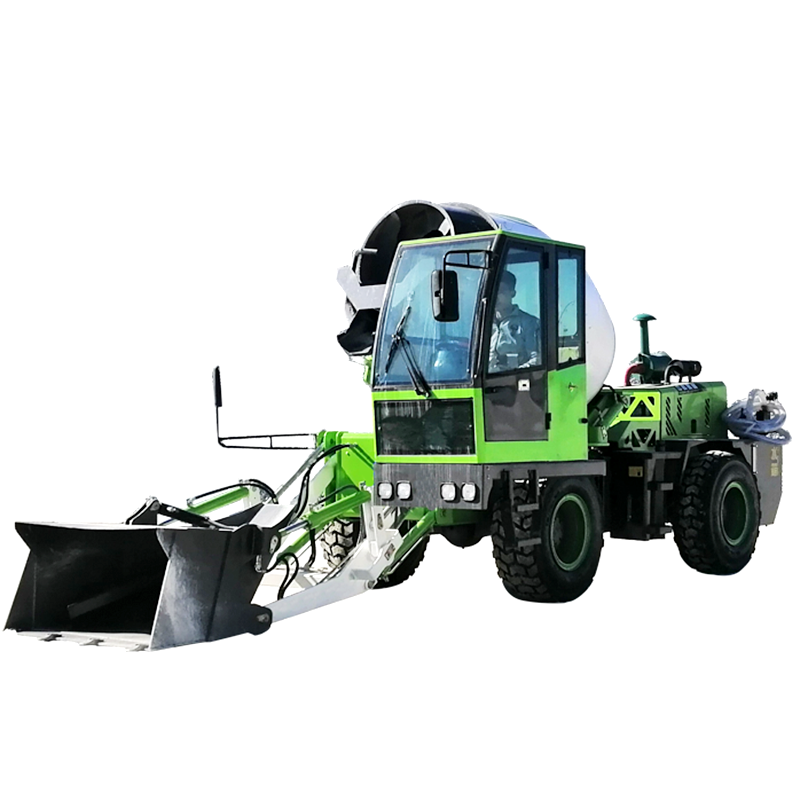

1.JBC-26 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.
2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
1.JBC-26 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.
2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
|
Model
|
JBC-26
|
Max. Water suction Volume
|
250 L/min. (Self-priming electronic water pump)
|
|
Mixing Capacity
|
2.6 m³
|
Water tank Volume
|
2×250 L
|
|
Geometrical Capacity
|
3.6 m³
|
Max. Travel Speed
|
30 km/h
|
|
Concrete Output
|
2.6m³/batch, 10.4m³/h
|
Grade ability
|
40°
|
|
Drum Rotating Speed
|
13 rpm
|
Min. Turning Radius
|
5300 mm
|
|
Drum Rotating Angle
|
270°
|
Operating Weight
|
6500 kg
|
|
Model
|
YUCHAI 4102
|
Max. Load
|
6200 kg
|
|
Type
|
In-line, 4-Cylinder, 4-Stroke, Turbo Charged, Water Cooled
|
Max. Gross Weight
|
12700 kg
|
|
Rated Power
|
78 KW (106HP) @ 2400 rpm
|
Overall Dimension (L×W×H)
|
7800*2750*4100 mm
|
|
Emission Standard
|
Euro II
|
Fuel Tank Volume
|
75 L
|
|
Loading Bucket Capacity
|
0.6 m³
|
Total Hydraulic System Capacity
|
75 L
|
|
Loading Times to Full Drum
|
5 Times
|
Oil Tank Volume
|
16 L
|
|
Discharge chute
|
2 Sets
|
|
