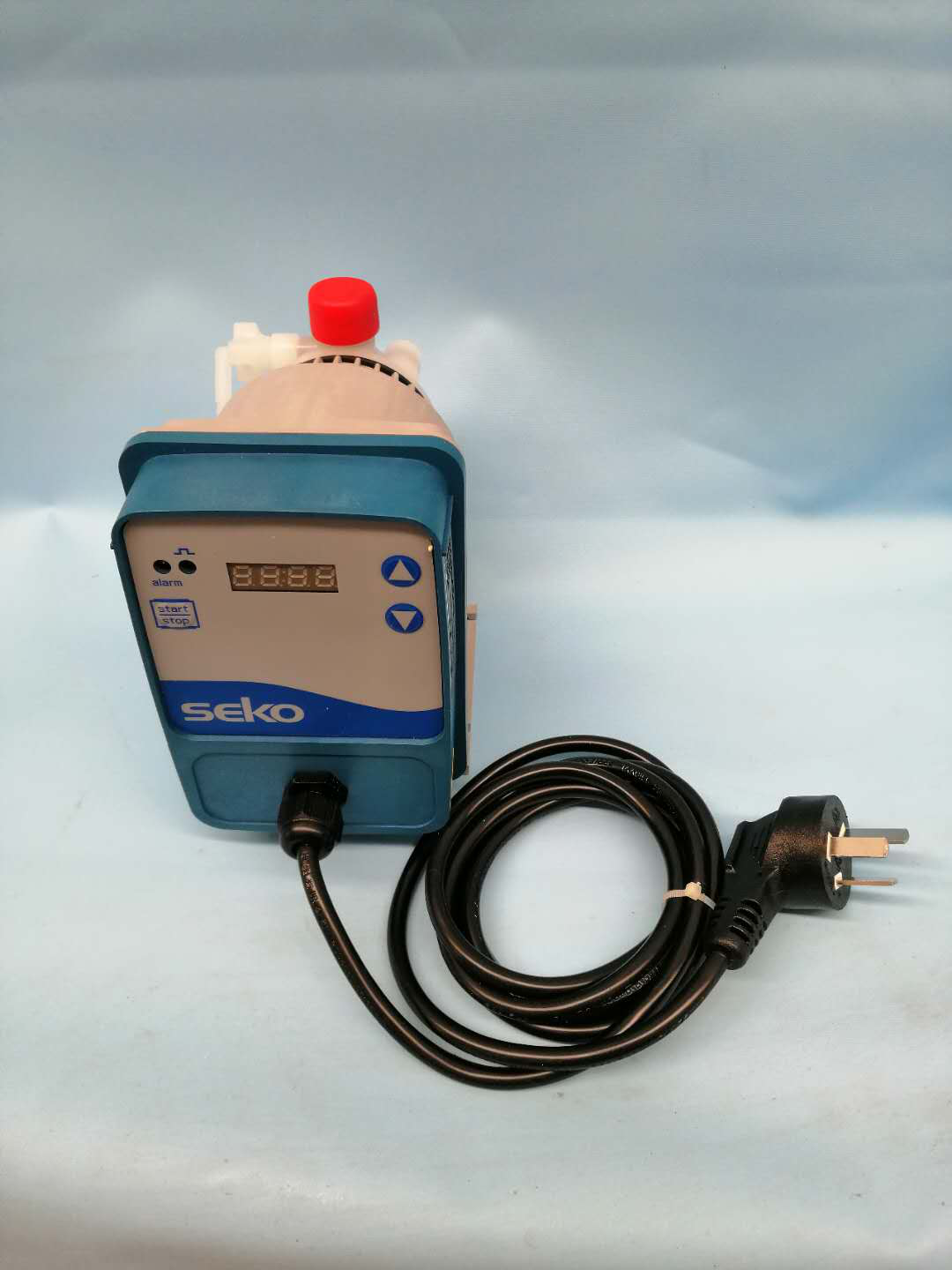

Italy SEKO DMS200 Metering Pump Water Liquid Electromagnetic Diaphragm Solenoid For Dosing System

ر.س1,863.36

Clear
Qty:
Compare

Request quotation for: Italy SEKO DMS200 Metering Pump Water Liquid Electromagnetic Diaphragm Solenoid For Dosing System

Product Category
FRP TANK
Cartridge and Bag Filter Housing
Water Pump
Control valve
Water tester
Membrane housing
Membrane
Cartrige and Ro Membrane
Product Description

chemical dosing pump /automatic liquid dosing pump /auto dosing pump

Series
Feature
ALS series
Analog metering pump, constant flow, manual adjustment
AKL series
Analog metering pump, constant flow, manual adjustment
APG series
Analog metering pump, constant flow, manual adjustment
TPG series
Analog metering pump, constant flow, manual adjustment
TCK series
Digital metering pump, constant flow or timing control
MS3 series
Mechanical diaphragm metering pump, flow rate 660L/H
MS4 series
Mechanical diaphragm metering pump, flow rate 800-2000L/H
MS1 series
Mechanical diaphragm metering pump, flow rate 5.5-530L/H
MSA series
Mechanical diaphragm metering pump, flow rate 5.5-530L/H
MM2 series
Mechanical diaphragm metering pump, flow rate 80-2300L/H
MM1 series
Mechanical diaphragm metering pump, flow rate 3-530L/H
KomBa series
KomBa is a simple yet reliable series of micro-processor based digital display type analogue solenoid dosing pumps. It includes
DMS,DML,DMC and DMM series.

Main features:
Max pressure: 10 bar; Max flow: 9 L/H; pump head: PVDF
Application area:
Municipal water treatment and waste water treatment, Chlorine dioxide dosing,reverse osmosis,food,drink and pharmaceutical
industry etc.

Strong compatibility
Standard Configuration: PVDF pump head and ceramic ball valve .PVDF pump head can compatible with almost all chemicals for
industry,waste water treatmentand drinking water area. Using ceramic ball valve can improve the reliability of dosing and the
chemical compatibility of whole liquid end.

Reliability
All SEKO pumps are tested using modern technologies; their reliability is assured through use of high quality materials, intensive
laboratory tests and life stress tests. Every pump is operated 6 hours at maximum speed before the final test. Test Certificate
with pressure/flow rate diagram made under customer specification is available as an option.

Dosing mode
Flow manual control or automatic control (signal input control)
DML, DMM and DMC have liquid probe interfaces.
Manual exhaust valve can assist pulse-on the pump.

Liquid contacted materials
Pump head: PVDF
Valve balls: ceramic
Seals: FPM/EPDM
Diaphragm: PTFE

Installation method
Horizontal installation
Wall-hung type (need mounting brackets)

Key Features

1) High speed operation: up to 400 strokes per minute results in high resolution chemical feed, with the elimination of slug-feed effects
2) Compact size: JCMA pumps are small, quiet, and lightweight
3) Long lasting diaphragm: The diaphragm is made up by PYFE, which is compatible with all kinds of chemicals. The life of the diaphragm is over 5 years, which 5 times as national standards GB/T7782-2008
4) Strong stability: Smooth working stability in AC100-240V, and suitable for 50-60 Hz range
5) High protection level: JCMA series metering pump protection level is IP65, and it can function safely under tough environment
6) Ball check valves: The protection ball, seat and guide assembly ensure tight sealing to prevent loss of prime
Packing & Delivery
7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Company Information
Wuxi EWATER Water Treatment Co.Ltd. is a one-stop purchasing, exporting, delivering service provider in Water industry field, located in International Environmental Protection Zone,Yixing,China.

Facilitated with the largest manufacturer of FRP Tank—Canature Huayu Environmental Products Co,.Ltd (the founder’s co-owned factory), and plentiful manufacturers of water treatment products in China, we provide the most cost- effective  products and considerately  customized service for our customers like Engineering Company /Water treatment product distributor and Users in water treatment industry all over the world.

We are proud of our Partner/Customer’s success, as the success of our Partner/Customer “Jieming International Trading Dubai” in the Middle East. We want much more “Jieming” successes all over the world with our support, THAT ONLY IS OUR SUCCESS!
Certifications
Type

DIAPHRAGM PUMPS

Maximum Head

5

Maximum Flow Rate

50L/H
