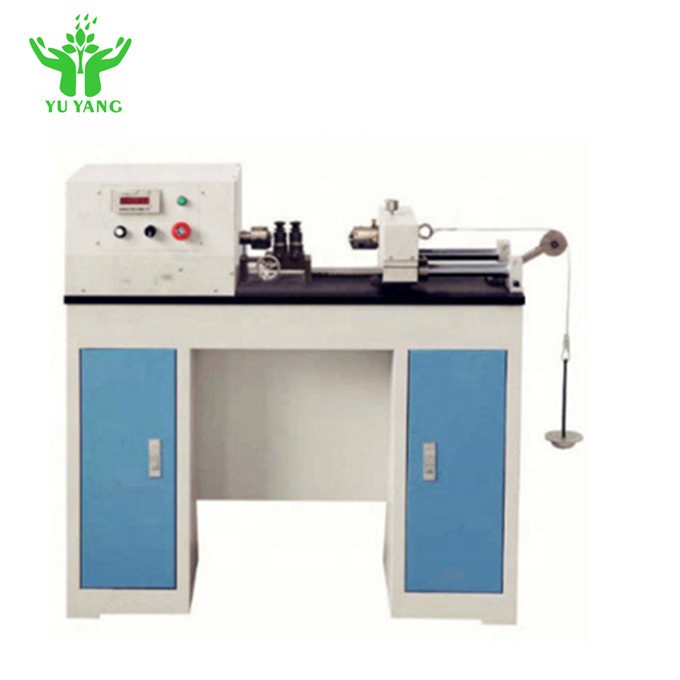

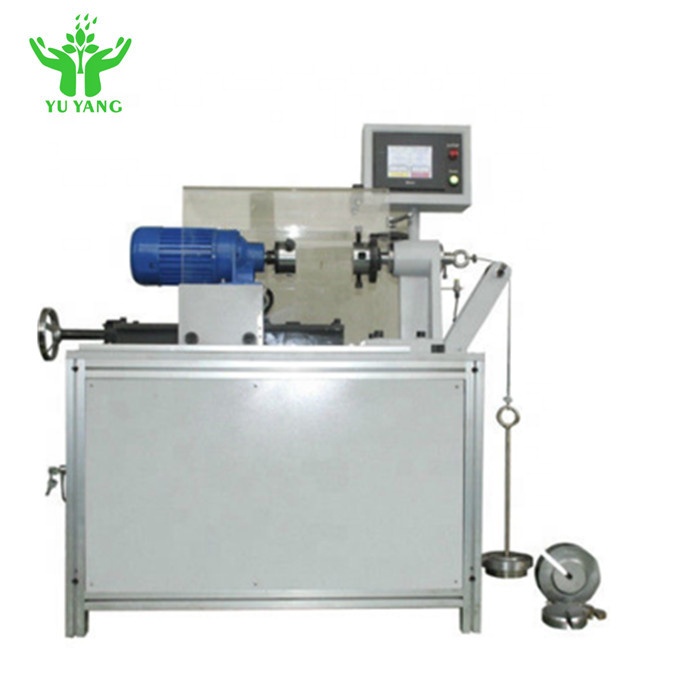

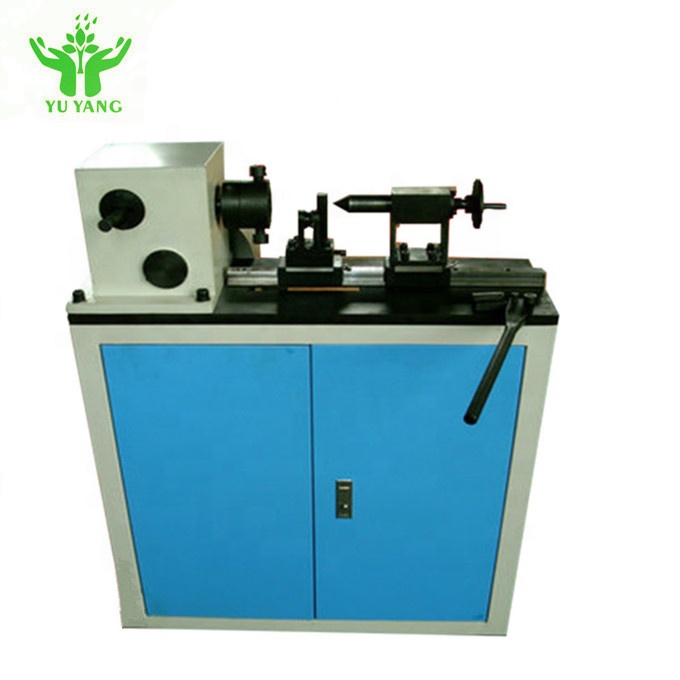

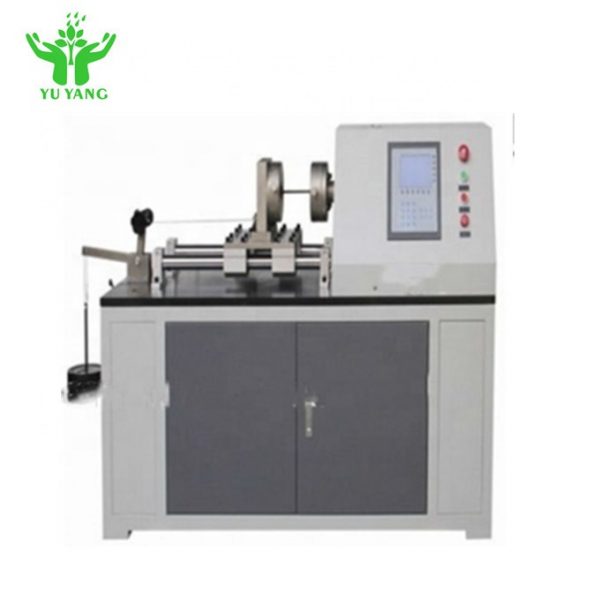

Metal Wire Torsion And Wrapping Testing Equipment
Product Description:
Metal Wire Torsion And Wrapping Testing Machine is a kind of new digital display type metal wire torsion and winding testing machine developed by our company. It is horizontal structure, which consists of loading, driving, winding, afterburner, tracking, etc. It is applicable to the torsion winding performance test for nominal diameter of Φ1-Φ10mm steel wire, copper, aluminum and its alloy wire; Rotation speed: 15,20,30,60 r / min adjustable. It main test the ability of wire in one-way, two-way torsion or winding to withstand plastic deformation and display wire surface and internal defects. And it equip with torsion, winding necessary accessories, to achieve a multi-purpose machine.
Application:
It is mainly used for the torsion test of metal and nonmetal materials, as well as the torsion test for parts and components. It is an essential instrument to measure torsion properties of materials for mechanics laboratories of aviation industry, construction industry, scientific research dept, universities and industrial enterprises etc.
Parameter:
| Maximum distance between the two chuck | 500mm |
| Rotation speed | 15,20,30,60 |
| Jaw hardness | HRC50-60 |
| Tester working noise | <70db |
| Winding speed | 15,20,30,60rpm |
| Winding direction | Forward or reverse |
| Reverse speed | 0-60m/min (adjustable) |
| Motor power | 0.185KW |
| Rated voltage, frequency | 200V,50 Hz |
| 200V,50 Hz | 9999 |
| Torsion balance weight | 5*5kg |
Standard:
ISO 7802, GB/T 2976. ISO,ASTM,EN,etc
Product display:
