ISDS210A PC-Based USB Portable digital Oscilloscope 2 Channels 40M 100MS/s FFT Analyzer

ر.س601.58

Clear
Qty:
Compare

Request quotation for: ISDS210A PC-Based USB Portable digital Oscilloscope 2 Channels 40M 100MS/s FFT Analyzer

Product Description

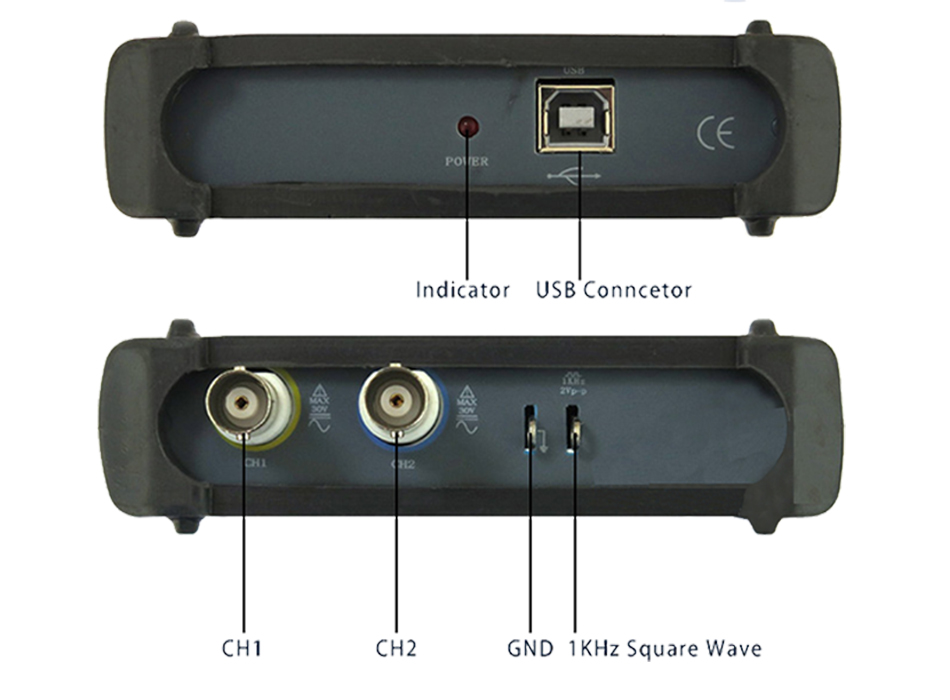

ISDS210A / ISDS210B dual-channel digital oscilloscope, is a product taken “low-cost, high-performance” as the design goals and it is well-designed bandwidth 40M, 100M sampling rate, 2 channels, supporting alternately X,alternating Y and XY mode dual-channel virtual oscilloscope, spectrum analyzer, and has a 1KHz reference square wave output interface. Devices communicate with a PC via high speed USB2.0.



Features:

1, streamlined design, compact size, USB2.0 interface, no external power source.

2, more suitable for notebook computer, used easily on business.

3, a small size (mm): 150 (L) x100 (W) x30 (H), easy to carry.

4, high refresh rate, high sampling rate, 100MS / s real-time sampling.

5, the software supports: Windows XP (SP3), Win7 (32 bit), Win7 (64-bit).

6, waveforms: add, subtract, multiply, X-Y display.

7, the waveform data can be output to EXCEL, BMP, OSC by time and voltage.

8, FFT spectrum analysis.

9, full-function signal generator, and supports adjustable voltage amplitude and offset.

10, a computer can connect many DSO.

11, secondary development library that provides an example of VC development.

Channels Impedance Coupling
2 1MΩ 25pF AC / DC



Digital Storage Oscilloscope:

Channels: 2

Impedance: 1MΩ 25pF

Coupling: AC / DC

Vertical resolution: 8Bit

Voltage range:-16V ~ 16V(probex1), -160V-160V(probex10)

Vertical accuracy: ± 3%

Timebase range: 1ns-20s

Vertical adjustable: 10mV/div-10V/div (1MΩ)

Input protection: Diode clamping

Auto Setup: Yes (10Hz to 40MHz)

Trigger mode: automatic, continuous, single

Trigger Slope: + / –

Trigger level adjustable: Yes

Trigger Type: Analog

Trigger source: CH1, CH2

Memory Depth: 512KB/CH

Single Bandwidth: 40MHz

Maximum real-time sampling rate: 100MS / s

Sampling Rate Selection: Yes

Vertical mode: CH1, CH2, ADD, SUB, MUL

Display Mode: X alternately, Y and X-Y mode alternately

Cursor measurements: Yes

Cursor display: frequency, voltage

Waveform Save format: Osc (private), Excel and Bmp



Spectrum Analyzer

Channels: 2

Bandwidth: 40MHz

Algorithm: FFT (18 window), correlation, power spectrum, supports Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman,

blackman_Harris, tukey, Nuttall, FlatTop, Bohman,, Parzen, Lanczos, kaiser, gauss,

dolph_chebyshev as many as 18 kinds of windows;

FFT data points per channel :8 -1048576



Filter:

FIR supports arbitrary amplitude frequency sampling method and Rectangle, bartlett, triangular,

cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop,

Bohman, Parzen, Lanczos, kaiser, gauss window function method;

IIR filter support “Butterworth”, “Chebyshev I”, “Chebyshev II”, “oval” type;
