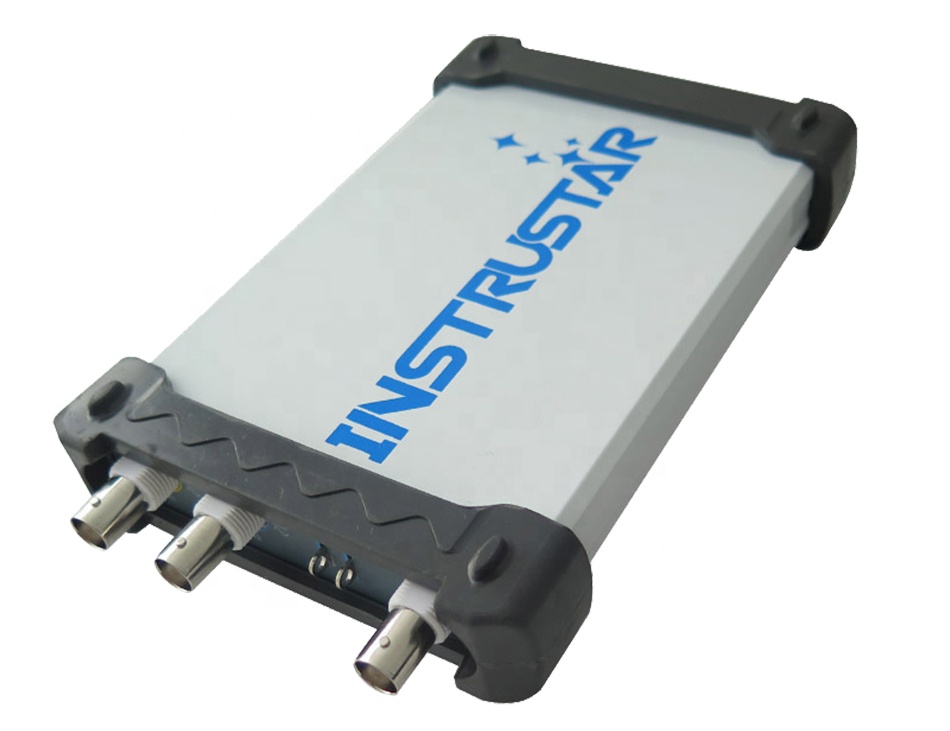

ISDS205B 5 IN 1 Multifunctional PC Based USB Digital Oscilloscop/Spectrum Analyzer/ DDS/Sweep/Data Recorder 20M 48MS/s

ر.س526.38

Clear
Qty:
Compare

Request quotation for: ISDS205B 5 IN 1 Multifunctional PC Based USB Digital Oscilloscop/Spectrum Analyzer/ DDS/Sweep/Data Recorder 20M 48MS/s

Product Description

 Features:
– ISDS205B dual-channel digital oscilloscope
– 20/48M sampling rate and high bandwidth
– 2 channels, with alternating X-T and XY support
-Supports DDS functions

Specifications:

Model ISDS205B
Channels 2
Coupling AC/DC
Vertical resolution 8-Bit
Gain range -6 to 6 V (probe X1), -60 to 60 V (probe X10)
Vertical accuracy ±3%
Time base range 1 ns-20 s
Input protection Diode, 50Vpk
Autoset Yes (10 Hz to 20 MHz)
Trigger mode Auto, normal, and signal
Trigger type No, rising edge, falling edge, rising edge or falling edge
Trigger level Yes
Trigger source CH1, CH2
Buffer size 1 MB/CH
Bandwidth 20 MHz
Max sample 48 MS/s
Vertical mode CH1, CH2, ADD, SUB, MUL
Display mode X, Y-T, X-Y
Measurements Yes
Wave save Osc (Private), Excel and Bmp



Spectrum analyzers:
Channels: 2
Bandwidth: 20 MHz
Algorithm: FFT (18 windows), correlation
FFT points: 8 – 1048576/CHN
FFT measure: Harmonic (1-7), SNR, SINAD, ENOB, THD, SFDR
Filter processing: FIR filter supports arbitrary range of frequency sampling method and rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, Kaiser, gaussand dolph_chebyshev, window method design
IIR filter support “Butterworth”, “Chebyshev I”, “Chebyshev II”, “Elliptic” type of filter design.

DDS:
Wave: Sine, Square (Duty circle variable), Triangle, Up Sa

Data Recorder:

Channel 2
Coupling AC/DC
Vertical resolution 8-Bit
Gain range -6 to 6 V (probe X1), -60 to 60 V (probe X10)
Sample 1 channel 1K – 24M Hz
2 channel 1K – 16M Hz
Save file The maximum 4G, recording time associated with the sampling rate
