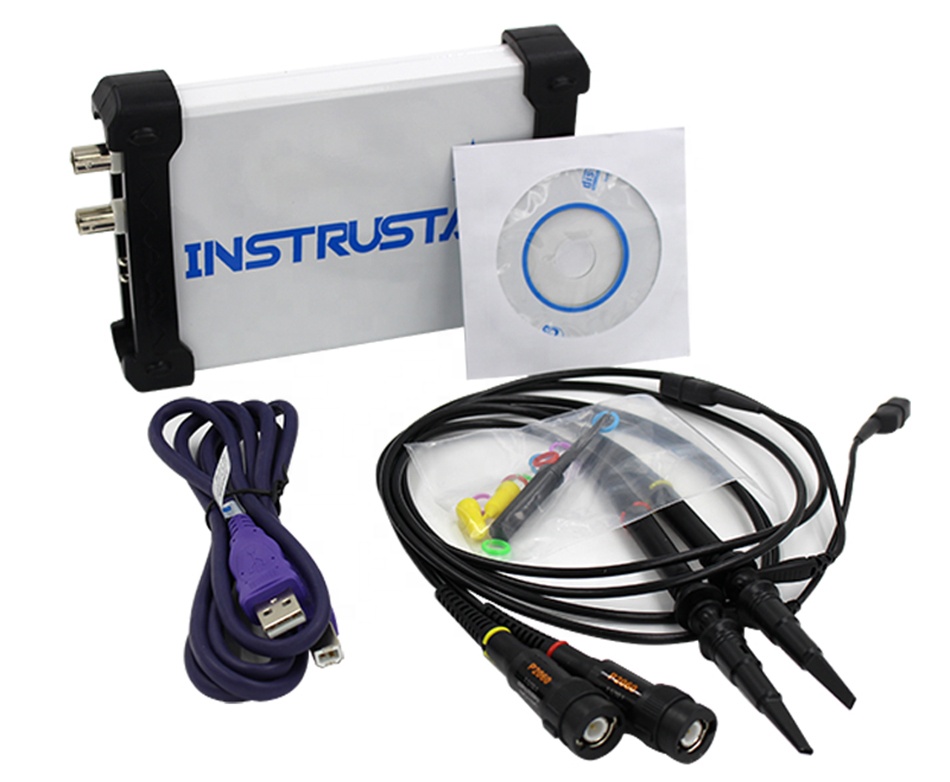

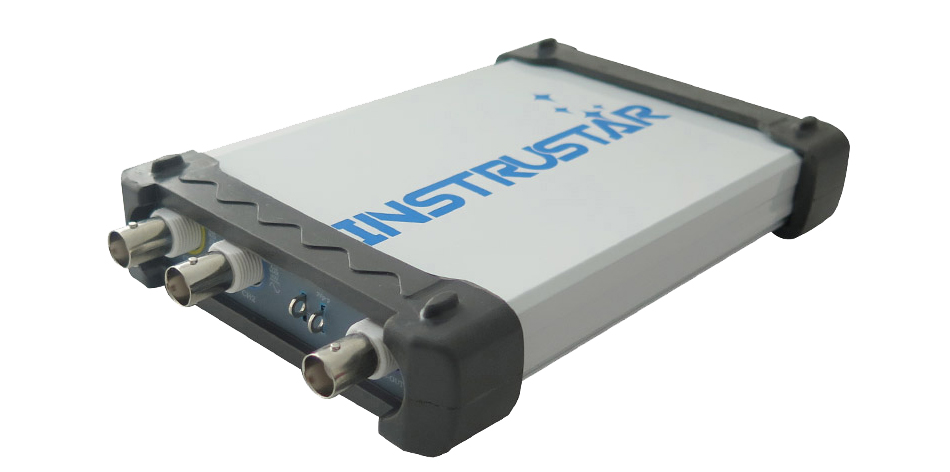

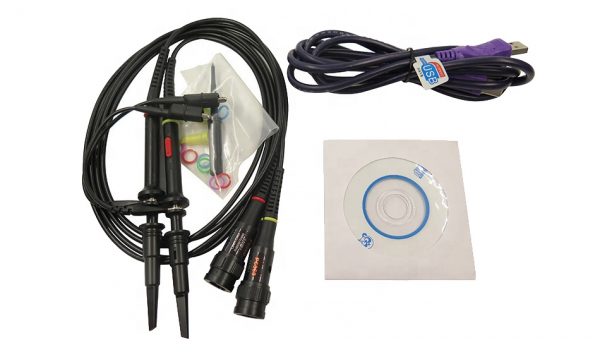

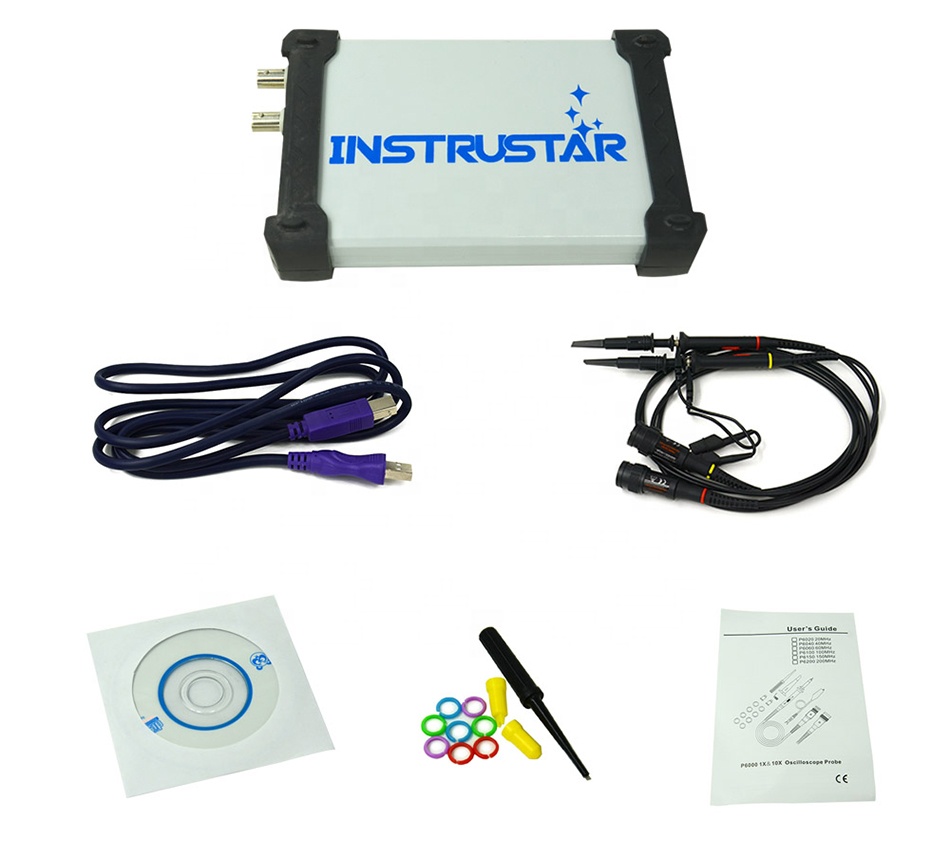

ISDS205A dual-channel digital oscilloscope, with "low-cost, high-performance" as the design goals. well-designed bandwidth of 20M, 48M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of two-channel virtual oscilloscope, spectrum analyzer, data recorder. The device communicate with the PC via high speed USB2.0.
|
|
Digital oscilloscop |
Spectrum analyzers |
Data recorder |
|

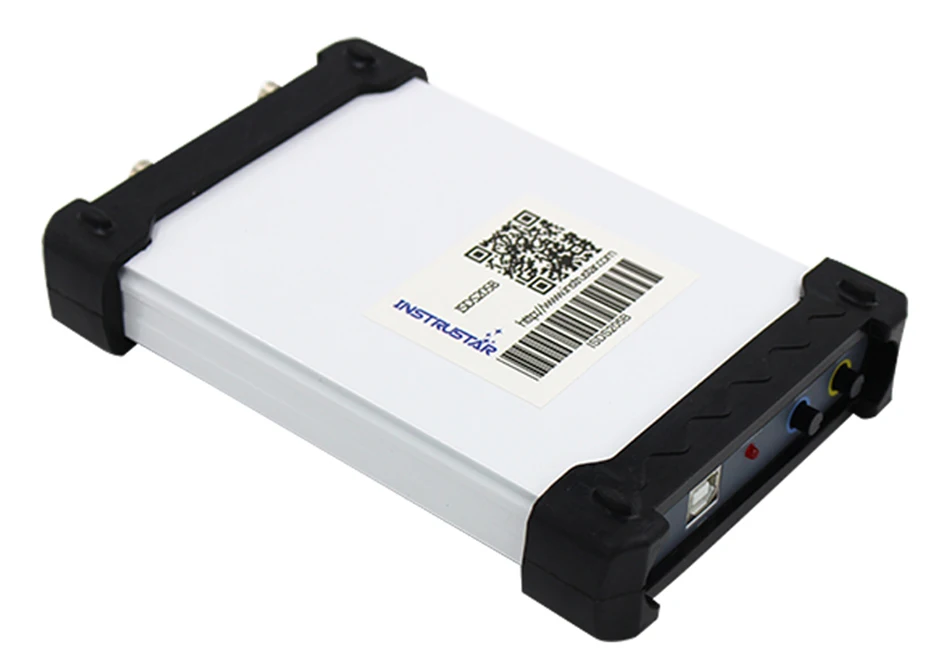

ISDS205A |
√ |
√ |
√ |

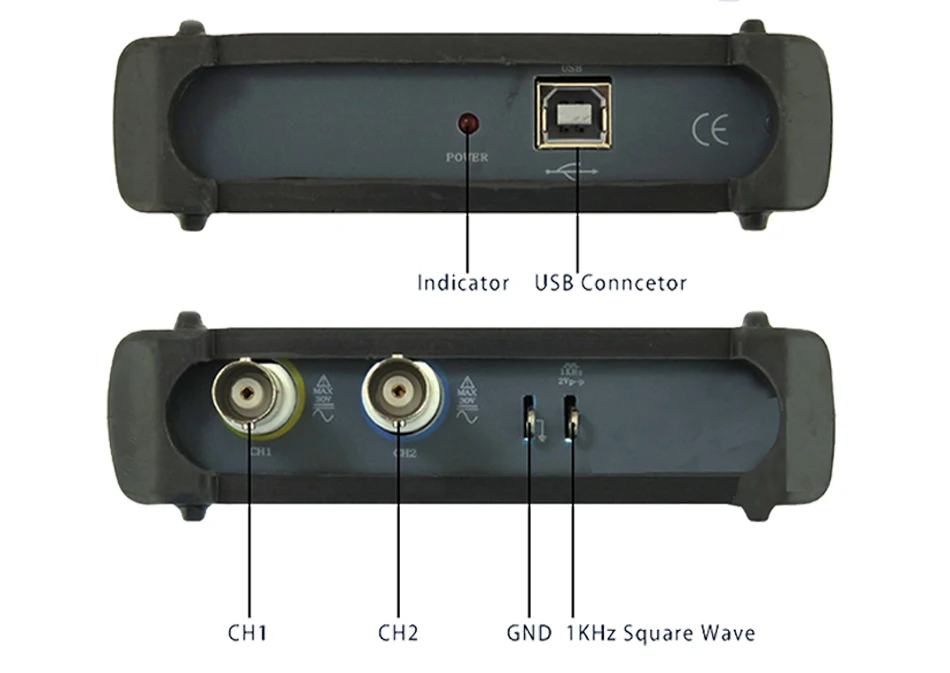

Specification:
|
Digital oscilloscope |
|
|
Channels |
2 |
|
Impedance |
1MΩ 25pF |
|
Coupling |
AC/DC |
|
Vertical resolution |
8Bit |
|
Gain range |
-6V ~ 6V (probe X1) -60V ~ 60V (probe X10) |
|
Vertical accuracy |
±3% |
|
Timebase range |
1ns-20s |
|
Input Protection |
Diode, 50Vpk |
|
Autoset |
Yes(10Hz to 20MHz) |
|
Trigger Mode |
Auto, Normal and Signal |
|
Trigger Type |
No, Rising edge, Falling edge, Rising edge or Falling edge |
|
Trigger level |
Yes |
|
Trigger Source |
CH1, CH2 |
|
Buffer Size |
1MB/CH |
|
Bandwidth |
20MHz |
|
Max sample |
48MS/s |
|
Vertical mode |
CH1, CH2, ADD, SUB, MUL |
|
Display Mode |
X, Y-T & X-Y |
|
measurements |
Yes |
|
Wave save |
Osc(Private), Excel and Bmp |
|
Spectrum analyzers |
|
|
Channels |
2 |
|
Bandwidth |
20MHz |
|
Algorithm |
FFT(18 windows), correlation, power spectrum |
|
FFT points |
8-1048576/CHN |
|
FFT measure |
Harmonic(1-7), SNR, SINAD, ENOB, THD, SFDR |
|
Filter processing |
FIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design. IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design |
|
Data recorder |
|
|
Channel |
2 |
|
Impedance |
1MΩ 25pF |
|
Coupling |
AC/DC |
|
Vertical resolution |
8Bit |
|
Gain range |
-6V ~ 6V (probe X1) -60V ~ 60V (probe X10) |
|
Sample |
1 channel : 1K~24M Hz 2 channel : 1K~16M Hz |
|
Save File |
The maximum 4G, recording time associated with the sampling rate |
Package: Normally we use the standard exporting packaging. We also can according to clients’ request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.
3. By Sea: Delivery from the shenzhen sea port
1. The questions about the encoder will be answered within 24 hours.
2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.
3. Update the procession of manufacturing
Shenzhen Yuanqi Trading Company Adhering to the exquisite product design and manufacturing process of European industrialized countries, we provide you with a complete range of products with complete specifications and reliable equipment matching combination. Our company has always regard quality as the paramount goal.We are make efforts in order to create a high-level environment, the introduction and absorption of advanced domestic technology and production equipment, the establishment of a scientific and standardized modern enterprise management system and quality system. We equipped with large-scale spot warehouses, sales and service network throughout the country.If you have any questions about the products and services, please feel free to contact us.
Q1:What’s the MOQ?
A: MOQ: 1 pc
Q2:How to place the order?
A: Please contact with our sales to get the detail datasheet and confirm the part number of the encoder you need, then you can place the order online or underline.
Q3:What’s the payment term?
A: We can accept T/T, Western Union and PayPal etc.
Q4:What’s the lead time?
A: Standard within 7 working days. Customized need 15-20 working days.
