Intelligent Construction Grouting Equipment mortar Machine for Construction Project

ر.س40,164.62

Clear
Qty:
Compare

Request quotation for: Intelligent Construction Grouting Equipment mortar Machine for Construction Project

Intelligent Cement Grouting Machine for Construction Industry





Product Description

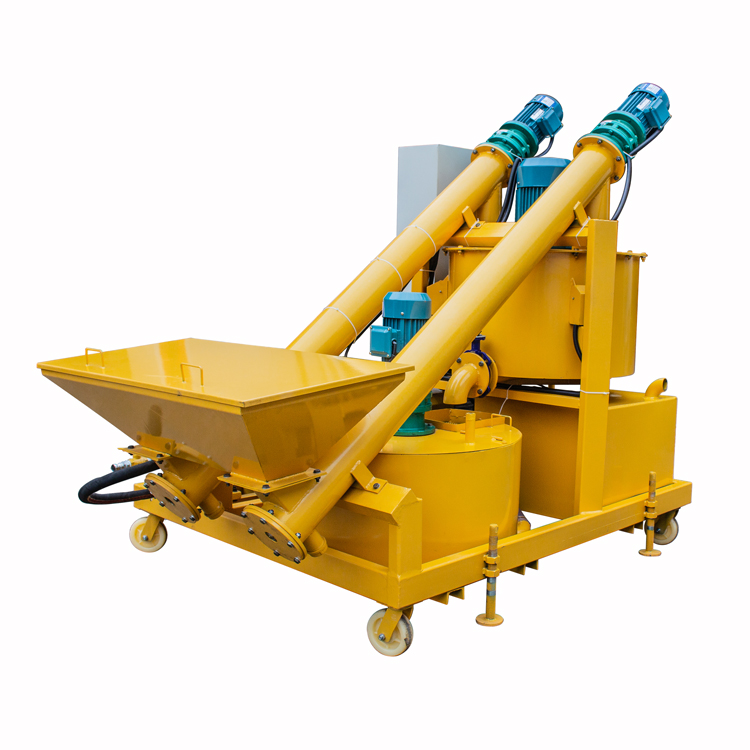

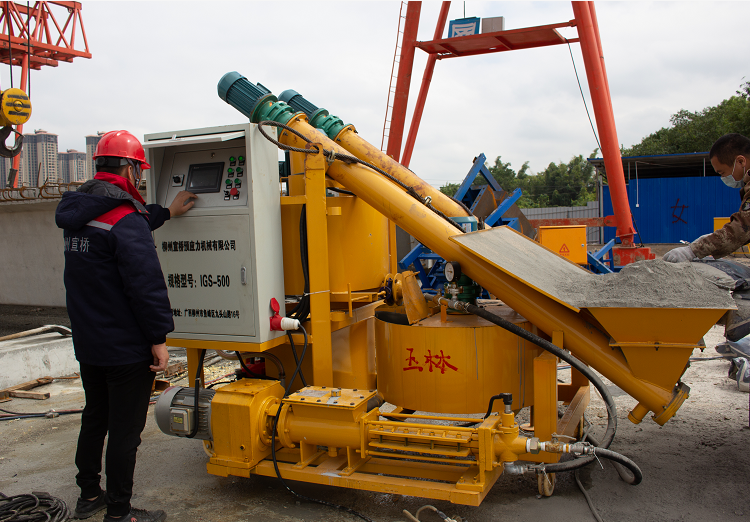

Intelligent grouting machine







The main technical parameters are as follows:



1. Automatic grouting (high-speed mixing) Trolley: automatic feeding,automatio measurement, automatic packing, LCD display, stirring speed of 1020 rev / min, blade line speed of less than 15 m/s, weighing accuracy To +-0.4%, much better than the Ministryof Railways requirements of +-1%. Stirring data can be recorded each time, and can always access the historical stirring data (the function can be arbitrarily closed) can be accurate to two decimal units. The working procedure is as follows: the first automaticwater 90% or 80%, and then automatically run the high-speed mixing tank and automatically add slurry, cement, followed by stirring for two minutes, and then add the remaining 10% or 20% Stirring for 2 minutes can be discharged into the storage tank with mixing function reserve The device in addition to the automatic function, the collar has a manual function, you can manually complete all of the above procedures or individual work proceduresThe maximum stirring capacity of 700kg, sufficient to supply various types ofgrouting machine use.



2. Vacuum pump maximum vacuum up to-0.097, better than the provisions of the Ministry of Railways-0.092



3. The grouting machine is continuous working mode, the pressure is no fluctuation, the pumping slurry is free of bubbles, the theoretical workload is 4.5 to 10 cubic meters /hour, and the electric control automatic or manual manual (pressure holding tank) Pressure function, the use of DYL90-speed grouting pump can be stepless pressure, pressure, pressure range can be adjusted freely, and the pressure gauge indicates stability, the pointer does not beating. Pressure gauge total range of 1.6MPa, the minimum scale value of less than 0.1 MPa, grouting pressure when the actual pressure is located in the range of 25% to 75% of the pressure gauge, measurement more accurate.





 Intelligent Grouting 3Intelligent Grouting 2Grouting Machine 4Grouting Machine 5

Company Information

 company profile.jpg

why choose us.jpgcertificate.jpg

construction plans.jpg

engineering case.jpg








FAQ

1. Q: Are you a factory or trading company?

Liuzhou Xuanqiao Prestressing Force Machinery Co., Ltd. is a factory located in Liuzhou City, Guangxi Province.



2. Q: What’s your supply capacity?

A:  Generally, our factory’s capacity is 100000 sets per month. But for special large quantity order, we can produce more than it. Don’t worry about this.



3. Q: How can we trust your quality?

There are many ways to check quality. Such as, send sample, visit factory, etc. Our advice is that visit factory is the best way to check quality.



4. Q: What are your payment terms?

We accept both T/T payment and irrevocable L/C at sight. For the T/T payment, we accept 30% prepayment in advance and the balance payable against copy of B/L.



5. Q: If accept OEM service to made product as per customer offering drawing?

A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan.



6. Q: If free sample available?

A:Yes, we can offer sample free of charge. But the express cost should be on buyer’s account.



Countact Us

.png



Contact me


Daisy Lan
Sales manager
Liuzhou Xuanqiao Prestressing Force Machinery Co., Ltd
WhatsApp:+86 18377250443
WeChat:+86 18377250443
Mobile number:+86 18377250443



Model Number

IGS-500
