1.LCD large blue backlit liquid crystal display
2. Can display test value and maximum value, with printing function;
3. Constant force and timing test, after the test is completed, automatically reset;
4. Overload shutdown, emergency stop button, automatic shutdown when the specimen is damaged, automatic shutdown when the upper and lower limits are set; overload protection, limit element protection device.
5. Control mode: dual-position (computer host and microcomputer LCD monitor can be tested separately)
6. Display mode: electronic LCD display and Computer display

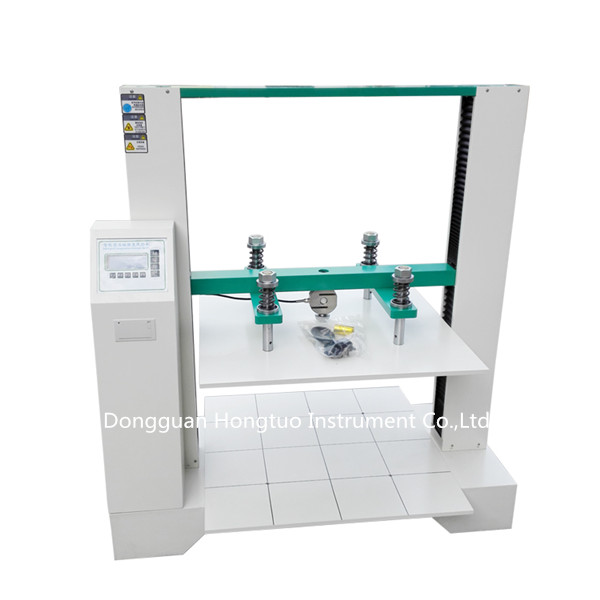

Product introduction: It is the basic instrument for testing the compressive strength of corrugated boxes (ie packaging testing equipment), and is suitable for compressive strength test, compliance test and stacking strength test of various corrugated boxes.
1. After the test is completed, there is an automatic return function, which can automatically judge the crushing force and automatically save the test data
2. Three configurable speeds, full Chinese LCD display operation interface, and various units to choose from.
3. The relevant data can be input and the compressive strength is automatically converted, and the packaging stacking test function is provided; the strength and time can be set directly, and the machine will automatically stop after the test is completed.
4. Three working modes:
Strength test: can measure the maximum pressure resistance of the cabinet;
Fixed value test: the overall performance of the cabinet can be detected according to the set pressure;
Stacking test: According to the requirements of national standards, stacking tests of 12 hours, 24 hours and other conditions can be carried out.
|
Capacity |
500kg |
|
Accuracy level |
1 class |
|
Control method |
Microcomputer control (computer operating system is optional) |
|
Display method |
Electronic LCD display (or computer display) |
|
Unit conversion |
kgf,gf ,N,kN,lbf |
|
Stress unit conversion |
MPa,kPa,kgf/cm2,lbf/in2 |
|
Displacement unit |
mm, cm, in |
|
Force resolution |
1/100000 |
|
Display resolution |
0.001N |
|
Machine stroke |
600 mm |
|
Platen size |
600*600 mm |
|
Test speed |
5mm~100mm/min can input speed arbitrarily |
|
Software function |
English language |
|
Stop mode |
Overload shutdown, emergency stop button,specimen damage automatic shutdown, upper and lower limits automatic shutdown |
|
safety devices |
Overload protection, limit element protection device |
|
Machine power |
AC inverter motor drive controller |
|
Mechanical system |
High precision ball screw |
|
Power supply |
AC220V/50HZ~60HZ 4A |
|
Machine weight |
Around 350KG |
|
features |
Percent break value can be set, automatic stop, can enter the menu to choose 4 different speeds, 20 results, you can view the average value of all test results and single results |
1.Sea shipping method.CIF term.If the machine needs to be shipped to Europe.there is rail shipping optional.door to door service.DDP term.please consult with us about the rail shipping cost.
2.Please contact us before your placing order.
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company’s USP.
1.Quality Insurance
We guarantee this instrument for 12 months and life-long maintenance
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us
We deep understood what’s you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
