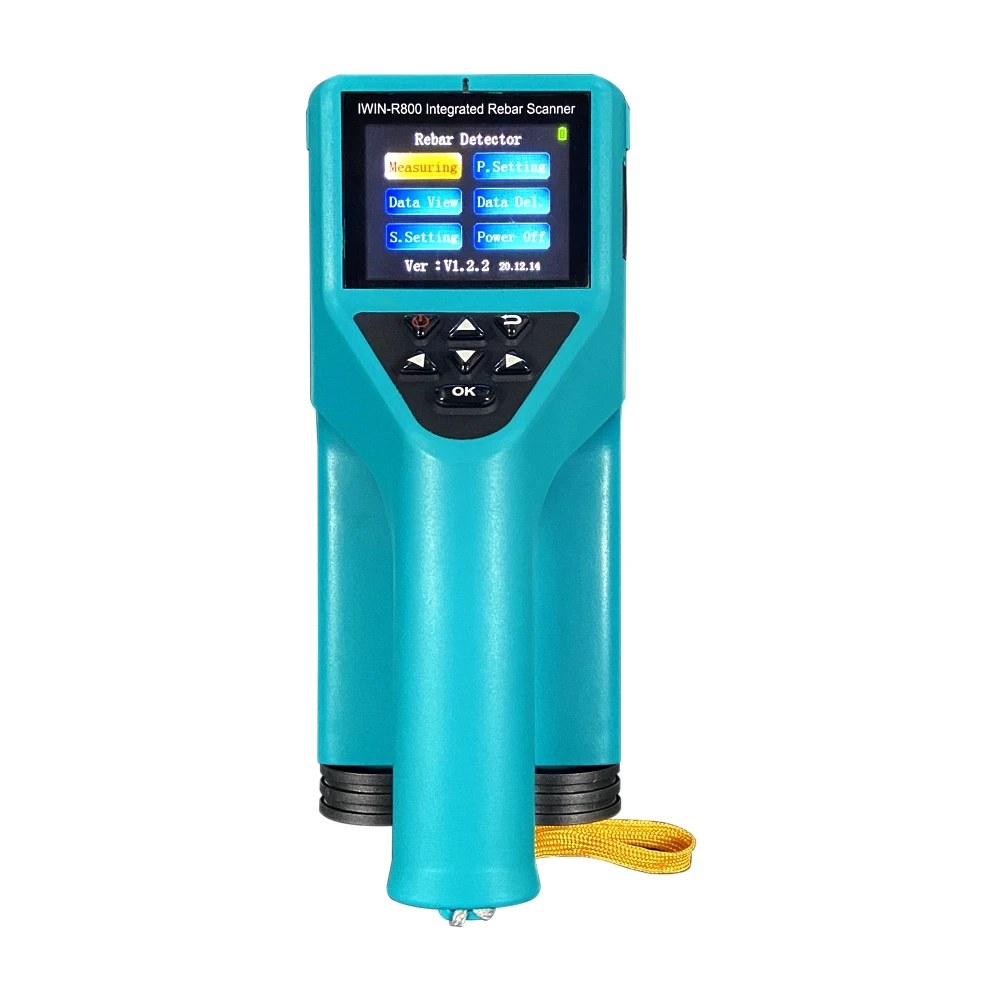

The steel protective layer measuring instrument is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of the steel bars on the concrete surface, detect the thickness of the steel protective layer and the diameter of the steel bars. In addition, the magnetic properties inside the concrete structure can also be The position of the body and the conductor are detected, such as the internal cable of the wall, the plumbing pipe, etc., and the detection before construction can effectively avoid damage to these facilities during construction and reduce accidents.
| Specification model | GTJ-R800 | ||||
|
Rebar diameter setting range(mm) |
∅6mm ~ ∅50mm | Host parameter | screen size:2.8inch | ||
| Small range | 1-80mm | Resolution:240×320 | |||
| Large range | 1-180mm | volume:220×93×110mm | |||
|
Maximum thickness of protective layer |
±1(mm) | 1-59mm | weight:0.6kg | ||
| ±2(mm) | 60~100mm |
Data transmission method |
TF-card | ||
| ±4(mm) | 100-180mm | Power supply | lithium battery | ||
| Diameter estimation range | ∅6mm~∅32mm | storage |
2000member*1000 Measuring point |
||
|
Diameter indication maximum error |
±1specification |
Working environment requirements |
temperature:-10℃~+40℃ | ||
|
Profile measurement function |
stand by | humidity:<90%RH | |||
| Grid measurement function | stand by | other requirements |
Does not contain corrosive gases in the air |
||
|
Waveform measurement function |
stand by |
No strong electromagnetic field interference. There should be no large vibration and shock |
|||
| Probe self-calibration | stand by | Avoid direct sunlight | |||
 |
Display
Display 2.8-inch high-resolution color LCD screen for clear and simple display
|
1 |
| 2 |
Package
Each product is individually packaged, providing instructions for chargers, etc. |
 |
 |
Handle
Easy to operate with one hand.
|
3 |
| 4 |
One-piece design
Small size, light weight, easy to carry. |
 |
|
|
||
| Features | |||||
| 1 |
The thickness detection mode displays the position of the reinforcing bar intuitively and accurately, and simultaneously displays the thickness and the spacing of the reinforcing bars; |
||||
| 2 |
The thickness detection mode can automatically store the thickness and spacing, and the detection efficiency is greatly improved; |
||||
| 3 |
The waveform scanning mode visually displays the distribution of steel bars, which makes the detection and analysis of dense steel bars more intuitive; |
||||
| 4 |
The waveform scanning mode simultaneously displays the determined thickness and spacing of the protective layer of the steel bar; |
||||
| 5 |
It can detect the middle position of two steel bars, aiming frame and indicator light, which is convenient for punching and core; |
||||
| 6 |
The instrument automatically stores the calibration value to achieve fast measurement, eliminating the trouble of each calibration; |
||||
| 7 | Boundless mesh/section scanning, waveform scanning can measure up to 6m in length; | ||||
| 8 | TF card storage, large capacity, intuitive and convenient to transfer; | ||||
| 9 | 2.8-inch high-resolution color LCD screen; | ||||
| 10 | One-piece design, small size, light weight, easy to carry; | ||||
| 11 | PC professional data analysis software, data processing and report generation is easy to complete; | ||||
