Industrial screw press type coconut milk extracting machine coconut milk machine coconut milk extractor
Introduction:

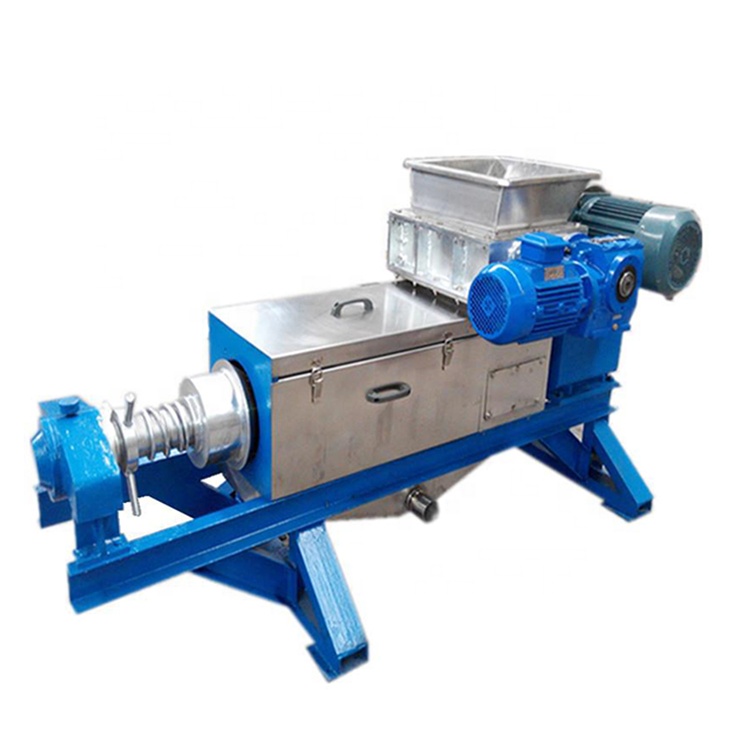

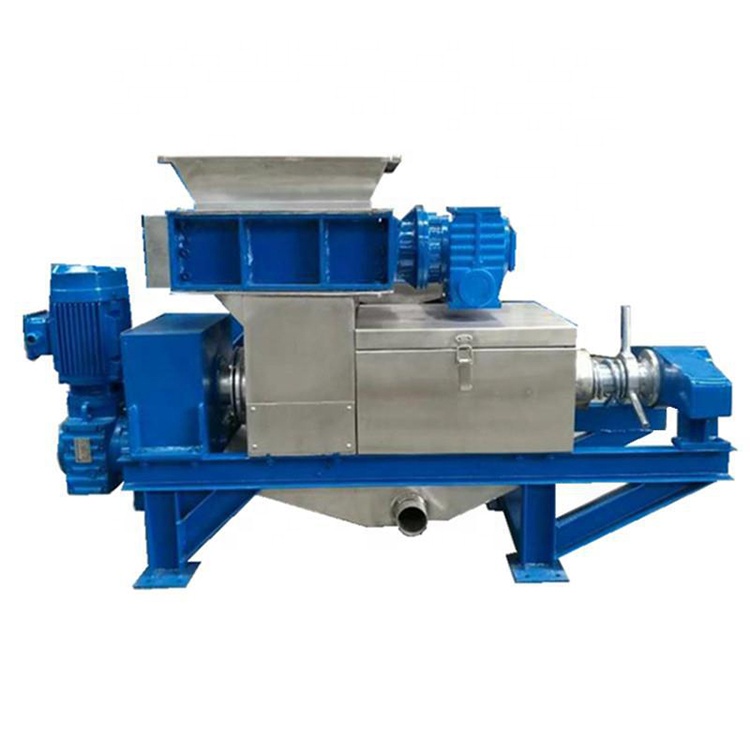

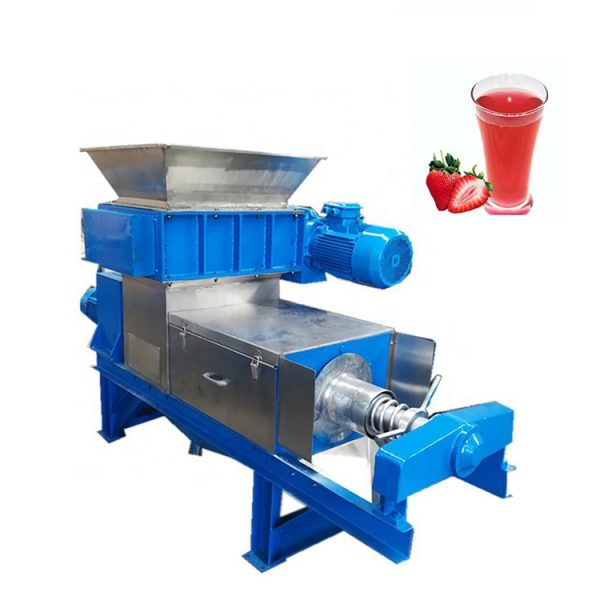

The double-screw press is a continuous double-screw press. This machine is used for solid-liquid separation operations containing certain fiber or viscous materials.
Such as fermented grape peel, ginger, spinach, rubber, Chinese herbal medicine, winter jujube and other fruits and vegetables that contain certain fiber for extracting juice. It is also used for continuous juice extraction of seabuckthorn fruits that have been removed or contain a small amount of twigs.
Features:
1.The conveying screw pushes the material entering the material box to the pressing screw, so that the liquid (juice) contained in the material is squeezed out.
2. The squeezed liquid flows out of the sieve and is concentrated in the juice hopper. The squeezed pomace is discharged out of the machine through the end of the sieve cylinder and the cone.
3. The back of the cone is equipped with a spring, which can change the discharge resistance and the size of the slag outlet
4.5, 10, 20 tons / hour presses are double screw rotation, the rotation direction is opposite, the pressing force on the material is large and uniform.
5. The cone of the slag outlet is controlled by a hydraulic cylinder. Adjusting the oil pressure can change the pressure effect on the material and adjust the juice rate.
6. This machine can also be used for solid-liquid separation of other materials, and its effect varies to a certain extent due to the quality of the materials.
7. The feed box, screen cylinder and screw of this machine are all made of high-quality 304 stainless steel.
Advantages:
Fruit juicer machine commercial industry is mainly used to dewatering the material to get dry material.Finished material moisture content 50-60%.Widely used in many area.
1.Used in food industrial:Fruit and vegetable juice pressing,grain wine separate,other food and water separate.
2.Used in agriculture waste area:Food waste and market vegetable waste dewatering,grass, wheatgrass dewatering,agriculture waste,cassava waste,and other residues.
3.Dewatering industrial waste:Dewater leather waste,cloth waste,oil residues waste,herb residues waste,wine waste,Vinegar dregs,Soy sauce residue,etc
Technical Parameter:
Model |
QD-180 |
QD-260 |
QD-350 |
QD-420 |
QD-500 |
Power(kw) |
3 |
5.5 |
5.5 |
7.5 |
11 |
Capacity |
0.3-0.1t/h |
1.5t/h |
3t/h |
5t/h |
10t/h |
Screw dia |
180mm |
260mm |
350mm |
420mm |
500mm |
Dimension(m) |
1.6*0.8*1 |
1.9*0.6*1.2 |
3.24*0.67*1.15 |
3.5*1*1.48 |
3.74*1.1*1.79 |
Net weight (kg) |
400 |
800 |
1300 |
2000 |
2445 |
PACKING
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.
DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
Service Commitment
Product Quality
All products are guaranteeded for one year, if any problems happen in guarantee period.our company will maintain for free.
Spare Part Replacement
First mold for free,more than 50% discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintanance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port,save time and cost.
Detail Product Information
Provide picture,video,instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
Question 1: What are your advantages compared with your competitors?
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
Question 2: Are you manufacturer?
Answer: Yes, we are manufacturer with more than 10 years’ experience.
Question 3: What are your Price Terms?
Answer: Price can be based on FOB, CFR, or CIF, etc.
Question 4: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Question 5: What’s your Minimum Order Quantity?
Answer: Any order quantity is warmly welcomed.
Question 6: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
