Product Overview
Application of Handheld Inkjet Printer:
1. Handheld inkjet printer is the most mature technology because of its extensive application, mature technology
and long service life.
2. Through TIJ inkjet technology, we can print the graphics in the shortest time and finish the fine marking process.
3. Handheld supports or customized production line accessories can be configured according to user requirements.
4. It can automatically mark data, serial number bar code.
5.It can be used for data communication and networking, and support online variable data printing.
and long service life.
2. Through TIJ inkjet technology, we can print the graphics in the shortest time and finish the fine marking process.
3. Handheld supports or customized production line accessories can be configured according to user requirements.
4. It can automatically mark data, serial number bar code.
5.It can be used for data communication and networking, and support online variable data printing.
|
Model
|
ZH-790
|
|
|

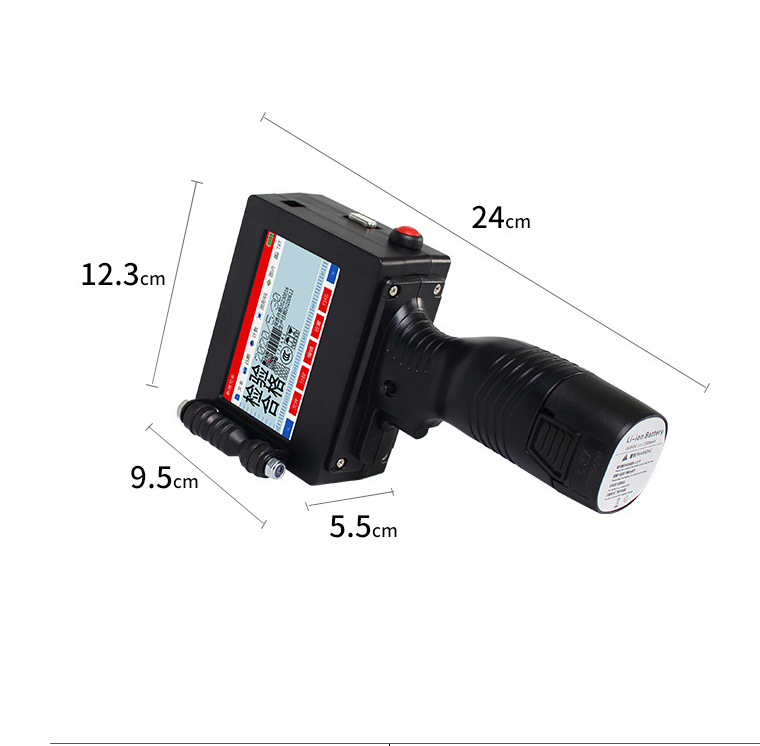

Dimension
|
130*128*242mm
|
|
|
Net weight
|
1.10kg
|
|
|
Printing direction
|
adjusted within 360 degree, meet all kinds of production needs
|
|
|
Character type
|
high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English
|
|
|
Print Features
|
||
|
Function
|
Handheld print and On line printing(Need Sensor extra)
|
|
|
Printing pictures
|
Pictures(BMP Monochrome single bitmap format)can be uploaded through USB disk
|
|
|
Printing accuracy
|
600DPI
|
|
|
Printing height
|
2mm-12.7mm
|
|
|
Print code
|
bar code, QR Code
|
|
|
Printing distance
|
1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm)
|
|
|
Print serial number
|
0~9
|
|
|
Automatic print
|
date, time, batch number shift and serial number, etc
|
|
|
Storage
|
external USB save the information transfer in a free way
|
|
|
Message length
|
2000 characters for each message, no limitation on length
|
|
|
Printing speed
|
70m/min
|
|
|
Ink type
|
Quick-dry environmental ink, water-based ink and oily ink
|
|
|
Ink color
|
black, white, red, blue, yellow, green, invisible
|
|
|
Ink volume
|
42ml(usually can print 800,000 characters)
|
|
|
Physical Features
|
||
|
External interface
|
USB,Photoelectric interface, can directly insert a USB disk to upload information
|
|
|
Voltage
|
DC16.8V lithium battery, print continuously more than 10 hours and 20 hours standby
|
|
|
Control panel
|
touch-screen (can connect wireless mouse)
|
|
|
Power consumption
|
the average power consumption is lower than 5W
|
|
|
Working environment
|
Temperature:0 – 38 degree; Humidity: 10% – 80%
|
|
|
Printing material
|
board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc.
|
|
PRODUCT SPECIFICATIONS
Precautions:
1. Please do not plug or unplug the ink cartridge, otherwise the ink cartridge or the nozzle drive board will be damaged
2. Please do not perform any operations such as parameter modification in the printing state, otherwise the core board will be
damaged.
3. If the machine does not work within 15 minutes, please take out the ink cartridge and use the plastic clip of the ink cartridge
to protect the nozzle;
4. Please do not put the machine and ink cartridge in a humid environment, so as not to receive the moisture effect of the
machine;
5. When cleaning the machine, keep away from water and do not use chemical solvents;
6. Please do not hit the machine with hard objects. Also be careful not to drop the machine on the ground and hit it.
1. Please do not plug or unplug the ink cartridge, otherwise the ink cartridge or the nozzle drive board will be damaged
2. Please do not perform any operations such as parameter modification in the printing state, otherwise the core board will be
damaged.
3. If the machine does not work within 15 minutes, please take out the ink cartridge and use the plastic clip of the ink cartridge
to protect the nozzle;
4. Please do not put the machine and ink cartridge in a humid environment, so as not to receive the moisture effect of the
machine;
5. When cleaning the machine, keep away from water and do not use chemical solvents;
6. Please do not hit the machine with hard objects. Also be careful not to drop the machine on the ground and hit it.
Common problem handling:
When the print information is not clear:
1. Please check if the ink cartridge has ink or if the ink cartridge is installed.
2. Please reload the print file;
3. Please check whether the printing parameters are set accurately (please refer to the file attachment for the parameter setting
table);
4. Please check the surface of the nozzle for any debris, and use non-woven fabric to clean the surface of the nozzle;
5. Please check if other parameters are set accurately.6. Please check if the power is sufficient.
