Name: Industrial Full Iron 3.5KW 2.2KW 1.5KW Metal Engraving Milling Machine Z Axis 170mm 4 Axis Router with Stepper Motors
SKU: 212171201019181
Availability: InStock

Industrial Full Iron 3.5KW 2.2KW 1.5KW Metal Engraving Milling Machine Z Axis 170mm 4 Axis Router with Stepper Motors

ر.س16,521.09 – ر.س26,984.89

Product Description

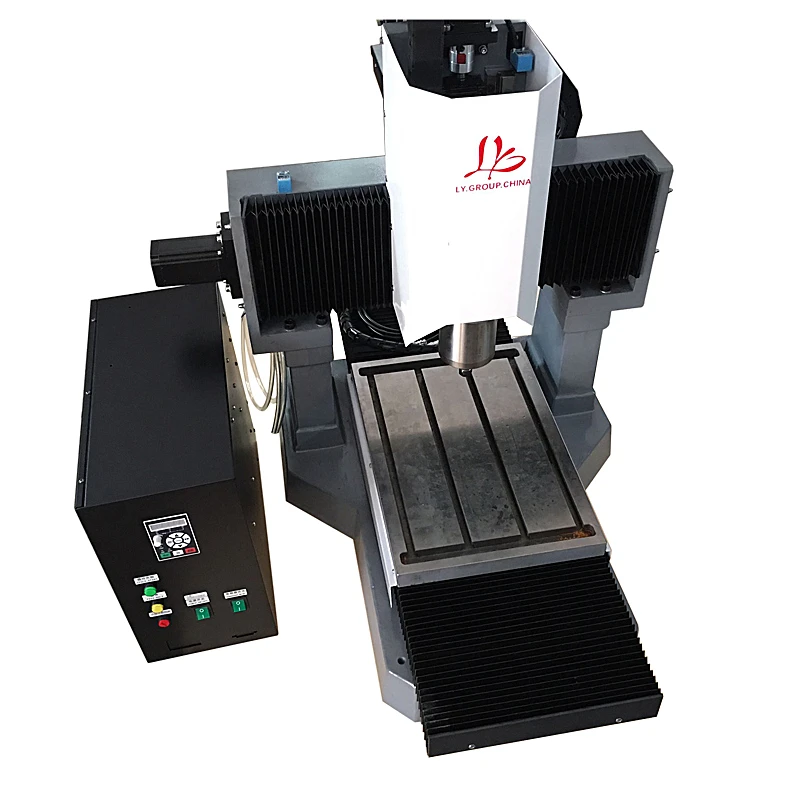

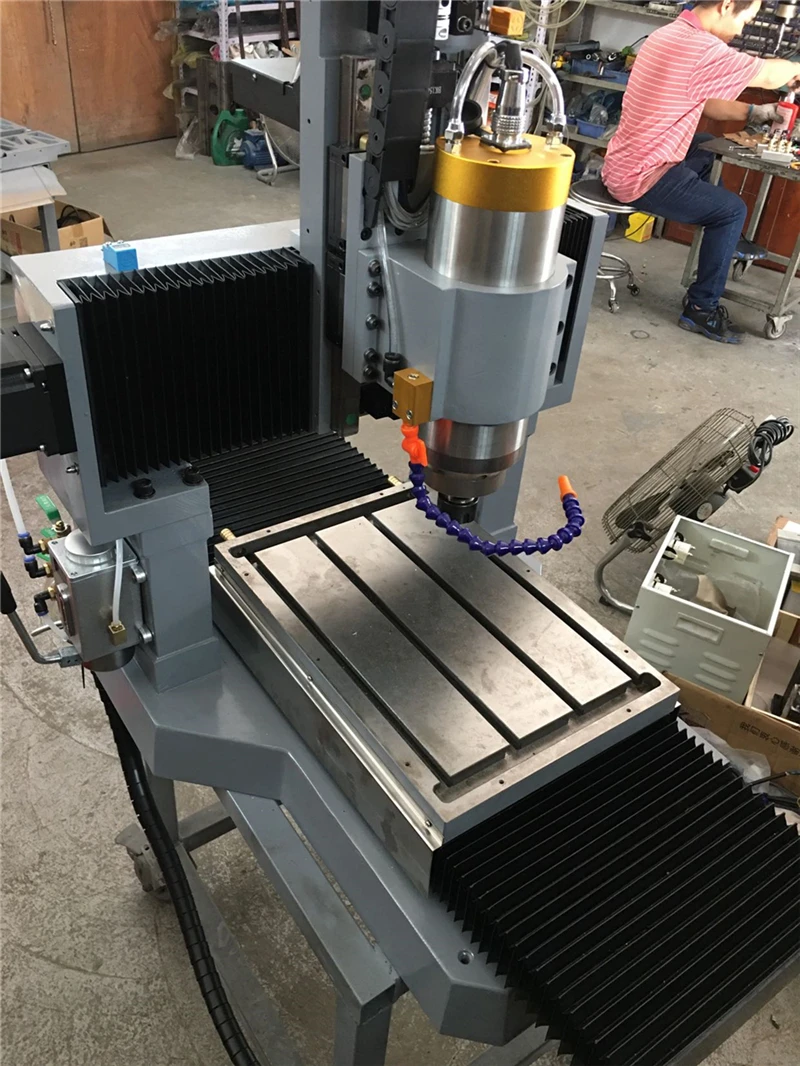

LY 3040 full cast iron 1.5KW 2.2KW 3.5KW CNC engraving machine step motor standard Configuration version 3 axis Z axis 170mm 220Vaxis

Video:

https://youtu.be/B_aZBQbZCus

https://youtu.be/rJ-i6e7zpJc

https://youtu.be/ZxWWaYl55i8

https://youtu.be/zpq_5qwWDhw

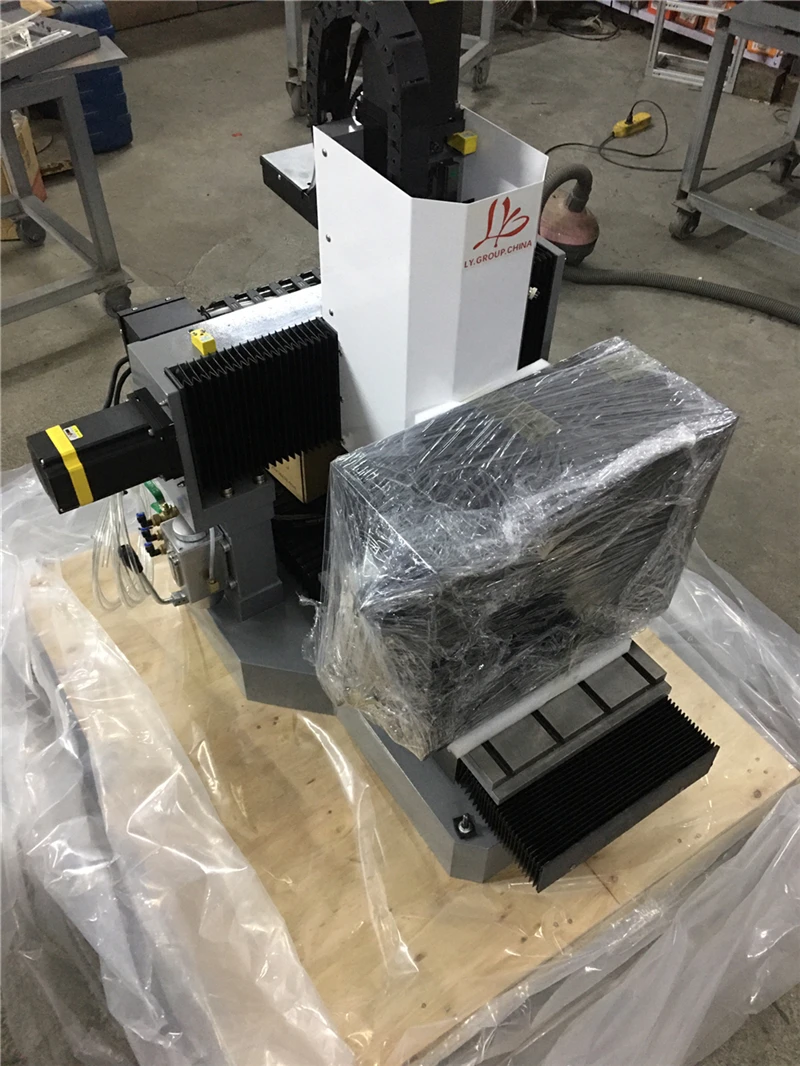

This machine is custom-made cast iron CNC router,super heavy,shipping will by SEA only(CFR item),furthermore,we don’t accept return service,only offer parts repair & operation guiding service.

And this link is only basic version of 3 powers,if want to add more functions with original machine,can view our upgrading guide,and leave messages in order or cosult with our salesman before payment.

LY CAST IRON 3040	1.5KW Standard Configuration 3 AXIS	2.2KW Standard Configuration 3 AXIS	3.5KW Standard Configuration 3 AXIS

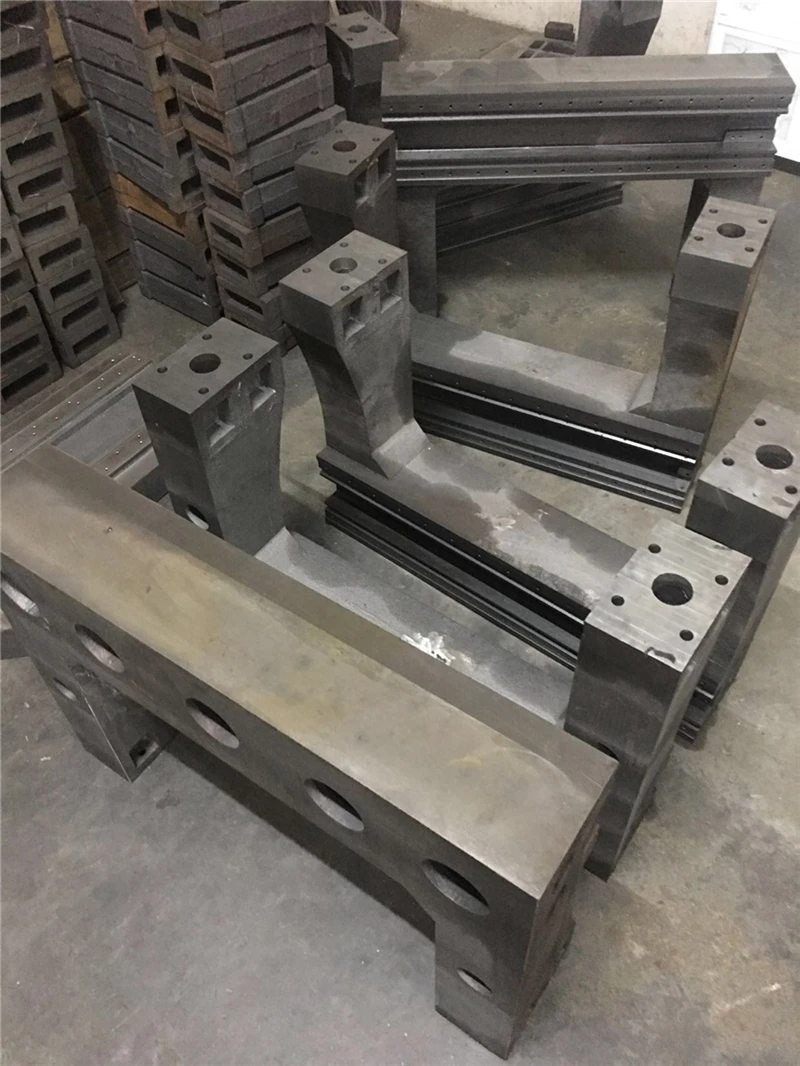

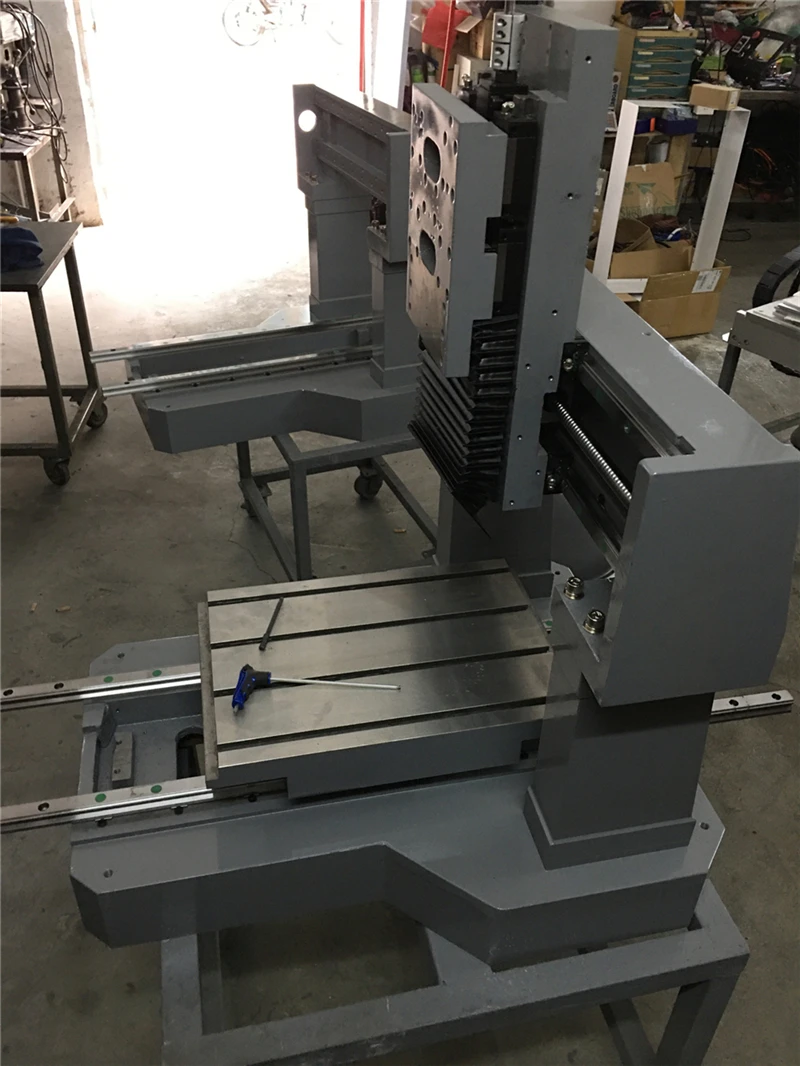

COLOR & STUFF	200#Grey cast iron
DRIVE MOTOR	57 Step Motor/76MM	57 Step Motor/112MM	86 closed Step Motor/138MM
TORQUE	1.8NM	2.8NM	XY:8.5NM/Z:12.5NM
DRIVE	M542	M542 5.0	AC DRIVE
DRIVER POWER SUPPLIER	Switch power supplier		Ring transformer
SPINDLE RPM	24000RPM		24000RPM/8000RPM Optional
SPINDLE COLLET	ER11A	ER20A
VFD POWER	1.5KW	2.2KW	3.7KW
SOFTWARE	USB Mach3 (Default) / Ncstudio (Optional)
CONTROL CARD	4 axis/100K
HARDWARE LIMITATION	With
OPTIONAL EXPAND PORTS	M8.M7/M10
VOLTAGE	220V/50Hz
POWER SOCKET	3 Plugs 10A		3 Plugs 16A
LINEAR GUIDEWAY	X 20MM,Y 20MM,Z 20MM	X 20MM,Y 25MM,Z 20MM	X 25MM,Y 25MM,Z 25MM
SLIDE BLOCK	4 PCS Per axis.Total 12 pcs
LEAD SCREW/SCREW NUT	TBI ballscrew C7 grade,1605 single nut		TBI ballscrew C7 grade,2005 double nuts
LEAD SCREW/BEARING	HRB dual angles contact balls bearing	HRB P5 grade dual angles contact balls bearing
LEAD SCREW/SUPPORT UNIT	BK12+BF12		BK15+BF15

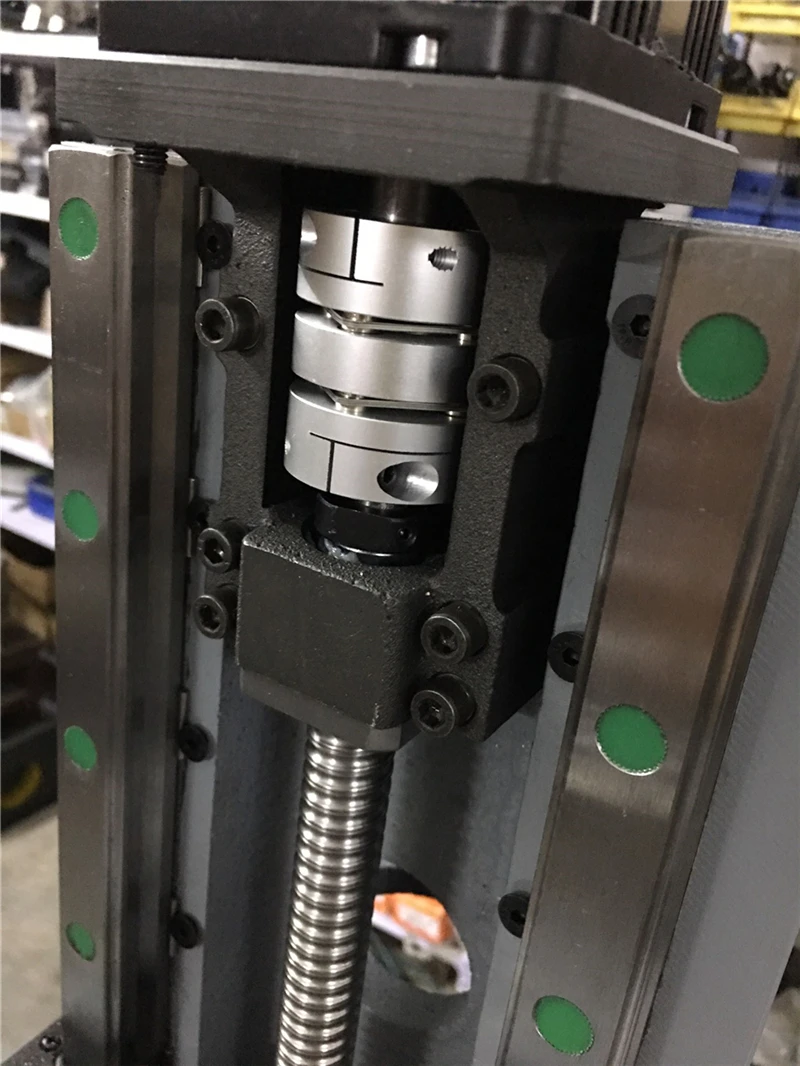

COUPLING	Plum blossom type		Diaphragm type
MAX THROUGH HEIGHT	165MM (Support heighten to 250MM)		150MM (Support heighten to 250MM)
MAX THROUGH WIDTH	370MM
EFFICIENT WORK AREA	290390165MM		290390160MM
PLATFORM FLATNESS	± 0.02MM
X Y PERPENDICULARITY	± 0.02MM
Z PERPENDICULARITY	± 0.02MM
REPEATED POSITIONING ACCURACY	± 0.015MM	± 0.008MM
PLATFORM SIZE	300*450MM
WEIGHT	APPR 350KG		APPR 380KG
MACHINE SIZE	950800900MM

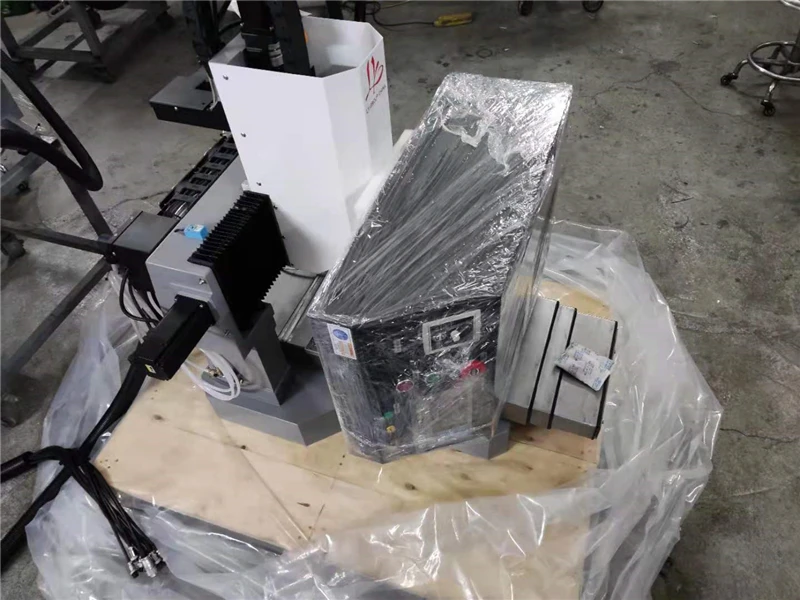

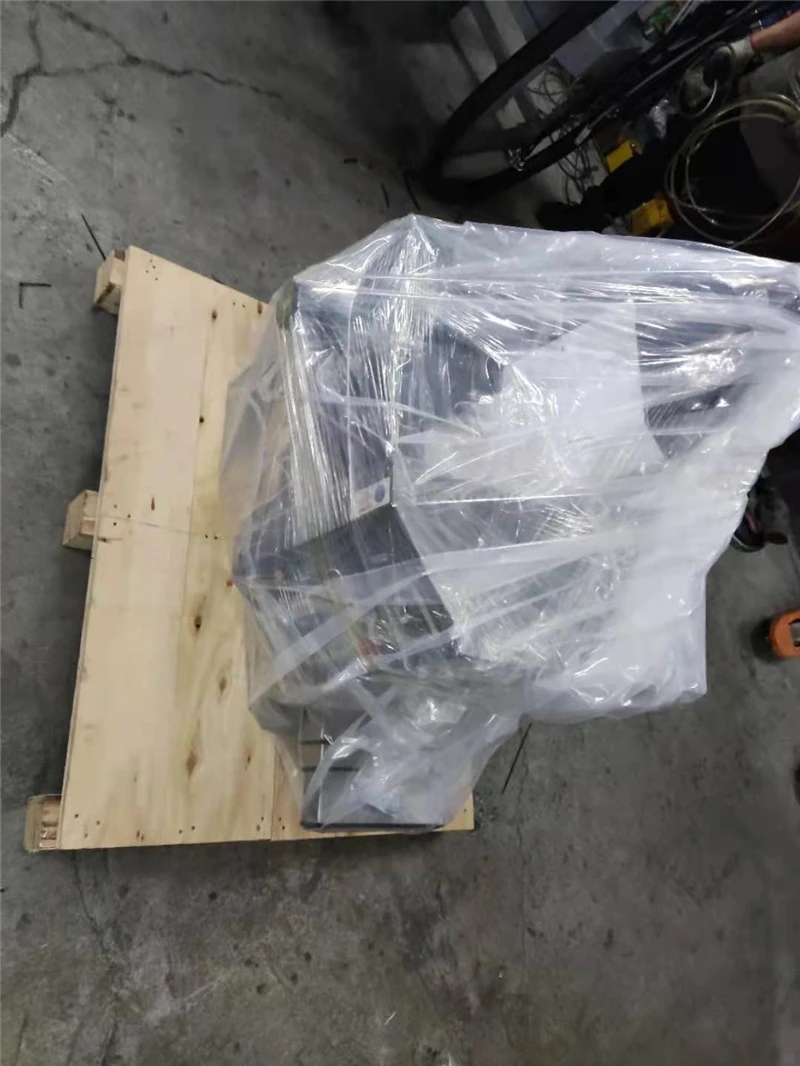

WOODEN BOX SIZE	1200MM950MM1100MM
