Product Description

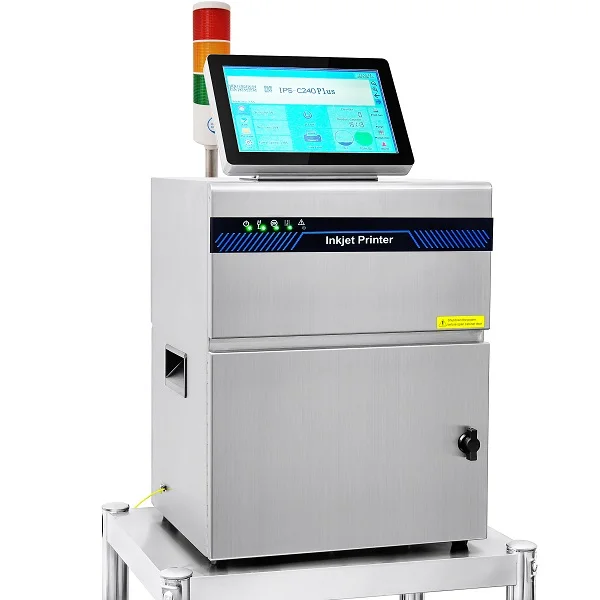

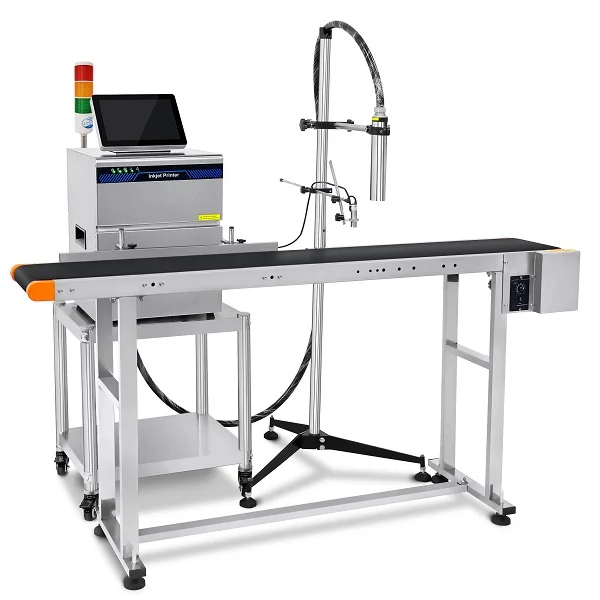

IPS-C240 Plus Industrial CIJ Inkjet Printer
With Alarm beacon, IP65, 3M Umbilical
High Speed 5 Lines Batch Date Coder
Print height up to 15mm
With Alarm beacon, IP65, 3M Umbilical
High Speed 5 Lines Batch Date Coder
Print height up to 15mm
Specification
|
Model
|
IPS-C240 Plus
|
||||||
|
Nozzle size
|
60μm standard, 50μm and 70μm nozzle optional
|
||||||
|
Print line
|
Up to 5 lines print (max 32 dots)
|
||||||
|
Print Speed
|
up to 367m/min (5 dot for one line)
– 78 m/min ( 7 dot for 2 lines)
– 40 m/min ( 7 dot for 3 lines)
– 25 m/min ( 7 dot for 4 lines)
|
||||||
|
Character height
|
from 1.8mm to 15mm
|
||||||
|
Interface
|
10.1 ‘’ LVDS touch screen
WYSIWYG touch to edit message editing |
||||||
|

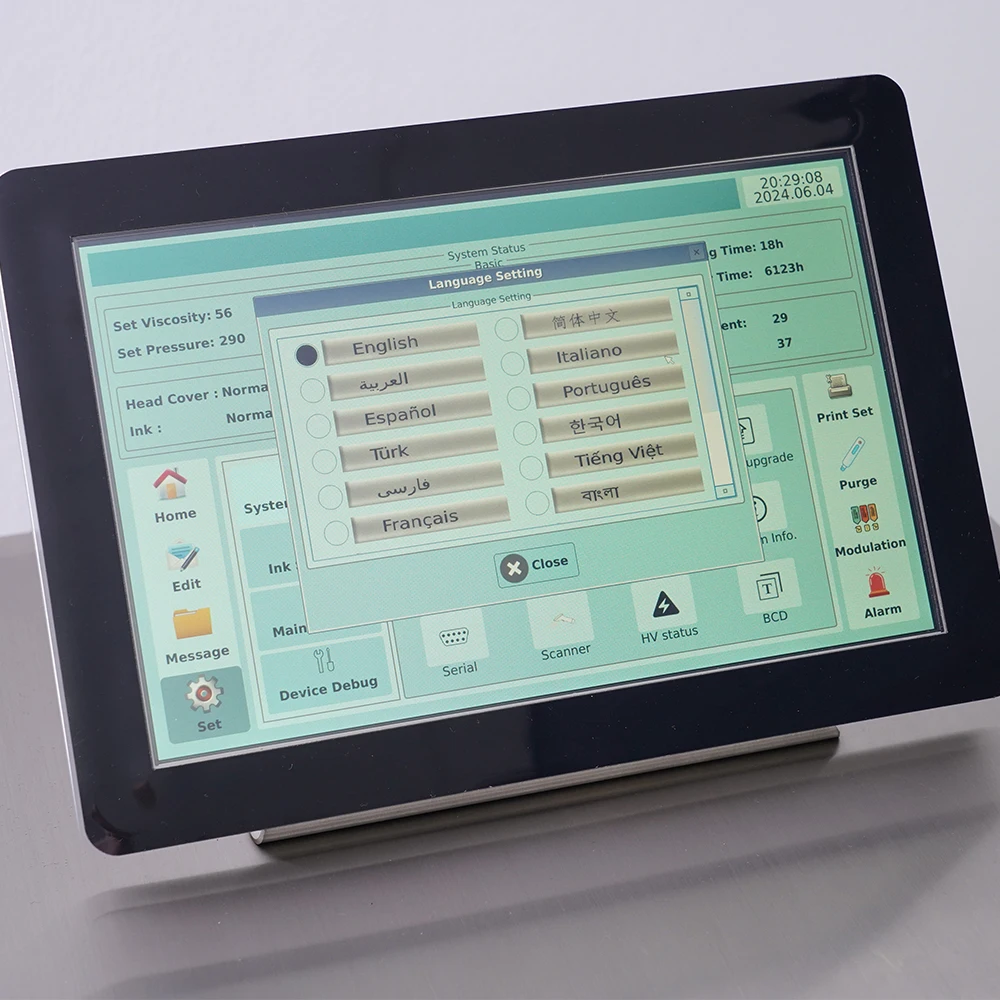

Language
|
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese.
|
||||||
|
Print information
|
time and date, counter, batch code, serial number, barcode, QR code, custom logo/graphics…
|
||||||
|
Throw distance
|
from 2mm to 50mm
|
||||||
|
Printhead
|
Compact and durable stainless steel
|
||||||
|
Communication interface
|
Photocell, Encoder, Alarm beacon ( 24V), Ethernet LAN, RS232, USB Port, Reserved port
|
||||||
|
Cabinet
|
304 Stainless steel
|
||||||
|
Standard
|
IP54
|
||||||
|
Operation temperature range
|
from 0°C – 60°C
|
||||||
|
Humidity
|
from 30-95% RH non-condensing
|
||||||
|
Electrical requirements
|
100-240VAC at 50/60 Hz, 60W
|
||||||
|
Weight
|
36KG
|
||||||
|
Accessories
|
Printhead stand, photocell, cleaning kit
|
||||||

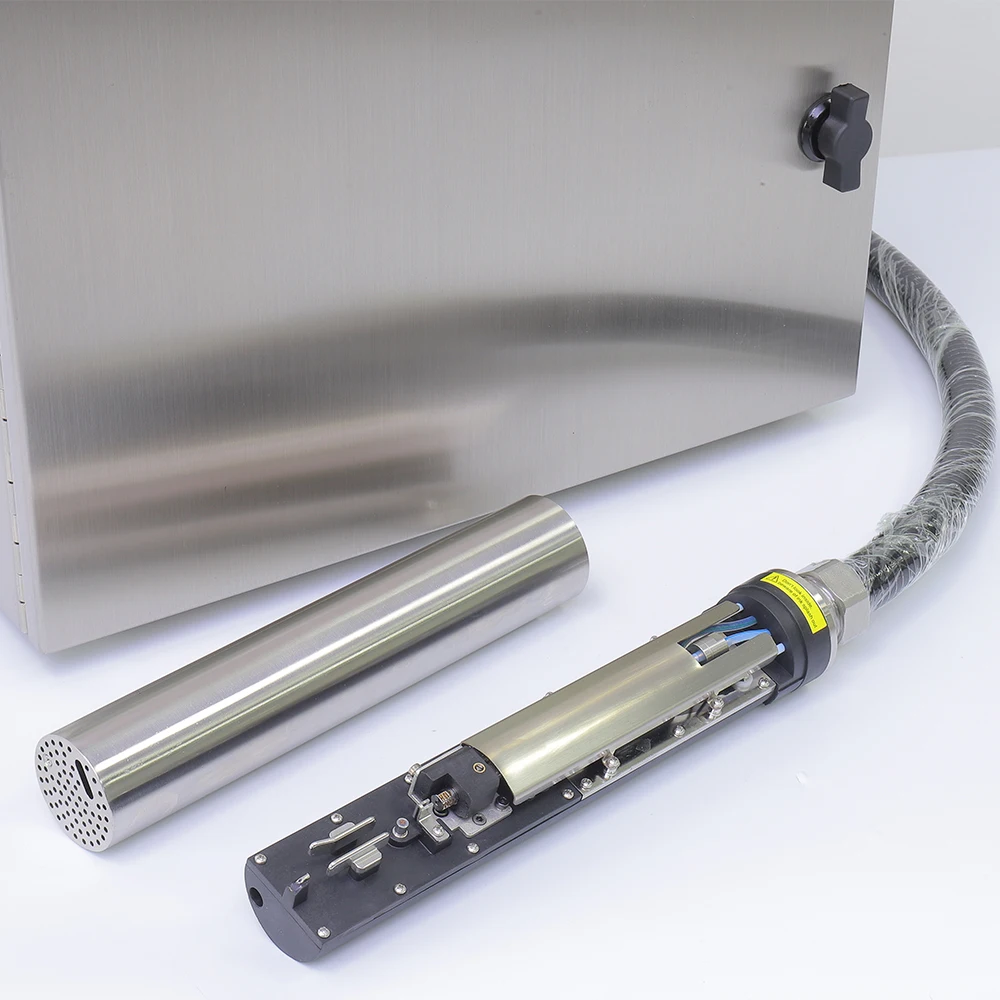

Heated printhead
• Ultra flexible printhead umbilical • Umbilical length – 3m standard, other size optional
• Umbilical diameter – 21mm
• Printhead size – 23.5cm long, 4.2cm diameter

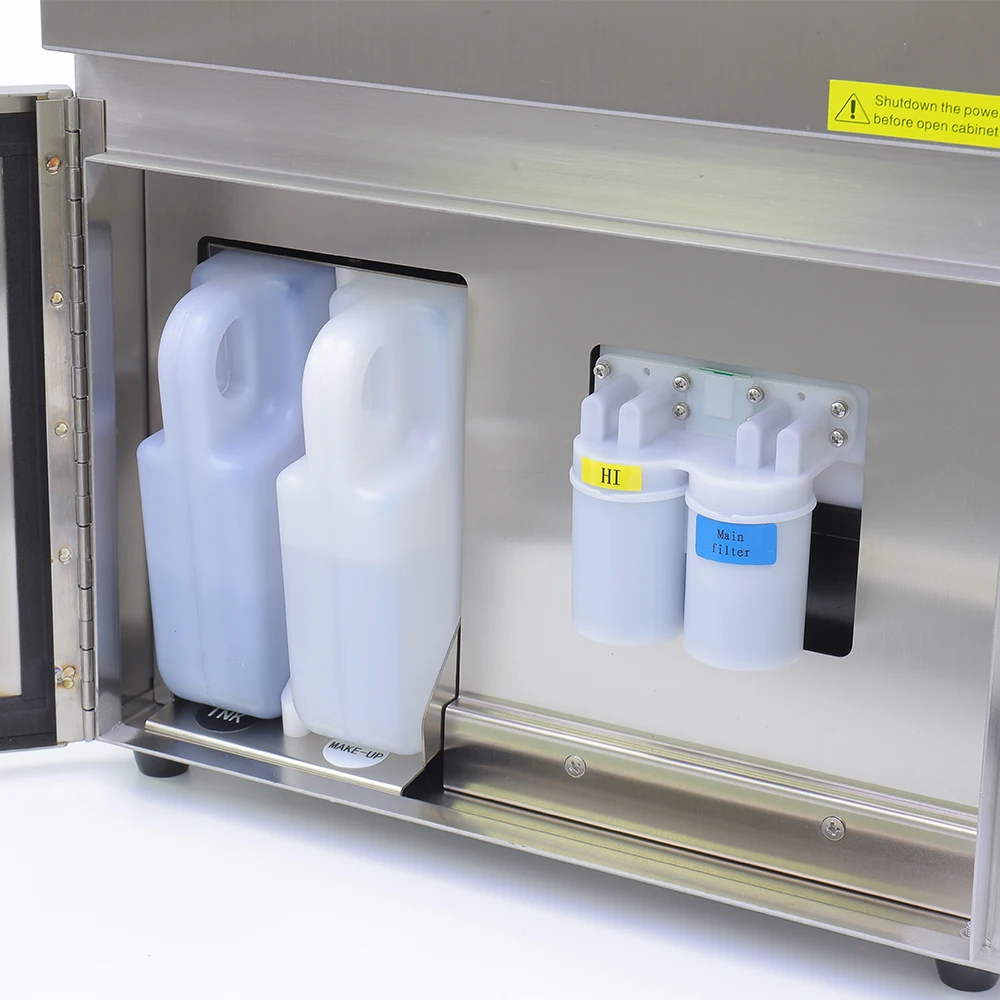

Consumables
• Multiple inks available for different applications
• Sealed intelligent cartridges • 750ml cartridge for both ink and makeup
• RFID system optional

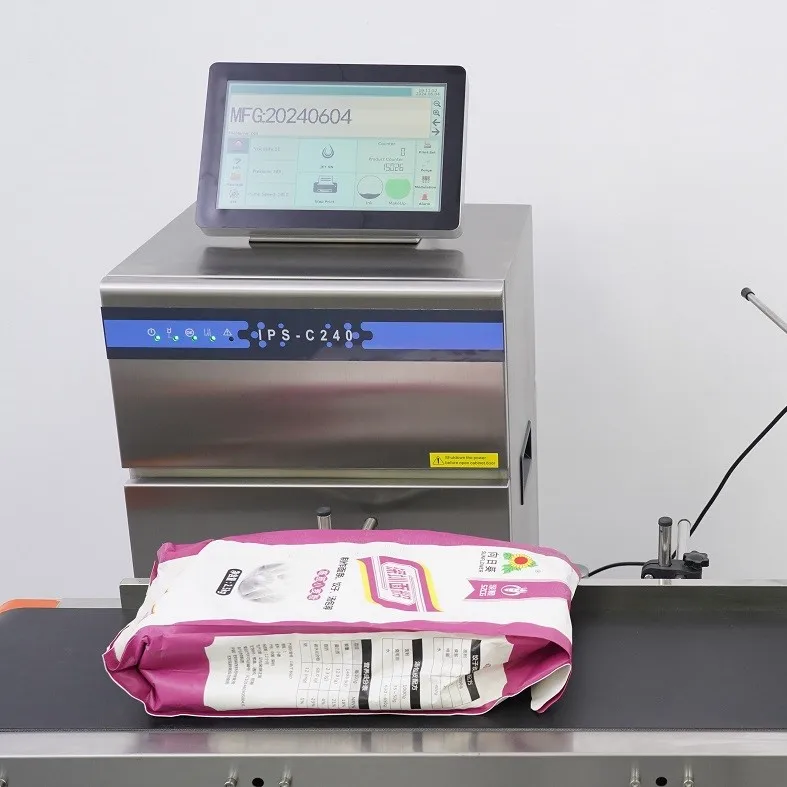

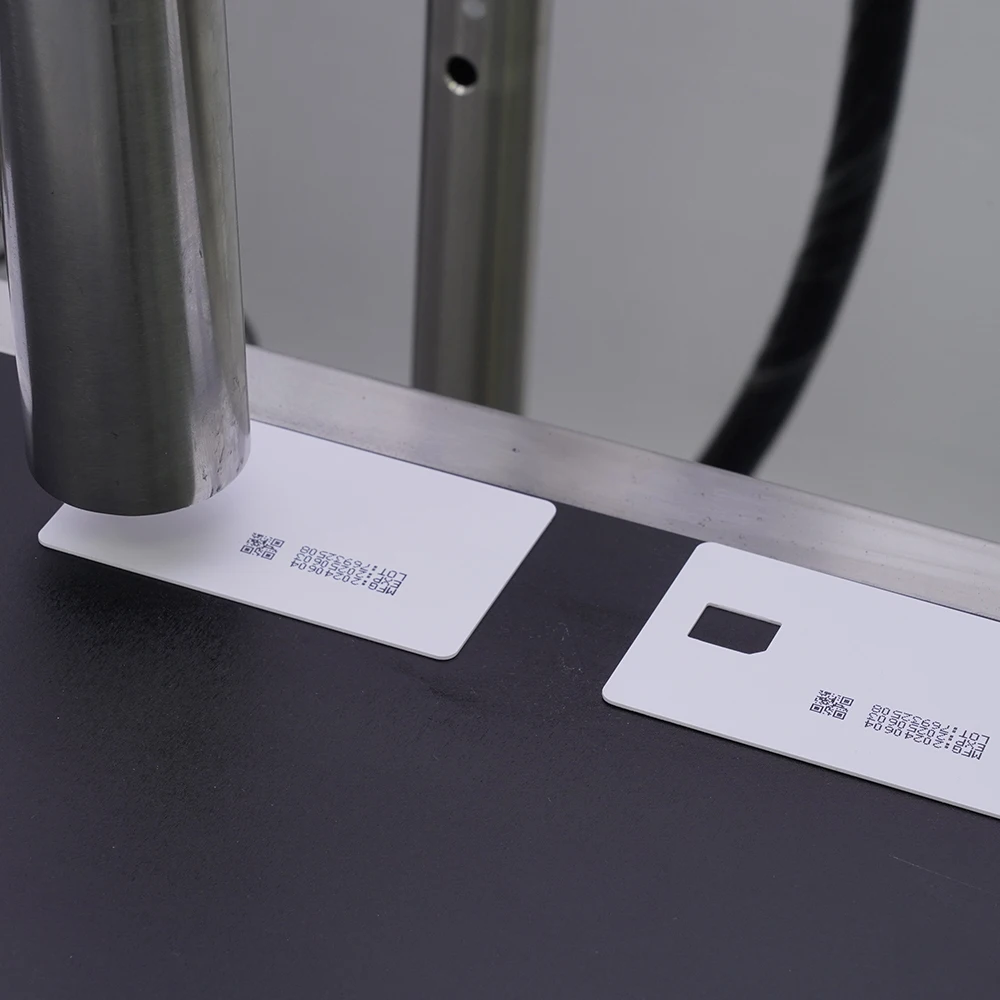

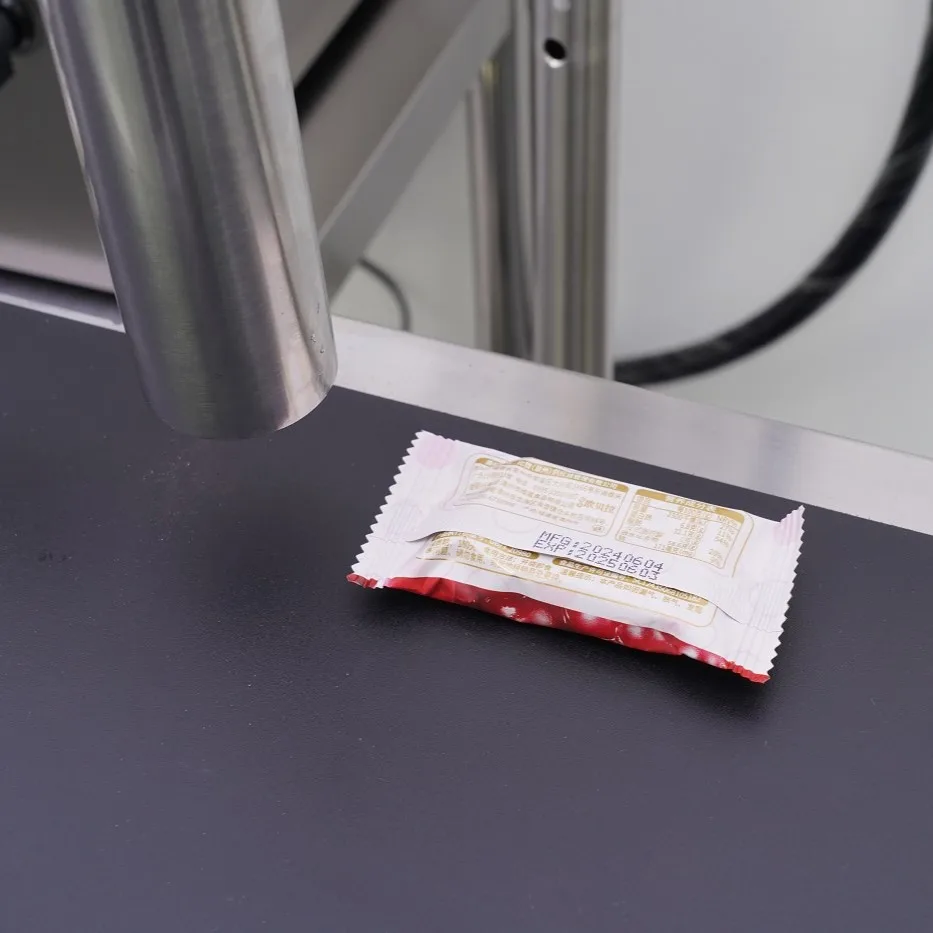

Application

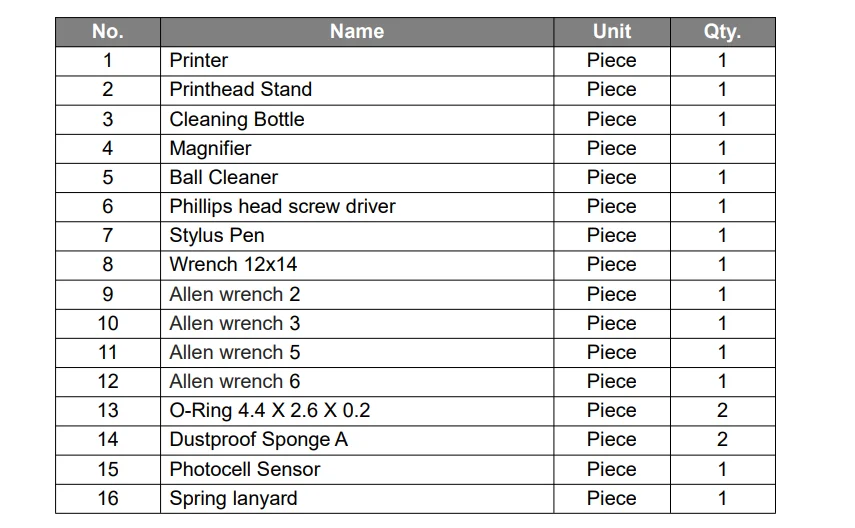

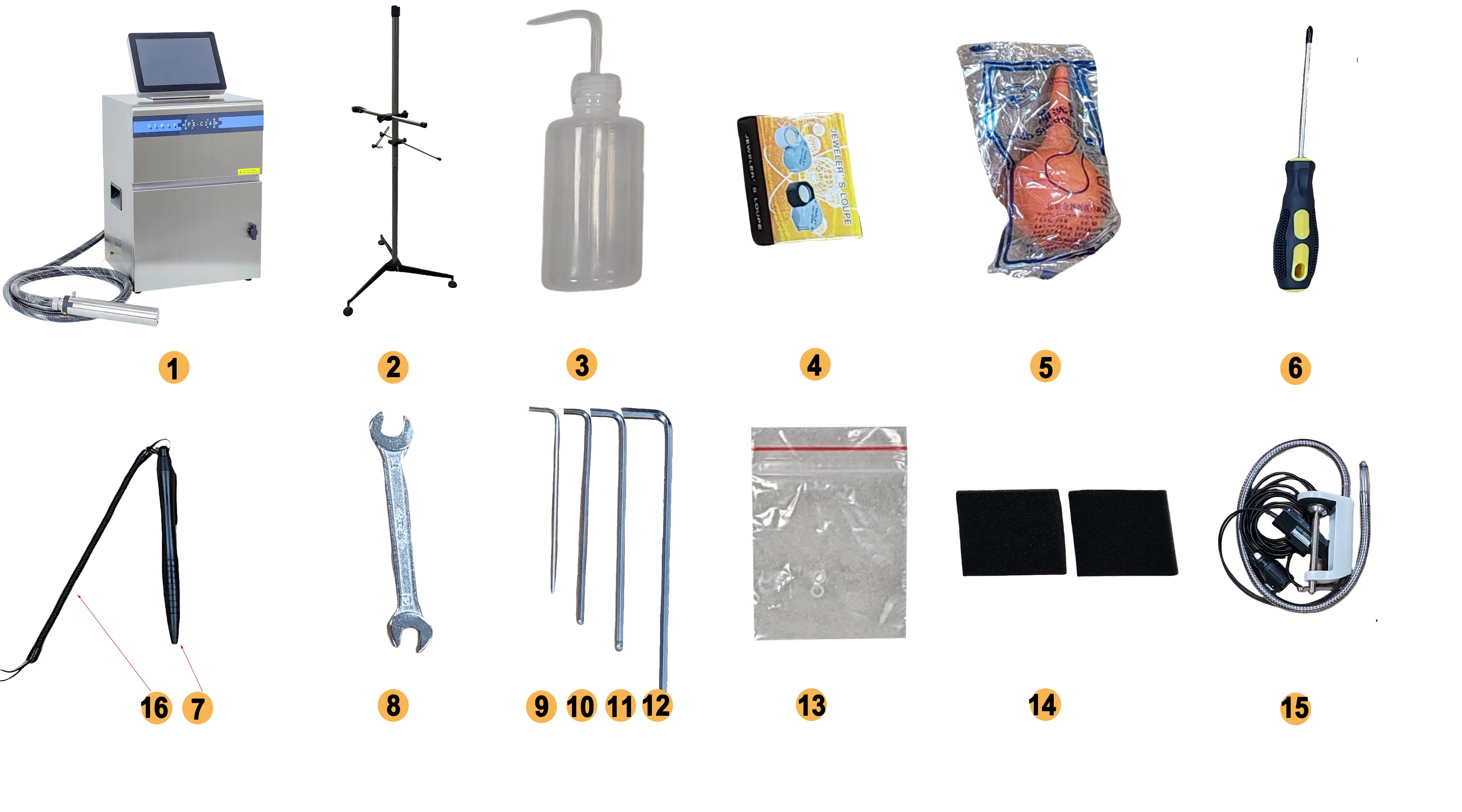

Pack List
