Products Description
RWD LED Overhead Stirrer:
IKEME RWD series High performance and high requirements, safe and relia-ble operation, suitable for allkinds of laboratory samples stirring, simple operation;Adopting Brushless DC motor, it can run for a long time and greatly improve the working efficiency of the laboratory.
Product features:
1. LCD display, speed and time can be coarsely adjusted, in the working state can also be fine tuning the working time;
2. The rotating speed is 30-2200rpm, can fixer or controlled for high and low speed;
3. Using DC brushless motor, can run safely for a long time with excellent performance;

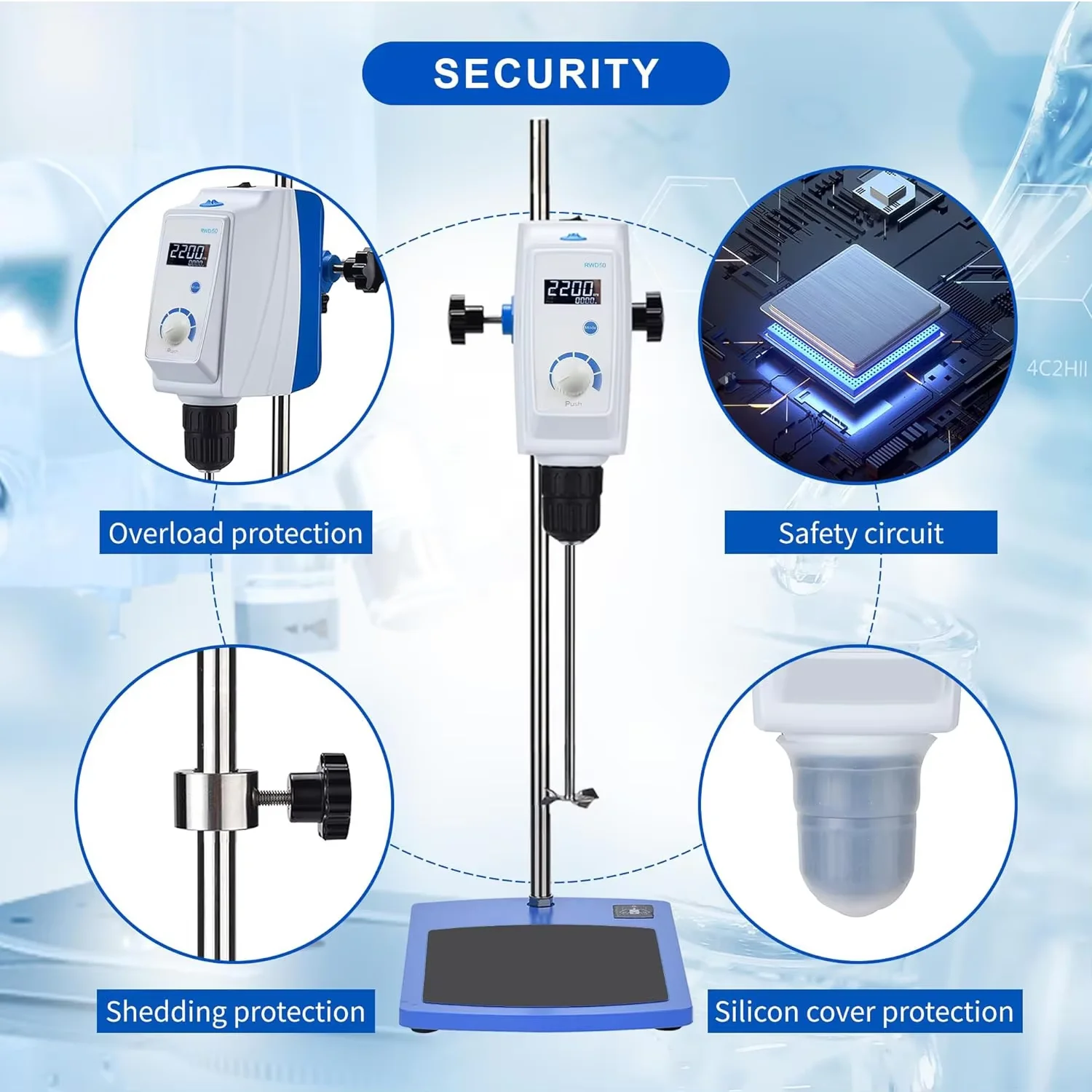

4. Overload and motor protection.In case of overload, short circuit or abnormal condition, the circuit will be automaically cut off andalarm will be given to ensure the safety of the experiment;

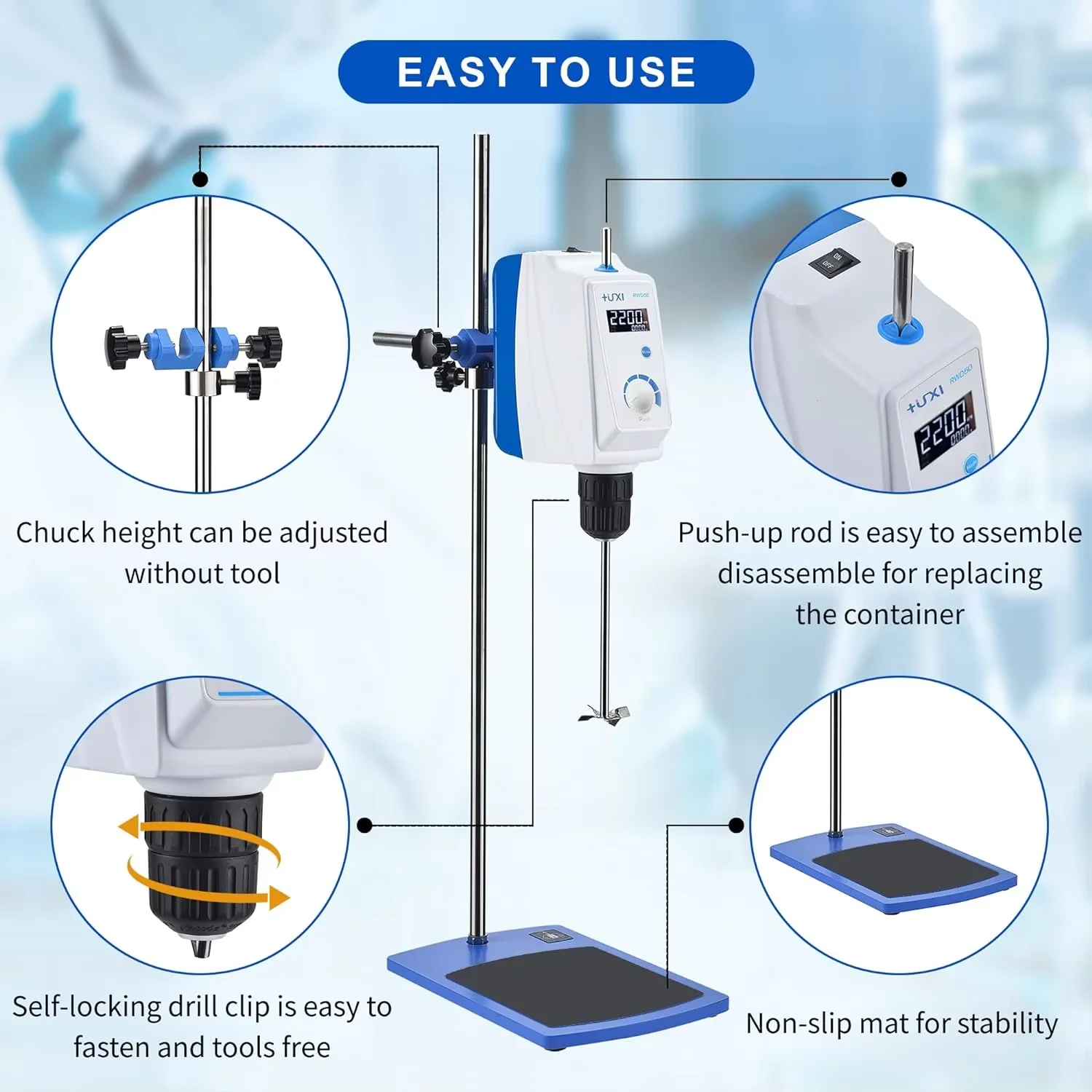

5. Equipped with the agitator hole, no need to adjust the installation height of the instrument, just adjust the installation position of the stirring rod;
6. The torque can be adjusted automatically according to the viscosity change of the sample, which is convenientfor experimental operation;

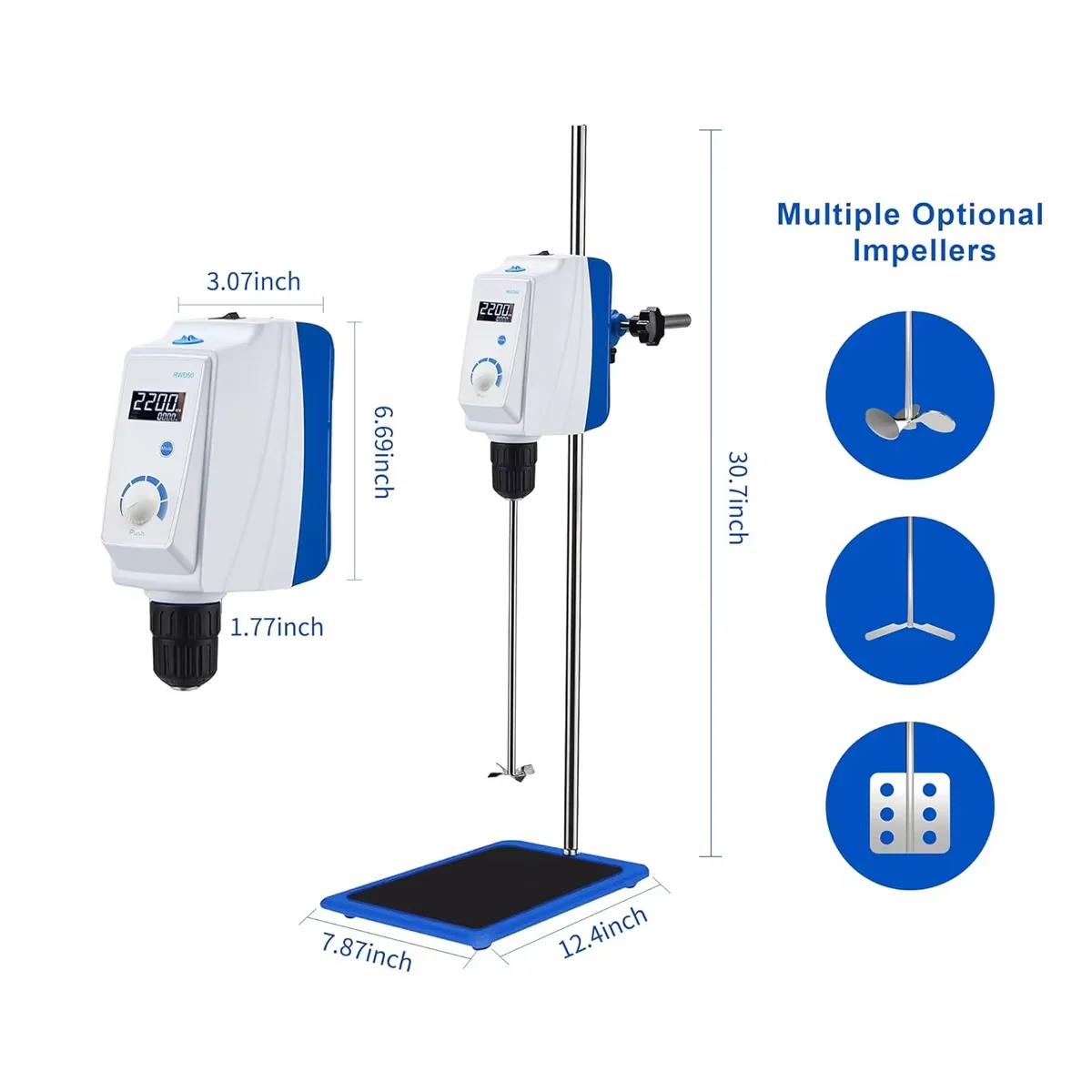

7. A variety of stirring paddle, bracket optional.
3. Using DC brushless motor, can run safely for a long time with excellent performance;
4. Overload and motor protection.In case of overload, short circuit or abnormal condition, the circuit will be automaically cut off andalarm will be given to ensure the safety of the experiment;
5. Equipped with the agitator hole, no need to adjust the installation height of the instrument, just adjust the installation position of the stirring rod;
6. The torque can be adjusted automatically according to the viscosity change of the sample, which is convenientfor experimental operation;
7. A variety of stirring paddle, bracket optional.
Product Paramenters
|
Mode
|
RWD50
|
RWD100
|
RWD150
|
RWD200
|
|||
|
Input Voltage
|
100~240
|
100~240
|
100~240
|
100~240
|
|||
|
Output voltage(V)
|
24
|
24
|
24
|
36
|
|||
|
Frequency(Hz)
|
50~60
|
50~60
|
50~60
|
50~60
|
|||
|
Capacity(L)
|
20
|
40
|
60
|
100
|
|||
|
Speed range(rpm)
|
30~2200
|
30~2200
|
30~2200
|
30~1600
|
|||
|
Speed display
|
LCD
|
LCD
|
LCD
|
LCD
|
|||
|
Speed accuracy(rpm)
|
±1
|
±1
|
±1
|
±1
|
|||
|
Adjust mode
|
Coarse and fine tuning
|
Coarse and fine tuning
|
Coarse and fine tuning
|
Coarse and fine tuning
|
|||
|
Timer range(min)
|
1~9999
|
1~9999
|
1~9999
|
1~9999
|
|||
|
Time Display
|
LCD
|
LCD
|
LCD
|
LCD
|
|||
|
Max Torque(N.cm)
|
40
|
60
|
80
|
100
|
|||
|
Max viscosity(mpas)
|
10000
|
50000
|
80000
|
100000
|
|||
|
Input power(W)
|
60
|
120
|
160
|
400
|
|||
|
Output power(W)
|
50
|
100
|
150
|
200
|
|||
|
Protect class
|
IP42
|
IP42
|
IP42
|
IP42
|
|||
|
Motor protection
|
Display failure automatic stop
|
|
|
|
|||
|
Overload protection
|
Display failure automatic stop
|
|
|
|
|||
|
Safety protection
|
Chuck Protector + Anti-Slip Pad
|
|
|
|
|||
|
allowable ambient temperature(°C)
|
5~40
|
5~40
|
5~40
|
5~40
|
|||
|
allowable ambient humidity(%)
|
80
|
80
|
80
|
80
|
|||
|
Host instrument size(mm)
|
315*200*780
|
315*200*780
|
315*200*780
|
315*200*780
|
|||
|
Host packaging size(mm)
|
475*340*200
|
475*340*200
|
475*340*200
|
475*340*200
|
|||
|
Package size(mm)
|
803*400*140
|
803*400*140
|
803*400*140
|
803*400*140
|
|||
|
Host instrument net weight(kg)
|
4.4
|
4.7
|
5
|
6
|
|||
|
Mainframe packaging gross weight(kg)
|
6.5
|
6.5
|
6.5
|
6.5
|
|||
|
Net weight of set instrument(kg)
|
7
|
7.5
|
8
|
9
|
|||
|
Gross weight of the set of instruments(kg)
|
12.4
|
12.5
|
12.5
|
13.1
|
|||
