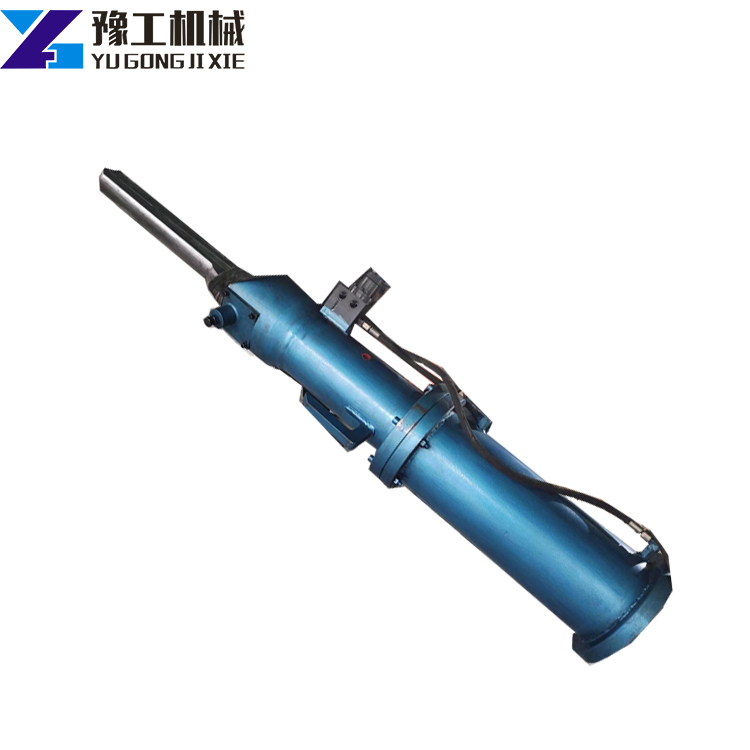

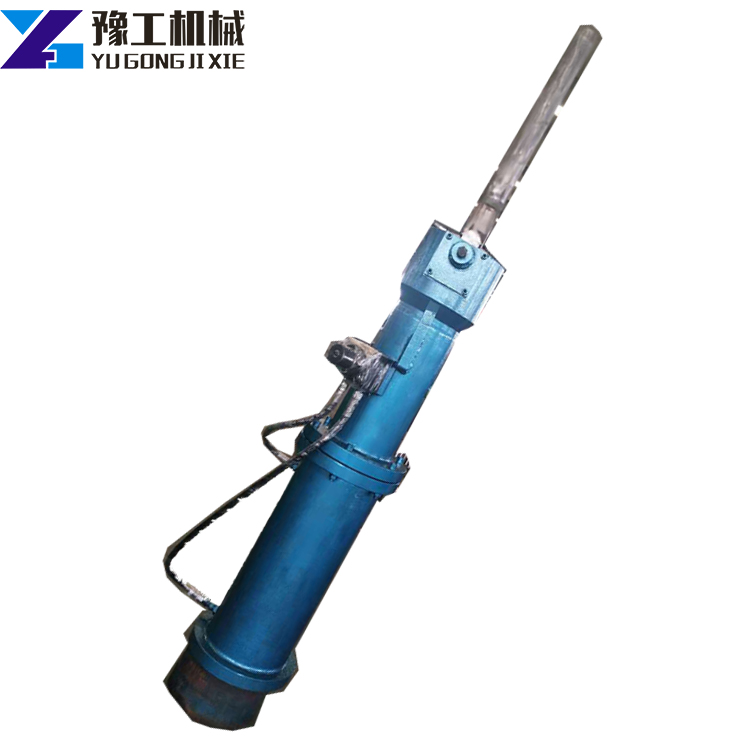

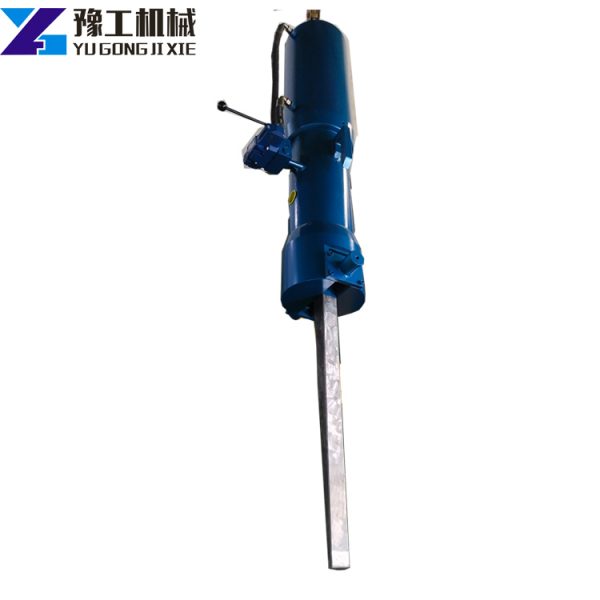

Large Rock Splitter
Application
Large-scale splitting machines are mainly used for earthwork of huge rocks and reinforced concrete structures, excavation of foundation pits, static vibration-free demolition of roads and bridge structures, and open-pit mining of metal or non-metal mines and quarries, secondary crushing And demolition works. The static explosion can be completed at one time, which greatly improves work efficiency. It can be widely used in mining, building demolition, road and bridge construction, tunnel construction and other engineering fields.
Working Principle
The principle of the airborne large-scale
splitter is to increase the output pressure of the hydraulic system of the excavator through a booster, and then drive the
splitter cylinder to advance to form a driving force, which is transported to the large splitter through the hydraulic pump
station of the excavator. The cylinder tube controls the push and contraction of the piston rod in the large splitting machine,
and cleverly applies the wedge principle. After mechanical expansion, it can produce a large splitting force. Although the
external compressive strength of rock and concrete is great, its The internal tensile strength is relatively limited. It is
precisely because of these characteristics that the splitting machine can easily split the boulder in a few seconds so that the
split object (such as: rock, reinforced concrete, etc.) can be pressed. The predetermined aspect cracked.
splitter is to increase the output pressure of the hydraulic system of the excavator through a booster, and then drive the
splitter cylinder to advance to form a driving force, which is transported to the large splitter through the hydraulic pump
station of the excavator. The cylinder tube controls the push and contraction of the piston rod in the large splitting machine,
and cleverly applies the wedge principle. After mechanical expansion, it can produce a large splitting force. Although the
external compressive strength of rock and concrete is great, its The internal tensile strength is relatively limited. It is
precisely because of these characteristics that the splitting machine can easily split the boulder in a few seconds so that the
split object (such as: rock, reinforced concrete, etc.) can be pressed. The predetermined aspect cracked.
Construction steps
Select the piercing surface → drilling hole depth requirement (the depth is twice the length of the gun head, and the hole diameter is greater than the diameter of the gun head by 3-5mm) → the hole position distance requirement (1-1.5 meters from the piercing surface, the hole distance is 1.2—1.7m)→put the hole into the splitting machine→adjust the splitting direction→control the power station to split
Technical Parameters
|
Model
|
YG-220
|
|
|
Body Height
|
3.1m
|
|
|
Effective length of the tip
|
700mm
|
|
|
Tip diameter
|
105mm
|
|
|
Drilling diameter
|
110-115mm
|
|
|
Minimum drilling depth
|
1.5m
|
|
|
Crack width
|
20mm
|
|
|
Weight
|
850kg
|
|
|
YG-220 Tip parameters
|
||
|
Split block size
|
950*114*120mm
|
|
|
Net Weight
|
47kg/set
|
|
|

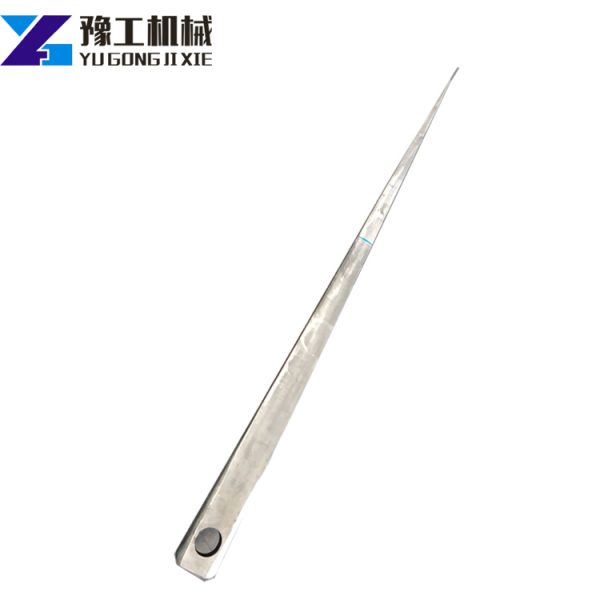

Wedge size
|
1620*83*63mm
|
|
|
Net Weight
|
48kg/set
|
|
|
Whole set size
|
1620*145*1200mm
|
|
|
Total Weight
|
85kg
|
|
|
Package size
|
1660*185*240mm
|
|
|
Total Weight including package
|
93kg
|
|
|
Model
|
YG-280
|
|
|
Total Weight including package
|
135mm
|
|
|
Effective length of split block
|
1200mm
|
|
|
Drilling diameter
|
140mm
|
|
|
Minimum drilling depth
|
1.5m
|
|
|
Weight
|
1000kg
|
|
|
Splitting machine length
|
3235mm
|
|
|
Fixed work stress
|
40Mpa
|
|
|
Theoretical disintegration
|
6000T
|
|
|
Weight
|
1100kg
|
|
|
YG-280 Tip parameters
|
||
|
Split block size
|
1500*130*120mm
|
|
|
Net Weight
|
93kg/set
|
|
|
Wedge size
|
1820*110*65mm
|
|
|
Net Weight
|
65kg
|
|
|
Whole set size
|
1820*225*120mm
|
|
|
Total Weight
|
158kg
|
|
|
Package Size
|
1860*265*240mm
|
|
|
Total Weight including package
|
170kg
|
|
