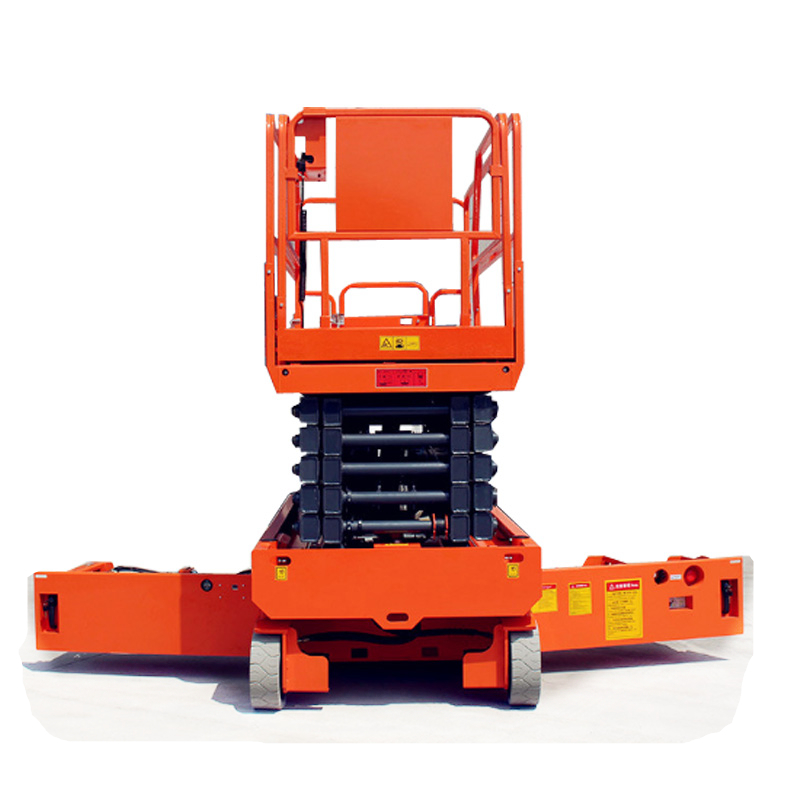

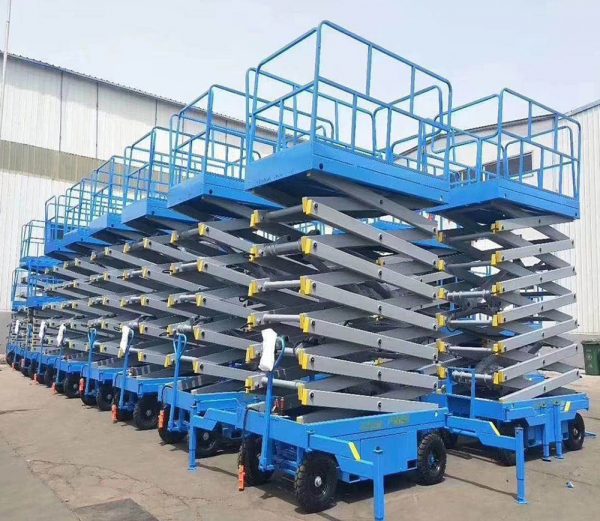

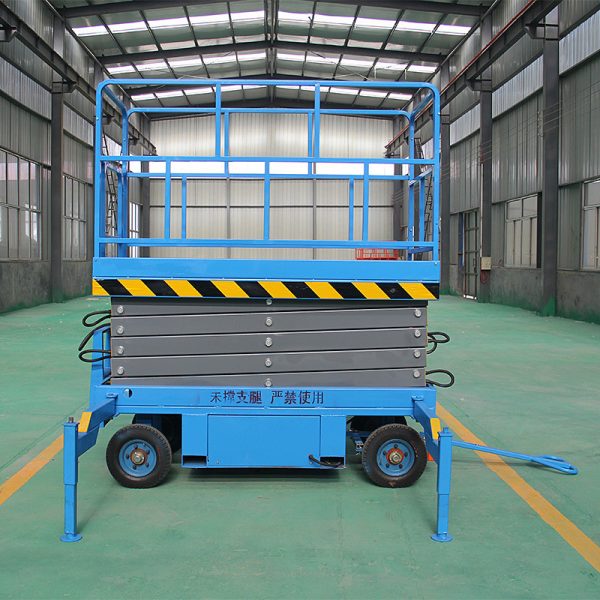

Hydraulic mechanical 20 meter working height mobile scissor lift with top quality
|
Mobile Scissor Lift Parameters |
||||||||||||
| Model | Platform Dimension(mm) | Load(kg) | Lifting Height(m) | Overall Dimensions(mm) | Overall Weight(kg) | |||||||
| QYCY0.5-6 | 2100*830 | 500 | 6 | 2250*950*1200 | 880 | |||||||
| QYCY0.5-7 | 2100*830 | 500 | 7 | 2250*950*1280 | 970 | |||||||
| QYCY0.5-8 | 2100*930 | 500 | 8 | 2250*1060*1380 | 1050 | |||||||
| QYCY0.5-9 | 2100*930 | 500 | 9 | 2250*1060*1500 | 1165 | |||||||
| QYCY0.5-10 | 2100*1230 | 500 | 10 | 2250*1350*1530 | 1360 | |||||||
| QYCY.05-11 | 2100*1230 | 500 | 11 | 2250*1350*1650 | 1400 | |||||||
| QYCY0.5-12 | 2550*1530 | 500 | 12 | 2796*1670*1750 | 2260 | |||||||
| QYCY0.5-14 | 2812*1530 | 500 | 14 | 3067*1730*1810 | 2486 | |||||||
| QYCY0.3-16 | 2812*1600 | 300 | 16 | 3067*1810*2080 | 3063 | |||||||
| QYCY0.3-18 | 3070*1600 | 300 | 18 | 3321*1810*2080 | 3900 | |||||||
| QYCY1.0-4 | 2100*1200 | 1000 | 4 | 2250*1350*1180 | 1250 | |||||||
| QYCY1.0-6 | 2100*1200 | 1000 | 6 | 2250*1350*1300 | 1400 | |||||||
| QYCY1.0-8 | 2100*1200 | 1000 | 8 | 2250*1350*1420 | 1585 | |||||||
| QYCY1.0-10 | 2100*1200 | 1000 | 10 | 2250*1350*1530 | 1700 | |||||||
| QYCY1.0-12 | 2550*1530 | 1000 | 12 | 2250*1670*1750 | 2560 | |||||||
| QYCY1.0-14 | 2812*1600 | 1000 | 14 | 3067*1810*1900 | 3230 | |||||||
| QYCY1.5-6 | 2100*1530 | 1500 | 6 | 2250*1750*1530 | 1780 | |||||||
| QYCY1.5-8 | 2100*1530 | 1500 | 8 | 2250*1750*1690 | 2070 | |||||||
| QYCY1.5-10 | 2100*1530 | 1500 | 10 | 2250*1750*1850 | 2250 | |||||||
| QYCY1.5-12 | 2550*1530 | 1500 | 12 | 2796*1762*1850 | 2900 | |||||||
| QYCY1.5-14 | 2816*1600 | 1500 | 14 | 3045*1852*1960 | 3400 | |||||||
| QYCY2.0-6 | 2100*1530 | 2000 | 6 | 2250*1750*1530 | 1780 | |||||||
| QYCY2.0-8 | 2100*1530 | 2000 | 8 | 2250*1750*1690 | 2070 | |||||||
| QYCY2.0-10 | 2100*1530 | 2000 | 10 | 2250*1750*1850 | 2250 | |||||||
| QYCY2.0-12 | 2550*1600 | 2000 | 12 | 2796*1852*1954 | 3200 | |||||||
| QYCY2.0-14 | 2816*1600 | 2000 | 14 | 3067*1852*2230 | 3900 | |||||||
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the lift table to stop at accurate position.
4)All the trailing scissor lift are passed 1.2 times loading test before leaving factory.
Optional configuration:
A. Imported pumping and hydraulic systems
B. Optional AC 380V power or 220V, DC, diesel-powered.
C. Assisted walking device can be added
D. Platform can extend outward
Hydraulic mechanical 20 meter working height mobile scissor lift with top quality
Shanghai Ruibiao Construction Machinery Co., Ltd.
The company is a professional manufacturer of hydraulic lifting platforms, hydraulic lifts, boarding bridges and other series of mechanical products. Since its establishment, the company has been continuously pursuing technological progress and dedicating to product innovation.
The company’s products have a total of eight series of more than 60 products, the leading products are QYCY series of scissors lifting platform, GTJZ series of automatic scissors lifting platform.
All the products of the company are in line with national industry standards, and have been greatly recognized by the national metallurgical industry, railway system, China Petroleum, Iron and Steel Group and other units.
At the same time, we can also customize special lifting platforms according to the needs of customers to meet customers in various fields. We adhere to the integrity, professionalism, innovative spirit, product quality to achieve the future, adhere to research and development, learn from foreign advanced technology and process experience, and constantly improve and improve technology and process level to meet the different needs of customers.
