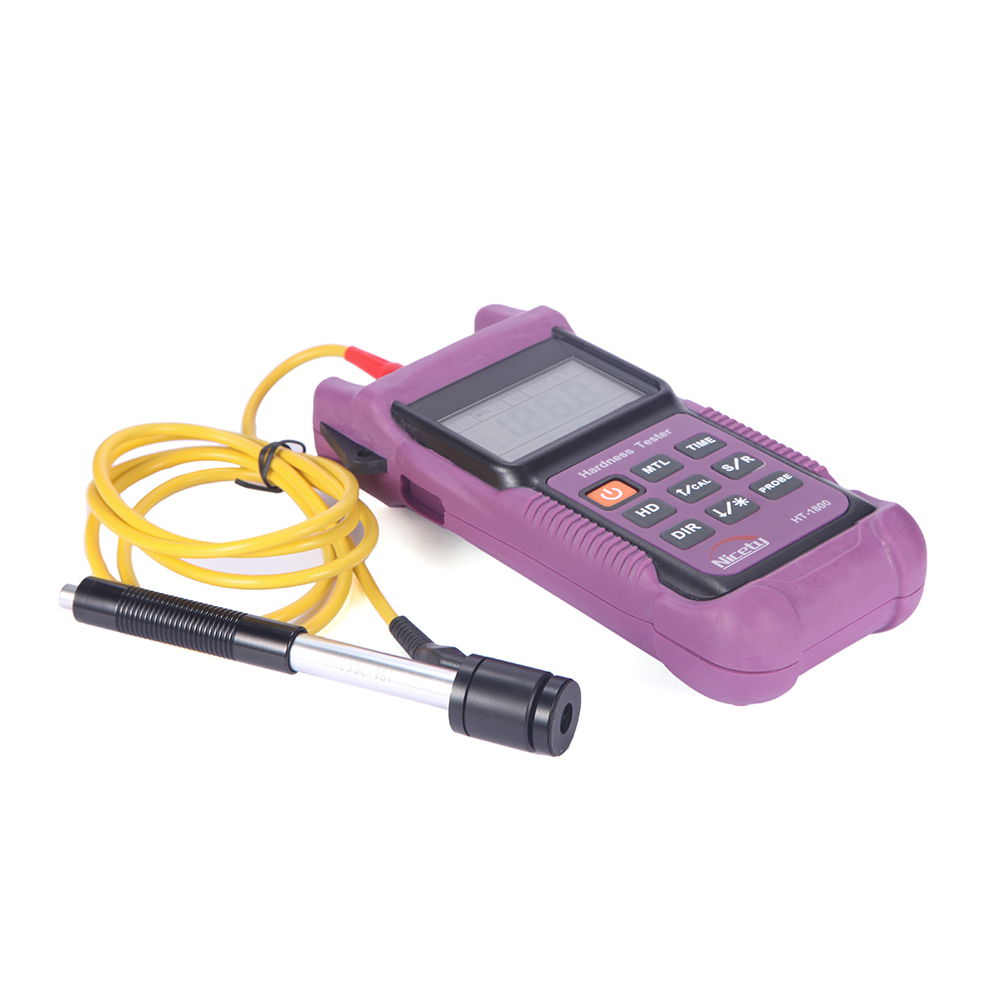

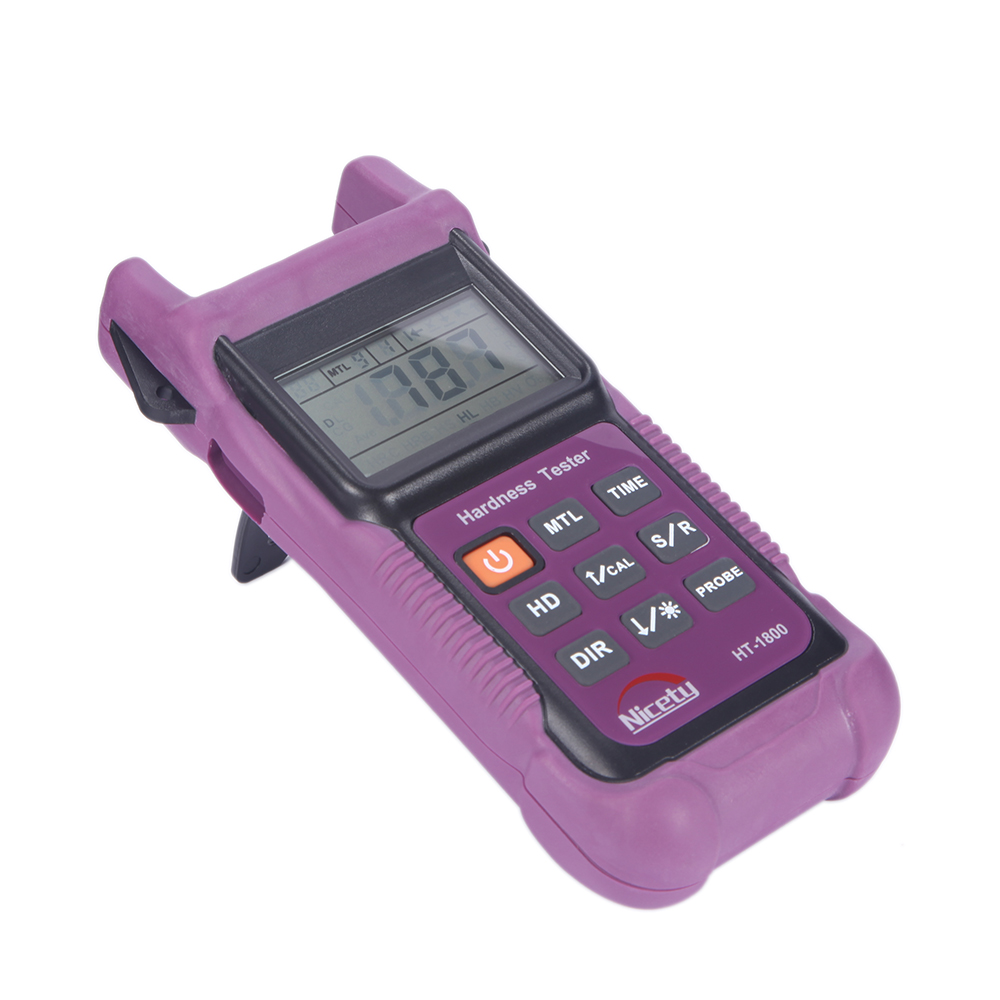

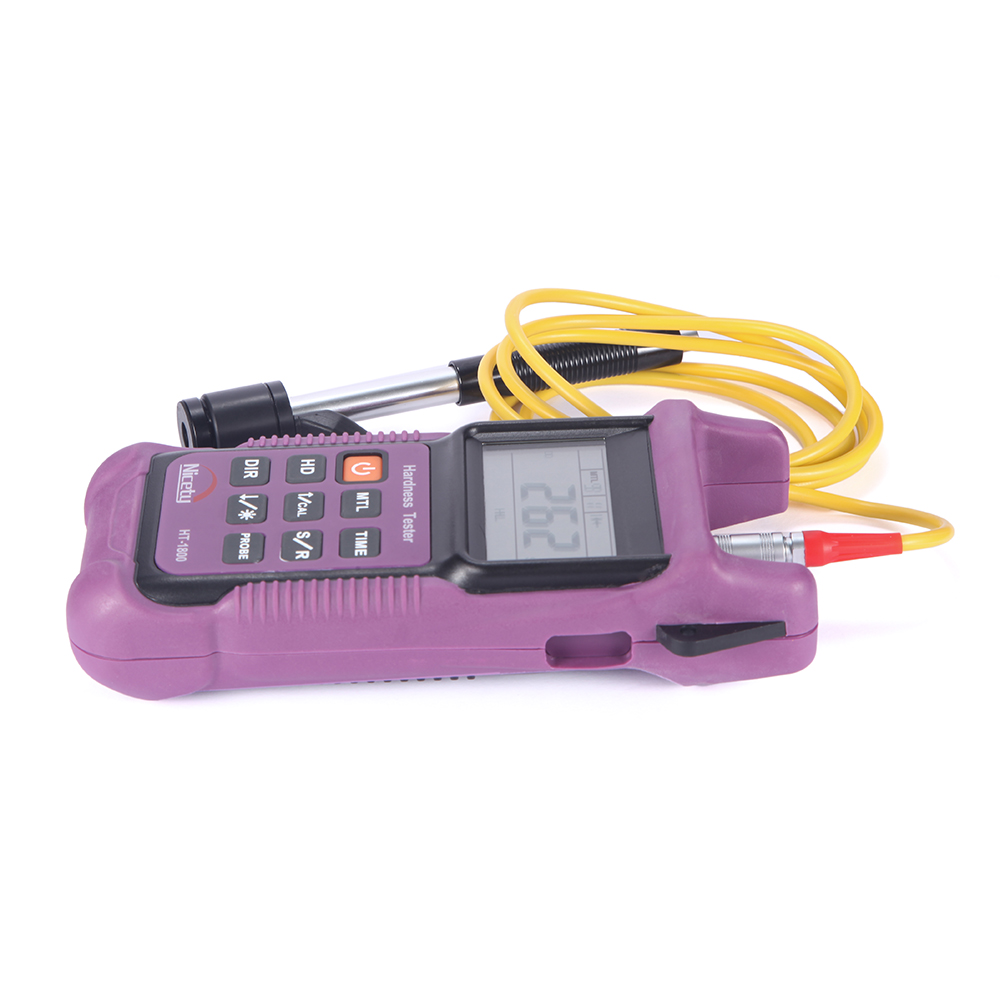

HT-1800 Leeb Hardness Tester
State of the art, digital portable hardness tester is designed to test the hardness of large hard metal parts. Clean crisp display shows the incredible functions that can only be found on this new portable hardness tester such as auto-probe detection, auto direction detector, single and multi-point calibration make the HT-1800 the most versatile portable hardness tester in the industry.
The HT-1800 portable hardness tester can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc.
Functions:
Easy to use keypad operation
Auto identification of Impact Device
Large LCD display with back light
Automatic conversions to: Brinell, Rockwell B & C, Vicker and Shore
Automatic mean value
Battery Indicator
Memory capacity (100 groups)
Standard Test Method for Hardness Testing: ASTM A956
Specifications:
Measuring range:
HLD (200-960)
HRC(19.8-68.5)
HRB(13.5-100)
HB(30-651)
HV(80-976)
HS(26.4-99.5)
σb(375-2639)
Accuracy: ≤6HLD (HLD=800)
Repeatability: ≤6HLD (HLD=800)
Resolution: 1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS
Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
Impact devices: D (optional impact devices: C/G/DC/DL)
Memory capacity: 100 groups
Battery type: 4 * 1.5V, AAA alkaline
Operating temperature: -10 to 50 degrees C
Dimensions: 90*176*43mm
Shipping weight: 4.5KG
Standard Accessories:
Base instrument
Impact device D
Calibrated test block
Custom carry case
Cleaning brush
Operation manual
Optional accessories:
Impact devices; C, G, DC, DL
