Parameters/Model
|
HSD-UV100U-12
|
HSD-UV100U-20
|
||
|
Tracking camera lens parameters
|
||||
|
Image Sensor
|
1/2.8 inch high quality CMOS sensor
|
|||
|
Effective Pixels
|
2.07 million, 16:9
|
|||
|
Video signal
|
3.3°(narrow angle)～54.7°(wide angle)USB, HDM interface video format 1080P60/50/30/25/59.94/29.97 1080I60/50/59.94 720P60/50/30/25 /59.94/29.97
|
|||
|
Lens optical zoom
|

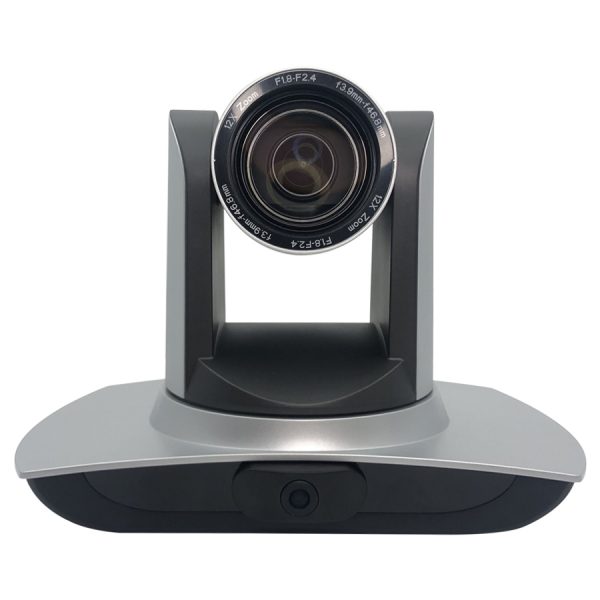

12x optical zoom f=3.9～46.8mm
|
20x optical zoom f=5.5～110mm
|
||
|
Perspective
|
6.3°(narrow angle)～72.5°(wide angle)
|
3.3°(narrow angle)～54.7°(wide angle)
|
||
|
Aperture factor
|
F1.8～F2.4
|
F1.6 ～ F3.5
|
||
|
Digital zoom
|
10X
|
|||
|
Minimum illumination
|
0.5Lux(F1.8, AGC ON)
|
|||
|
Digital noise reduction
|
2D﹠3D digital noise reduction
|
|||
|
White Balance
|
Manual/Auto/One-key White Balance/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
|
2D﹠3D digital noise reduction
|
||
|
Focus
|
Auto/Manual/One-key focus
|
|||
|
aperture
|
automatic / manual
|
|||
|
Electronic shutter
|
automatic / manual
|
|||
|
BLC
|
switch
|
|||
|
Dynamic Range
|
Off/dynamic level adjustment
|
|||
|
Video adjustment
|
Brightness, chroma, saturation, contrast, sharpness, gamma curve
|
|||
|
Signal to noise ratio
|
>55dB
|
|||
|
Tracking camera interface function performance
|
||||
|
Audio, video and control interface
|
HDM interface model: HDM (audio and video output), LAN; dual-channel 3.5mm linear audio input; RS-232 (input) USB interfacemodel: USB3.0, LAN; dual-channel 3.5mm linear audio input; RS-232 (input)
|
|||
|
Video compression format
|
H.265、H.264
|
|||
|
Image stream
|
Dual stream output
|
|||
|
Audio input interface
|
Dual channel 3.5mm linear input
|
|||
|
Audio compression format
|
AAC, MP3, G.711A
|
|||
|
Network Interface
|
100M network port (10/100BASE-TX) 5G WiFi (optional)
|
|||
|
Network protocol
|
RTSP, RTMP, ONVIF, GB/T28181, support network VISCA control protocol; Support remote upgrade, remote restart, remote reset
|
|||
|
Control interface
|
RS-232 input
|
|||
|
Control protocol
|
VISCA/Pelco-D/Pelco-P; baud rate: 115200/9600/4800/2400
|
|||
|
Power connector
|
HEC3800 power socket (DC12V)
|
|||
|
Power Adapter
|
Input AC110V-AC220V output DC12V/2.5A
|
|||
|
Input voltage
|
DC12V±10%
|
|||
|
Input Current
|
1.5A (maximum)
|
|||
|
Power consumption
|
18W(Max)
|
|||
|
Panoramic camera
|
||||
|
Image Sensor
|
1/2.8 inch high quality CMOS sensor
|
|||
|
Effective Pixels
|
2.07 million
|
|||
|
Lens
|
Manual focus
|
|||
|
Video interface
|
HDM、USB3.0、LAN；
|
|||
|
4mm field of view
|
89.6°71°52.2°（DHV）
|
|||
|
6mm field of view
|
67.0°59°32.5°（DHV）
|
|||
|
2.8mm field of view
|
125°100°75°（DHV）
|
|||
|
PTZ parameters
|
||||
|
Horizontal rotation
|
-170°～+170°
|
|||
|
Pitch rotation
|
-30°～+90°
|
|||
|
Horizontal control speed
|
0.1 ～100°/sec
|
|||
|
Pitch control speed
|
0.1～45°/sec
|
|||
|
Preset speed
|
Level: 100°/sec, Tilt: 45°/sec
|
|||
|
Number of preset positions
|
The user can set up to 255 preset positions (10 remote controls)
|
|||
|
Other parameters
|
||||
|
stored temperature
|
-10℃～+60℃
|
|||
|
Storage humidity
|
20%～95%
|
|||
|
Operating temperature
|
-10℃～+50℃
|
|||
|
Working humidity
|
20%～80%
|
|||
|
size
|
253.9mmX179mmX144.7mm (width X height X depth)
|
|||
|
Weight (approx.)
|
1.50kg
|
|||
|
Use environment
|
indoor
|
|||
|
annex
|
||||
|
Random accessories
|
12V/2.5A power supply, RS232 control line, remote control, manual, warranty card
|
|||
|
Optional accessories
|
Mounting brackets
|
|||
|
Full-scene solution: By choosing different product combinations, any scenario can be met.
|
|
Networked control interface: The control information of all products is transmitted on a network to meet the deployment of product connections in various scenarios.
|
|
Location-independent recognition algorithm: The state detection and recognition of teachers and students adopt a unique intelligent partition algorithm to ensure that the detection and recognition results are independent of location.
|
|
Integrated design: built-in panoramic camera, which realizes the integration of panoramic camera and tracking camera
|
|
Advanced tracking algorithms: using advanced human body detection, locking and tracking image processing and analysis algorithms(intelligent image recognition algorithm library, scene adaptive algorithm), target tracking is stable, accurate and fast;
|
|
Strong anti-interference ability: more and more flexible identification shielding area settings, so that once the tracking target is locked, it will not be affected by interference from other moving targets or projectors;
|
|
Smooth tracking: The sensitivity of the action can be adjusted, and the small movement of the tracking target and the movement of the hand will not cause the misoperation of the camera;
|
|
Full-frame image recognition: Image detection is performed on each frame of the picture, and the image recognition sensitivity ishigh. In a complex environment, it can accurately distinguish between people and background, track accurately, and eliminate interference caused by background changes. When multiple moving targets appear, the correct target can still be tracked accurately, and the target loss rate is extremely low.
|
|
Image adaptation: According to the distance of the tracking target, the tracking camera automatically zooms, and the video always maintains the appropriate size and proportion;
|
|
Strong environmental adaptability: The tracking effect is not affected by the size, shape and seating arrangement of the
classroom; |
|
The configuration software is more user-friendly: the configuration software interface is intuitive and easy to operate. It can be configured only when the PC and the camera are in the same local area network without an external monitor.
|
|
Ultra-wide dynamic exposure function: completely avoid the problem of darkening of tracking targets under strong light background such as projectors;
|
|
Full HD image: adopts 1/2.8-inch high-quality image sensor with a maximum resolution of 1920×1080 and an output frame rate of up to 60 frames per second.
|
|
A variety of optical zoom lenses: with 12X, 20X and other optical zoom lens options, the lens has a 72.5° distortion-free wide viewing angle;
|
|
Advanced focusing technology: advanced auto-focusing algorithm enables fast, accurate and stable auto-focusing;
|
|
Low noise and high signal-to-noise ratio: Low-noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of the camera video. Adopt advanced 2D and 3D noise reduction technology to further reduce the noise while ensuring image clarity;
|
|
Multiple video output interfaces: support HDM, SDI, LAN, HDM supports simultaneous audio and video output;
|
|
Multiple audio and video compression standards: support H.265/H.264 video compression, support AAC, MP3, G.711A audio compression;
|
|
Audio input interface: support 8000, 16000, 32000, 44100, 48000 sampling frequency, support AAC, MP3, PCM audio coding;
|
|
Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols; support RTMP push mode, easily link to streaming media
servers (Wowza, FMS); support RTP multicast mode, support network full command VISCA control protocol. |
|
Support 5G WiFi wireless transmission mode (can replace the LAN interface of the tracking camera of the teacher and student tracking camera)
|
|
Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocol, support automatic identification protocol;
|
|
Super silent pan-tilt: adopts high-precision stepper motor and precision motor drive controller to ensure smooth pan-tilt
operation and noise-free; |
|
Sleep function: support low-power sleep/wake up, the power consumption is lower than 400mW during sleep;
|
|
Flexible installation methods: support formal and inverted installation methods.
|
