Products Description
– Application –

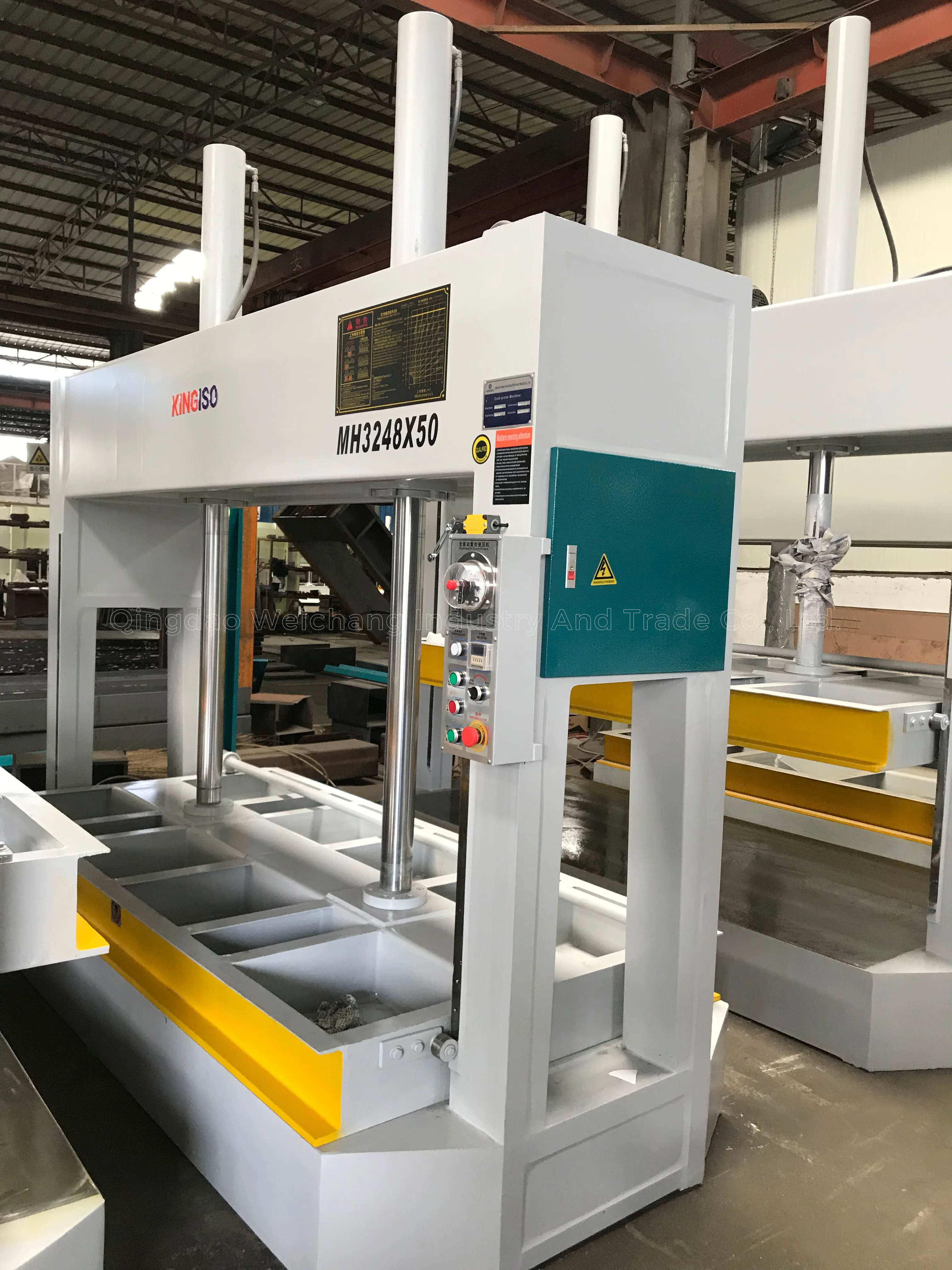

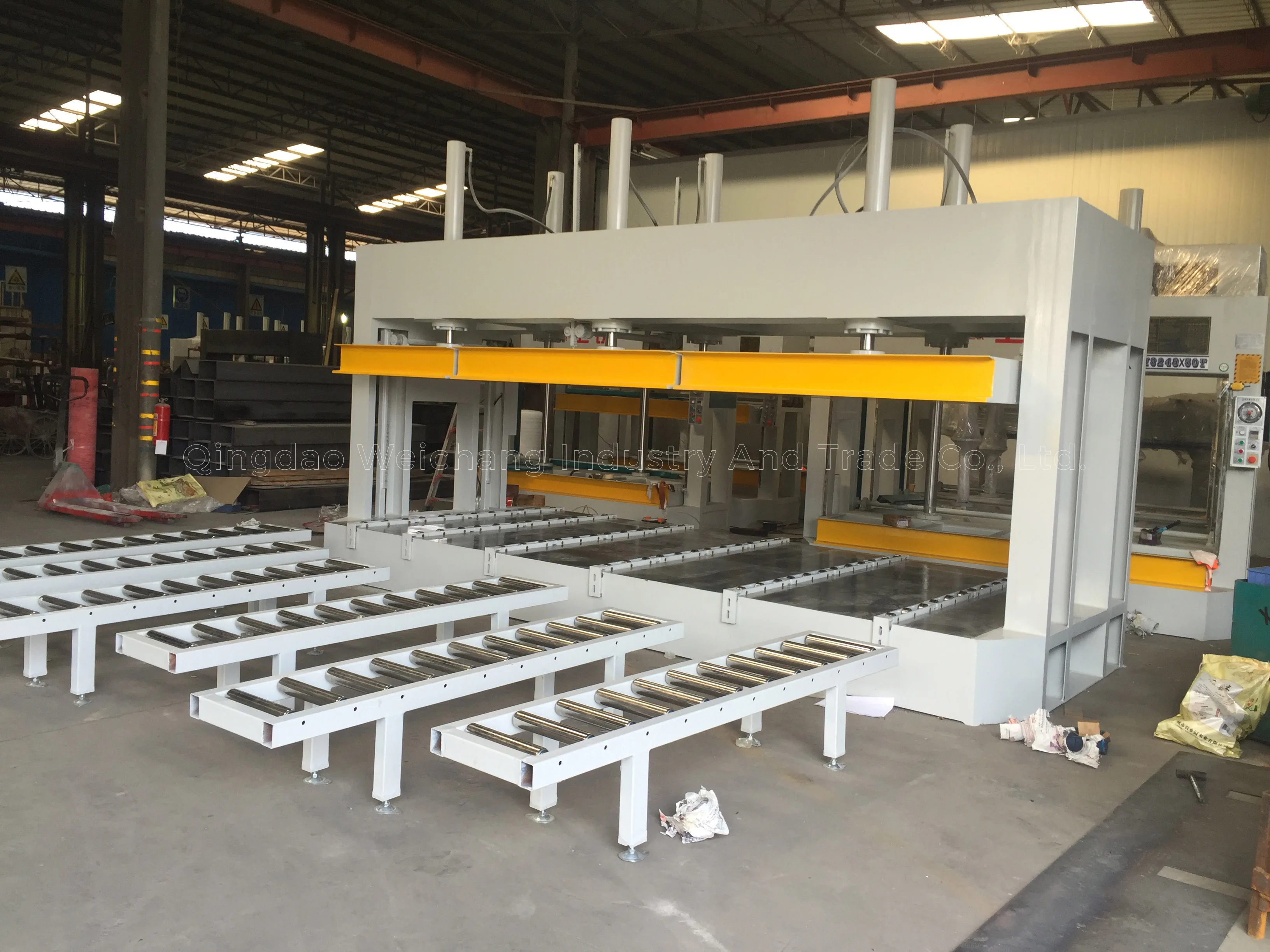

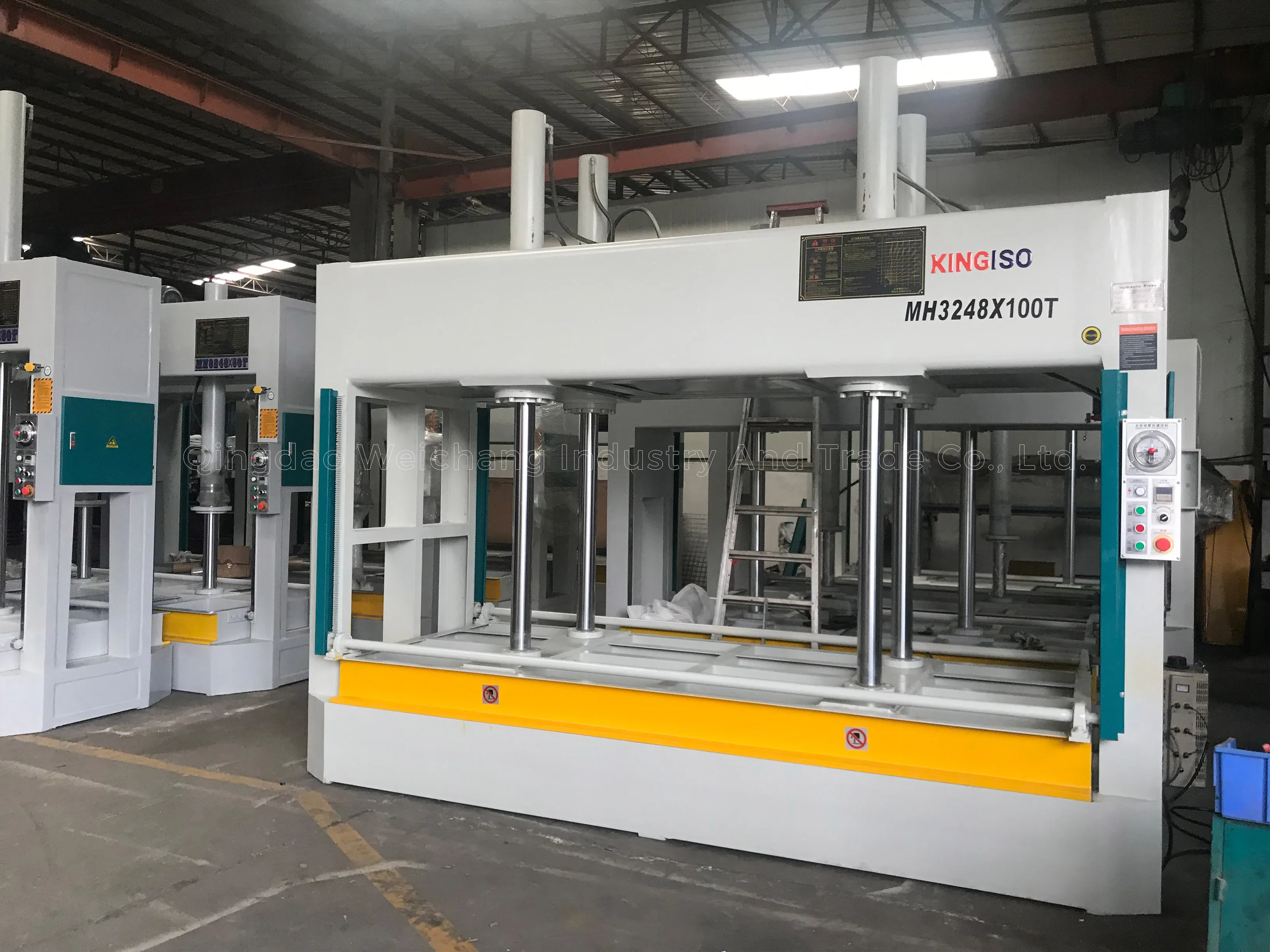

Woodworking hydraulic cold press series models are used to press the furniture plate, wooden doors, all kinds of sheet metal, as well as furniture , leveling, stereotypes can make the bonding between the plate and solid.
|

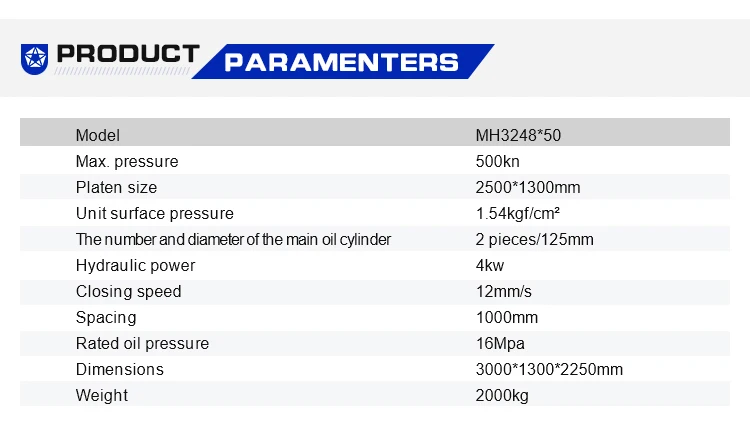

Model
|
MH3248*50
|
MH3248*80
|
MH3248*100
|
|||
|
Press platen dimensions
|
1250*2500mm
|
1250mm*2500mm
|
1250mm*2500mm
|
|||
|
Max total thrust
|
50t(1.6kg/cm ²)
|
80t (2.5kg/cm2)
|
100t (2.2kg/cm²)
|
|||
|
Press of hydraulic system
|
210kg/cm ²
|
200kg/cm2
|
200kg/cm²
|
|||
|
Max platen opening
|
1000mm/1300mm
|
1000mm/1300mm
|
1000mm/1300mm
|
|||
|
Oil cylinder
|
125mm*2psc
|
125mm*2pcs
|
φ125mm*4pcs
|
|||
|
Hydraulic motor power
|
4kw
|
5.5kw
|
5.5kw
|
|||
|
Overall dimensions
|
2940*1250*2900mm
|
3050*1250*3500mm
|
2920*1250*3400mm
|
|||
|
Net weight
|
2250kg
|
3500kg
|
3500kg
|
|||
|
>> Tell us your requirement <<
|
||||||
Product Details
The machine body is constructed with a solid structure, featuring a thick steel sheet, ensuring stability and durability.
Easy and convenient control panel for operation, emergency stop buttom makes sure the safety of user
Integrated Oil Cylinder. The integrated oil cylinder can guarantee the long time use withoutoil leakage, so as to achieve good pressure protection effect.
Adjustable pressure to ensure the safety of diecastproducts and avoid damage to the machine.
Application
