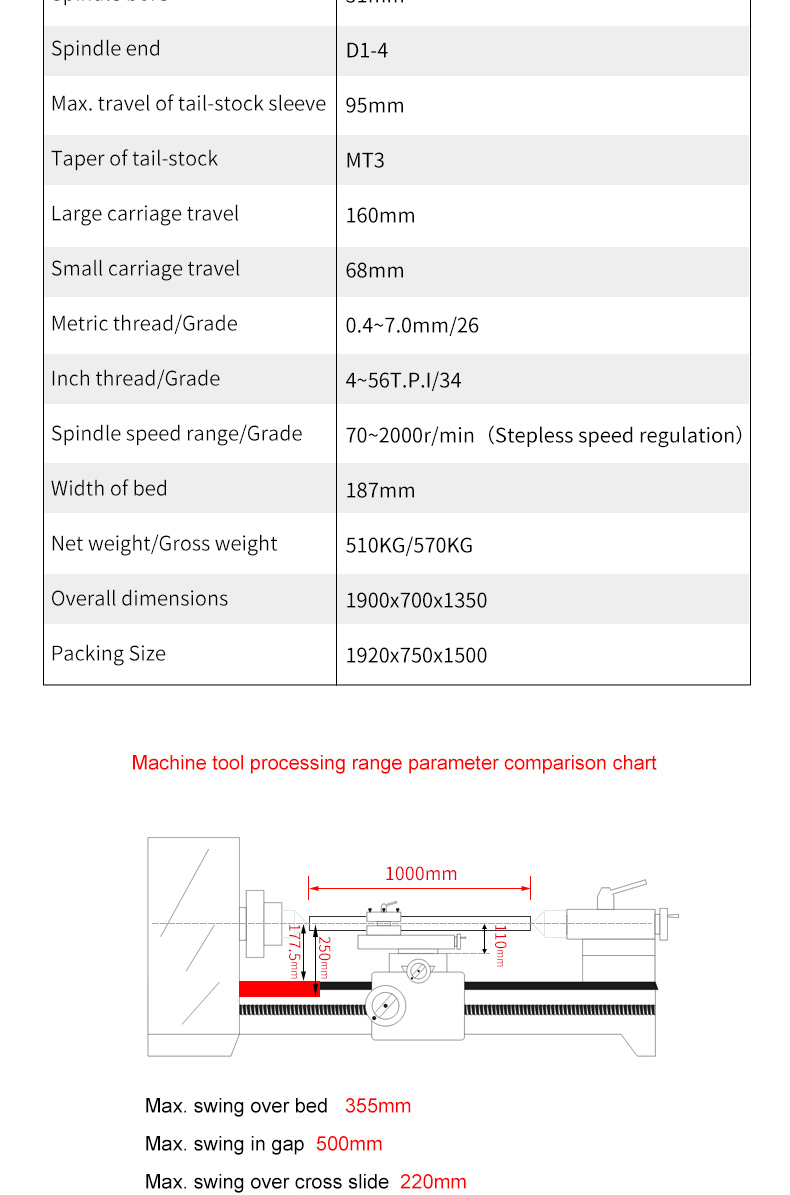

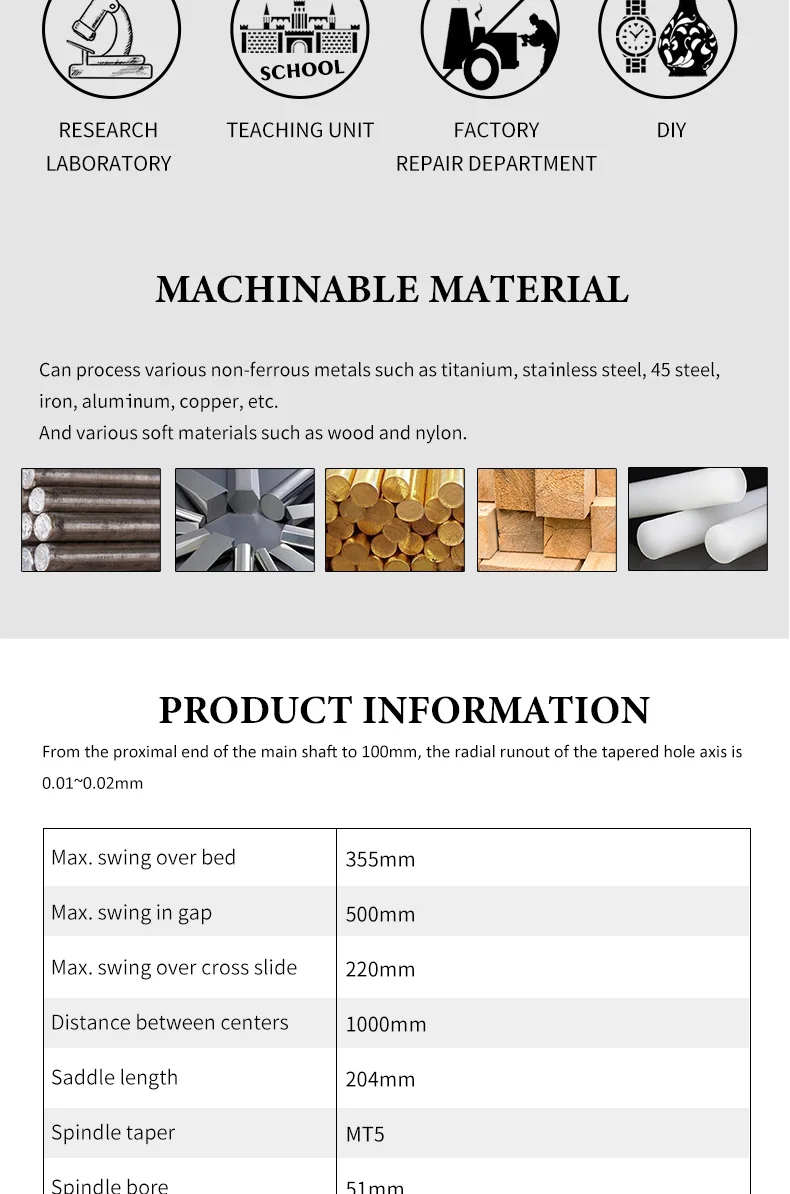

| Maximum turning diameter bed | 355mm |
| Maximum turning diameter of middle carriage | 220mm |
| Maximum turning diameter in the saddle | 500mm |
| Saddle length | 204mm |
| Two top distance | 1000mm |
| Width of bed | 187mm |
| Spindle speed range/Grade | 70-2000rpm/variable |
| Taper of spindle bore | MT5 |

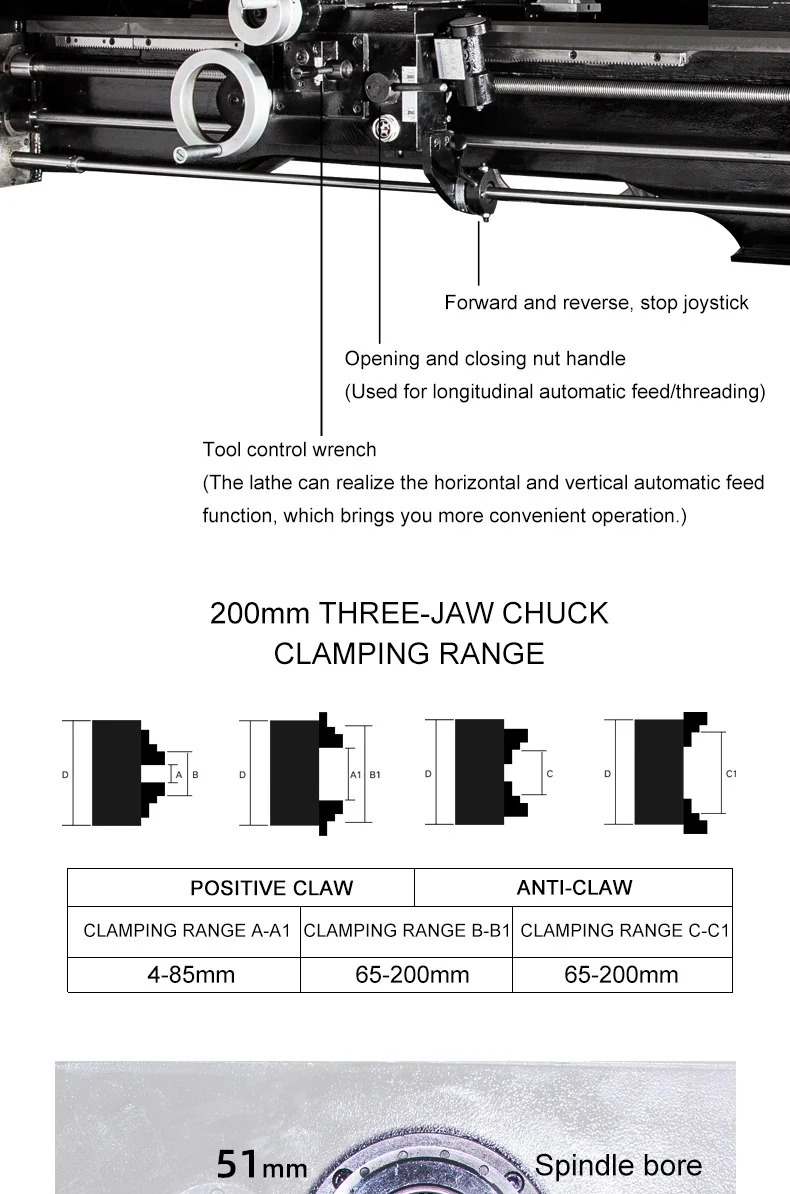

| Chuck specifications | 200mm |
| Spindle bore | 51mm |
| Tailstock quill travel | 95mm |
| Tailstock quill diameter | 32mm |
| Taper of tailstock quill | MT3 |

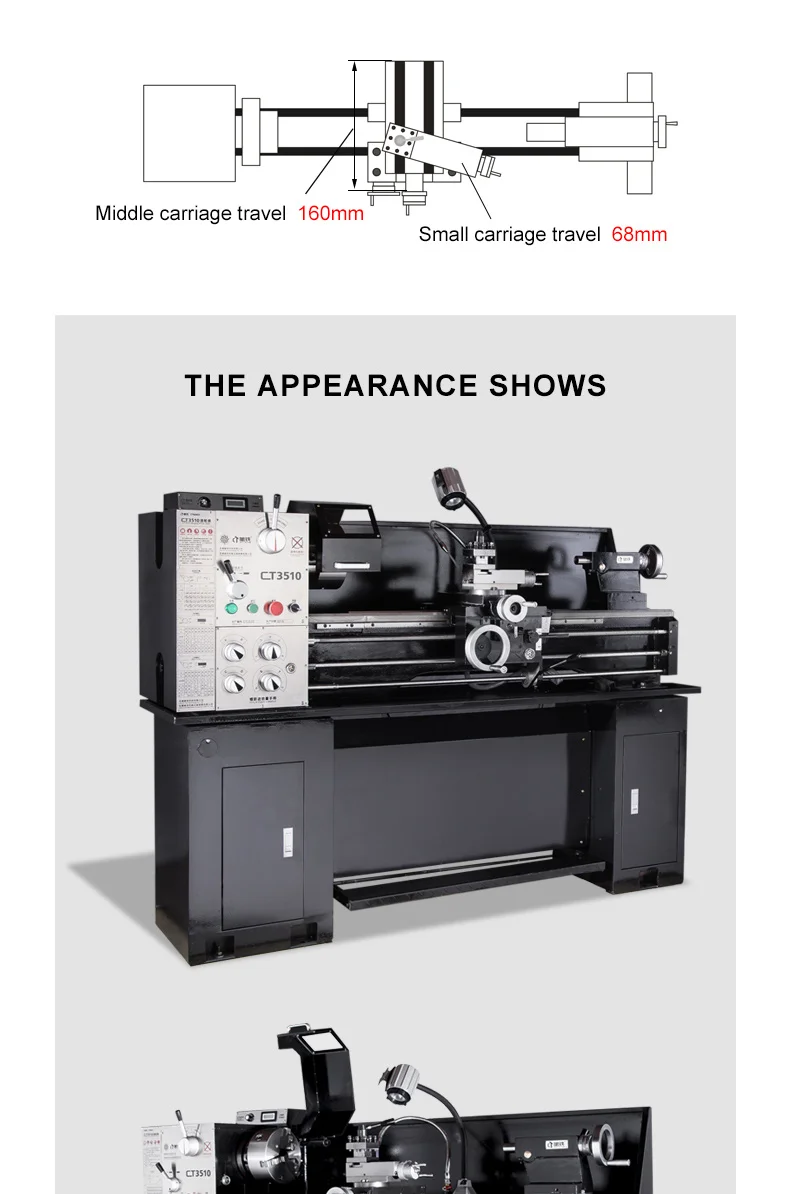

| Cross slide travel | 160mm |
| Top slide travel | 68mm |

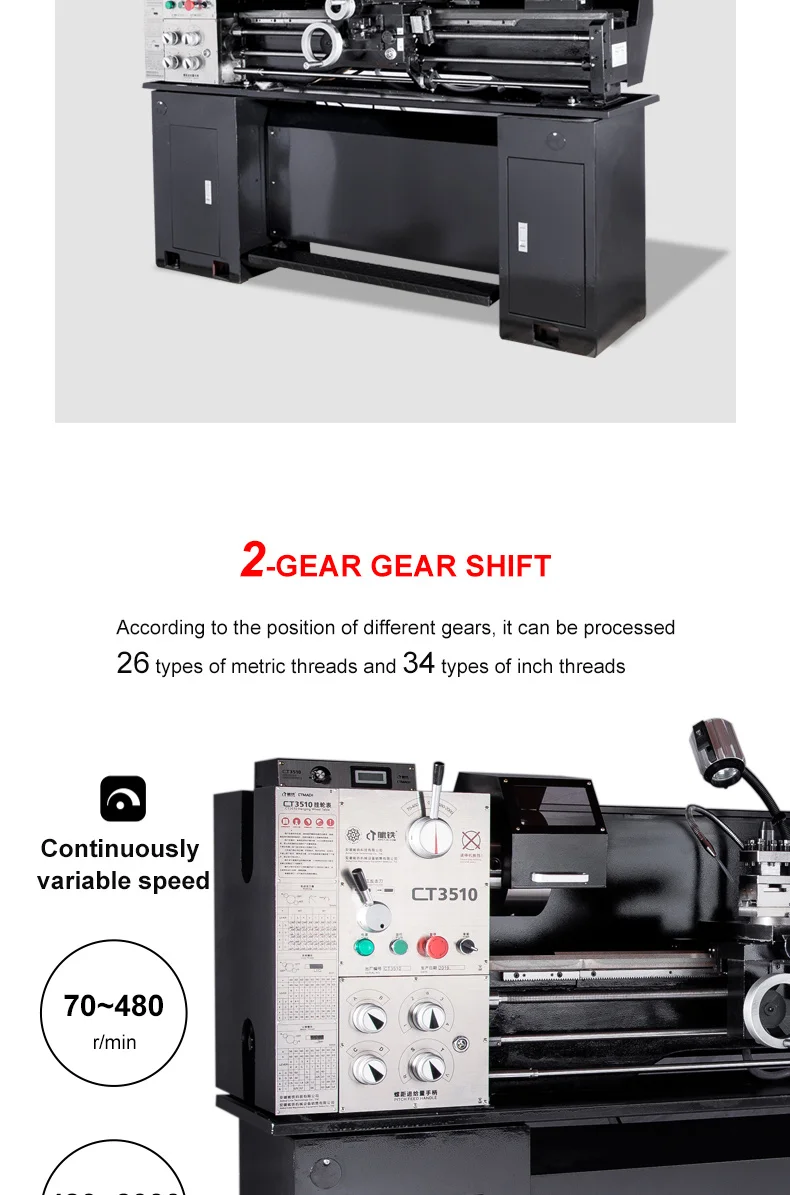

| Range of metric threads/Grade | 0.4-7mm/26 |
| Range of inch threads/Grade | 4-56T.P.I/34 |
| Range of cross feeds | 0.014-0.38mm/r |
| Range of longitudinal feeds | 0.052-1.392mm/r |

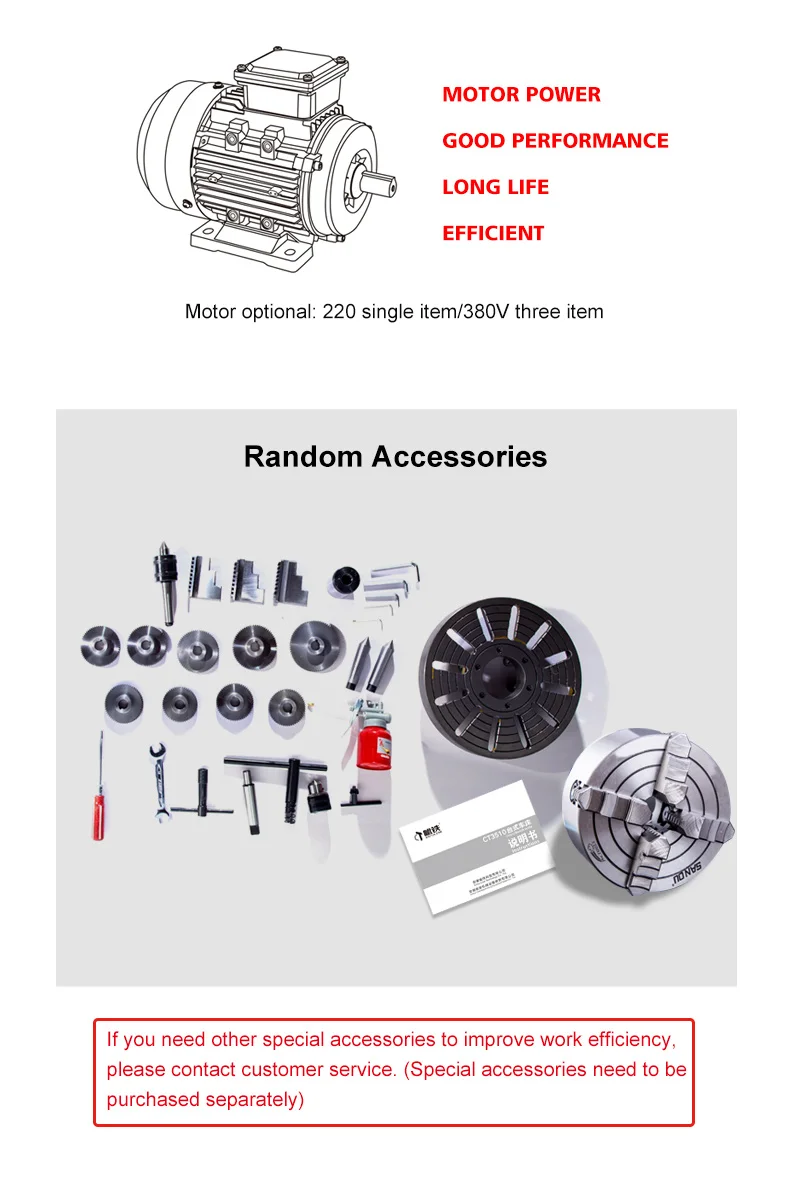

| Motor | 220v(380v)/1.5kw |
| N.W./G.W. | 510/570kg |
| Machine size | 1920×750×1500mm |

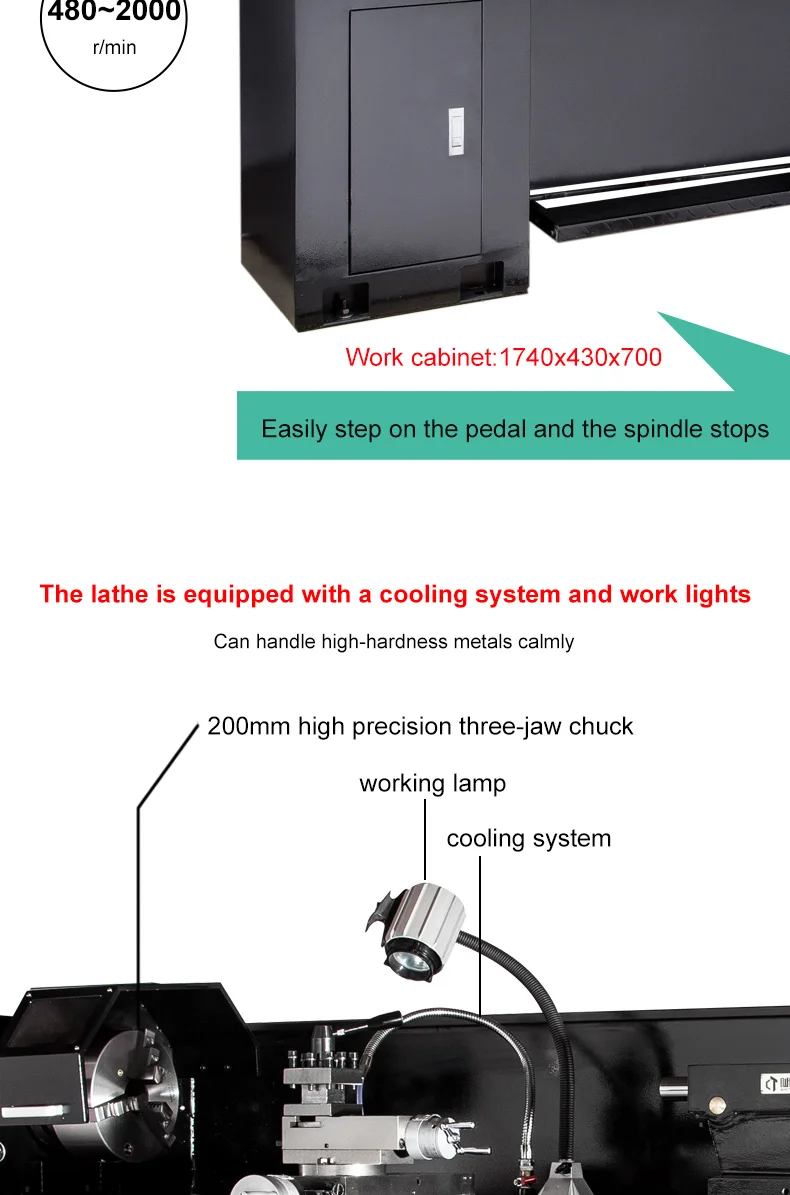

| Work cabinet size | 1740×430×700mm |
