Product Application
Application areas such as window, door grouting, concrete buildings, railway tunnels, highway Bridges, culverts, urban subway, hydropower station, the dam slope harbour engineering such as crack, construction joint, expansion joint grouting waterproof plugging and anchor grouting, the grouting solidarity, backfill grouting and curtain grouting, soft rock reinforcement, honeycomb structure, soil cement grouting or composite grouting engineering, etc.
Grouting mortar conveying pump (1) to adapt to the transmission of grouting materials, putty powder, paint, latex paint, really stone paint, cement mortar, dry mortar, insulation mortar, waterproof, fire prevention materials, insulation materials, sound-absorbing materials such as water soluble materials.

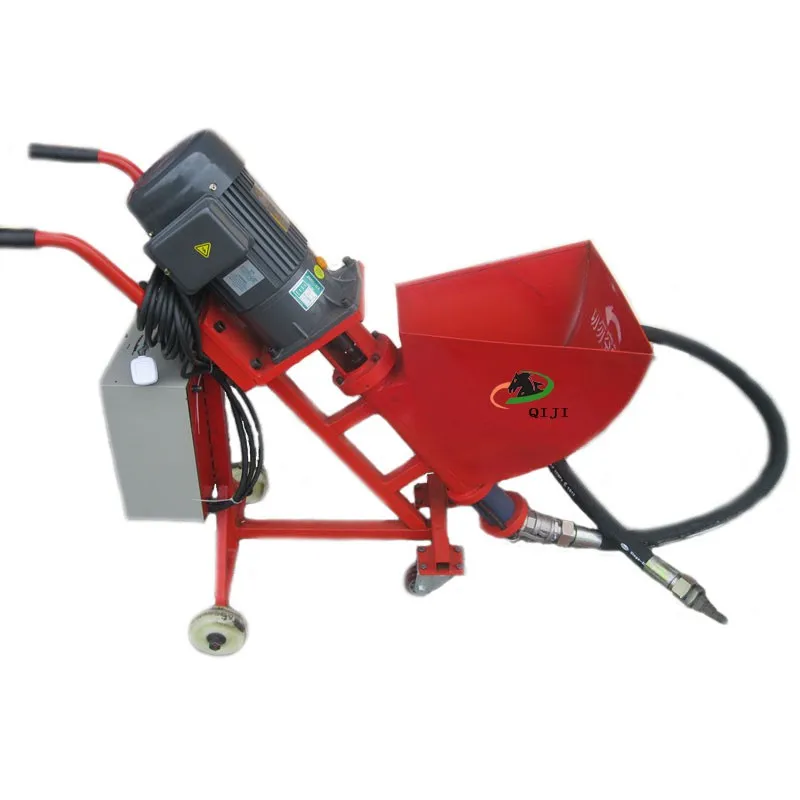

Mortar grouting machine
|
||||||
model
|
QJ-40
|
The electric voltage
|
380V /220V
|
|||
Work rate
|
3kw/4kw
|
Conveying flow
|
2m3/h
|
|||
Maximum pressure
|
6MPa
|
Transmission distance
|
20m
|
|||
Conveying height
|
10m
|
Through particle size
|
<5mm
|
|||
Bucket capacity
|
50L
|
The weight
|
120KG
|
|||
External dimension
|
1158*520*910
|
Power Type
|
Electric
|




Main Features
The cement grouting machine is suitable for the filling operation of various cement slurry.
It can be widely used in highway, railway tunnel, city subway, underground cavern of hydropower station, etc., such as anchorage grouting, consolidation grouting and backfilling grouting.
It can be used for grouting and grouting for dam, slope and soft rock.
It can also be used for urban construction project repair grouting construction.
1. To adapt to the delivery of the grouting material: putty powder, paint, latex paint, really stone paint, cement mortar, dry mortar, insulation mortar, waterproof, fire prevention materials, insulation materials, sound-absorbing materials such as water soluble materials.
2. Adjust the flow size and adjust the effect.
3. The electric control box can be switched on.
4. The connection of feeding tube can be rotated to facilitate operation.
5. High construction efficiency and good quality.
6. Compact size, convenient for site handling, and low cost of accessories, easy maintenance.
7. Easy to use, fast speed, saving materials, saving labor and saving money.
8. Material proportion (cement) 0.7:3 mortar.

Machine Parts
Name: motor
Brand: shenyang
Original: china
Domestic famous engines, strong driving force,
Main Features
Name: The fuselage
Brand: QIJI
Original: CHINA
The fuselage adopts the high quality material welder, the lacquer face USES high-grade spray plastic
