Product Description

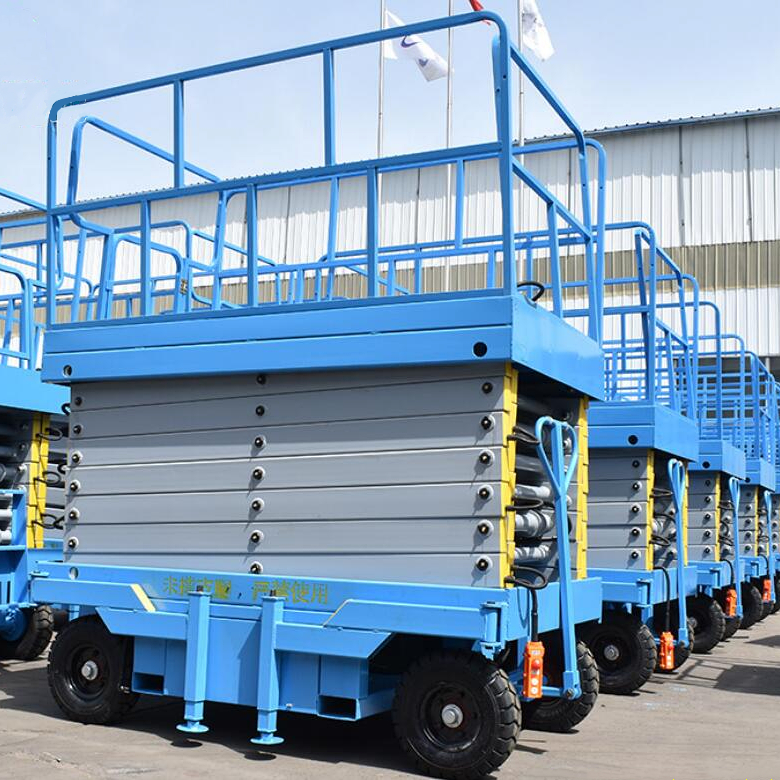

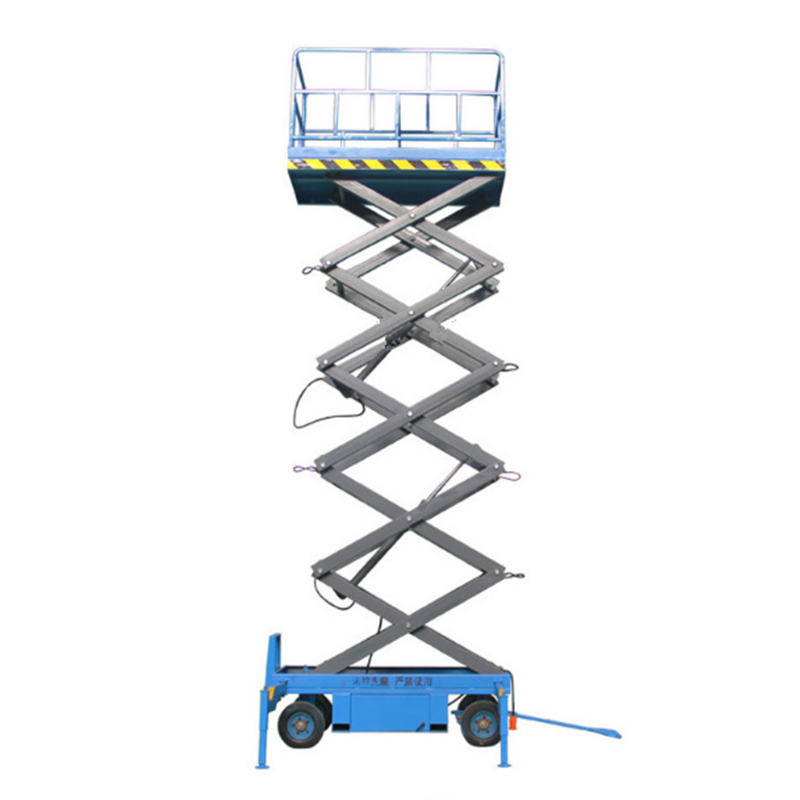

Hot sale hydraulic mobile skyjack scissor lift for man lift aerial work platform
Mobile scissor lifting platform adopts high-strength manganese steel structure, four wheels are easy to move, the work surface is wide, and the bearing capacity is high. It can support multiple people to work at the same time. It makes aerial work safer and more efficient.
|
1.The conventional configuration is AC power, and battery power can be selected
|
||
|
2.Scissor Aerial Work Platform Features: lifting mechanism of high-strength
|
||
|
3.Manganese steel rectangular tube production. With a safety device to prevent
|
||
|
4.Overloading of the lift. Provided to prevent hydraulic line rupture safety
|
||
|
5.Protection valve. Emergency lowering device in case of a power outage.
|
||
Applicable places
Installation, maintenance and cleaning of high-altitude equipment such as construction sites, factories, warehouses, stations, hotels, airports, terminals, gas stations
Maximum load: 300kg, 500kg, 1000kg, 1500kg, 2000kg
Lifting height: 4 meters, 6 meters, 7 meters, 8 meters, 9 meters, 10 meters, 11 meters, 12 meters, 14 meters, 16 meters, 18 meters, 20 meters
Detailed Images
1、1 year warranty
2、Product Manual
3、Permanent technical support
Size Information
|
Model
|
Lifting height
(m)
|
Load
(Kg)
|
Platform Dimension
(mm)
|
Overall dimensions
(mm)
|
Overall weight
(Kg)
|
|||||
|
500kg
|
||||||||||
|
QYCY0.5-4
|
4
|
500
|
2100 * 830
|
2250*950*1100
|
800
|
|||||
|
QYCY0.5-6
|
6
|
500
|
2100 * 830
|
2250 *950*1200
|
880
|
|||||
|
QYCY0.5-7
|
7
|
500
|
2100 * 830
|
2250 *950*1280
|
970
|
|||||
|
QYCY0.5-8
|
8
|
500
|
2100 * 930
|
2250 *1060*1380
|
1050
|
|||||
|
QYCY0.5-9
|
9
|
500
|
2100 * 930
|
2250 *1060*1500
|
1165
|
|||||
|
QYCY0.5-10
|
10
|
500
|
2100 * 1230
|
2250 *1350*1530
|
1360
|
|||||
|
QYCY0.3-11
|
11
|
300
|
2100 * 1230
|
2250 *1350*1650
|
1400
|
|||||
|
QYCY0.5-12
|
12
|
500
|
2550*1530
|
2796*1670*1750
|
2260
|
|||||
|
QYCY0.5-14
|
14
|
500
|
2812*1530
|
3067*1730*1810
|
2486
|
|||||
|
QYCY0.3-16
|
16
|
300
|
2812*1600
|
3067*1810*2080
|
3063
|
|||||
|
QYCY0.3-18
|
18
|
300
|
3070*1600
|
3321*1810*2080
|
3900
|
|||||
|
1000kg
|
||||||||||
|
QYCY1.0-4
|
4
|
1000
|
2100*1200
|
2250*1350*1180
|
1250
|
|||||
|
QYCY1.0-6
|
6
|
1000
|
2100*1200
|
2250*1350*1300
|
1400
|
|||||
|
QYCY1.0-8
|
8
|
1000
|
2100*1200
|
2250*1350*1420
|
1585
|
|||||
|
QYCY1.0-10
|
10
|
1000
|
2100*1200
|
2250*1350*1530
|
1700
|
|||||
|
QYCY1.0-12
|
12
|
1000
|
2550*1530
|
2796*1670*1750
|
2560
|
|||||
|
QYCY1.0-14
|
14
|
1000
|
2812*1600
|
3067*1810*1900
|
3230
|
|||||
Related Products
Packing&Shipping
1、Trade terms (FOB, CIF, DDU)
2、Default conventional safe export packaging
wooden box packaging or naked packaging, please specify in advance
wooden box packaging or naked packaging, please specify in advance
Company Introduction
SHANGHAI RUIBIAO CONSTRUCTION MACHINERY CO.,LTD
Shanghai Ruibiao Construction Machinery Co.,Ltd.It's located in Shanghai which is the center of economic, financial and international trade in China. Ruibiao is a professional team who can offer ONE-STOP solutions for the aerial working lift platform. Our team has more than 20 years experience on this line of business since 2000. We expend our business to the internationnal trade and enjoy a good reputation from our customers around the world. Our main products include scissor lift, aluminum alloy lift, suspended platform, scaffolding and fitting. Obtained CE ISO etc certificates.Our products sells well in Europe, Southeast asia,the Middle East etc. And we have mature technical team who can offer customized service, and design the products according to customers'special needs.
