PRODUCT DESCRIPTION
Features
* Fullhan FH8856 chip;
* 5MP pixels, 1/3″ target surface, standard,38mm*38mm board;
* Support H.264/H.265, dual stream (main stream and auxiliary stream) output;
* Support IE, Edge,Chrome,Safari browser browsing;
* Support audio input and output, realize video monitoring;

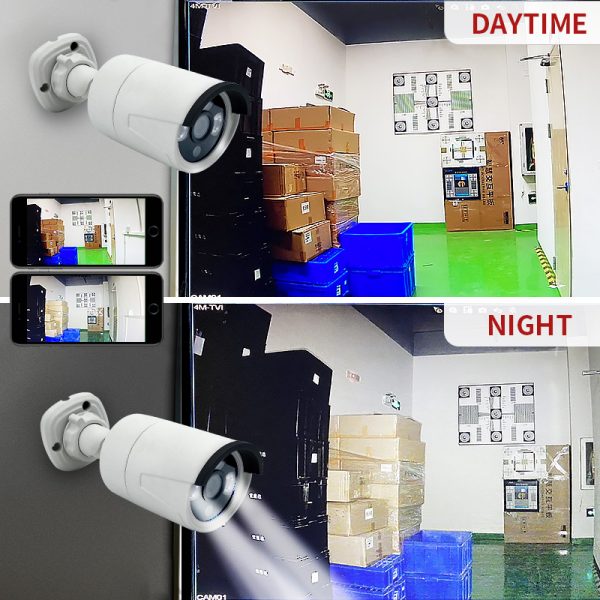

* Support inductive infrared day and night switching to achieve 24-hour monitoring;
* Support human form detection;
* Support many protocols such as onvif protocol and Haikang private protocol, and can access many large-scale platform management systems at home and abroad;
* Support mobile phone monitoring (iOS, Android), Web terminal, VMS monitoring;

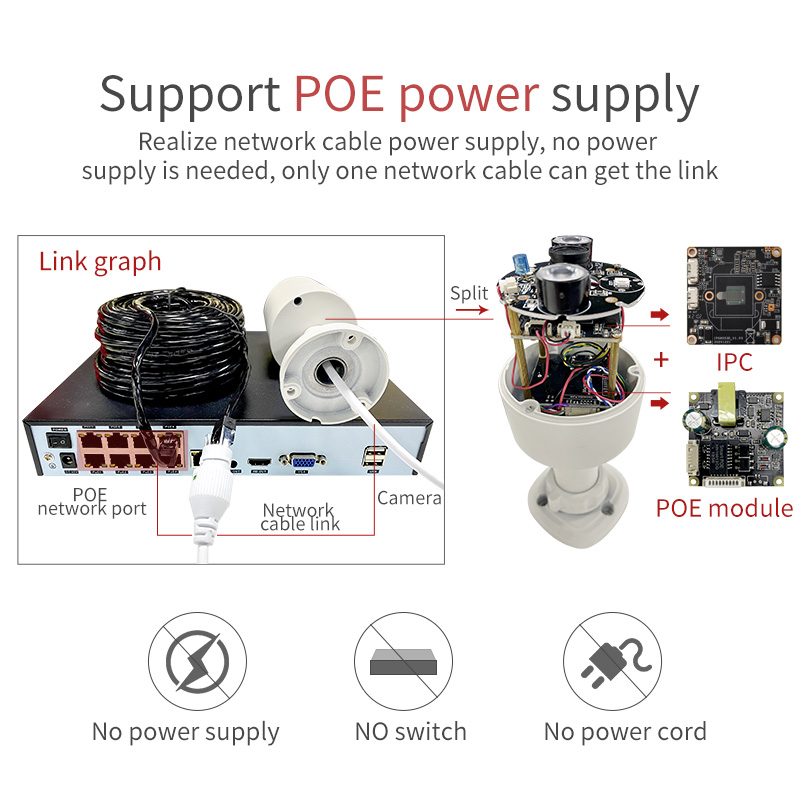

* Support PoE power supply (optional);
* 5MP pixels, 1/3″ target surface, standard,38mm*38mm board;
* Support H.264/H.265, dual stream (main stream and auxiliary stream) output;
* Support IE, Edge,Chrome,Safari browser browsing;
* Support audio input and output, realize video monitoring;
* Support inductive infrared day and night switching to achieve 24-hour monitoring;
* Support human form detection;
* Support many protocols such as onvif protocol and Haikang private protocol, and can access many large-scale platform management systems at home and abroad;
* Support mobile phone monitoring (iOS, Android), Web terminal, VMS monitoring;
* Support PoE power supply (optional);
Product Paramenters
|
Module
|
IPC8053ES-K
|
|
Main chip
|
FH8856
|
|
Sensor
|
5MP pixel , 1/3″ CMOS sensor
|
|
Encoding format
|
H.264, H.265 encoding, support dual stream
|
|
Maximum frame rate
|
PAL:5M:20fps/s; 4M:25fps/s; 2M:25fps/s;
NTSC:5M:20fps/s; 4M:25fps/s; 2M:30fps/s |
|
Image Resolution
|
Main stream: 2592*1944、2560*1440、1920*1080；
Auxiliary stream: 704*576、640*480、352*288 Snap stream: 704*576、640*480、352*288 |
|
Subtitle overlay
|
Support channel name, date and time overlay, overlay position is adjustable
|
|
Alarm data transmission
|
FTP, E-mail, browser, management software
|
|
Protocol support
|
TCP/IP、RTSP、RTP、HTTP、DNS、DDNS、DHCP、FTP、NTP、UPNP
|
|
ONVIF protocol
|
Standard ONVIF protocol
|
|
Client browsing
|
Client browsing supports IE8.0 and above (device embedded Web Server), Edge,Chrome,Safari browser browsing
|
|
Mobile client
|
Support iOS, Android platforms
|
|
Audio format
|
G.711A
|
|
Audio input
|
1 audio input
|
|
Audio output
|
1 audio output
|
|
Powered by
|
DC12V
|
|
Equipment power
|
Bare board 1.2W (MAX)
|
|

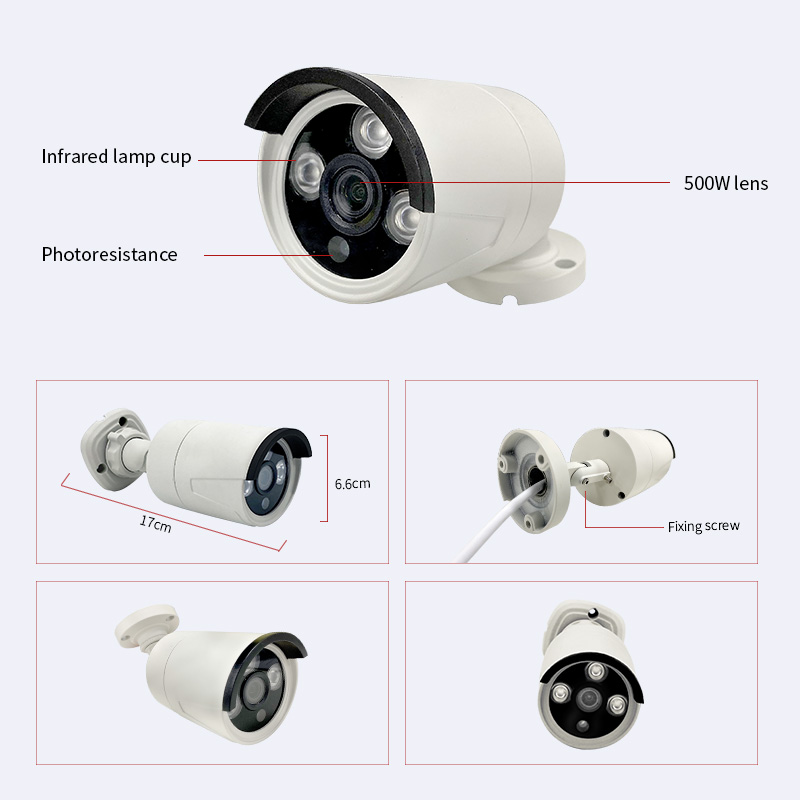

Dimension
|
38(L) * 38(W)
|
|
IR-CUT hole distance
|
20mm
|
|
Equipment weight
|
0.1 kg
|
