Homogenized Shampoo Liquid Soap Stainless Steel Mixer/Heating Temperature Tomato Fruit Jam Mixing Processing Equipment

Introduction:

Mixing tank is widely used in the production of liquid paste materials in food, chemical glue, polymerr technology and new material industries. It can be used to mix, homogenize and reconcile materials. Add some powder and pellets, provided the final product is a liquid or paste.

Tank volume:50L
Material:304stainless steel
Stirring power:0.75KW
Heating power:3KW
Stirring speed:41r/min
Package size:650*950*1850mm
Package weight:80kg

Features:

1. The device adopts 304 stainless steel material manufacturing, using slurry mixing type.

2. This equipment adopts frequency control, temperature control instrument control temperature, can produce different process high quality product according to the requirements.

3. High-speed shear homogenizer, strongly mix solid and liquid materials etc. refractory materials, save energy consumption, greatly shorten the production cycle

4. Electric heating method

5. Tank body adopts three-layer welding(Inner pot, heating layer, insulation layer). Tanks using wire drawing plate welding and become, heating layer made from carbon steel welding, pipe using mirror 304stainless steel welding.

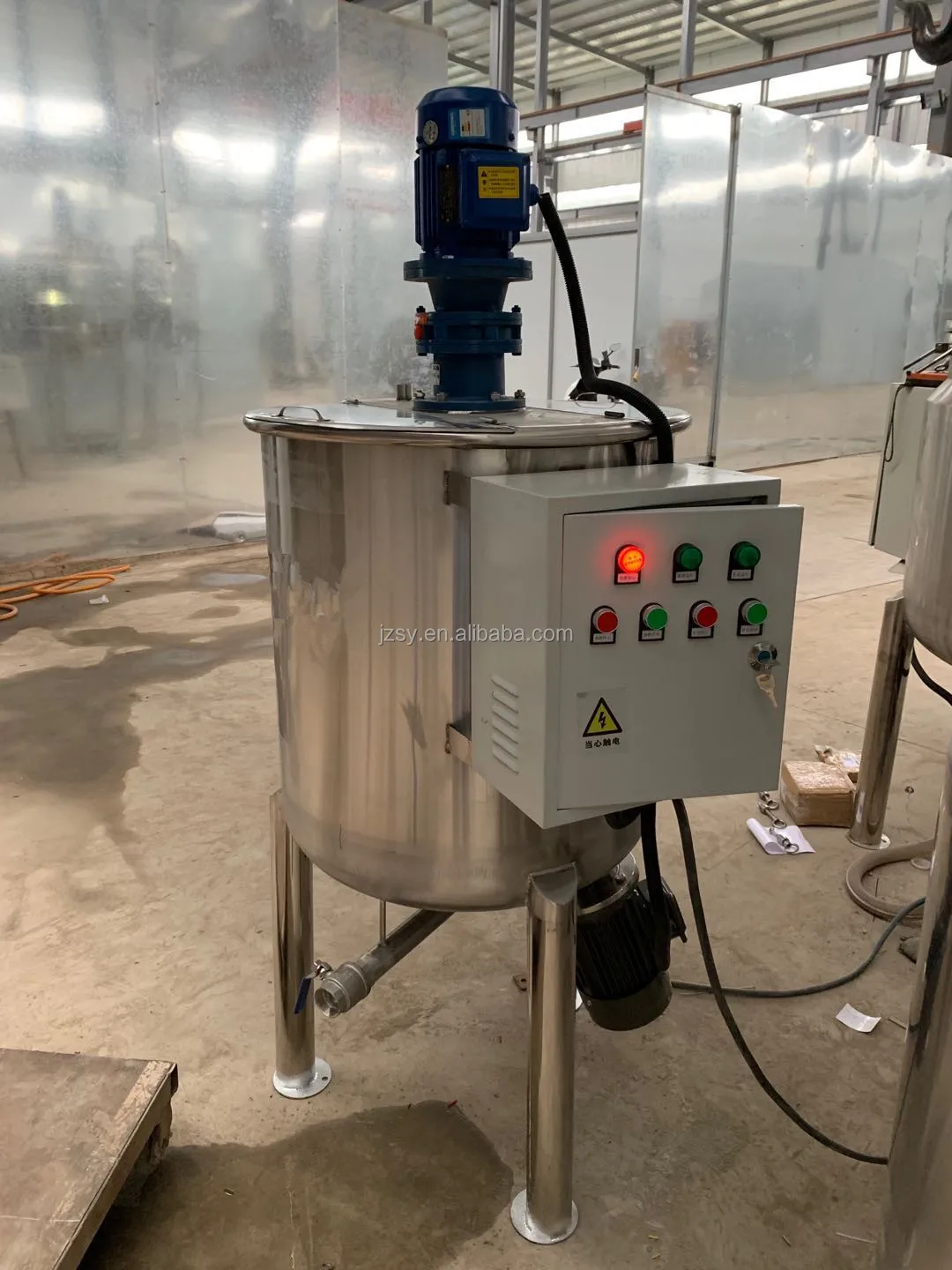

6. The electric control box fully controls the operation of the equipment, and can display the temperature, stirring speed etc. Data.

7. Discharging is convenient and can be directly equipped with conveying pump discharging

8. The discharge port is about 550MM from the ground, or can be made according to the customer’s requirements

Application:

1. Food and beverage industry: reconcile oil, seasoning sauce, fruit juice, alcohol, dairy products etc.

2. Daily chemical industry: shampoo, milk foam, cleanser, sunscreen, liquid laundry detergent, disinfectant hand sanitizer, detergent, skin care cream, toothpaste, hair conditioner and so on.

3. The pharmaceutical industry: oral liquid, ointment, emulsion, vaseline, cleaning and disinfecting lotion and other liquid paste materials.

4. Industrial chemical industry: white latex, adhesive, paint, chemical cleaning agent, chemical liquid additive, chemical solution, new material of polymer liquid.

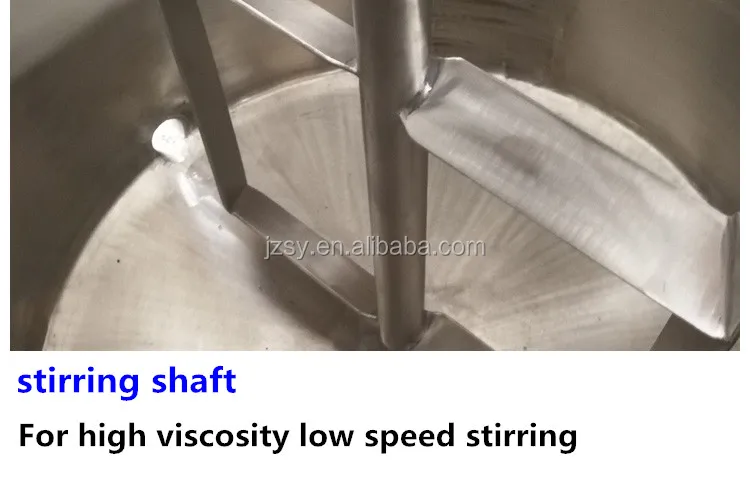

Processing different raw material choose different stirrer.

Technical parameter:
