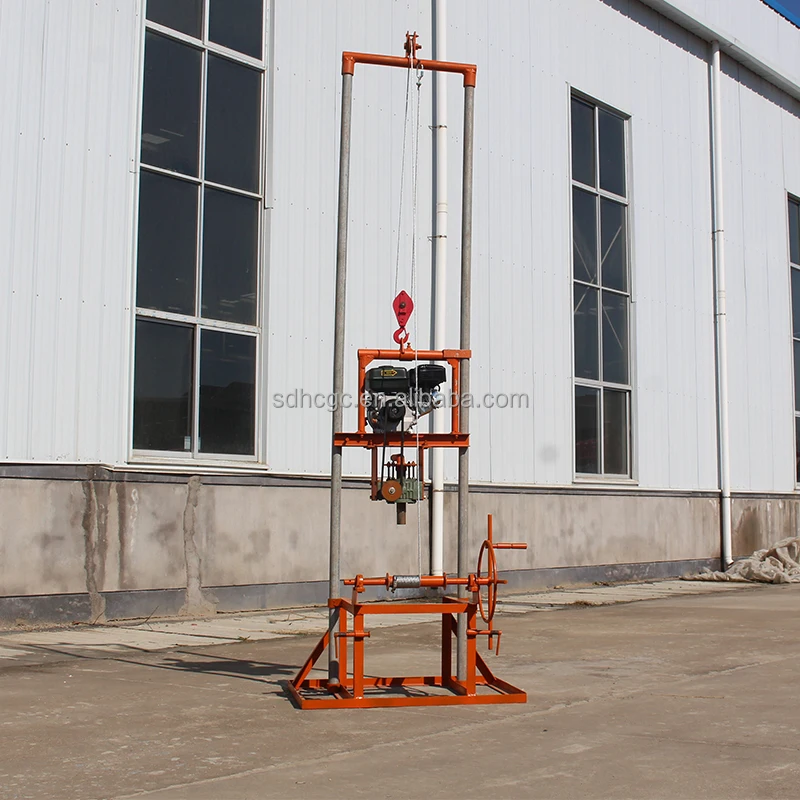

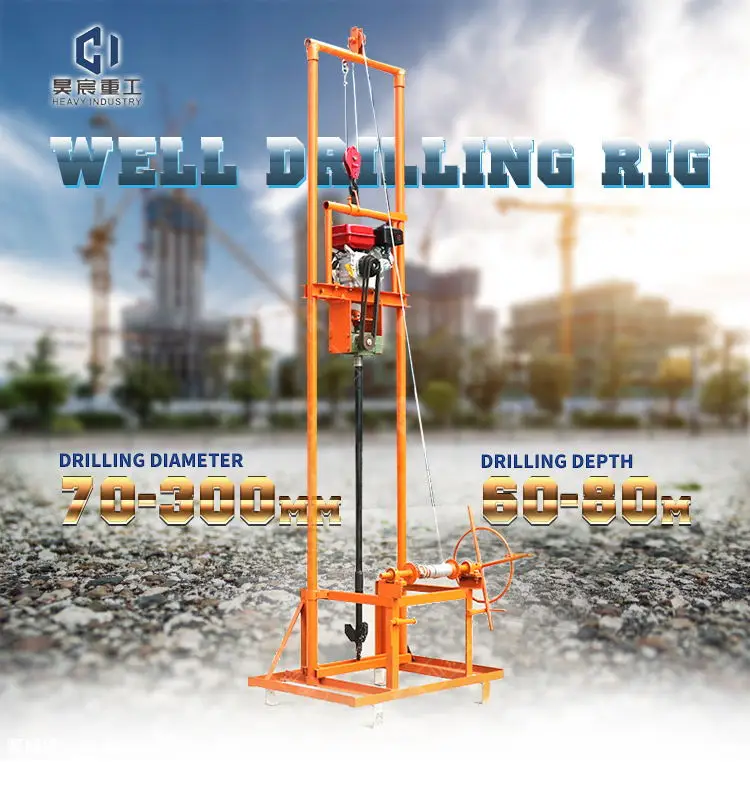

Small portable 80m depth gasoline mini manual rotary boring water well drilling rig machine
Product Introduction：
This machine is mainly used for geothermal drilling, farm irrigation, house yard, gardens and water well drilling, drilling
diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small building piling, like farmhouse or factory and soon.
diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small building piling, like farmhouse or factory and soon.
Features:
1. Light weight. The main engine is only about 150kg.
2. Unique design and simple drilling structure.
3. Easy to transport and operate.
4. Can drill through hard stratum, unless thick rock layer.
5. Can drill up to 80m depth. Equipped with hoist, reduce the labor intensity.
6. High efficiency, the drilling speed can reach 20 meters depth per hour in plain area.
7. Assure easily operation and long life span to save more labors and money for you.
8.Packed in wood box, the CBM is about 1.5m³, the total weight (complete set) is about 450kg.
2. Unique design and simple drilling structure.
3. Easy to transport and operate.
4. Can drill through hard stratum, unless thick rock layer.
5. Can drill up to 80m depth. Equipped with hoist, reduce the labor intensity.
6. High efficiency, the drilling speed can reach 20 meters depth per hour in plain area.
7. Assure easily operation and long life span to save more labors and money for you.
8.Packed in wood box, the CBM is about 1.5m³, the total weight (complete set) is about 450kg.
Main Parameter:
|
Type
|
RLD-80
|
Max. Drilling Diameter
|
70-300mm
|
|
Max. Drilling Depth
|
0-80m
|
Total Power
|
8.8 kw
|
|
Engine Power
|
1.2kw
|
Lifting Power
|
1.0kw
|
|
Drilling Pipe Diameter
|
28/32/42mm
|
Drilling Pipes Length
|
1.5m/pc
|
|
Pump
|
2.2kw,220V
|
Capacity of hoist
|
1.0t
|
|
Height of tower
|
3m
|
Total Weight
|
450kg
|
Note:
This product is a customized product. The above parameters are for reference only. The actual customized product shall prevail.
This product is a customized product. The above parameters are for reference only. The actual customized product shall prevail.
