Product Description

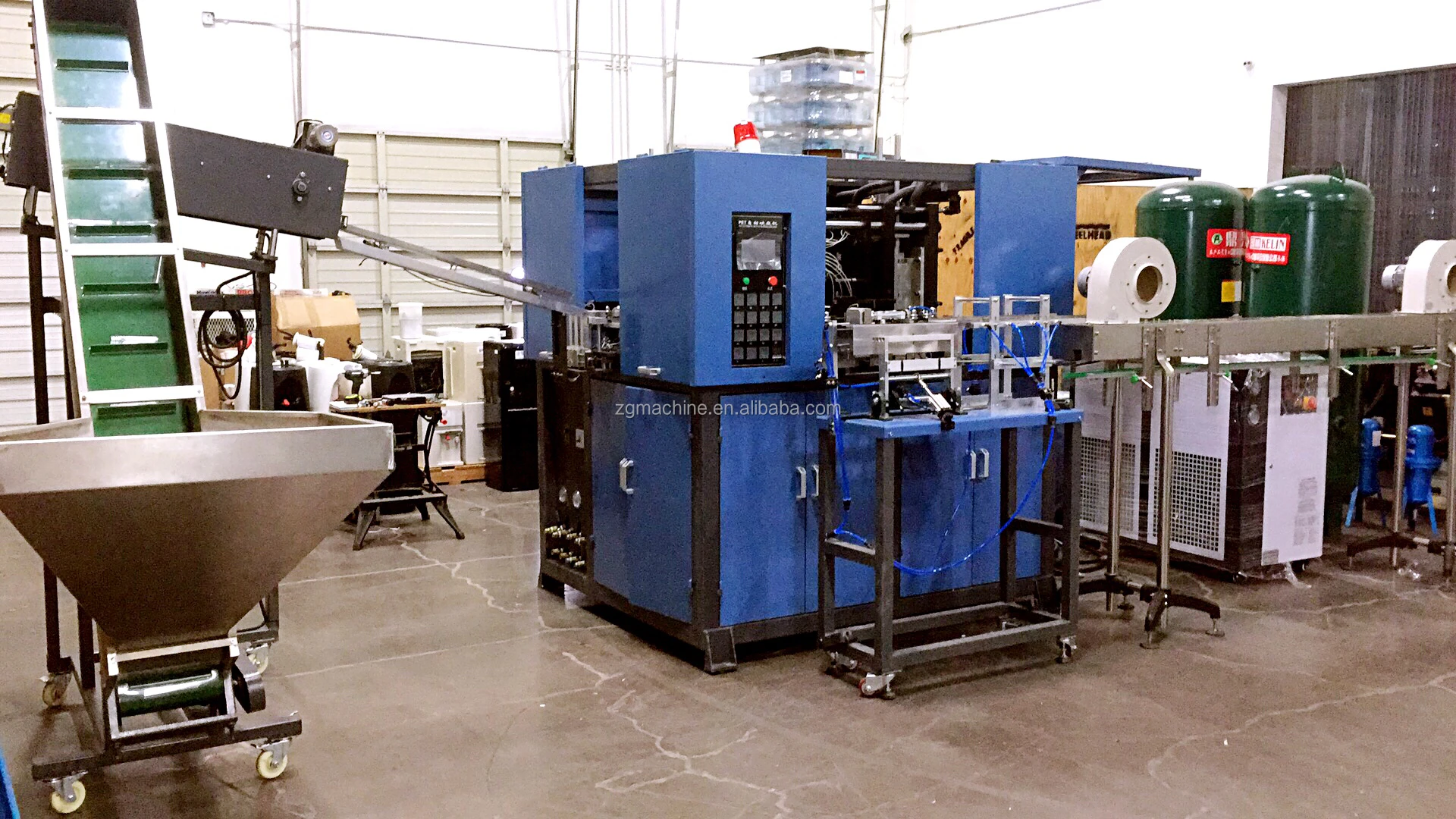

2 Cavity 100ml-2000ml 2000BPH Fully-automatic Bottle Blow Moulding Machine Appearance

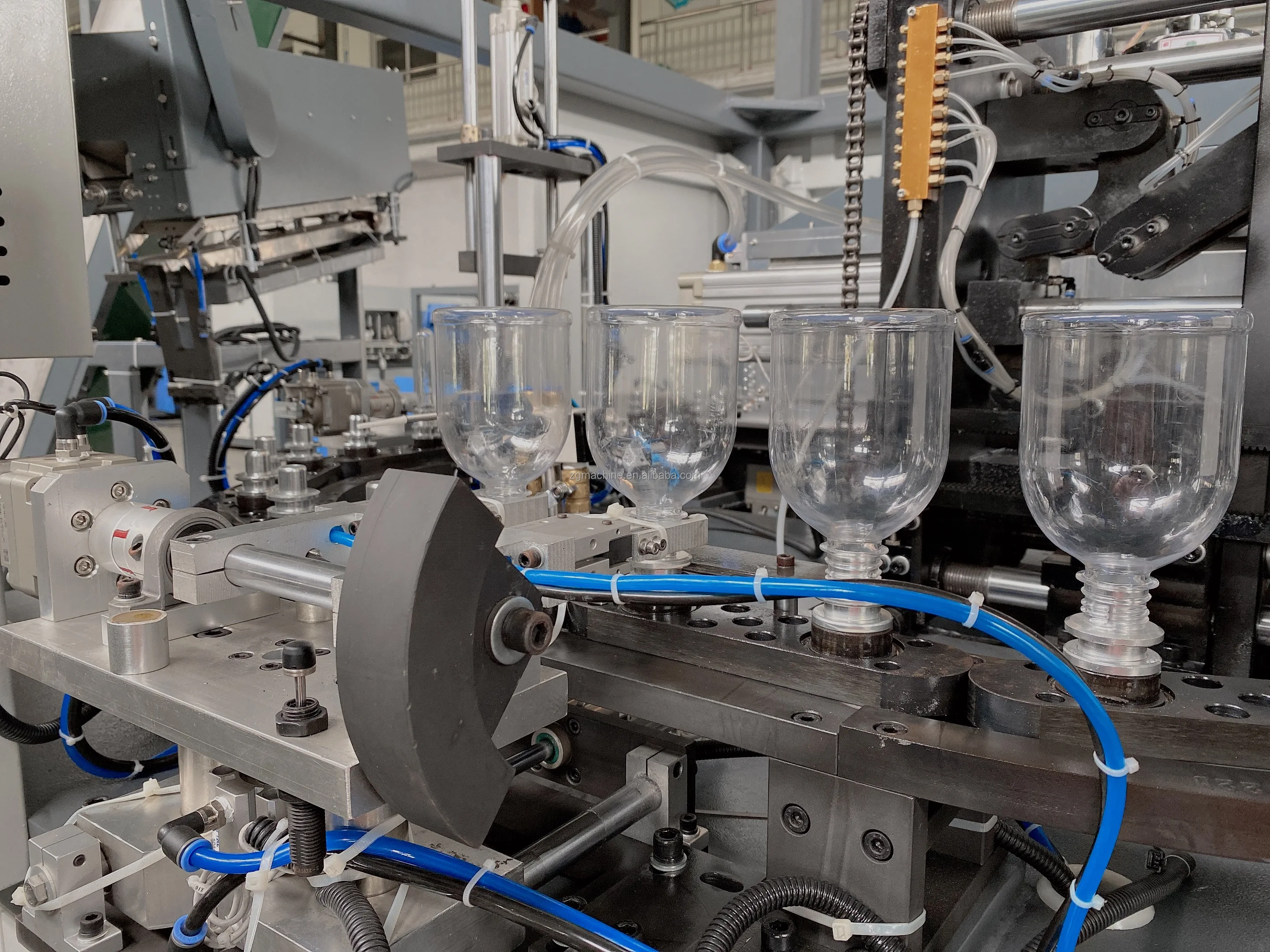

Finished product
Specification
|
item
|
value
|
|
Plastic Processed
|
PET, PC, PP
|
|
Max.Bottle Height(mm)
|
280mm
|
|
Neck Diameter(mm)
|
25mm
|
|
Max.Bottle Diameter(mm)
|
28mm
|
|
Bottle Volume(ml)
|
100ML TO 2000ML
|
|
Blow Moulding Type
|
Stretch Blow Moulding
|
|
Place of Origin
|
China
|
|
Brand Name
|
ZG
|
|
Year
|
2022
|
|
Voltage
|
Acoording customer country
|
|
Dimension(L*W*H)
|
2000*1800*2000
|
|
High Pressure Valve Brand
|
AirTac
|
|
Rotary Cylinder Brand
|
SMC
|
|
PLC Brand
|
MITSUBISHI
|
|
Power (kW)
|
50
|
|
Weight (KG)
|
3000KG
|
|
Automation
|
Automatic
|
|
Warranty
|
2 Year
|
|
Showroom Location
|
Peru, Saudi Arabia, Spain, Mexico, India, Pakistan, Viet Nam, Chile, Kenya, South Africa, Colombia, Morocco
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
2 Year
|
|
Core Components
|
Bearing, Motor, PLC, Other, Engine
|
|
After-sales Service Provided
|
Online Support
|
|
Capacity
|
1800-2200BPH
|
|
Key words
|
PET Automatic Blowing Machine/Machine PET Blow/Blowing Machinery
|
|
Cavity
|
2-cavity
|
|
PLC
|
MISTUBSHI
|
|
Color
|
Customer Choice
|
|
MAX bottle height
|
280mm
|
|
MAX bottle diameter
|
28mm
|
PET PREFORM
Automatic PET Bottle Blowing Machine Beginning from PET preform.
Preform neck size and weight customized.
Common international neck;
PCO1881 PCO1810 3025 2925
Bottle Color Customized:
Transparent Blue Green dark chocolate etc

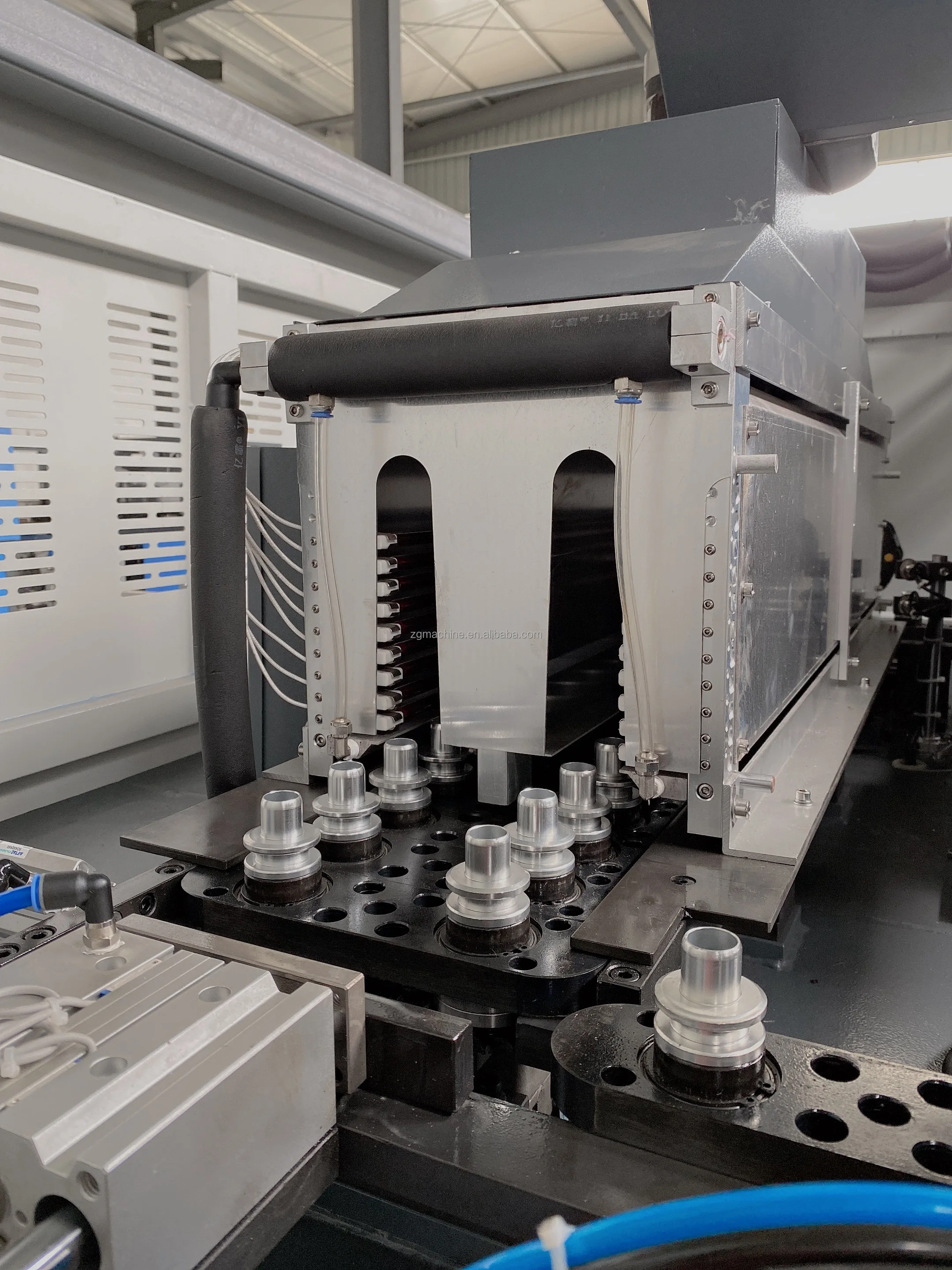

Adopt infrared lamp heating
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and
reliable;Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic
temperature-removal device to ensure the constant temperature of oven.
reliable;Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic
temperature-removal device to ensure the constant temperature of oven.

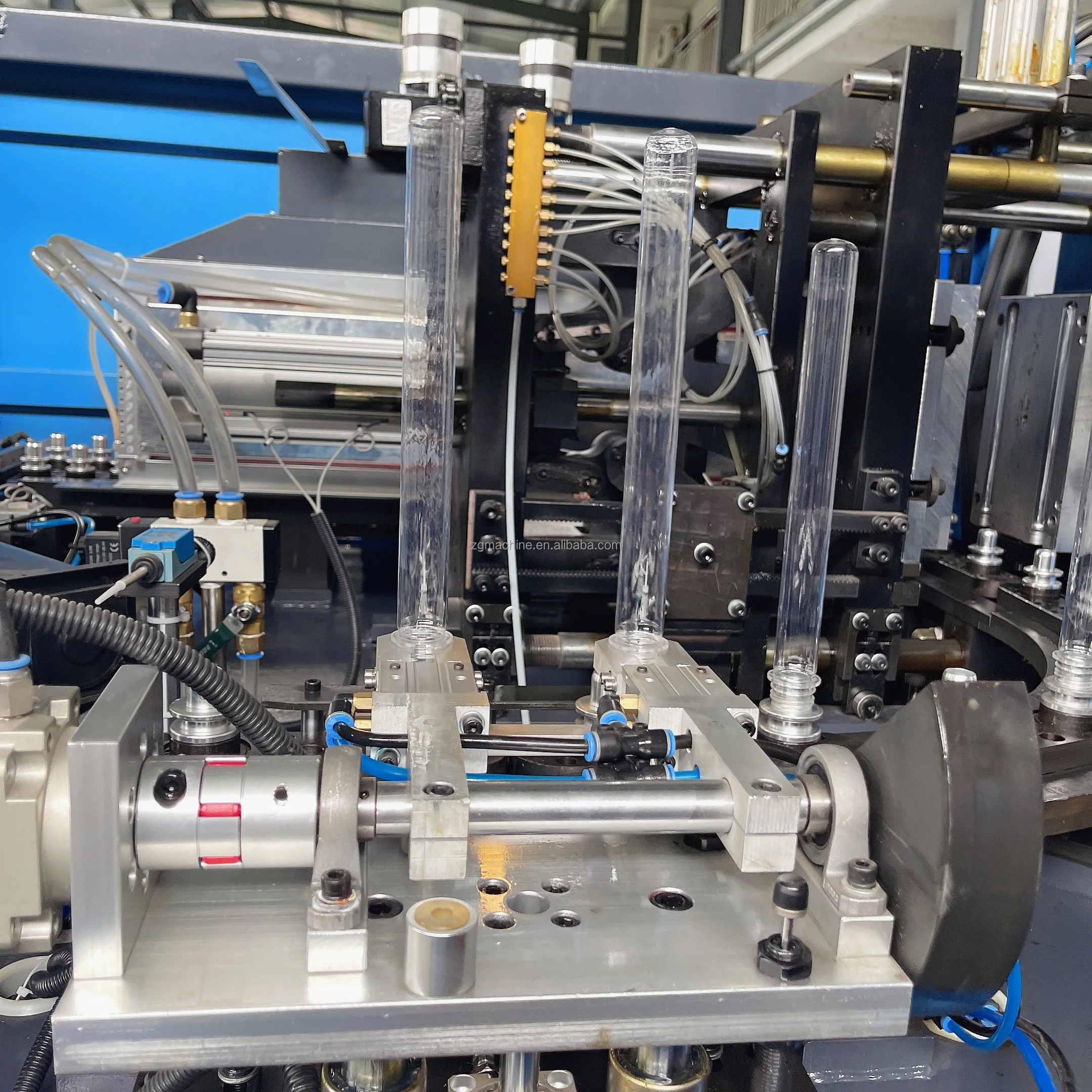

Servo transmission system
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

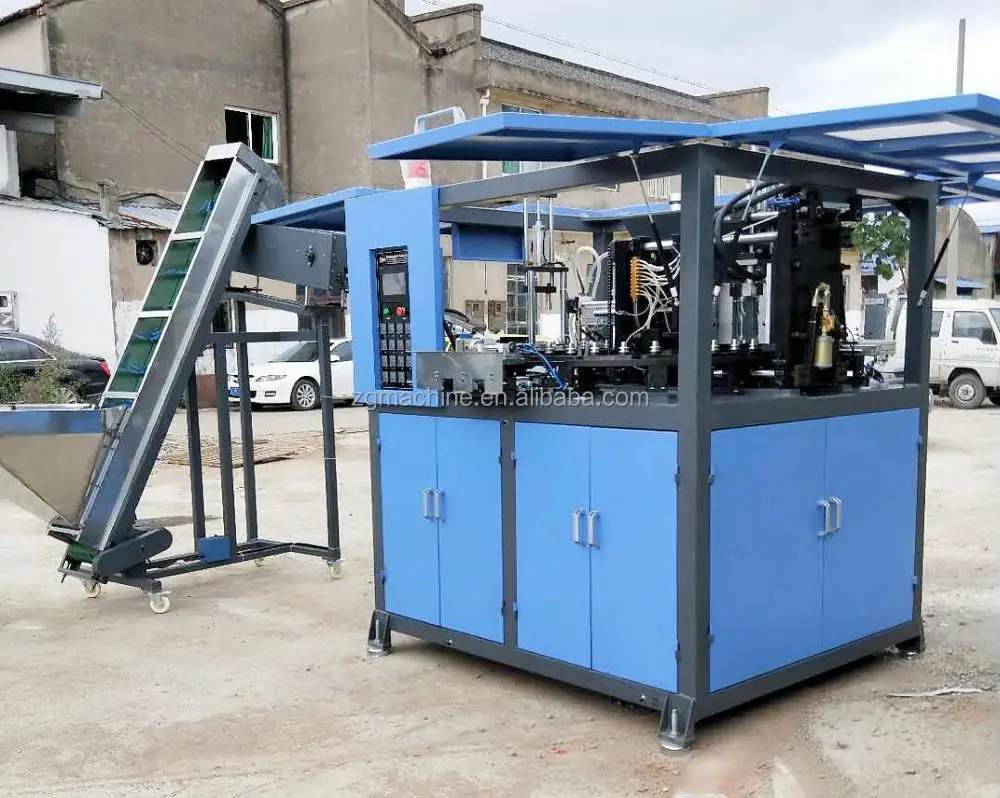

Auto-loader
Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of
moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid
danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid
danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

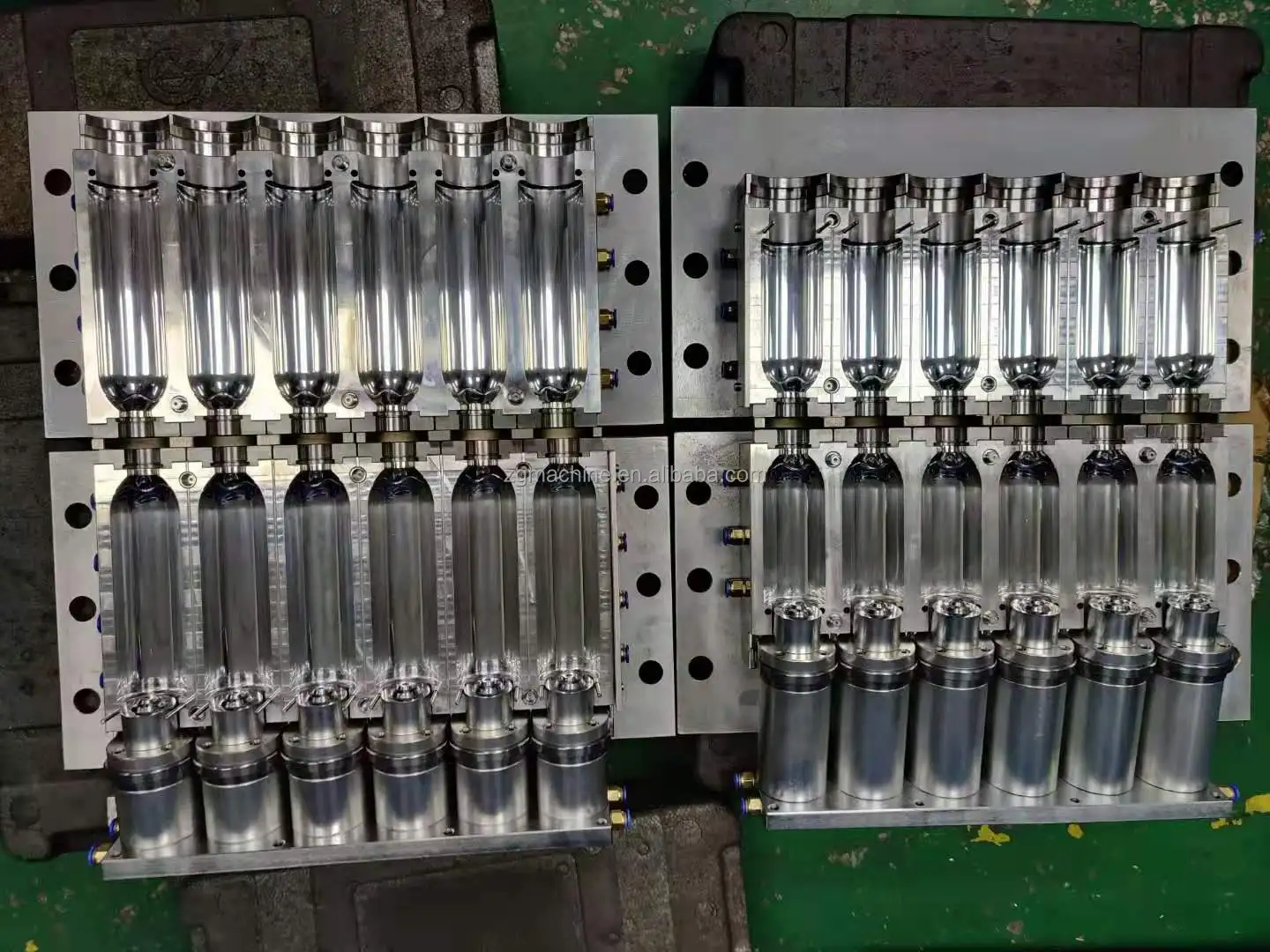

Bottle Mould
1. FREE MOLD DESIGN 2. MOLD MATERIAL: 7075 Aircraft Aluminum / 45 Steel / S136
