Description
|
Parameter
|
|
Whole structure
|
heavy-duty steel wall structure
|
|
Table surface
|
T-slot with clamps
|
|
X, Y, Z Traveling Positioning Accuracy
|
±0.02/300mm
|
|
X, Y, Z Repositioning Accuracy
|
±0.02 mm
|
|
A C ROTARY
|
A 110 degree C 220 degree
|
|
Flash Memory
|
512M (U Disk)
|
|
Working Voltage
|
AC380V, 50/60Hz, 3PH (Option:220V)
|
|
Drive Motors
|
Yaskawa Servo
|
|
Spindle Speed
|
0-24000 RPM
|
|
Max. Rapid Travel Rate
|
25,000mm/min
|
|
Computer Interface
|
CF Card, Ethernet
|
|
X,Y Resolution
|
< 0.02mm
|
|
Software Compatibility
|
UGS, Alpha Cam, Becam, Type3, Ucancam V9
|
|
Running Environment Temperature
|
0°-45°
|
|
X, Y Structure
|
Rack and Pinion Drive, Hiwin Rail Linear Bearings
|
|
Z Structure
|
Hiwin Rail Linear Bearings and Ball Screw
|
|
Max. Power Consumption
|
(Without Spindle) 10 Kw
|
|
Max. Rapid Travel Rate
|
40000mm/min
|
|

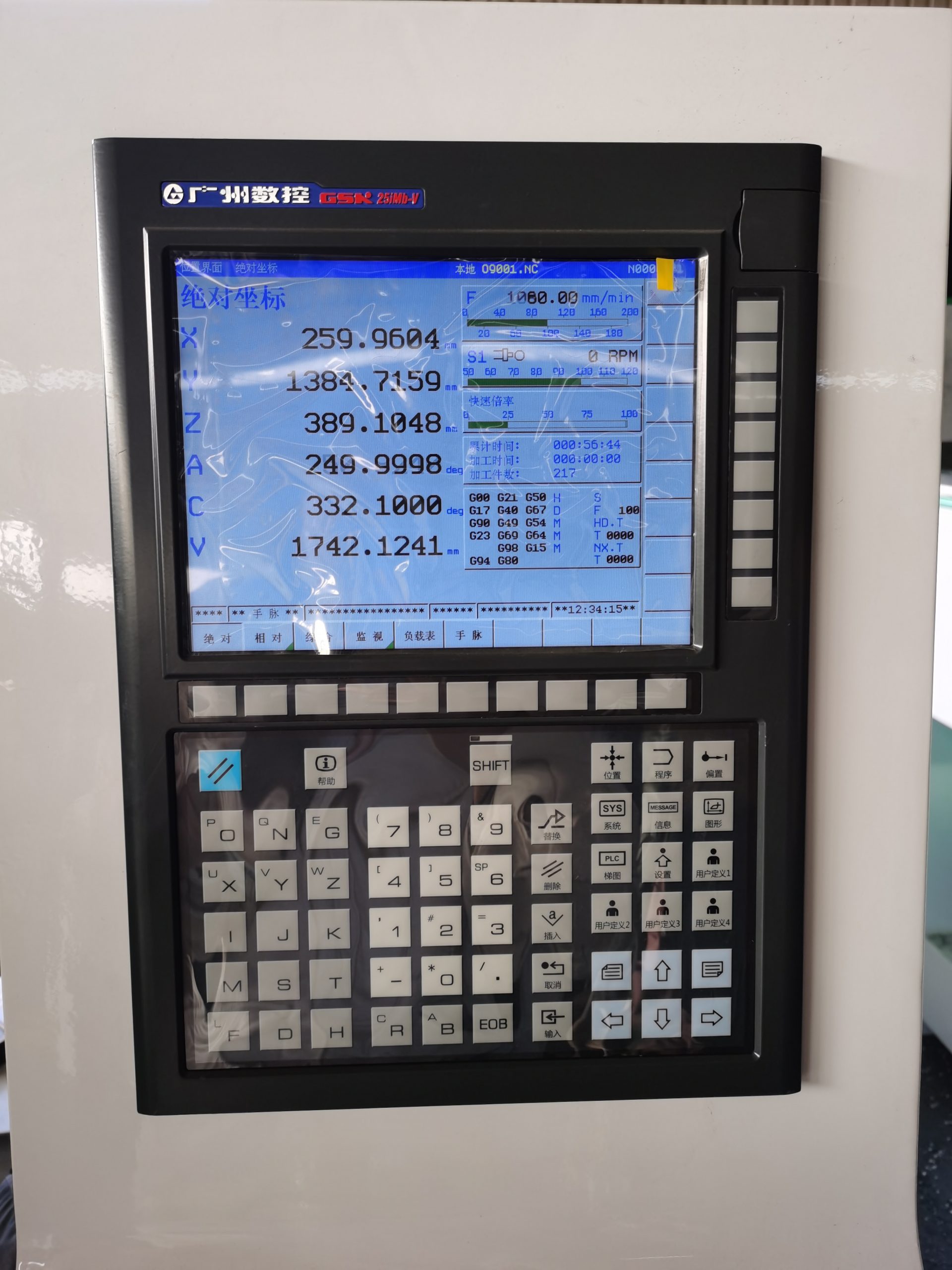

Operating System
|
Syntec Control System/TPA /osai
|
|
Software Compatibility
|
Type3/UcancameV9 powermill UG software
|
|
Relative Humidity
|
30% – 75%
|
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Stoneworking industry: such as natural marble, granite, artificial stone, tombstones, milepost, ceramic tile, glass, and other materials.
4. Metal industry:carving aluminum,copper,stainless steel, and so on.
5. Sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould, wooden ship model, wooden model aviation and other wooden mould 3D processing: cylinder, square sculpture and so on.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.
1. Free Sample Machining Service
Send us your designed files, we will arrange free sample machining in our factory and make video to show you the process and result, or send samples to you to check the machining quality.
2. Machining Solution Design:
According to customer’s requirements, we can design the unique solution that supports higher manufacturing efficiency and better machining quality for customer.
AFTER-SALES SERVICE
1. We will supply the CNC router machine with training video and user's manual in English for installing, operation, maintenance and troubleshooting, and shall give technical guide by Desktop remote, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting.
2. You can come to our CNC router machine factory for training.We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days.
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product, and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight. A CNC machine firstly should be packaged well in a free-fumigation wooden crate. Usually, we deliver the machine by ship, sometimes, as customer's requirements, we can also deliver by air or by train. When the machine arrived at your seaport or destination, you can pick up with the bill of lading we offered. We can also arrange the cargo agent to send it to your door.
How Much Does it Cost to Ship a CNC Router?
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product, and requirements, we'll estimate the shipping cost for your CNC router. Please note, customs fees and additional fees may apply for international shipments. Contact your local customs office for more information. If you want to get the final price, please contact us to get a free quotation, we'll calculate the final price of the required CNC router machine.
Is a CNC Router Machine Easy to Use for a Beginner?
We helped a lot of beginners in CNC router machines, if you have a basic knowledge of computers and are willing to spend a little time on learning, it is not too hard. When you ordered a CNC machine from STYLECNC, we will send the user manual and operating videos to you, you can also get the 24/7 free online service by calling, email, whatsapp, livechat or remote desktop with teamviewer.
Do You Have Service and Support for CNC Routers?
As a professional CNC router manufacturer and supplier, STYLECNC will supply all machines with training video and user's manual in English for installing, operation, maintenance and troubleshooting, and shall give technical guide by remote, such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problems of installation, operation or adjusting. You can come to our factory for training. We will offer professional guidance, direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days. Our engineer will do a door-to-door instruction training service at your local site. We need your help to handle visa procedures, pre-paid travel and accommodation for us during the issuance of business travel and services.
Do You Have Warranty for CNC Router Machines?
As a top CNC router brand in the world, STYLECNC promise:
1. 1-3 years for the whole machine.
2. Long lifetime maintenance, the after-sale department will offer 24/7 English online support.
3. Except for the damage artificially, we are responsible for offering the fittings free of charge during the warranty.
4. After the warranty period expired, you only need to pay the actual maintenance cost.
