Products Description

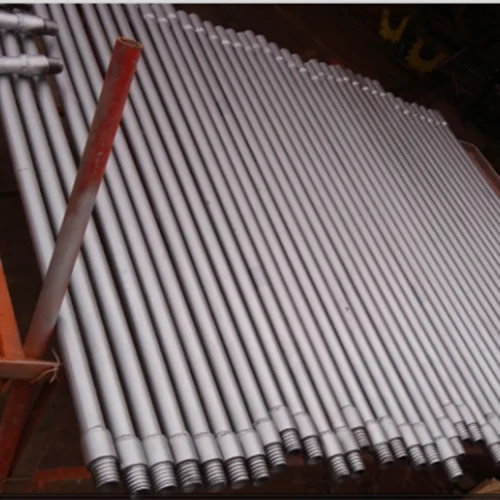

Attention Please Drill pipes and drill bits are part of this drilling machine, and they are not sold separately !!
Question & Answer
1: What kind of drilling work can it do?
Mainly applies to drill wells for farm irrigation wells, garden irrigation wells, drilling water wells, geothermal wells.
2: What are the max.depth and the max. diameter of holes allowed for this drill rig?
250mm diameter and 150m depth are available. Here we sincerely inform that the final depth and diameter will subject to your special local working strata and drilling experience.
3: What kind of working strata is OK ?
Soil, sandy, clay, sediment, soft rocks, etc. Certainly, the special strata need different drilling bits. Please note that this
model is not designed for drilling hard rocks.
model is not designed for drilling hard rocks.
4: What is your advantage over this drill?
Economical and worthy to owned by any family.Practical and efficient by drilling speed of 40m/h; Easy operate and maintain by only two workers.
Product Video
Product Parameters
|
Dimension(L*W*H)
|
1710*860*860mm
|
|
Weight
|
450KG
|
|
Drilling Depth
|
Max.80m
|
|
Height of tower
|
3m
|
|
Engine
|
Gasoline/Diesel
|
|
Drilling pipe diameter
|
28mm/32mm/42mm
|
|
Total power
|
8.8KW
|
|
Drilling pipe length
|
1.5m/pc
|
|
Max. drilling diameter
|
70-300mm
|
|
Capacity of hoist
|
1000kg
|
|
Function
|
Drilling hole
|

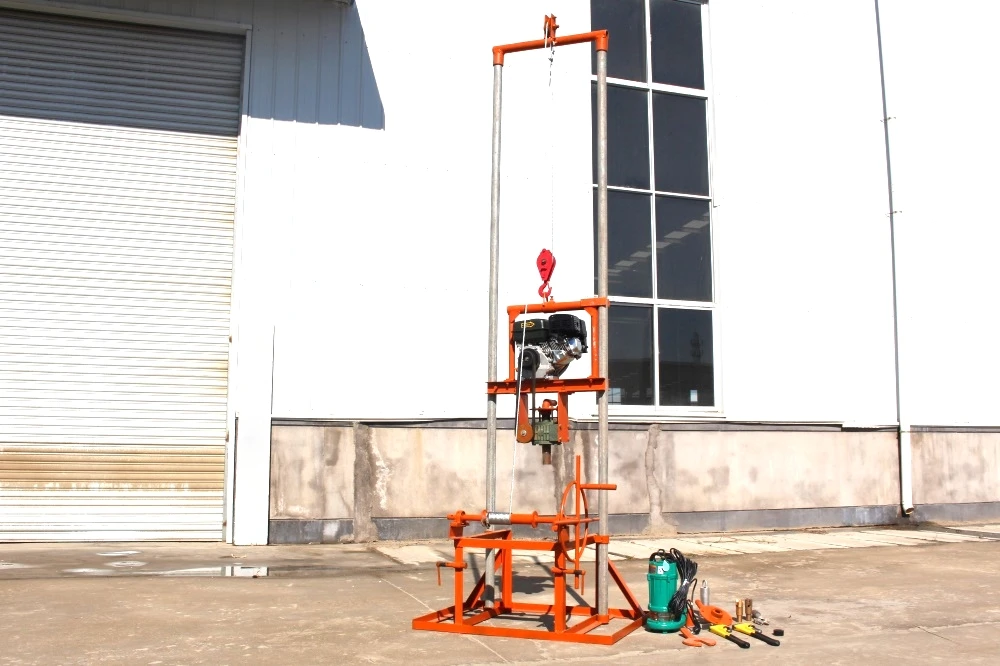

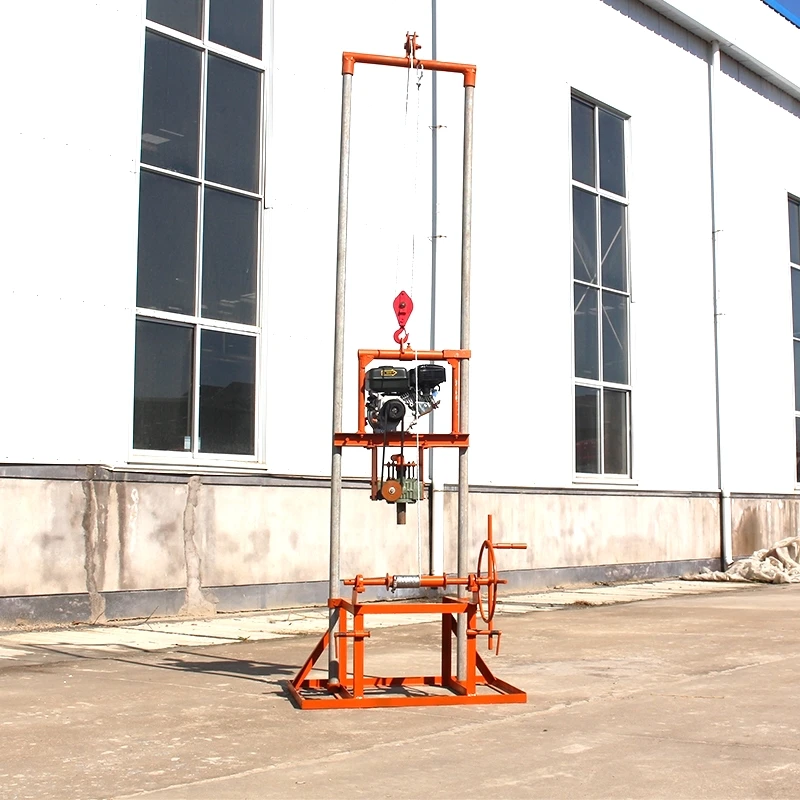

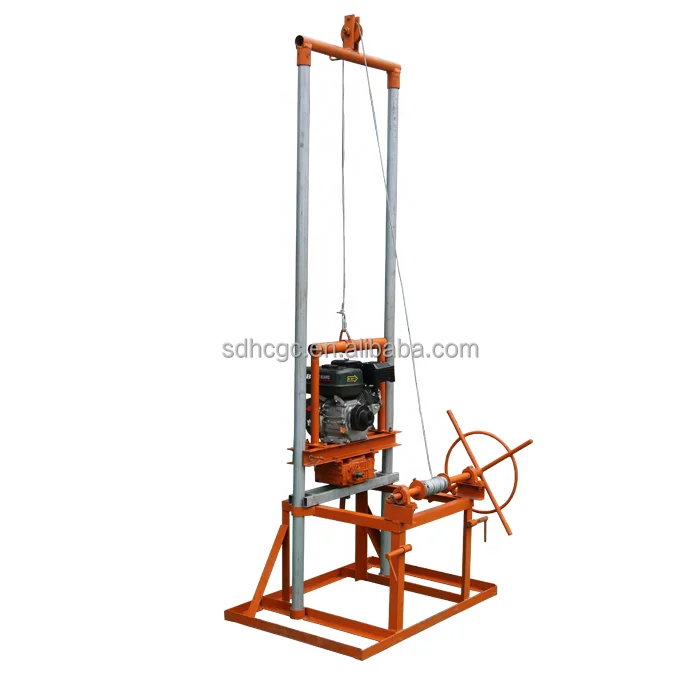

Product Detail Images
Home Garden Use Portable Water Well Drilling Rig Machine
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.
Features:
1. Light weight. The main engine is only about 150kg.
2. Unique design and simple drilling structure.
3. Easy to transport and operate.
4. Can drill through hard stratum, unless thick rock layer.
5. Can drill up to 80m depth. Equipped with hoist, reduce the labor intensity.
6. High efficiency, the drilling speed can reach 20 meters depth per hour in plain area.
7. Assure easily operation and long life span to save more labors and money for you.
8.Packed in wood box, the CBM is about 1.5m³, the total weight (complete set) is about 450kg.
2. Unique design and simple drilling structure.
3. Easy to transport and operate.
4. Can drill through hard stratum, unless thick rock layer.
5. Can drill up to 80m depth. Equipped with hoist, reduce the labor intensity.
6. High efficiency, the drilling speed can reach 20 meters depth per hour in plain area.
7. Assure easily operation and long life span to save more labors and money for you.
8.Packed in wood box, the CBM is about 1.5m³, the total weight (complete set) is about 450kg.
