High quality Multipurpose cnc router laser machine used cnc router machine for aluminum

ر.س80,631.84

Clear
Qty:
Compare

Request quotation for: High quality Multipurpose cnc router laser machine used cnc router machine for aluminum

High quality Multipurpose cnc router laser machine used cnc router machine for aluminum



Product Description



Main features of cnc router
* High configuration: Taiwan helical tooth rack and linear guide, German ball screw, Italy spindles, Taiwan reducer, Japan Servo system, etc.
* Rational design: It’s easier to use and maintain with separate control box.
* Automatic lubrication system prolong the working life of machine.
* Ruggedly constructed machine structure. Material is stress relieved and annealed for deformation free to keep machine accurate and structure stability.
* Machine base milling and drilling are made by CNC machine which can process 5 sides at the same time to make sure the machine body geometry tolerance is standard.
* Advanced powder coating technology to keep the machine body color lasting and fresh.

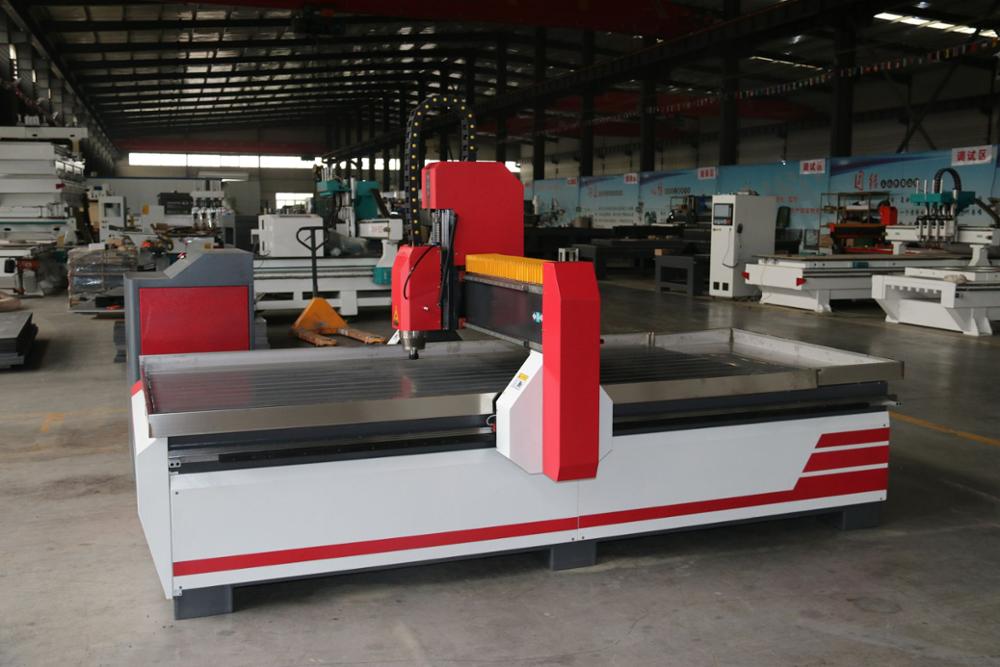

1 router machine.jpg

Configuration of cnc router

Standard parts:

#380v,3phase

#Working area:1300*2500*200mm

#Nc-studio control system

#Z axis Taiwan Original TBI Ball screw transmission

#X Y axis helical gear transmission

#Taiwan Imported Best bearing holder
#Taiwan Linear Square Hiwin rails 20

#Chinese top quality HQD water-cooling spindle 3.0KW
#Fuling inverter 3.7KW
#Stepper motor  450B

#leadshine driver M860H

#Iron Cast gear box

#ATC tool sensor

#Manual Oil Lubrication

#Tool box

#CE standard

#warranty is 3 years.if the machine has any question exclude man-made destruction ,we can send you new parts for free within warranty period.



Sending the following machine parts to you for free .
#1*water pump

#A set of woodworking tools

#6*clips

#3*collet

#2*spanners




Selling point of cnc router

1) In connection with the woodworking industry requirements.

2) Triaxial all adopt high power motor,importation bug leading screw,resilient coupling,triaxial drive to adopt independent power supply system,can satiate needs of continuous yonks super strength manufacture.Stepper we adopt is 110B high power and precision motor..

3) Working table can be dismounting,have two functions ,can process wood flatbed and wood column.

4) Freewheeling speed attainability 50 meter/min(DSP system,Option supply),indirectly acceleration attainability 10 meter/min,working modulus can highly 3 times bigger that congeneric products.

5) It equipped current failure and break point engrave-contimuing functions.

6) Constant power water cooling spindle motor can be competent for all kinds of wood material processing.



Application & Sample



Application of cnc router
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Our Services



Services of cnc router

Of the training

We offer free training in our factory, welcome foreign friend come here to study the machine.
engineer oversea service is aviliable if you like, and Engineers will be trained user programming, operation, processing and routine maintenance.
We will offer Multi-language software and operation CD, Detailed User Manual together with machine for your reference.

Of on line service
24 hours (all days) technical support by call ,e-mail, skype or computer remote control service by engineer.

Of guarantee time
3 years guarantee for whole machine, if any problem of components, we will express you good ones. As we have strictly ex factory inspection, so there in no any problem of the machine.
lifetime maintenance, charge the appropriate fee and the cost of replacement parts.

Why choose US




Company Information



About US
Tip- Top Group is a branch company with engineers and research and development
for 15 years. It is a professinoal manufacturer engaged in the research, development,
production and service of  fiber marking & cutting machine, woodworking CNC router,
laser engraving machine, laser welding machine, and plasma machine.



Packaging & Shipping



Packaging and shipping of cnc router

1) The delivery lead time would be 5-7 working days after recieving the payment.

2) As for the wholsalers/distributors, we could send the cargo by air, by sea via reliable forwarder.


FAQ



Q1: When I get this machine, but I don’t know how to use it. What should i do?



We will send you the English manual and CD video for machine using and maintaining with

machine. If you still have some doubts, we can talk by telephone or skype. Our engineer can

also be sent to your country to install or adjust machine if necessary.



Q2:if some problems happened to this machine during warranty period, what should i do?



We will supply free parts for this machine during the warranty period if machine have any

problems.We also supply free afterservice forever. So any doubts, just let us know, we will

give you solutions within 30 min.



Q3: How to set up the parameter and operate?

The  operation video and how to set up parameter will be saved USB flash disk with the machine.Also when the you get the machine you can connect our technical engineers by Whatsapp or Skype.It can help you quickly  to learn the machine.Most of our customers learned the machine within 2-3 days.





Model Number

TPR- 1325
