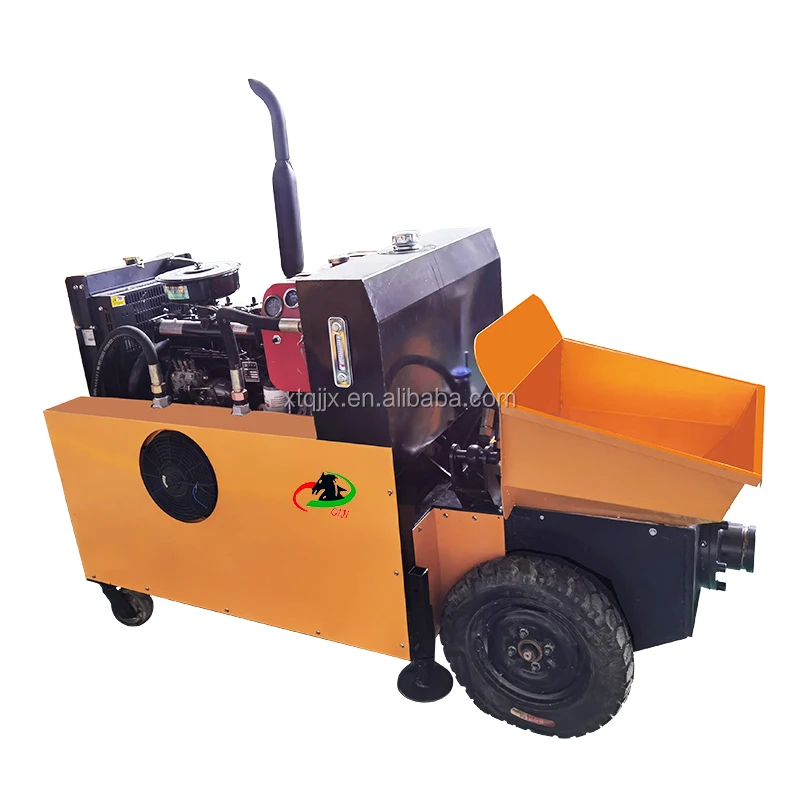

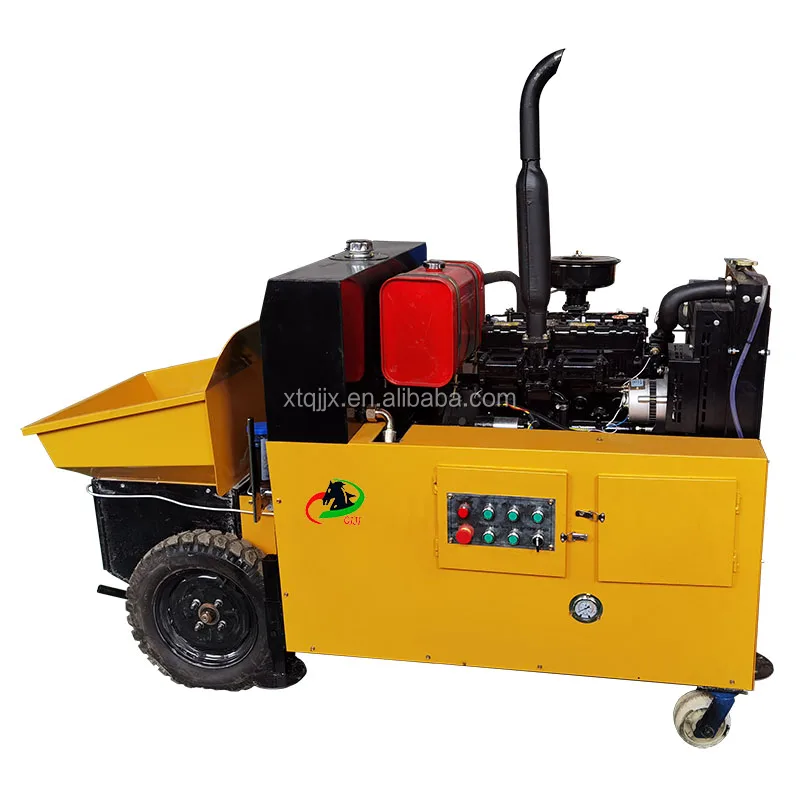

Product Description

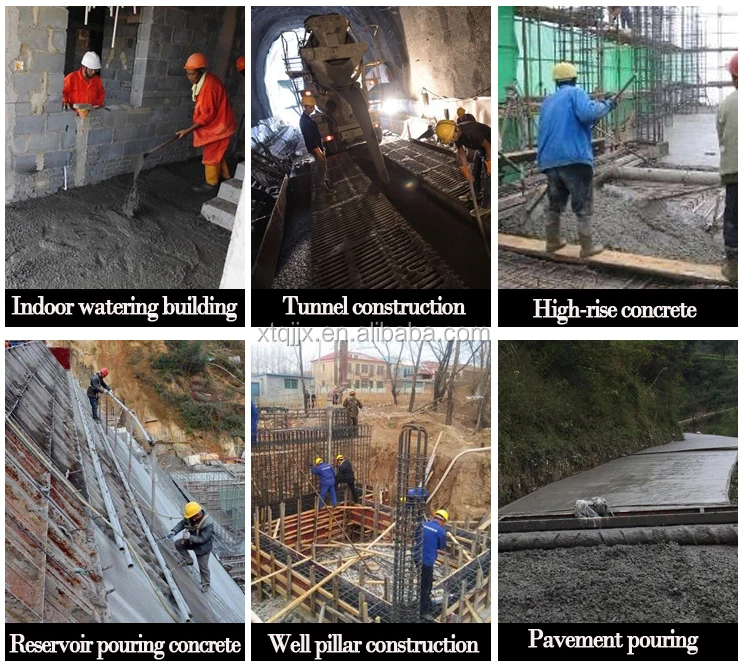

Concrete pump is a concrete pump with compound pumping requirements. It is a fine-stone concrete conveying equipment that passes through horizontal or vertical pipelines and continuous conveying channels at the pouring site. It is widely used in secondary structural column filling, floor heating projects and roof construction. The foundation treatment, foundation reinforcement,grouting tunnel and backfill grouting anchor rod support for the port wharf of the g reservoir high-rise building in the construction of the subway mine.
|
Diesel concrete delivery pump parameter
|
||
|
product brand
|
QIJI
|
|
|
Product number
|
QJ-HBT-10C
|
|
|
Motor Power
|
15KW
|
|
|
productivty
|
15m³/h
|
|
|
Motor rated speed
|
1500rpm
|
|
|
Concrete cylinder（bore*stroke）
|
120*360mm
|
|
|
Vertioai distance
|
20m
|
|
|
Horizontal distance
|
80M
|
|
|
Pump out let pressure
|
32Mpa
|
|
|
voltage
|
380V/220V
|
|
|
Largest aggregate
|
≤2cm
|
|
|
Fuel tank empty pipe
|
35L
|
|
|
Work form
|
S tube valve type
|
|
|
Totai weight
|
750KG
|
|
|
Dimensions
|
2300*800*750mm
|
|

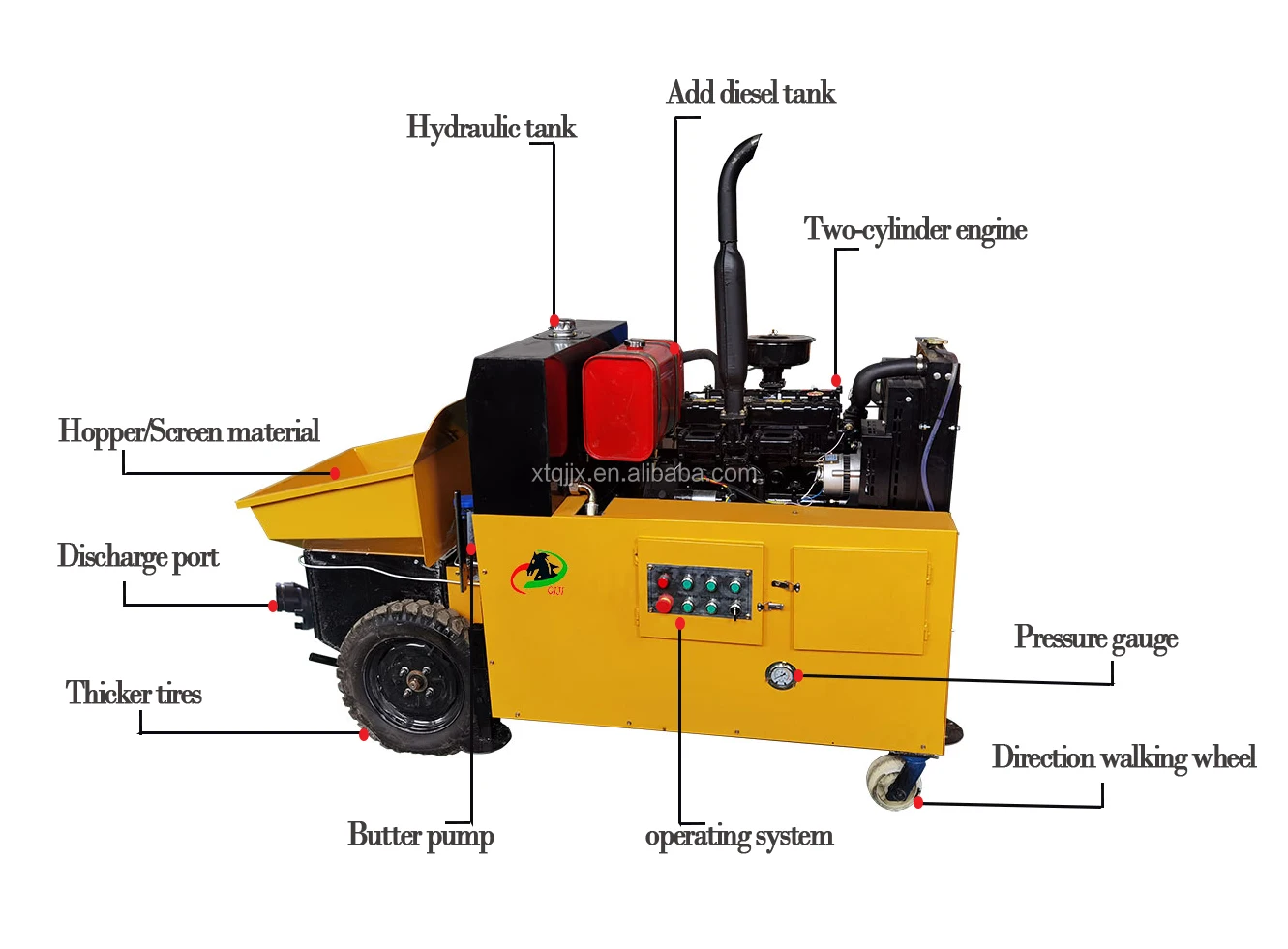

Detailed Images
Pure copper core motor
This machine adopts pure copper coil motor, with stable performance, long service life and no burning.

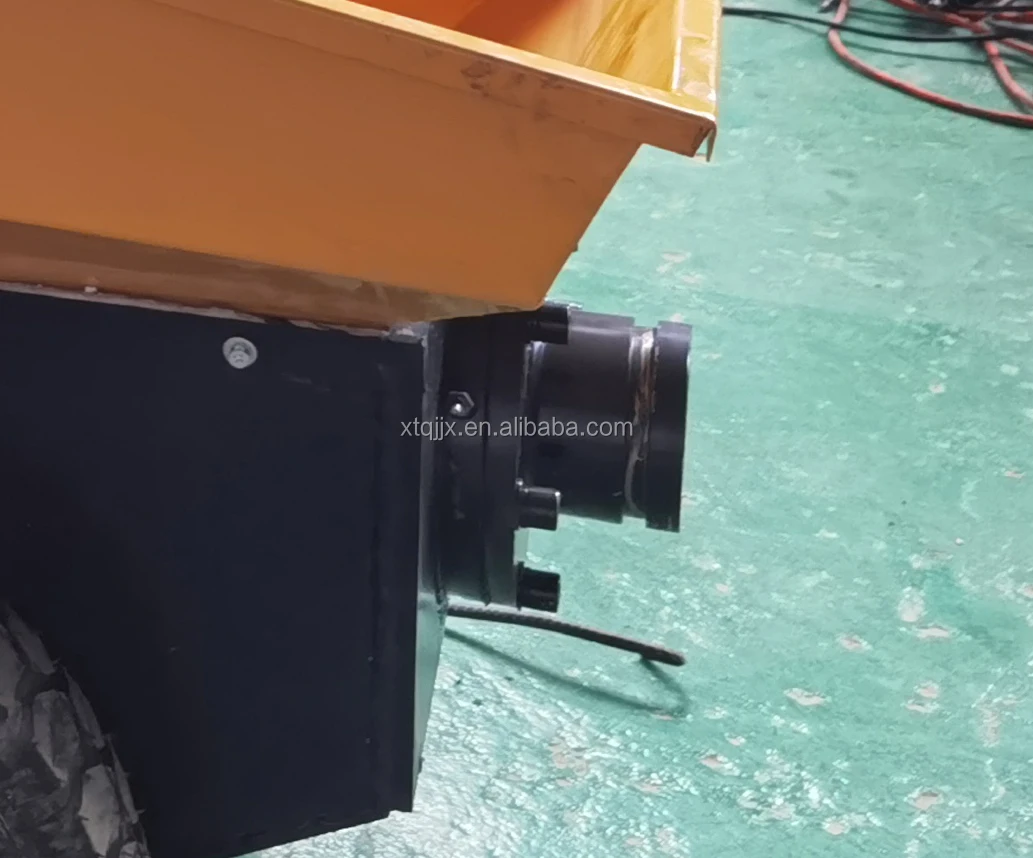

Discharge port
The sturdy and durable discharge port makes the discharge more smooth, universal and convenient, and has a longer service life.

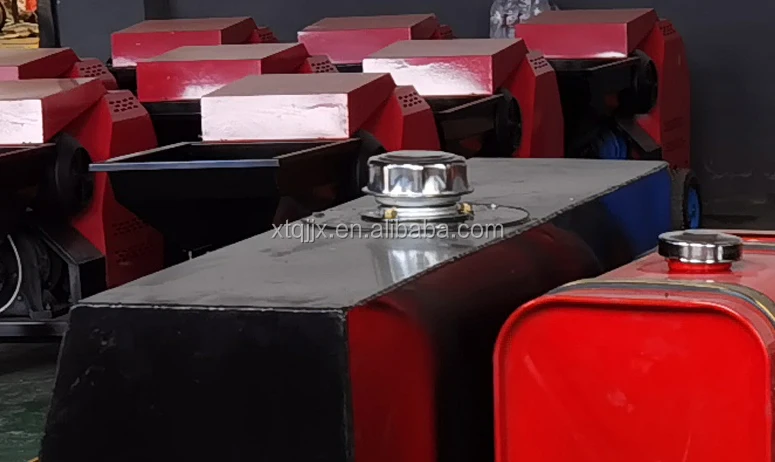

Hydraulic tank
The large-capacity hydraulic oil tank effectively improves the work efficiency, prolongs the working time and the use time is long.

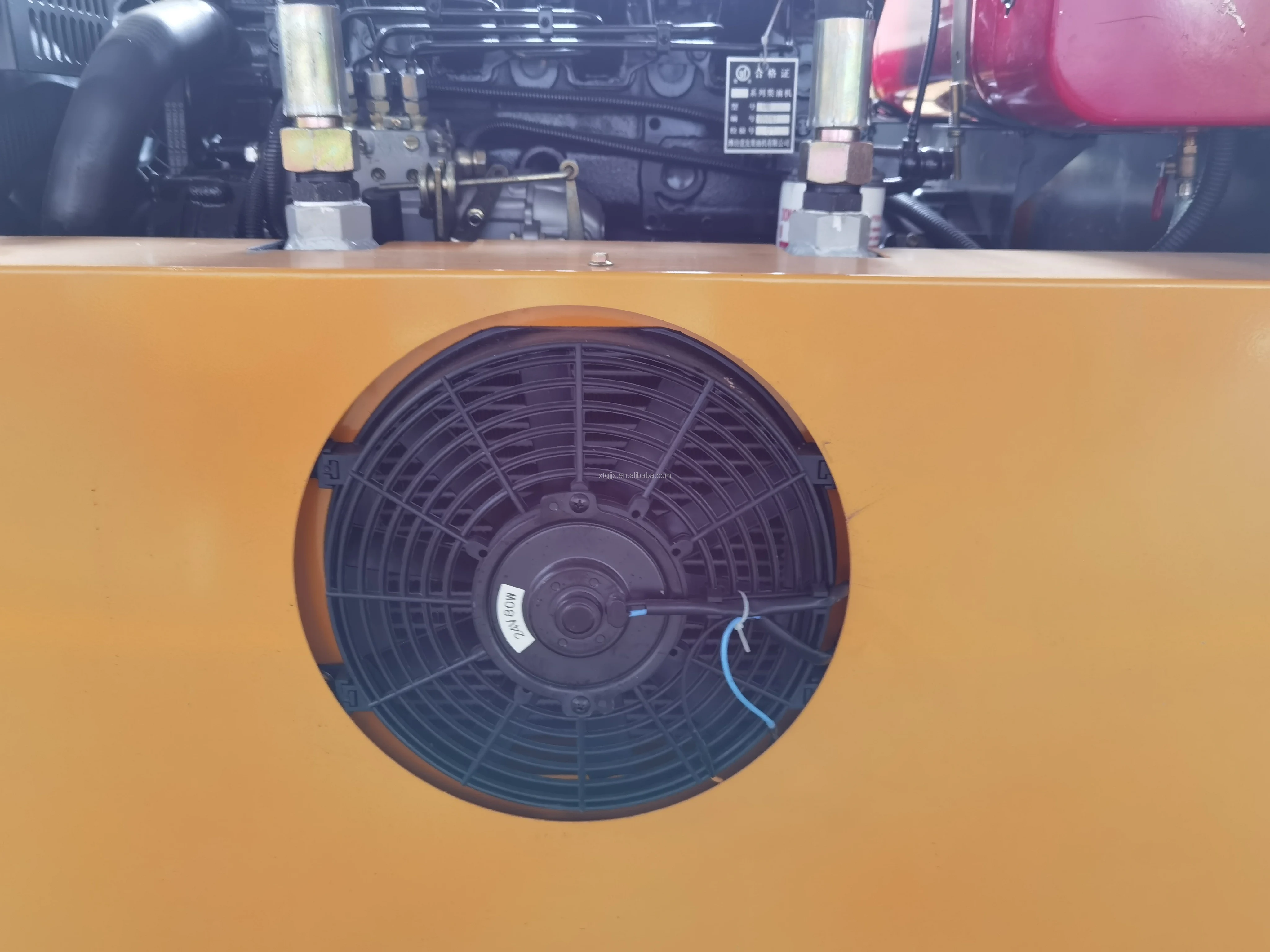

Enhanced cooling system
Strengthen the air cooling system, increase the design of the fuel tank, and the heat dissipation effect is good.

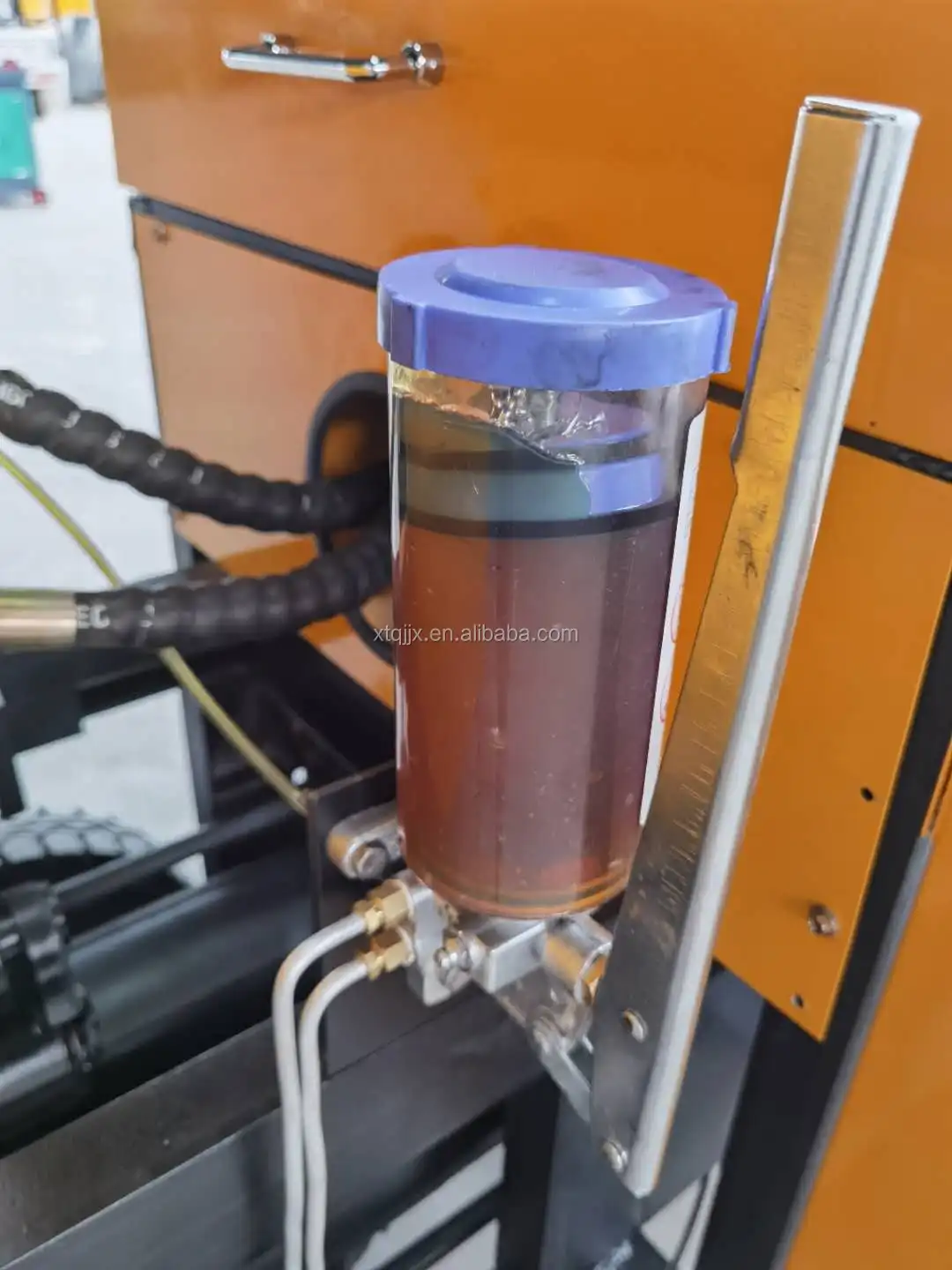

L
ubrication system
With hand oil pump/butter directly to the machine through the pipeline, making the machine that needs lubrication more durable

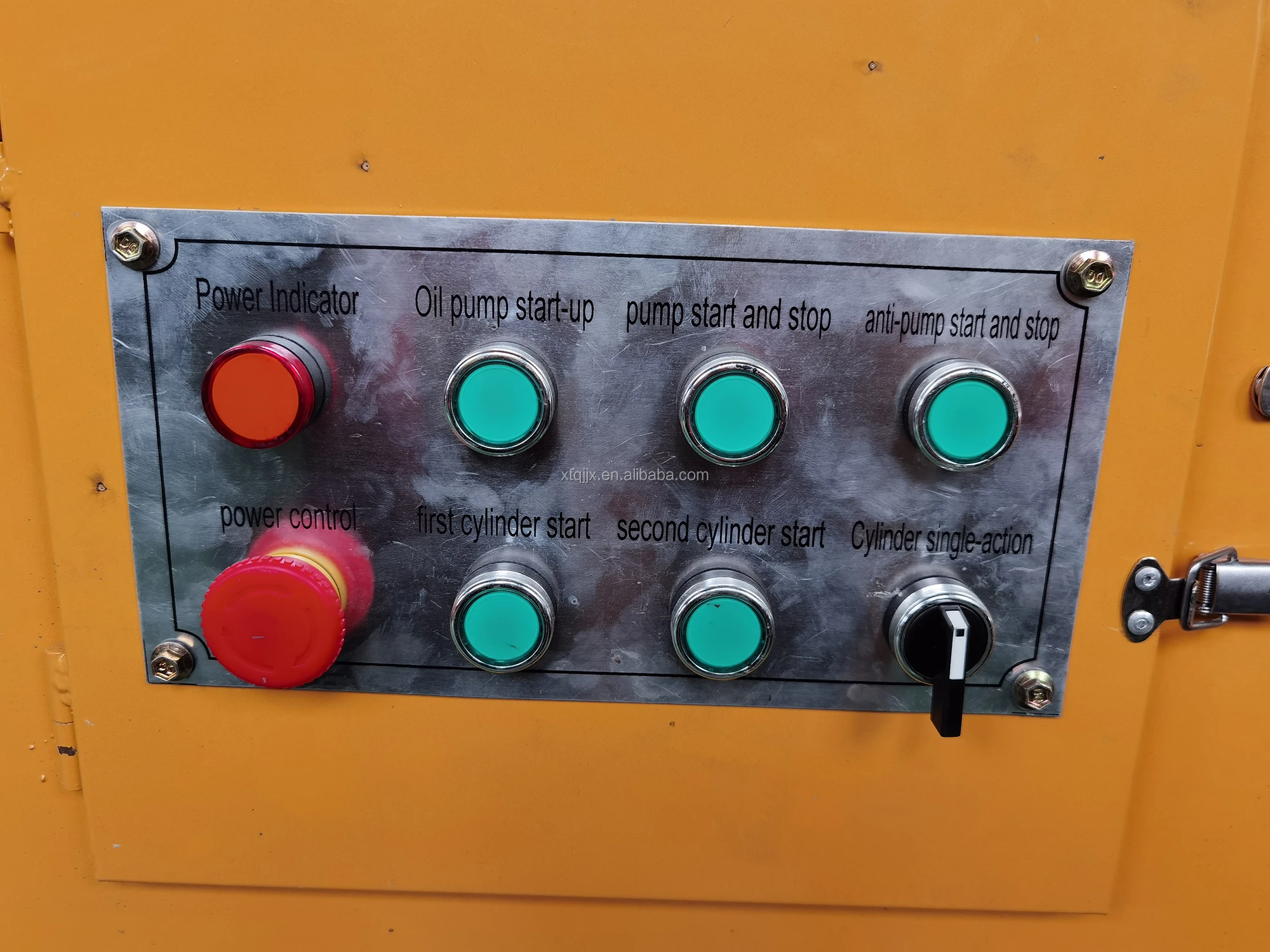

Control panel
More user-friendly design, easy to operate, and more convenient to use.

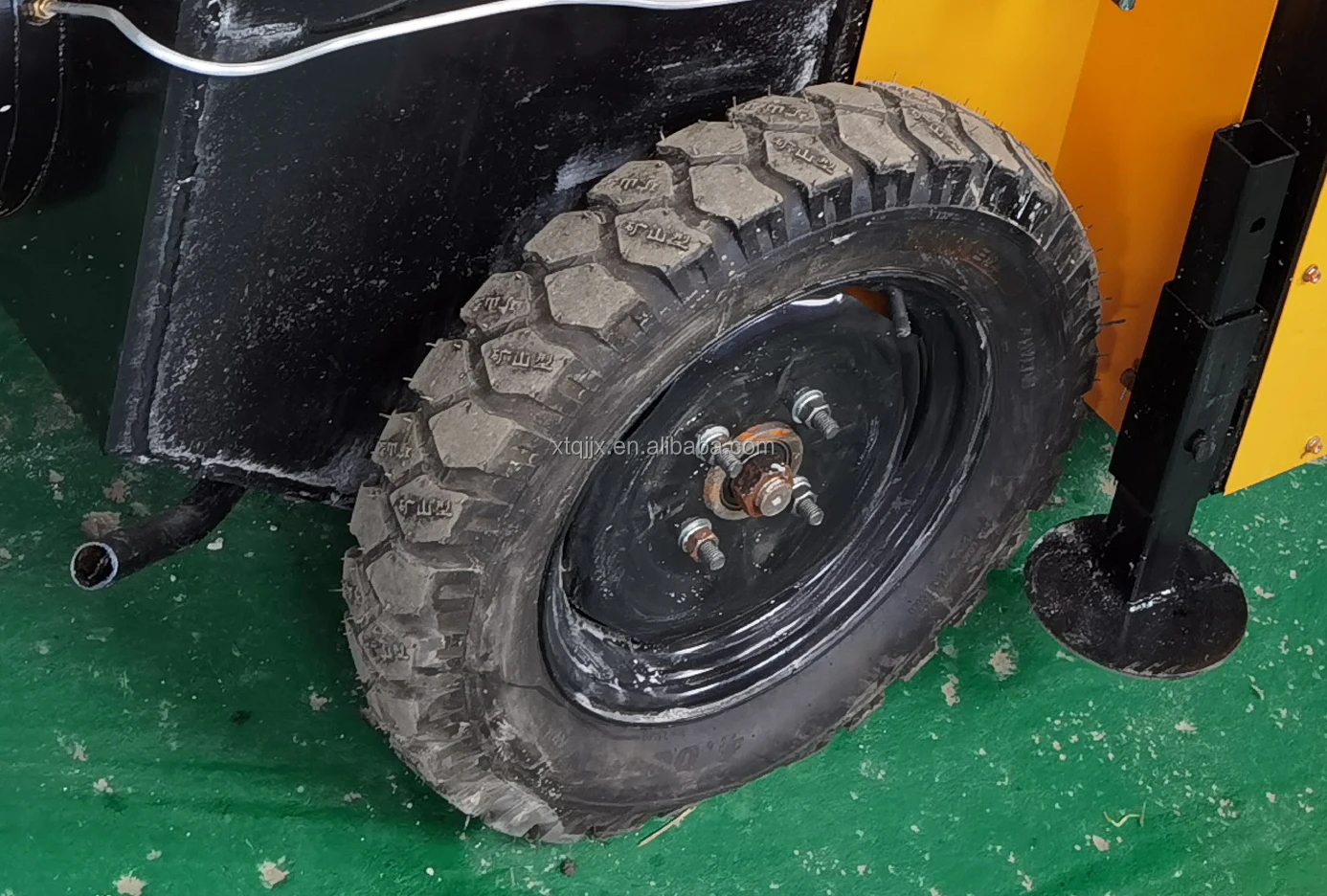

Wear-resistant thick tires
Wear-resistant and non-slip thick tires, easy to move, stronger bearing capacity and long service life.
