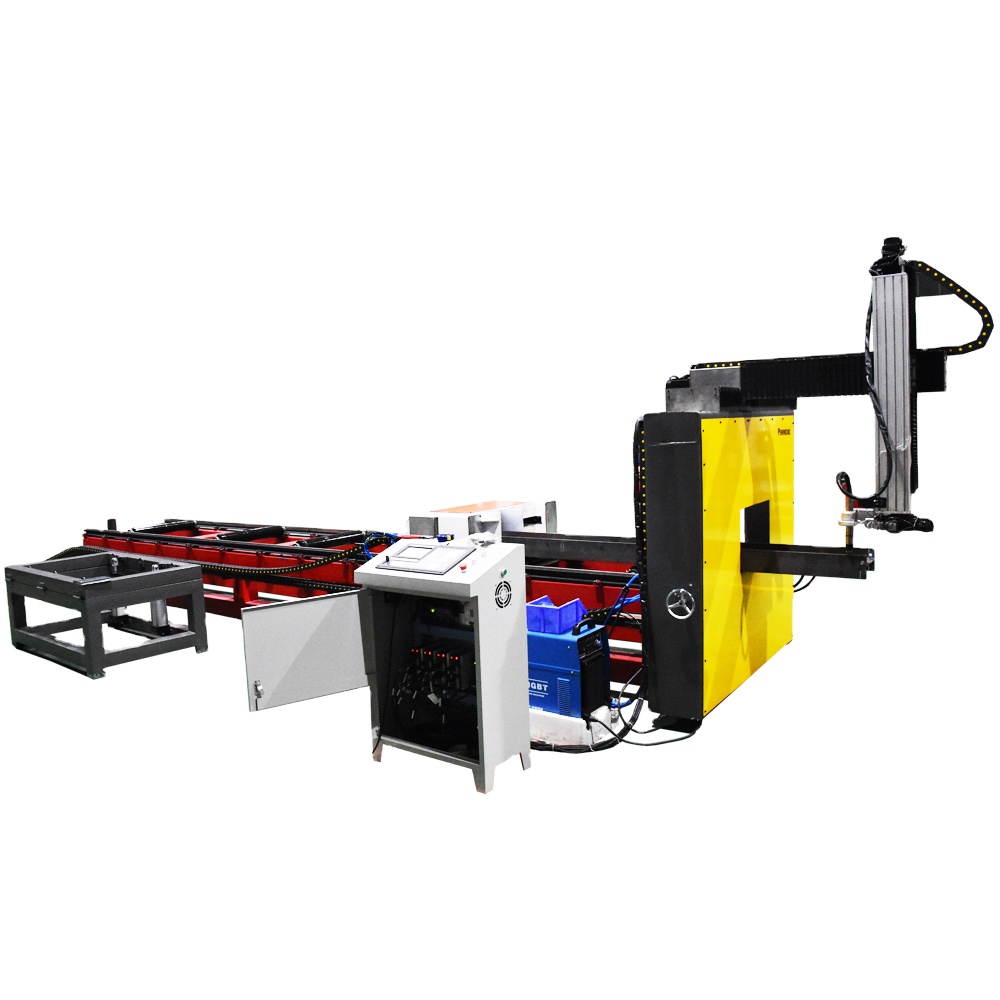

High quality gantry portable cnc plasma cutting machine according to smac for metal/H beam For Servo Motor 12 m H L C T steel

 89,028.16 92,850.95

Saudi riyal (ر.س) - SAR
  • Saudi riyal (ر.س) - SAR
  • United States dollar ($) - USD
  • United Arab Emirates dirham (د.إ) - AED
Qty:
Compare

High quality gantry portable cnc plasma cutting machine according to smac for metal/H beam For Servo Motor 12 m H L C T Carbon

Product Overview
FEATURES AT A GLANCE

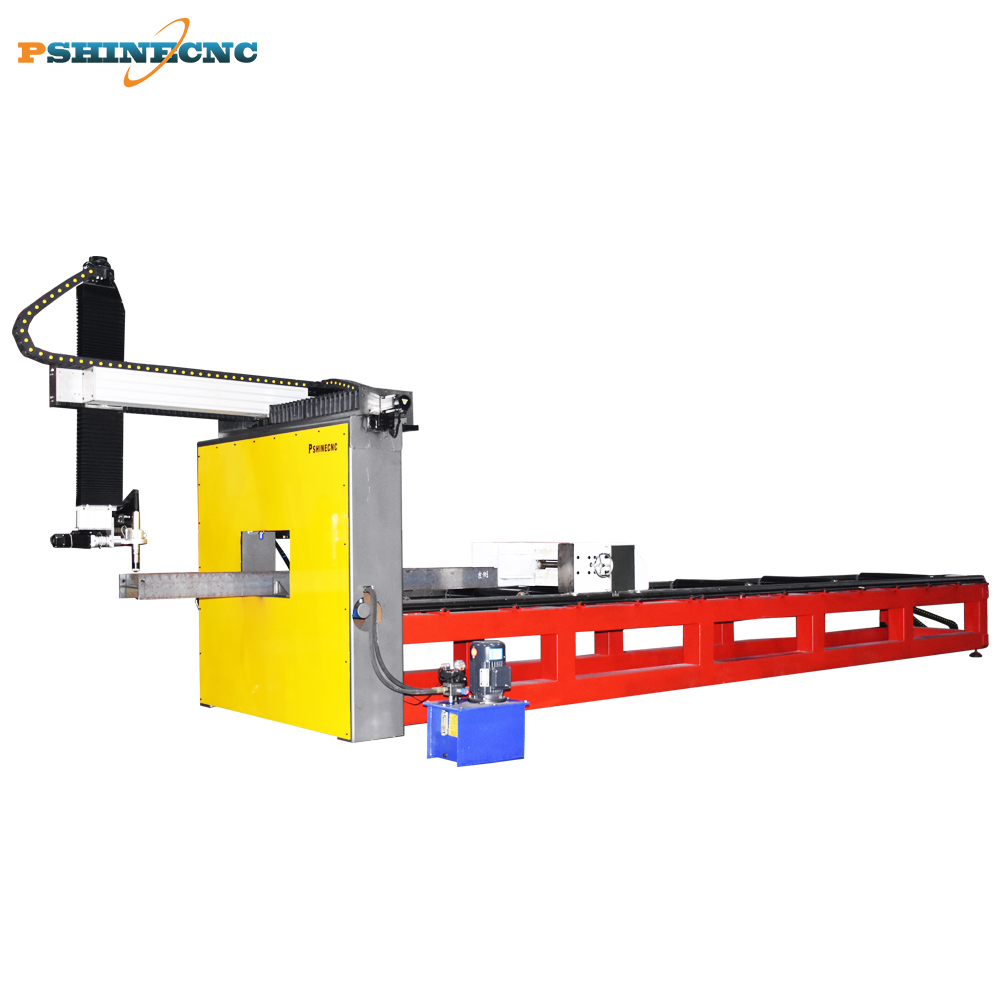

Right elevation

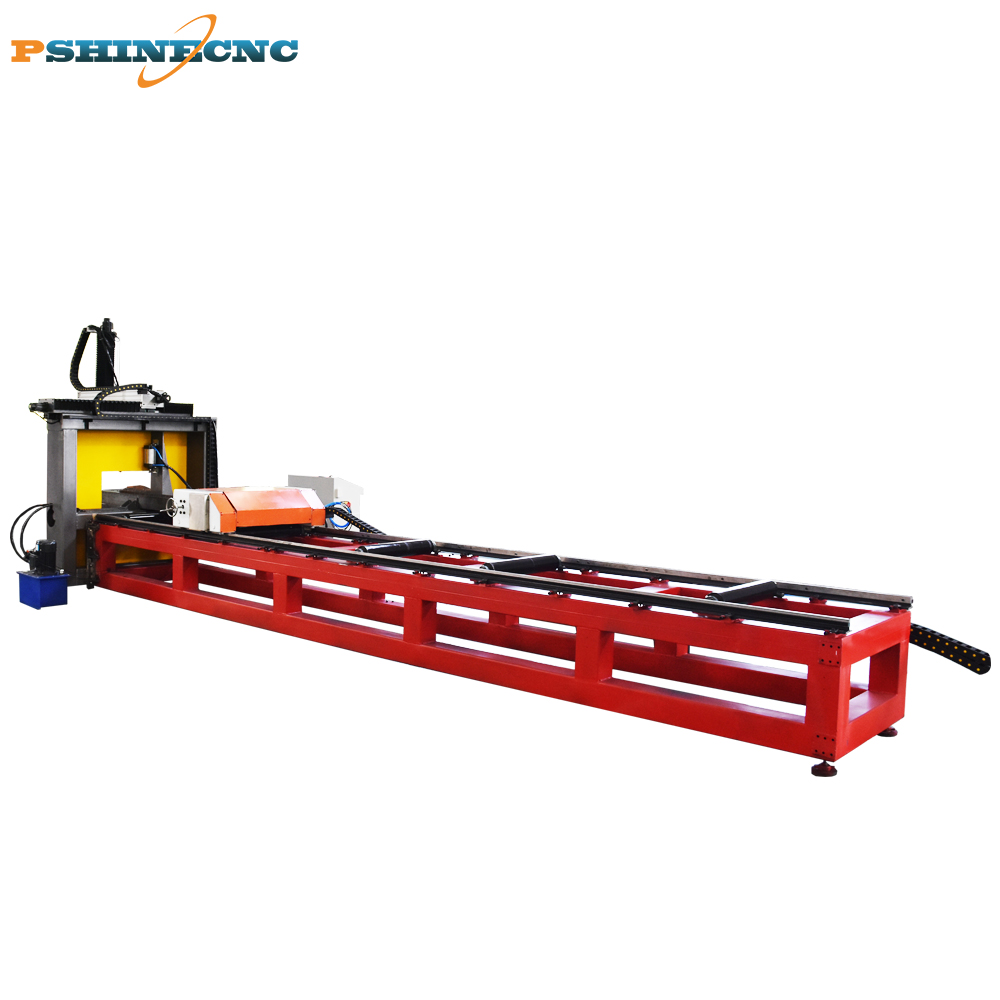

Left elevation

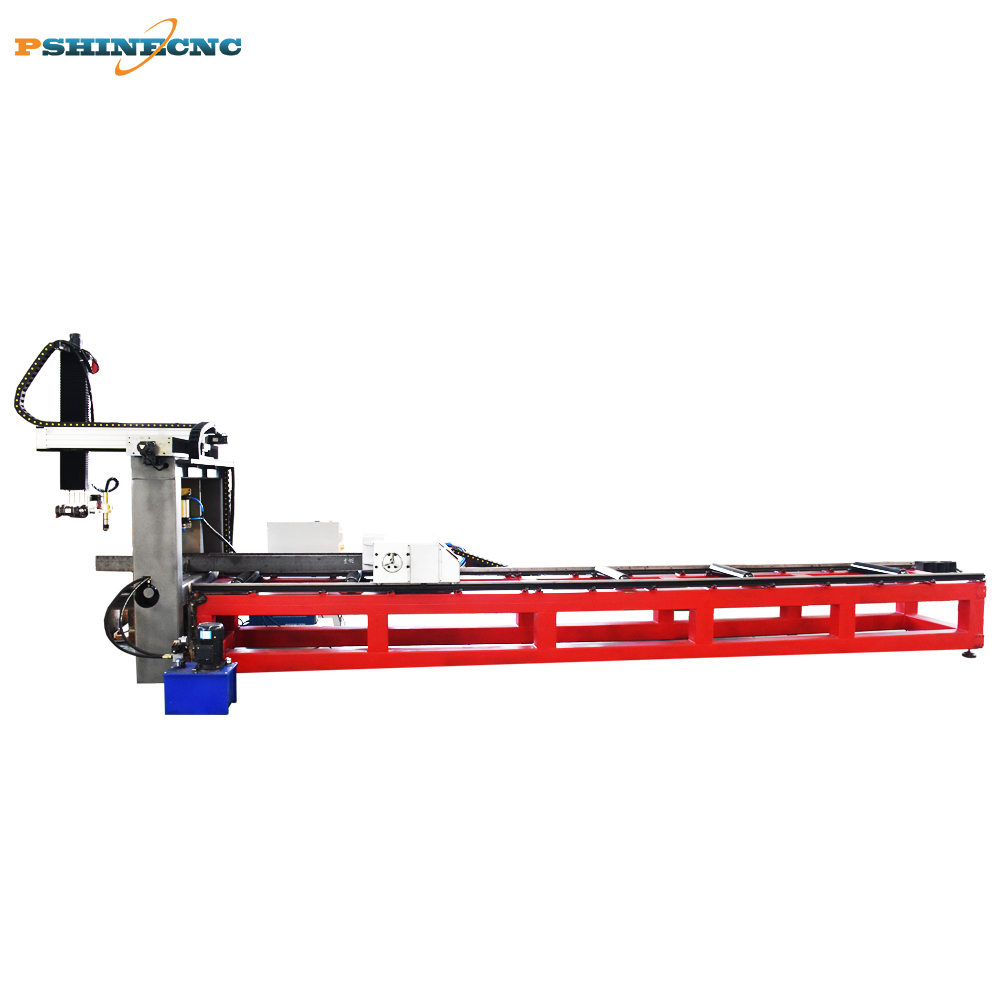

Front elevation
PRODUCT SPECIFICATIONS
Description
Parameter
Remarks
Cutting section range
 500*300(Larger and customizable)
 H section steel/channel steel/angle
steel/T section steel
Cutting length range
6m/12m
Longer and customizable
Drive
servo motor
Exercise
Five axis four linkage
XYZA four-axis cutting B-axis pusher
 Programmatically
Gallery programming
 Please consult the manufacturer for
special-shaped parts programming
Cutting method
 Plasma
Standard Huayuan LGK120IGBT
Cutting ability
 Guarantee the quality of the incision
within the thickness of 18mm
 If you need to cut thicker, you can
configure a larger current plasma or
increase the flame cutting function.
GALLERY INTRODUCTION
Sample Display
Basic graphics
The graphics in this catalog can be entered in size and coordinates on the system interface, so that they can be cut at any position on any surface of the above four cross-sections.
Dedicated graphics
Dedicated graphics
It is used to cut a certain type of steel, such as truncation, intersecting line locks, etc. The following graphics can be cut by entering the size and relative position on the interface.
PRODUCT CONFIGURATION
Pneumatic device
Cutting torch
Control panel
